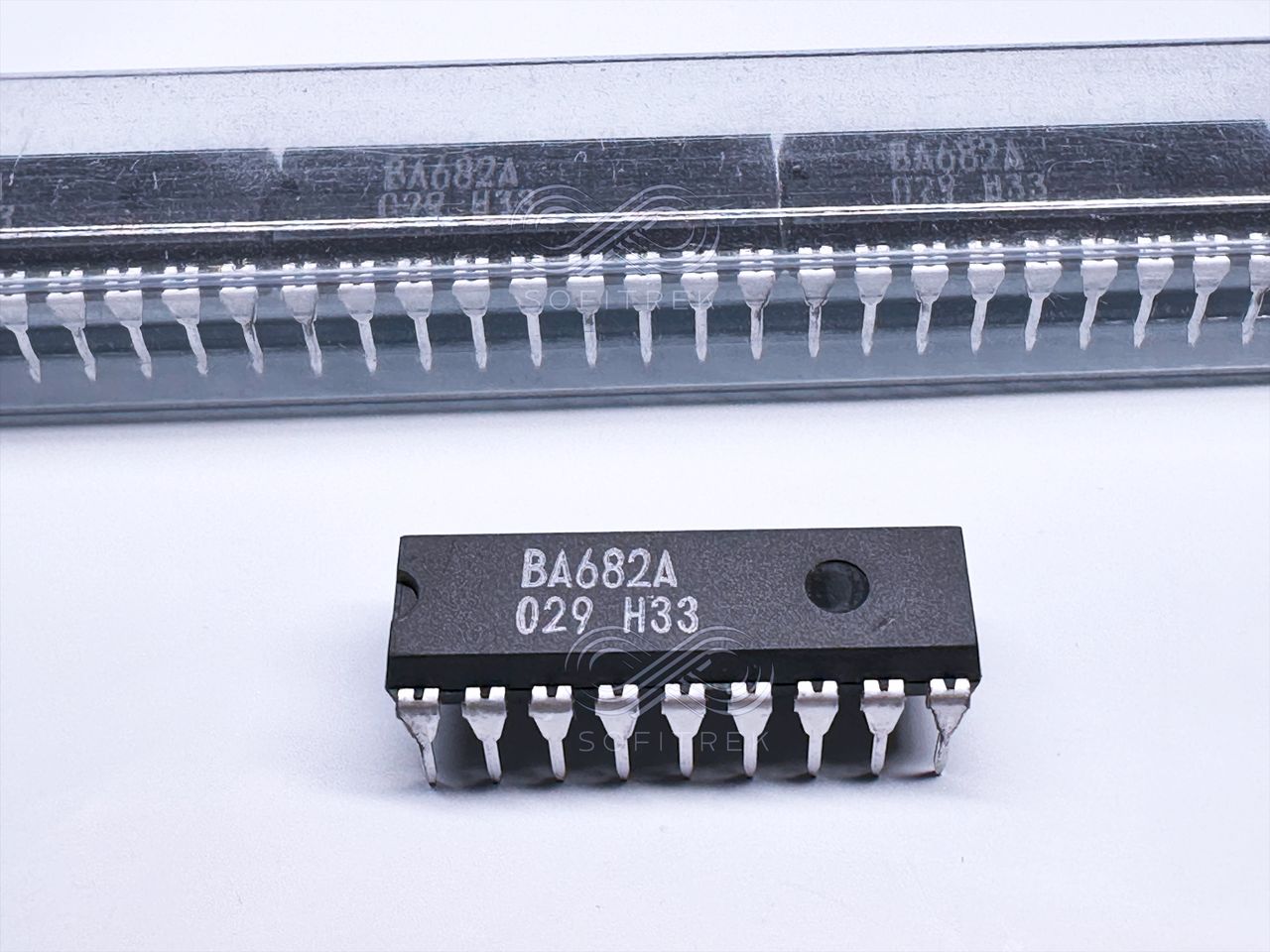

1 Piece of - BA682A ROHM LED Level Meter Driver IC PDIP-18
New in original tube.
| Specification | |
|---|---|
| Supply Voltage-Nom | 12 V |
| Number of Segments | 12 |
| Data Input Mode | PARALLEL |
| Technology | BIPOLAR |
| Display Mode | DOT MATRIX |
| Interface IC Type | LED DISPLAY DRIVER |
| Additional Feature | BARGRAPH |
| Multiplexed Display Capability | NO |
| Number of Functions | 1 |
| Supply Voltage-Max | 14 V |
| Supply Voltage-Min | 10 V |
| Surface Mount | NO |
| Temperature Grade | COMMERCIAL EXTENDED |
| Operating Temperature-Max | 75 °C |
| Operating Temperature-Min | -25 °C |
| Peak Reflow Temperature (Cel) | 260 |
| Time@Peak Reflow Temperature-Max (s) | 10 |
| Number of Terminals | 18 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP18,.3 |
| Package Shape | RECTANGULAR |
| Terminal Finish | Tin/Copper (Sn/Cu) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Length | 22.9 mm |
| Seated Height-Max | 4.25 mm |
| Width | 7.62 mm |
| Package Description | DIP-18 |
| Pin Count | 18 |
| Manufacturer | ROHM Semiconductor |
