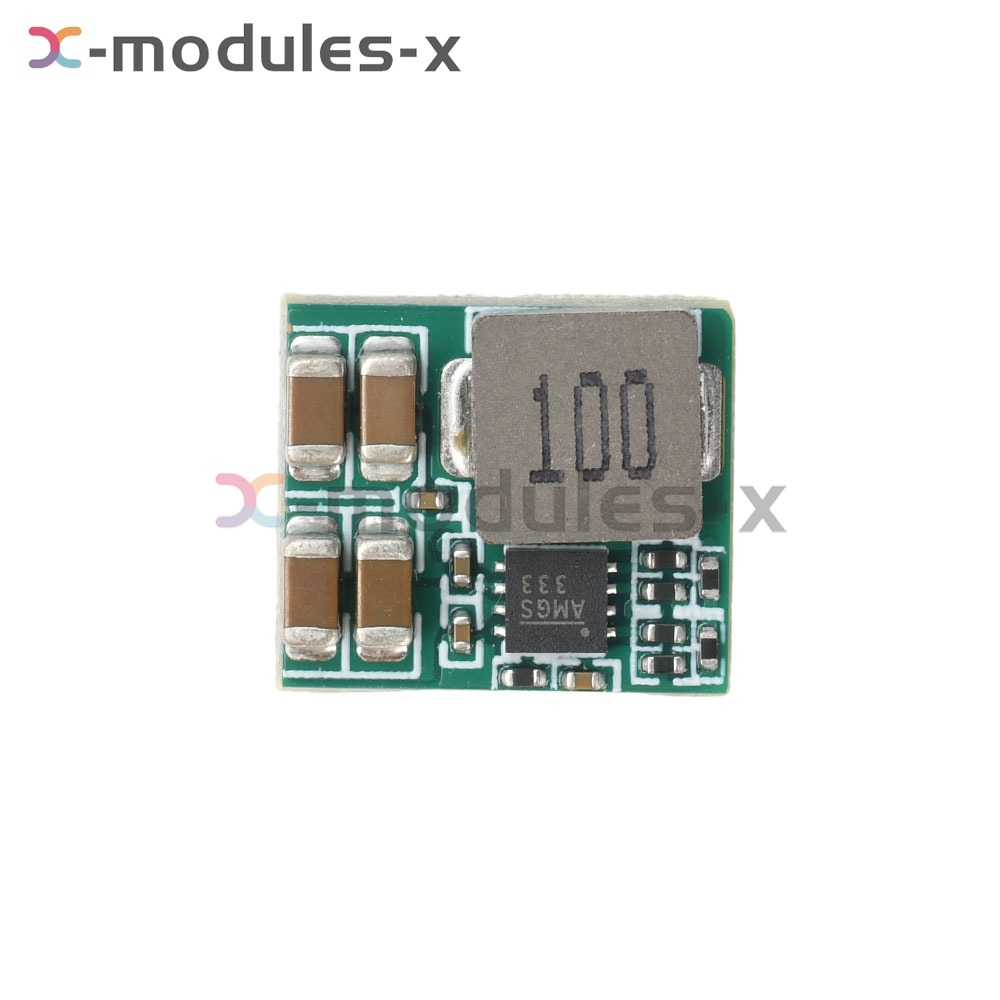

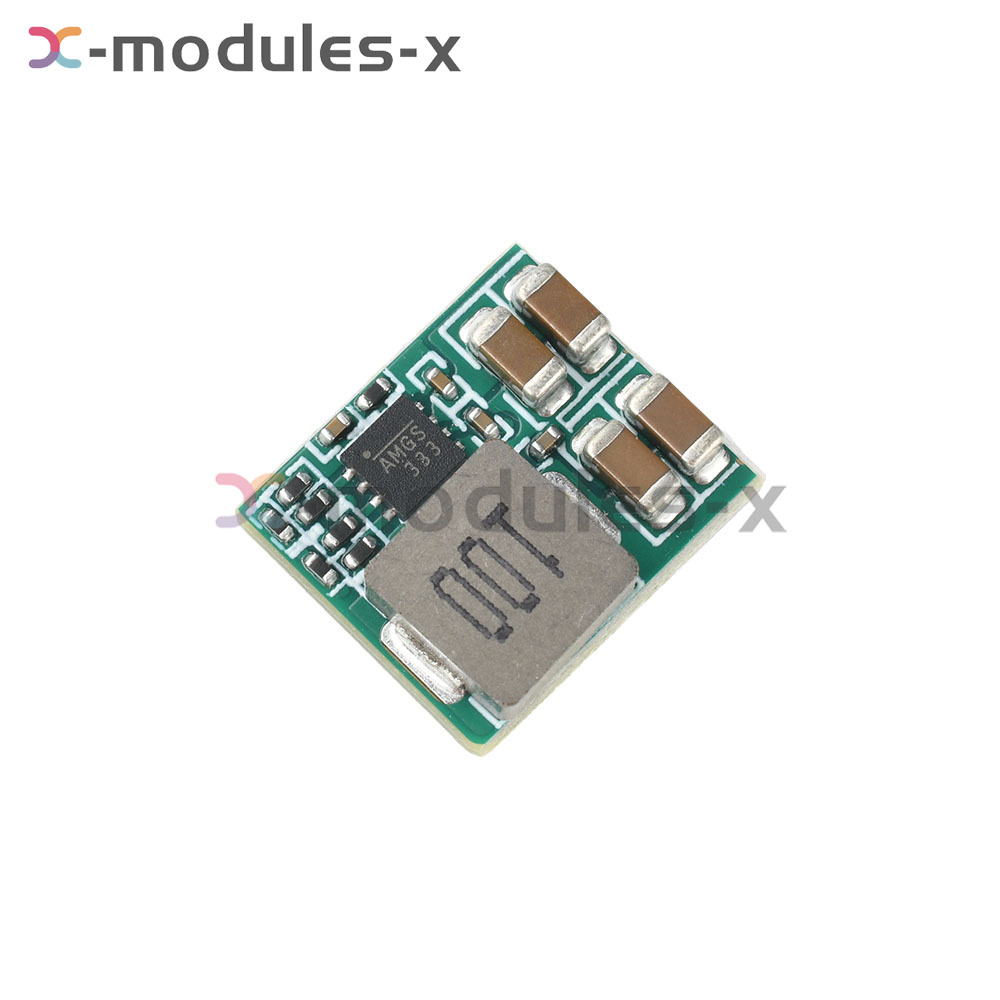

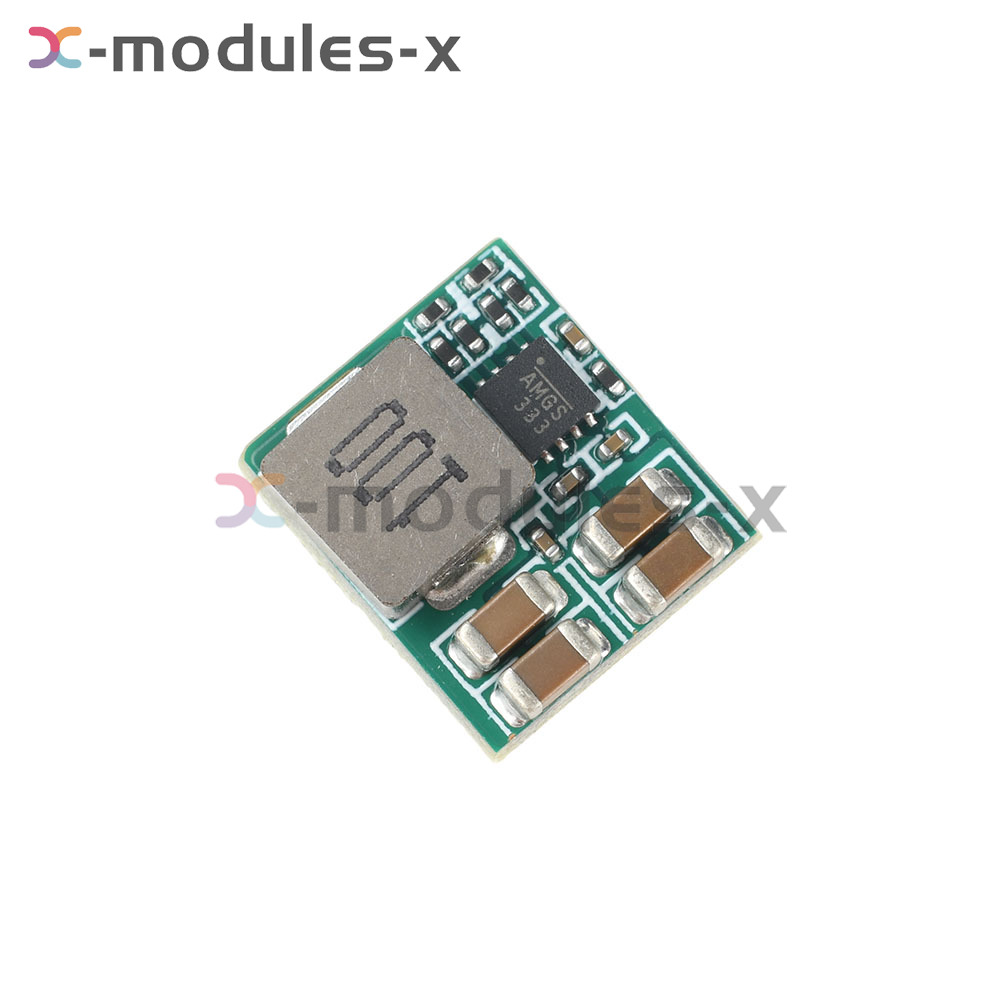

Features:

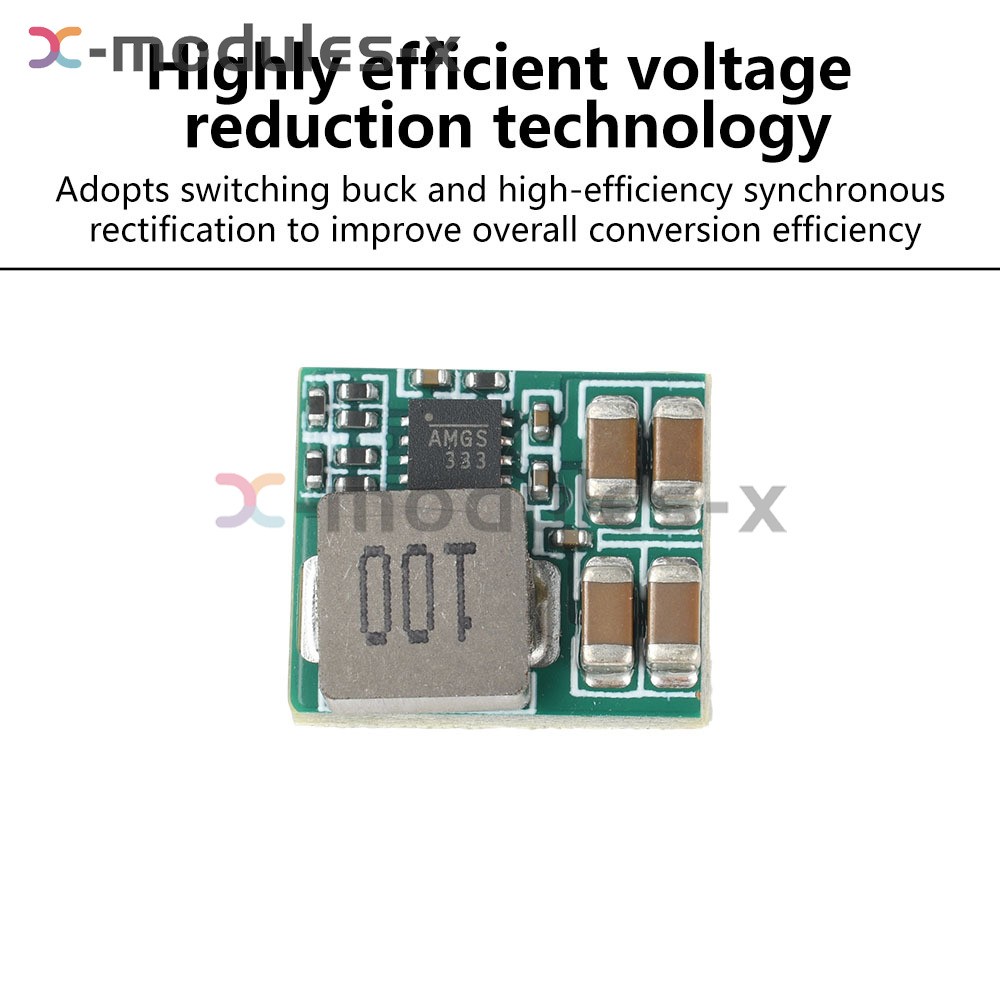

1. High-efficiency step-down technology: switching step-down and high-efficiency synchronous rectification to improve the overall conversion efficiency
2. Stable and low ripple output: power supply regulator design, output voltage is more stable and less noise.
3. Conversion efficiency: the average efficiency of 12V output is over 92%, and the average efficiency of 5V output is over 88%.
4.5V/12V voltage adjustable: flexible adaptation of voltage requirements, to meet the diverse use of the scene
5. If the conversion pressure difference is relatively low, there are good heat dissipation conditions, the actual current can be output continuously 3A
Parameter:

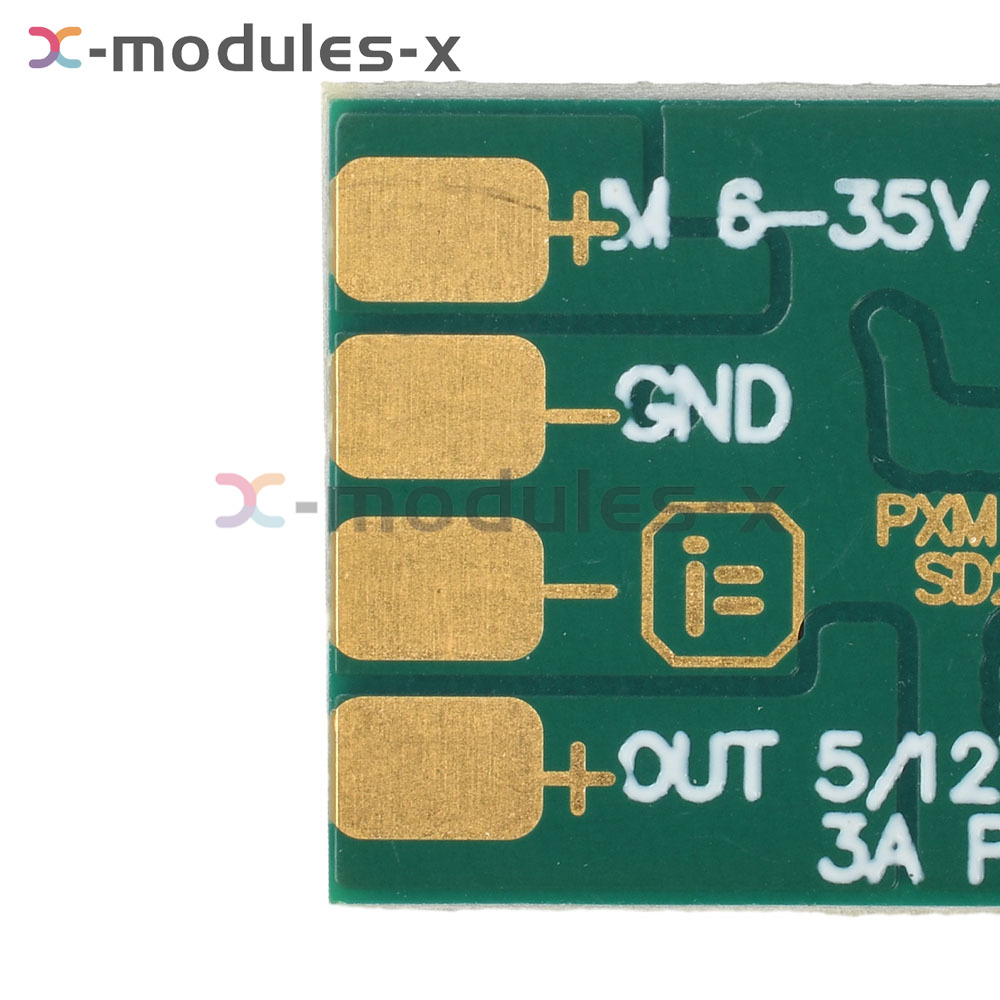

Input voltage: DC 6-35V
Output voltage: 5V/2A 12V/3A
Dimensions: 13.5*11.9*4.6mm
Pad spacing: 2.55mm

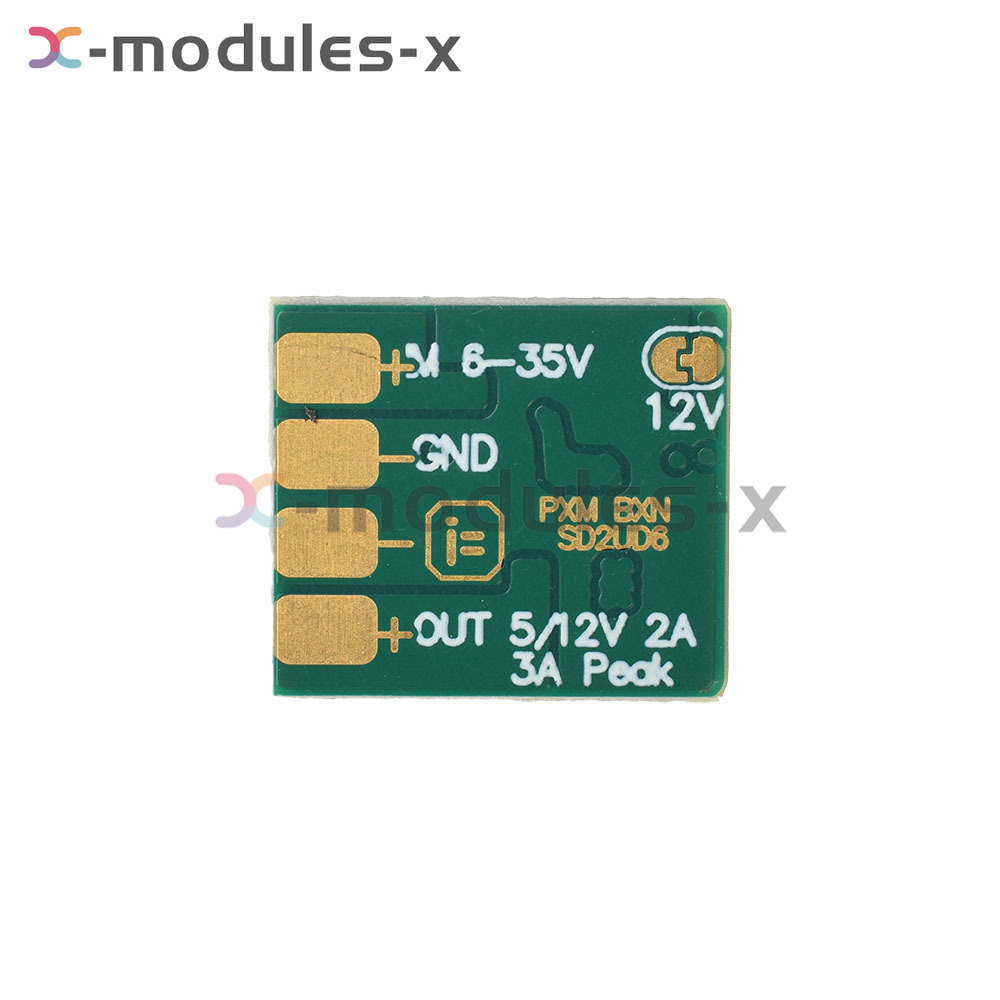

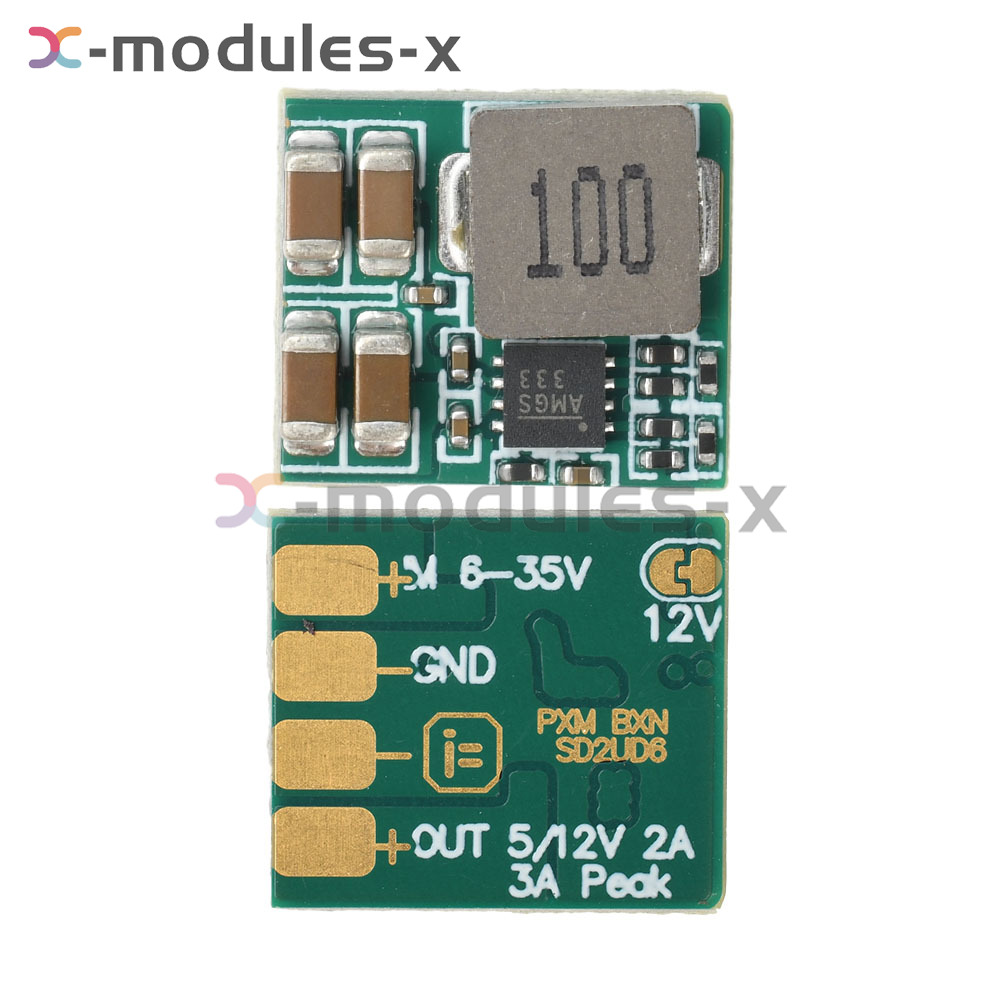

When the short interface short circuit, the output voltage is 12V 2A, when disconnected, the output current is 5V 3A
Such as the conversion of the differential pressure is relatively low, there is a good heat dissipation conditions, the actual current can be output continuously 3A.
* If there is a sparking phenomenon when energized, it is recommended that the input voltage should not exceed 26V.
(the phenomenon of sparking will lead to a peak of 2 times the input supply voltage, resulting in damage to the module)

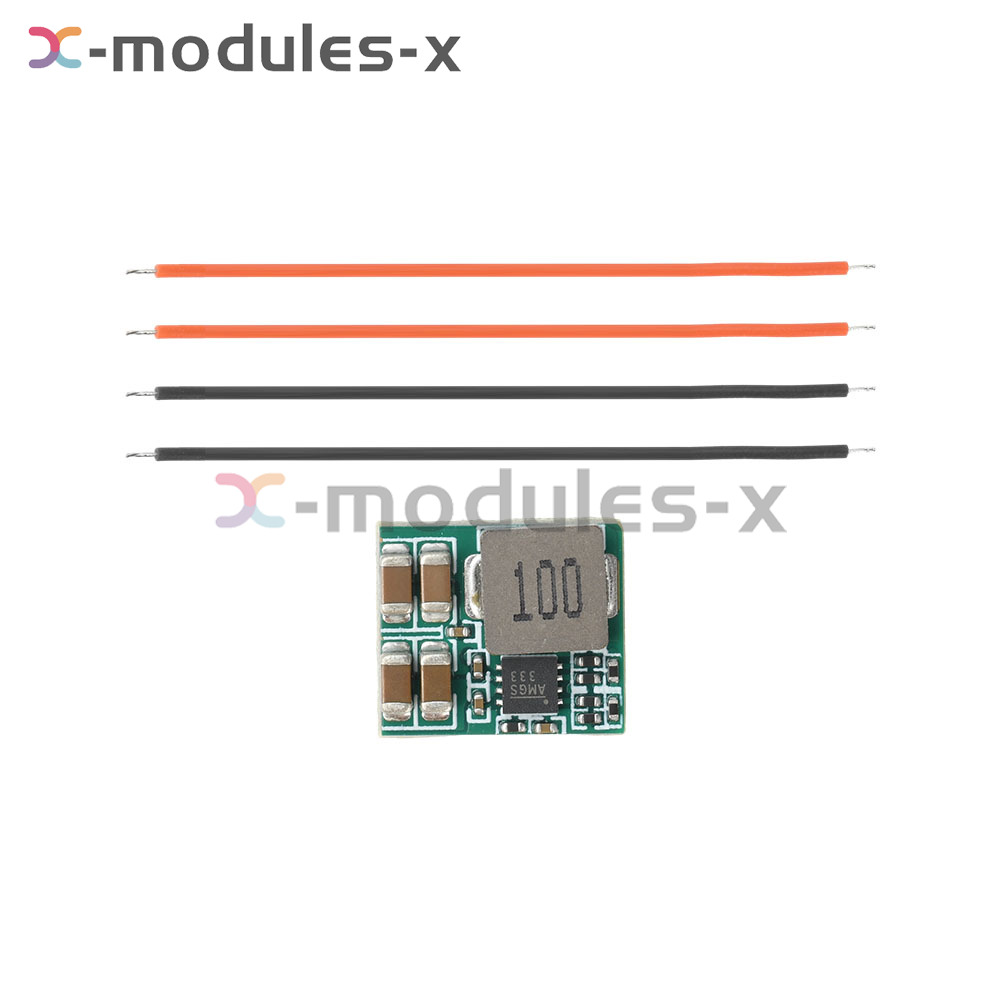

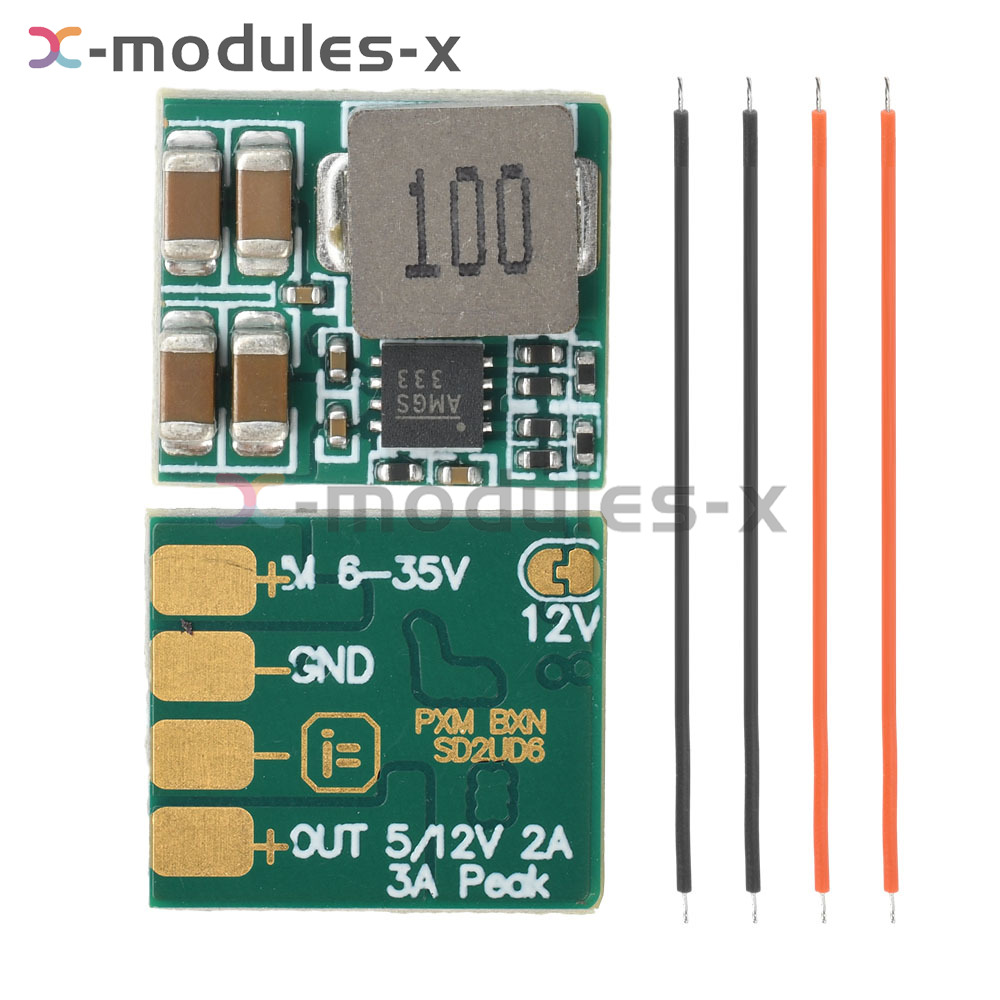

Package include:
Module*1
Wiring*4
