Fitment:
Range Rover Sport
Excludes VDS Model With Electrical Plug on Mounting Base 2010-2014
GT Limited Edition 3 Sport Utility 4-Door 5.0L 2012
GT Limited Edition Sport Utility 4-Door 5.0L 2011 2013
HSE Lux Sport Utility 4-Door 5.0L 2012-2013
HSE Sport Utility 4-Door 4.4L 2006-2009
HSE Sport Utility 4-Door 5.0L 2010-2013
LE Sport Utility 4-Door 4.2L 2008
Supercharged Sport Utility 4-Door 4.2L 2006-2009
Land Rover LR4
Base Sport Utility 4-Door 3.0L 2014-2016
Base Sport Utility 4-Door 5.0L 2011-2013
HSE Lux Sport Utility 4-Door 3.0L 2014-2016
HSE Lux Sport Utility 4-Door 5.0L 2012-2013
HSE Sport Utility 4-Door 3.0L 2014-2016
HSE Sport Utility 4-Door 5.0L 2010-2013
SE Sport Utility 4-Door 5.0L 2010-2013
V8 Sport Utility 4-Door 5.0L 2010
Land Rover LR3
Base Sport Utility 4-Door 4.0L 2006
HSE Lux Sport Utility 4-Door 4.4L 2009
HSE Sport Utility 4-Door 4.4L 2005-2009
SE Sport Utility 4-Door 4.0L 2005-2009
SE Sport Utility 4-Door 4.4L 2005-2009
Part Number:
LR013930,RNB501580,LR016427,
LR014194,LR018398,LR032646,
RNB000855,RNB000856,RNB000857,
RNB000858,RNB501600,RNB501620
LR016418,LR032650,LR038096,LR041110
RPD501020,RPD501100
Removal & Installation:
1.Set steering to straight ahead.
2.Raise vehicle.
3.Remove front wheel.
4.Disconnect the sway bar linkage.
5.Remove the nut from the ball joint and separate from the spindle assembly.
6.Cut the cable tie securing the wire harness mount, then remove the wire harness mount from shock.
7.Disconnect the air line by unscrewing the brass fitting from the strut's top mount.

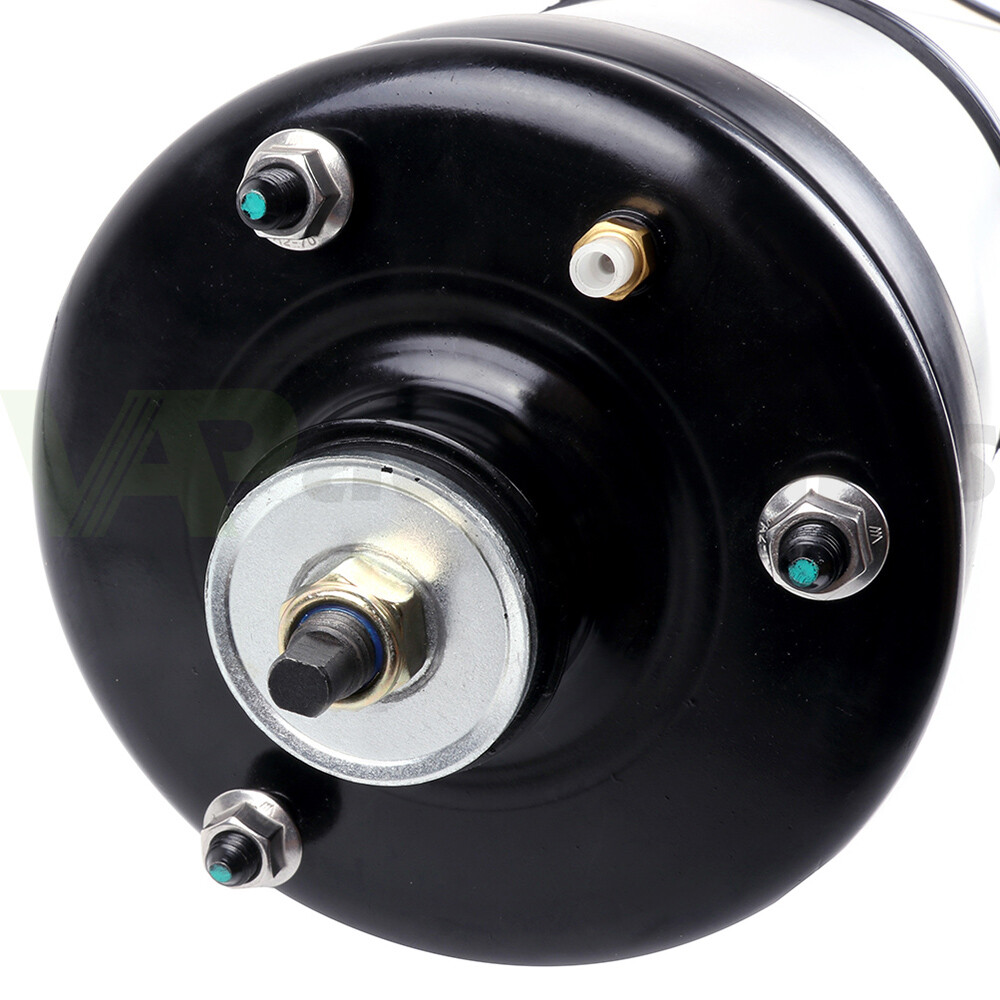

8.Remove the three(3)upper mount flange nuts.
9.Remove the lower shock mount nut, followed by the bolt and remove the strut from the vehicle.
Installation:
1.Install the replacement strut onto the vehicle in the same orientation as removed.
2.Install the lower shock mount bolt and nut, tighten to manufacture's specification.
3.Reattach the spindle assembly and install the nut onto the ball joint, tighten to manufacture's specification.
4.Using the supplied cable tie, secure the wire harness mount to the shock.
5.Using the supplied hardware, install and tighten the top mounting nuts to manufacture's specification.
6.Remove the air line fitting. To do so, spread the collet open and the remaining fitting will slide off of the air hose.
7.Remove the plastic shipping pin from the air inlet fitting, push the air hose in until fully seated into place(air line will not pull out when inserted properly).
8.Installation complete.
Features:
There are two types of air suspension strut designed for Mercedes X164/W164, while the one doesn't have an Adaptive Damping System (ADS sensor looks like a cylinder) near the lower U-bracket.
Package Includes:

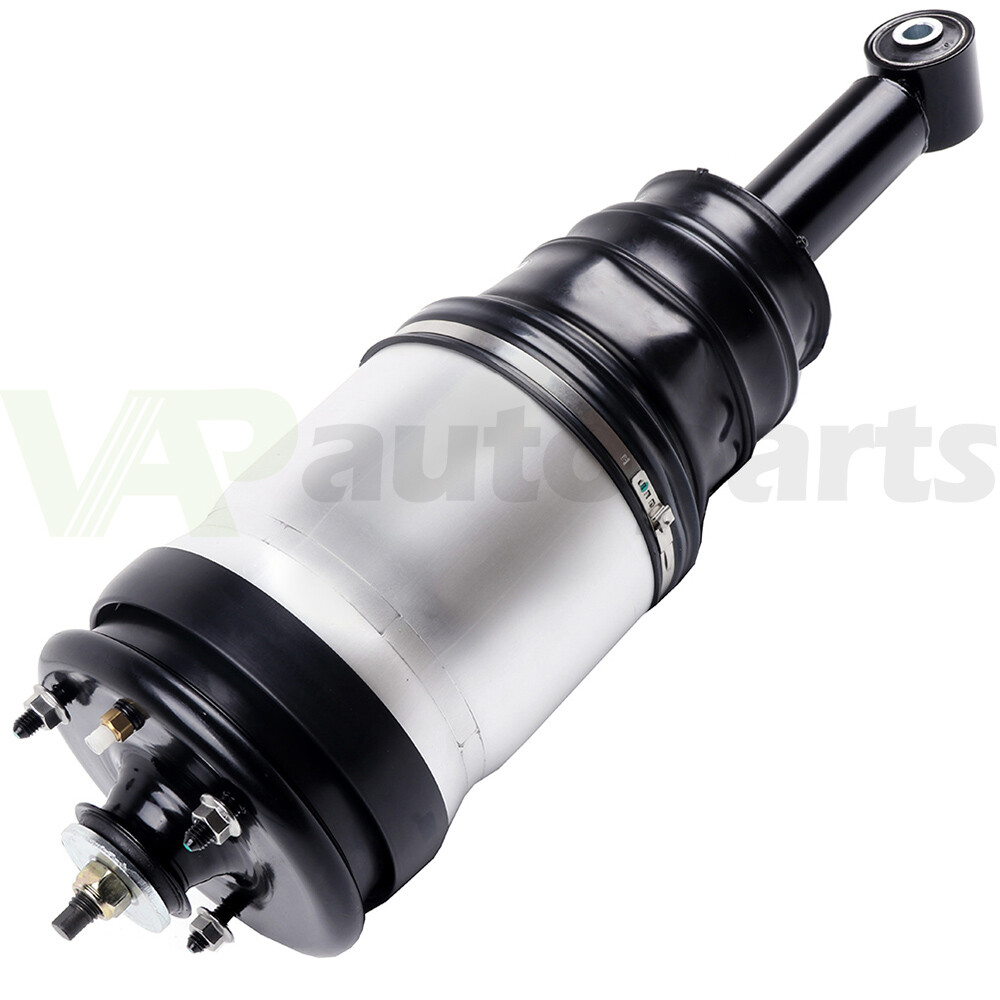

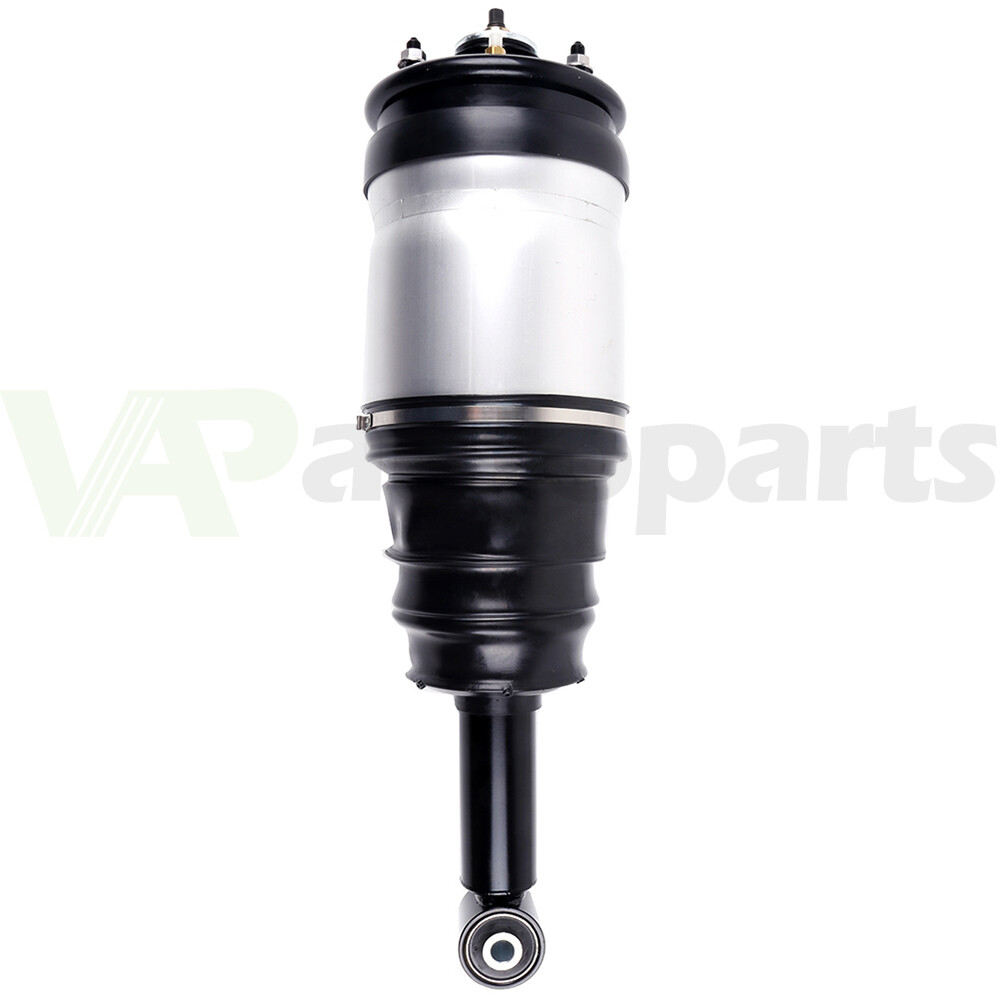

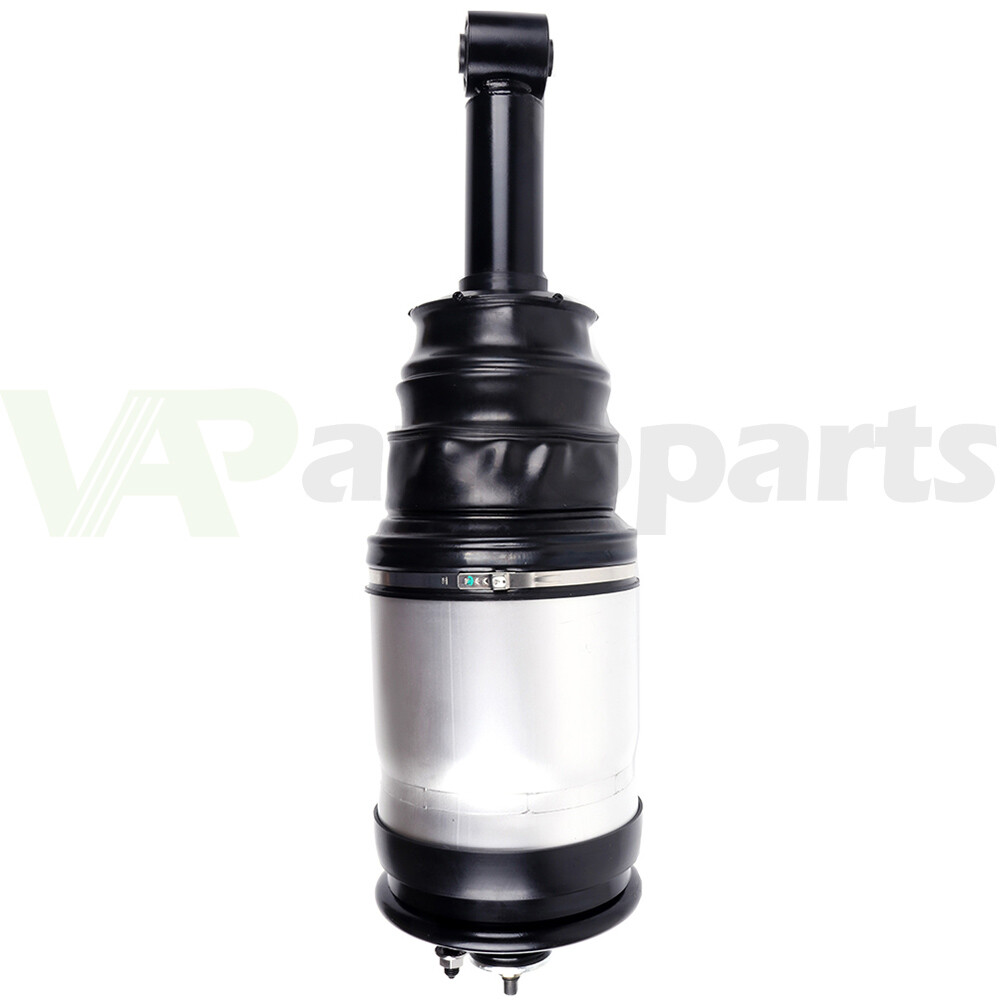

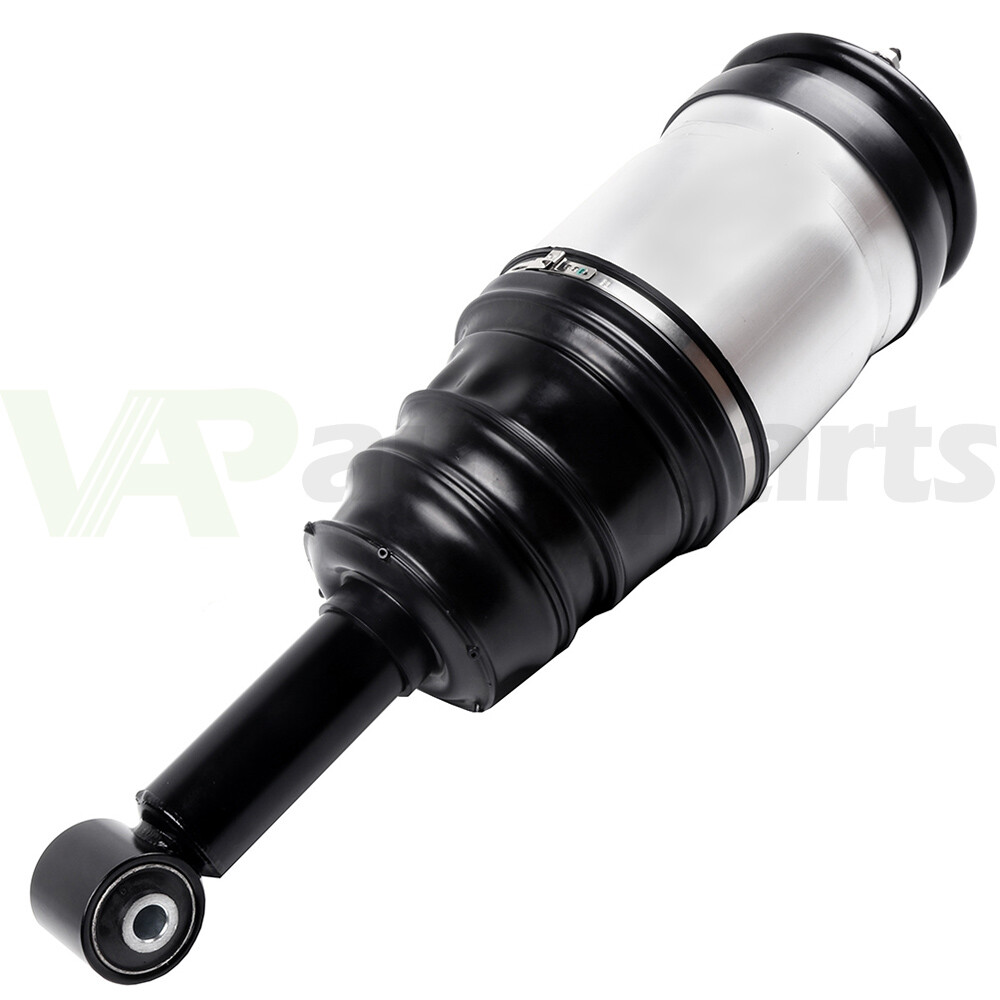

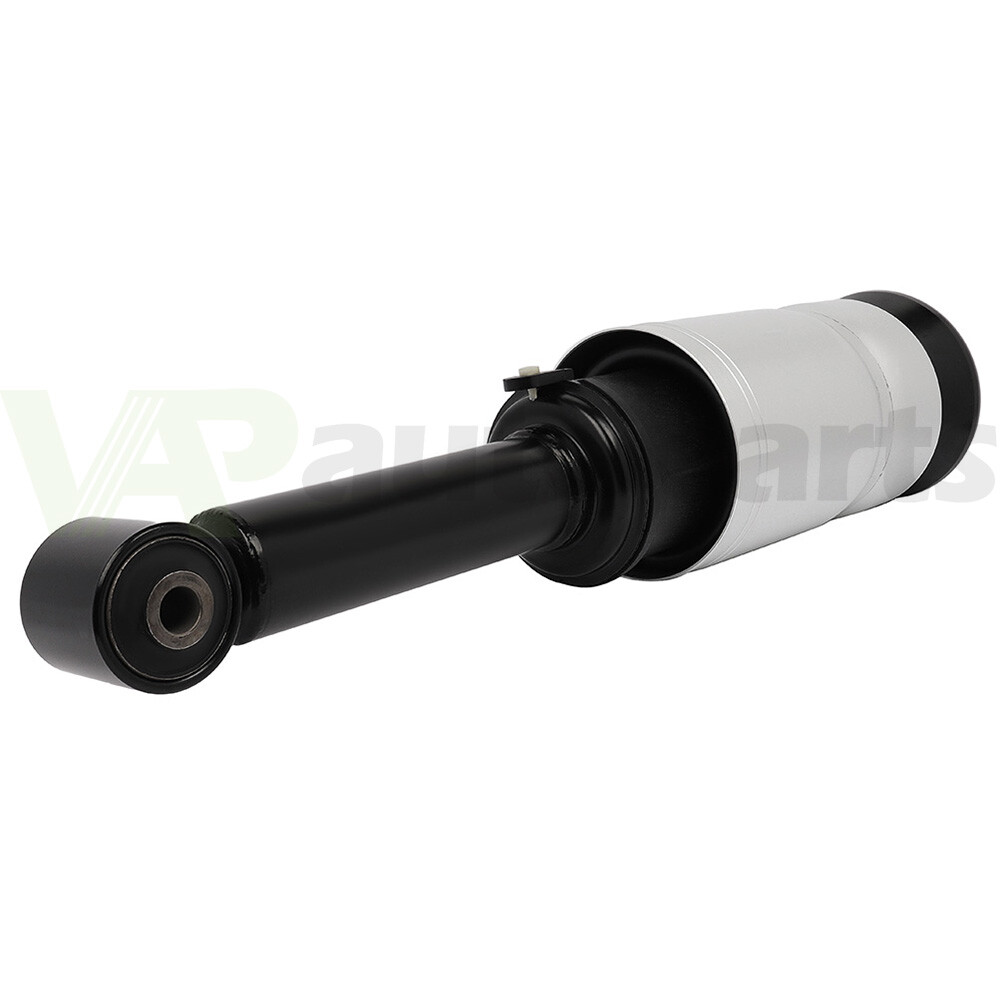

2 Pairs for Front + Rear Left & Right Air Suspension Shock Struts

General Problems with Air Suspension:
Top glue, buffer glue aging, bottom glue damage and deformation
Gas leakage due to damage
The Advantages of our Air Suspension:
High frequency vibration absorption and sound insulation performance,provide superior ride comfort, safety and luxury feelings
Strong Stiffness .The stiffness of the Air suspension varies with the load, and the constant natural vibration frequency makes the spring device have almost constant performance under any load.
It can bear both axial and radial loads as well as transfer torque and adjust internal pressure to obtain different load carrying capacity?
Made of high quality raw materials, effectively reduce air leakage, strong sealing
Installation is fast and easy
When Should Your Air Suspension be Changed:
An excessive tilt or swing of a car in a turn
Wear or damage of final assembly housing, resulting in oil leakage of air suspension and affecting its performance
If the car vibrates violently when it comes to an emergency stop while moving slowly
Notes:
END LINKED VIDEO

| Item Specifics | |
|---|---|
| Placement on Vehicle : | Left Right Rear Front |
| Type : | Air Suspension Strut |
| Fitment Type : | Direct Replacement |
| Size : | Single Dimension(CM) 73.00(Length)*16.50(Width)*16.00(Height) |
| Return Policy : | 30 Days Free Return Or Exchange |
| Maximum Operating Pressure (psi) : | 195 |
| Minimum Operating Pressure (psi) : | 90 |
| Upper Mount Type : | Stud |
| Lower Mount Type : | Eyelet |
| Included Hardware : | None |
| Drive Layout : | Front Engine 4WD |
| Modified Item : | No |
| Custom Bundle : | Yes |
| Surface Finish : | High Quality |
| Quantity : | 4 PCS |
| Manufacturer Warranty : | 1 Year |
| OE Spec or Performance/Custom : | OE Spec |
| Adjustable : | Yes |
| Features : | Sealed |
| Brand : | vap-autoparts |
| Manufacturer Part Number : | VAP836260S01 |
| Interchange Part Number : | LR016418,LR032650,LR038096,LR041110,Driver & Passenger Side |
| Other Part Number : | LR016415, LR016416, LR018398, LR032646, LR034282 |
| Superseded Part Number : | LR034283, LR034284, RNB000855, RNB000856, RNB000857, RNB000858 |
| Handling Time : | 1 Day |
| Return Policy : | 30 Days Free Return Or Exchange |
