1.Quick assembly in ten minutes
In the world of machinery and automation, time is a valuable resource. Efficiency and speed are key factors in determining the success of a project. With this in mind, we have developed an assembly process that allows anyone with basic assembly experience to quickly build a machine frame within 10 minutes, using the tools we provide.
2.All metal structure

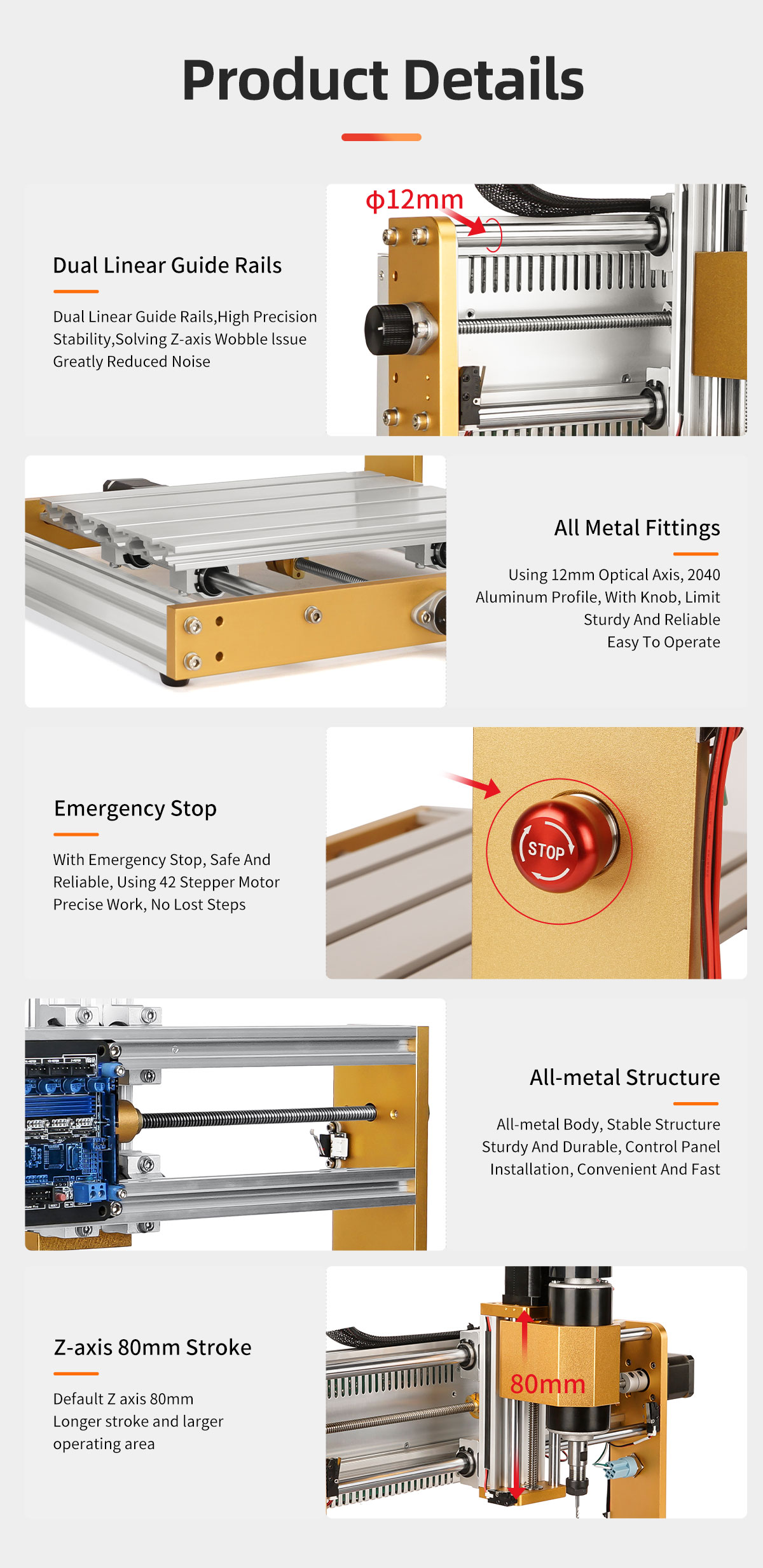

One of the standout features of our machine frame is its all-metal construction, which ensures durability, stability, and reliability. By using reinforced aluminum profiles,the machine frame can withstand heavy loads and resist wear and tear over time. Furthermore, the absence of plastic parts (except for electrical components) ensures that the frame maintains its structural integrity even in harsh operating conditions.
Additionally, our machine frame incorporates a 12mm optical axis, which provides precise linear motion and accurate positioning. This feature is crucial for maintaining the performance and efficiency of various machinery and automated systems.
3.Carefully designed

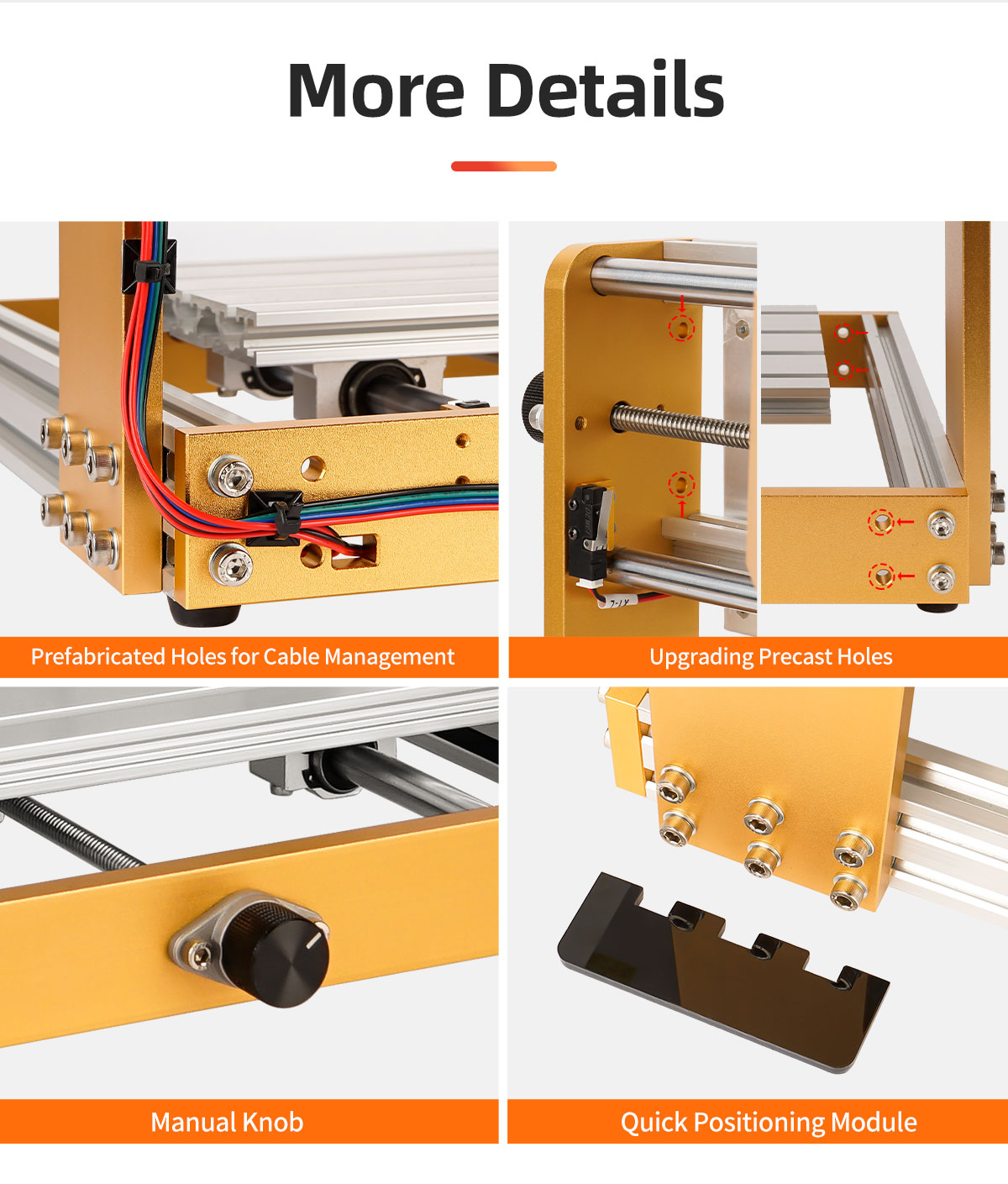

Section 1: Pre-Drilled Cable Routing for Easy Assembly
Our machine's design incorporates pre-drilled cable routing channels. These channels facilitate easy cable management, reducing the time and effort needed during assembly while minimizing the risk of tangled or damaged cables. This thoughtful design feature not only simplifies the assembly process but also ensures a clean and organized appearance for your machine.
Section 2: Prefabricated Holes for Convenient Upgrading
Our machine's design includes prefabricated holes that allow for convenient upgrading and modification. These strategically placed holes enable users to easily add or replace components without the need for extensive disassembly or modification to the machine's structure.
Section 3: Handwheel Adjustment for Quick and Precise Positioning
To facilitate accurate positioning and adjustments, our machine features handwheel adjustments. These handwheels provide users with a convenient and quick method for making precise adjustments to the machine's components. By incorporating handwheel adjustments into the design, users can make rapid, accurate changes to the machine's settings without the need for computer operation.
Section 4: Quick Positioning Module for Efficient Installation
Our machines also include a quick positioning module designed to simplify the installation process. This module simplifies the alignment and positioning of the gantry frames during assembly, ensuring they are properly placed and secured. The quick positioning module reduces assembly time and ensures a smooth, efficient installation process.

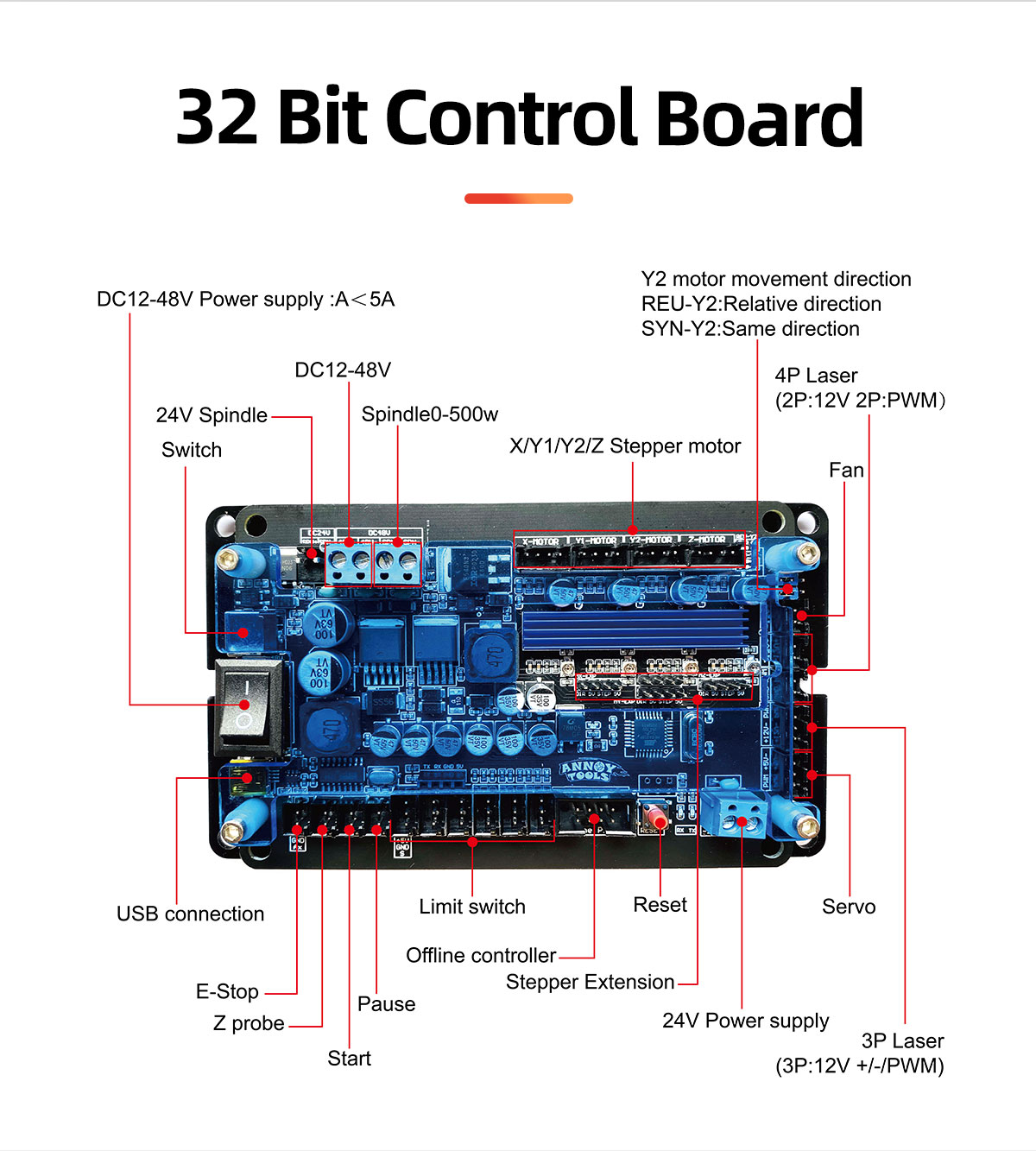

4.32-Bit Control Board
Power supply: DC12-48V. spindle: 48V 0-500W.
Dual y-axis, all-round use, XYZ or XYY.
USB interface communication, support 3-axis engraving, laser module.

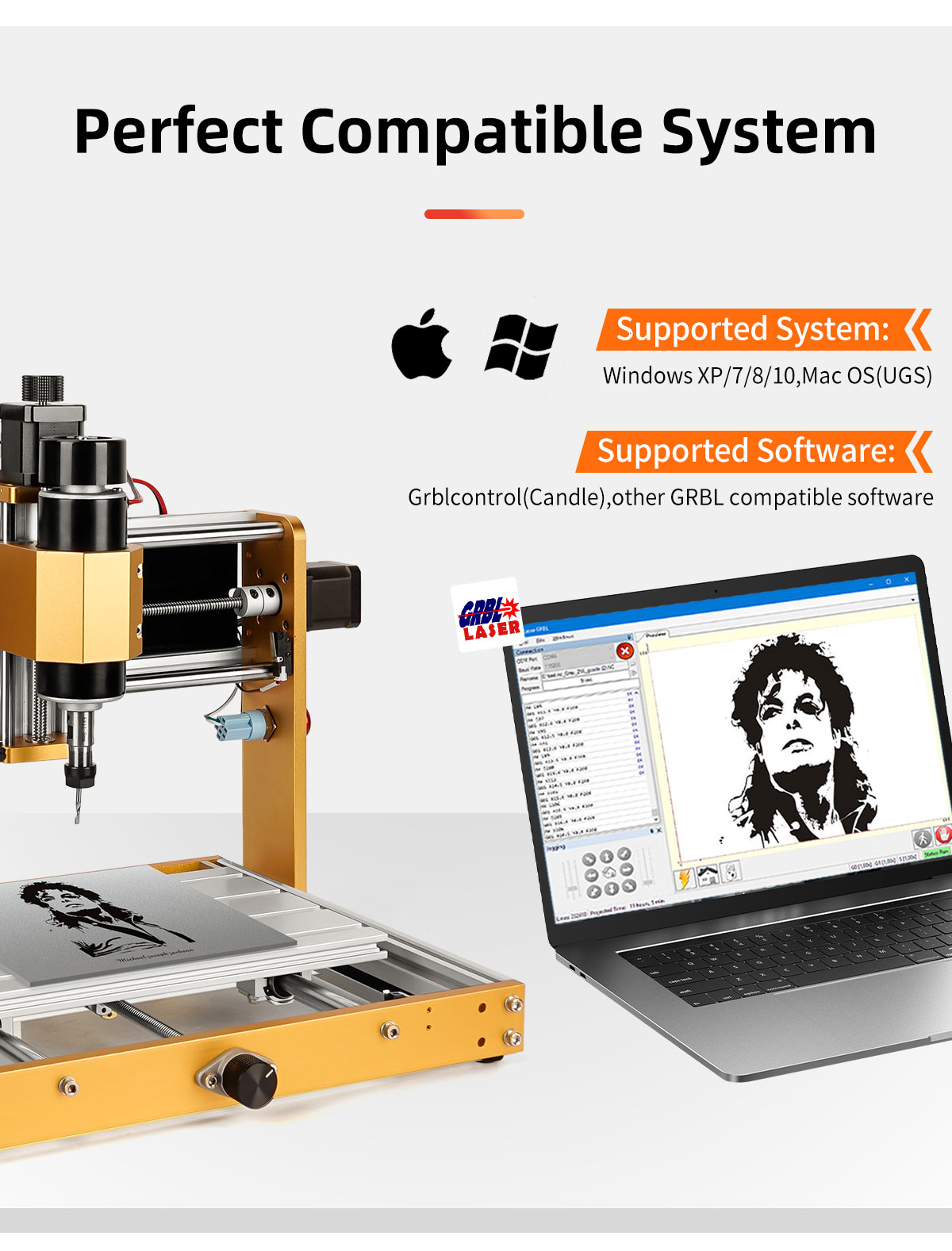

Applicable software: Grblcontrol (Candle), LaserGRBL and other software supporting GRBL firmware, GRBL firmware version 1.1f.

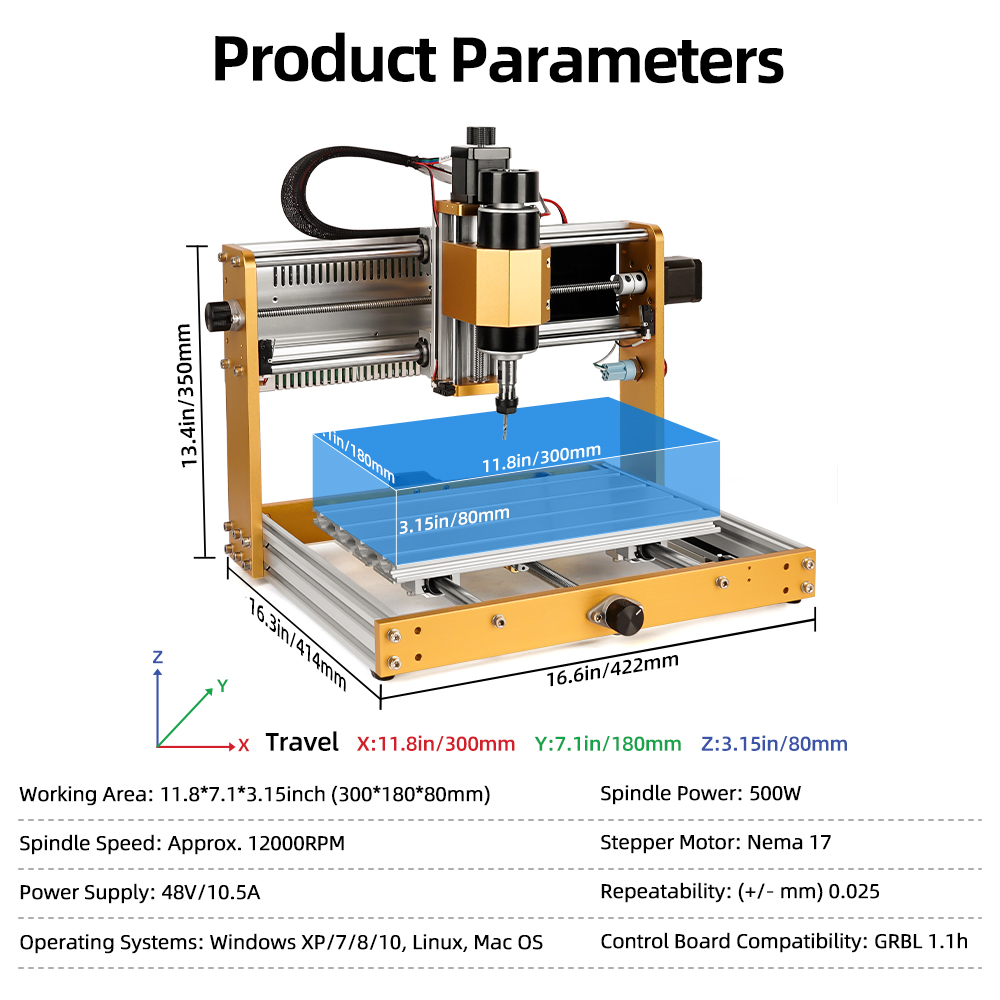

5.Machine working area display
6.Extra long Z-axis travel
The new design makes this machine have the longest Z-axis stroke among (80mm) the standard models on the market.
