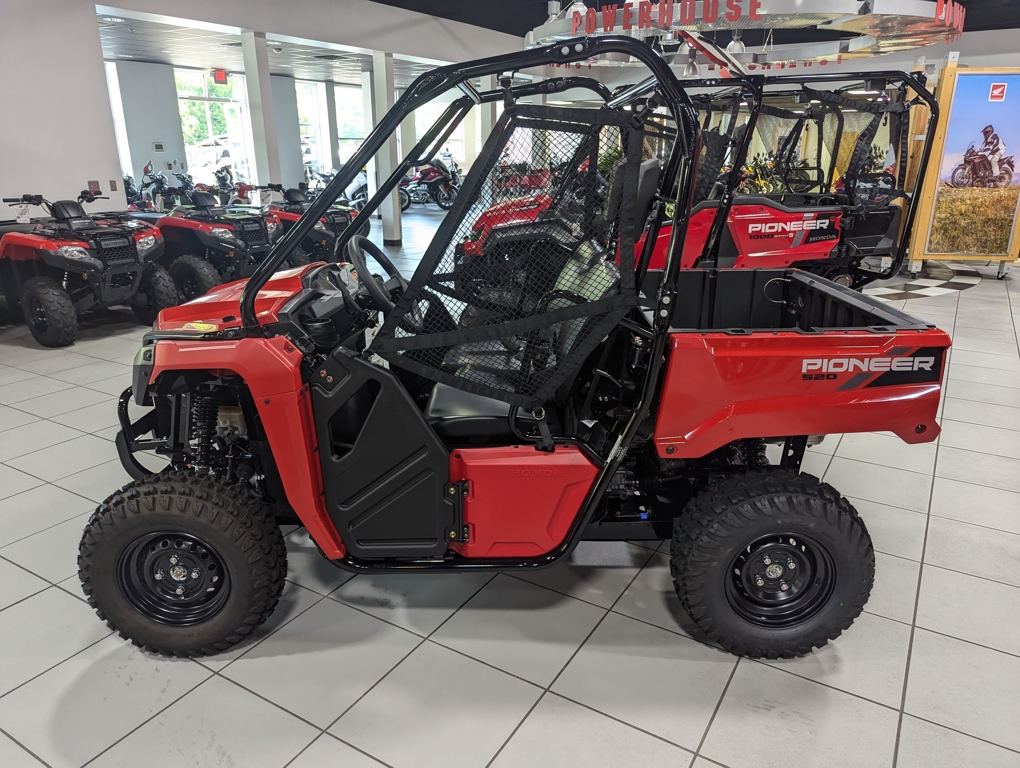

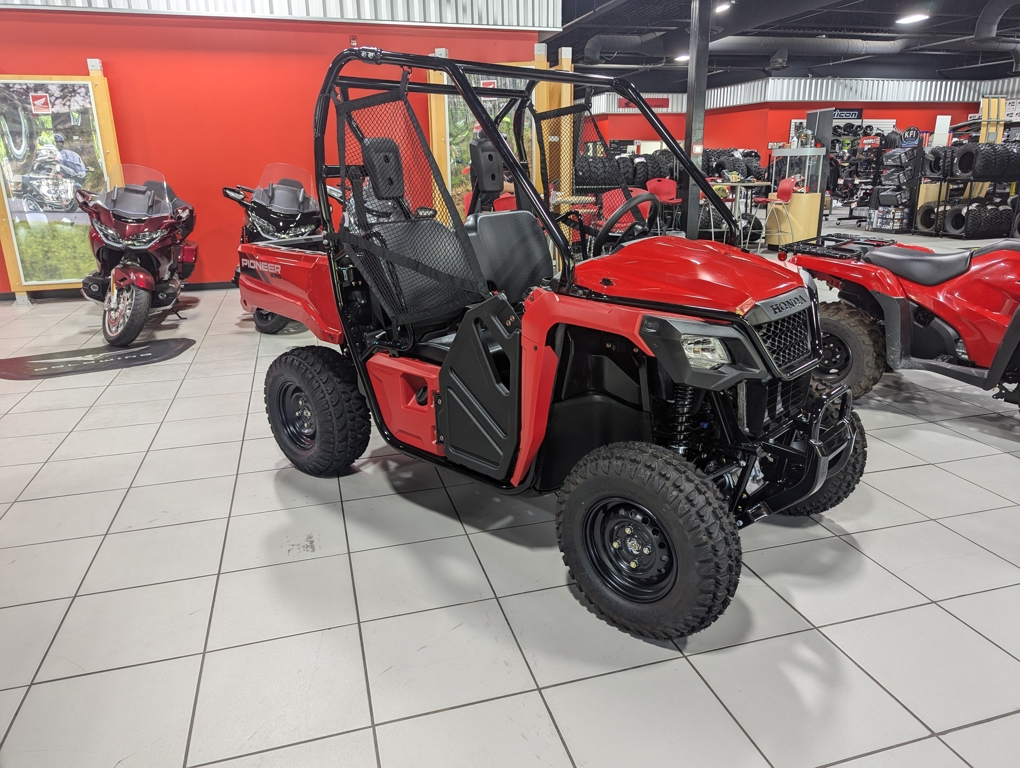

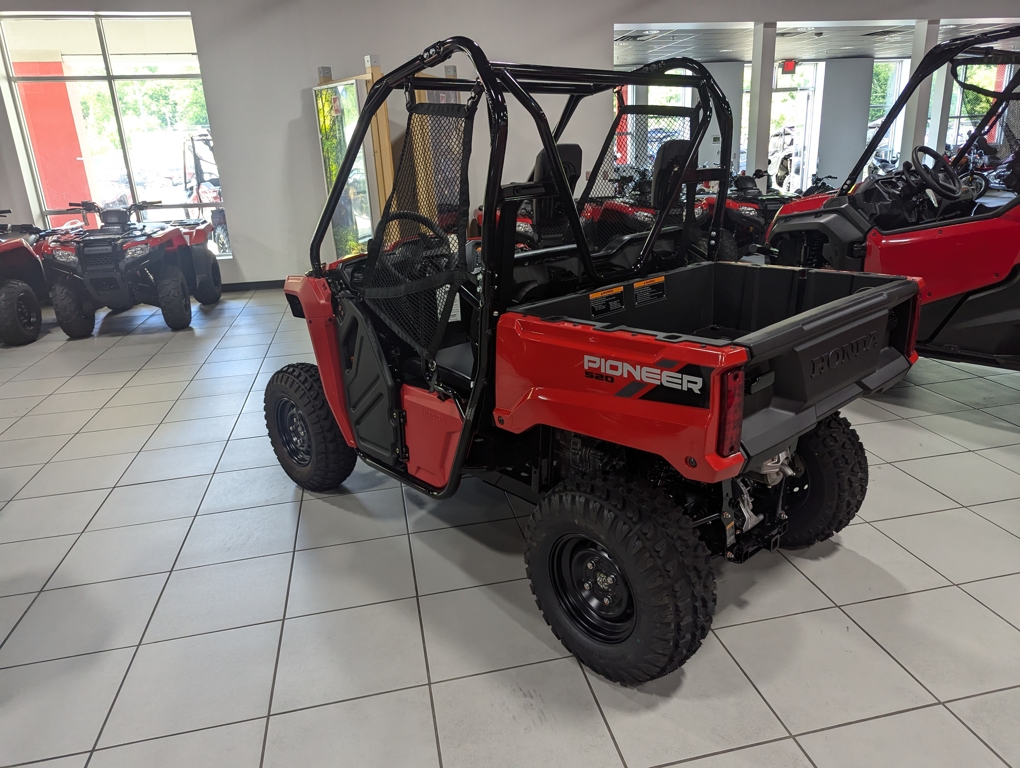

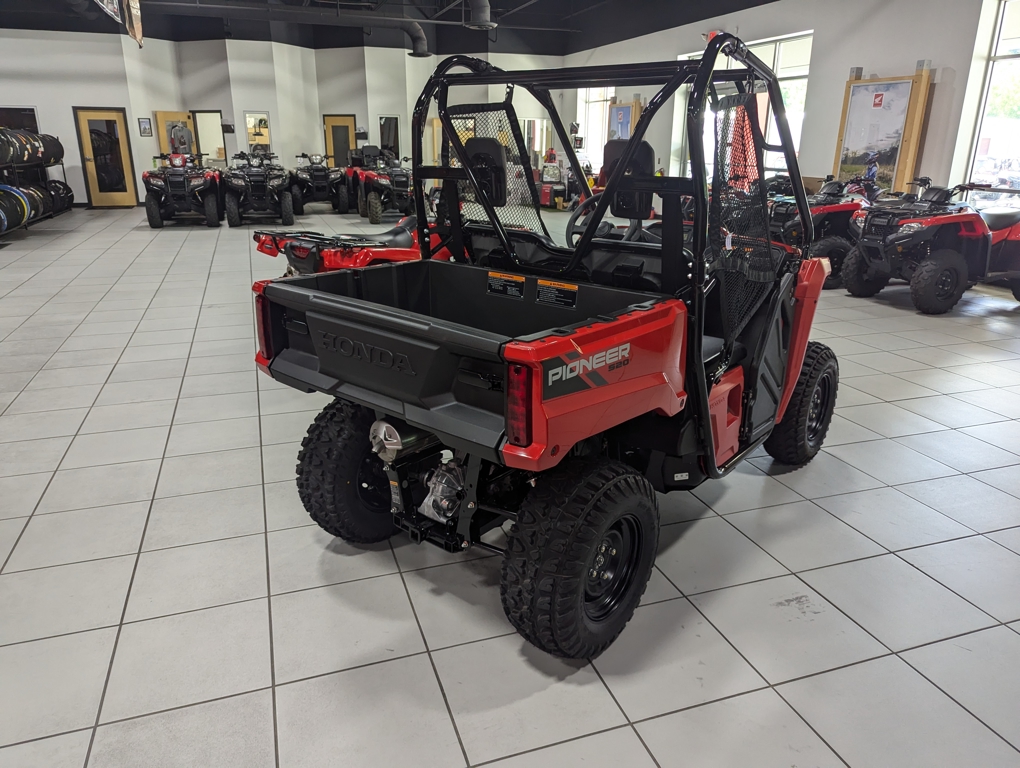

2026 Honda Pioneer 520 New

Engine Type: Single-Cylinder
Displacement: 31.6 cu. in. (518 cc)
Bore and Stroke: Bore: 3.78 in. (96 mm); Stroke: 2.81 in. (71.5 mm)
Cooling: Liquid
Compression Ratio: 9.5:1
Fuel System: Gas
Front Suspension: Independent Double Wishbone
Front Brakes: Dual Hydraulic Disc

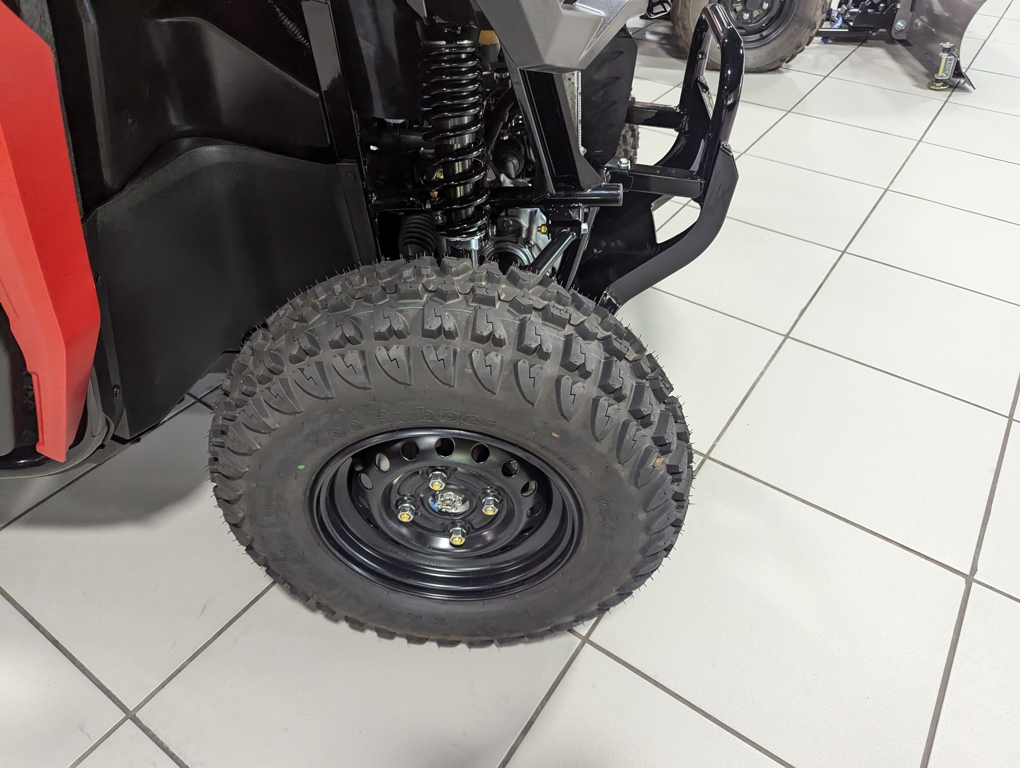

Front Tire: Maxxis® 24 x 8-12
Rear Suspension: Independent Double Wishbone
Rear Brakes: Hydraulic Disc
Rear Tire: Maxxis® 24 x 10-12
Wheelbase: 73 in. (1854.2 mm)
Front Travel: 5.8 in. (147.3 mm)
Rear Travel: 5.9 in. (149.9 mm)
Ground Clearance: 8.5 in. (215.9 mm)
Fuel Capacity: 4.1 gal. (15.5 L)
Box Capacity: 450 lbs. (204.1 kg.)

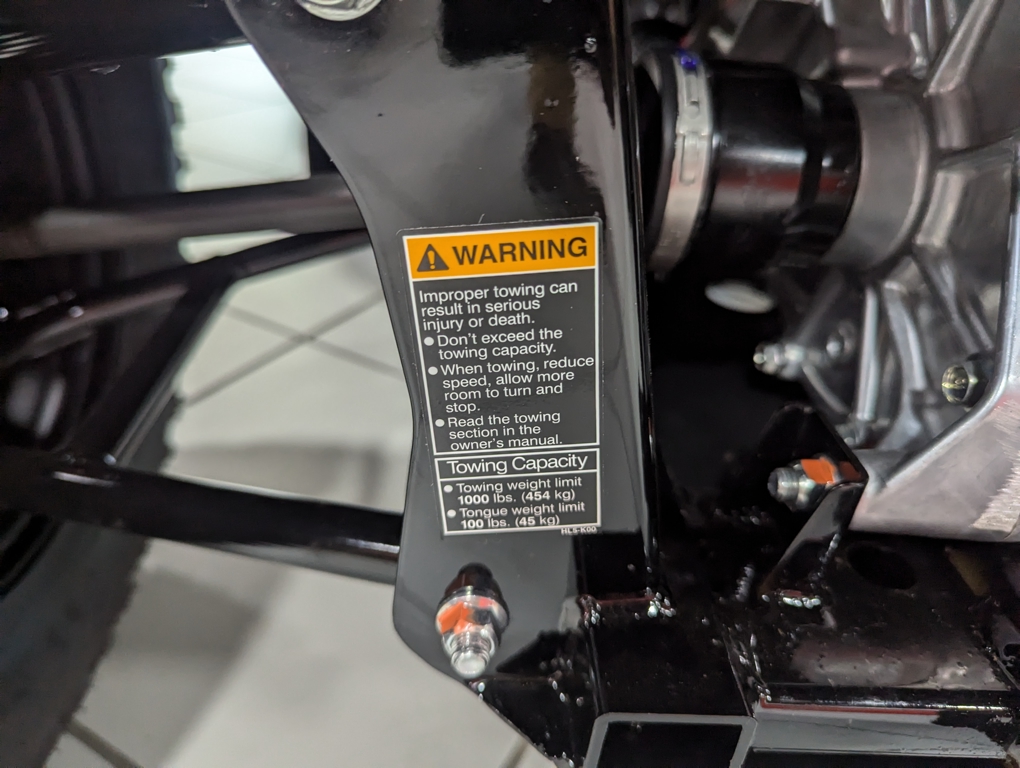

Towing Capacity: 1000 lb. (453.6 kg.)
Drive System: Manual / Automatic Clutch
Speedometer: Standard
Odometer: Standard

Basic Information

Year: 2026
Make: Honda
Model: Pioneer 520
Stock Number: WH103729
VIN: 1HFVE0742T4103729
Condition: New
Type: Utility
Primary Color: Hero Red

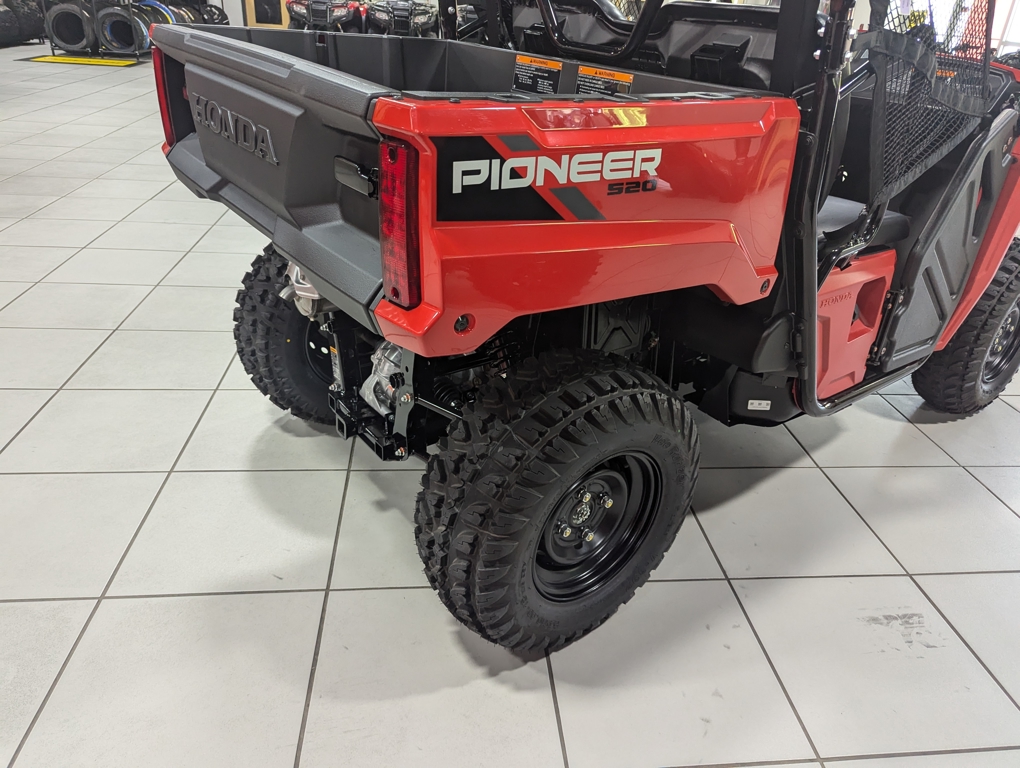

Specifications

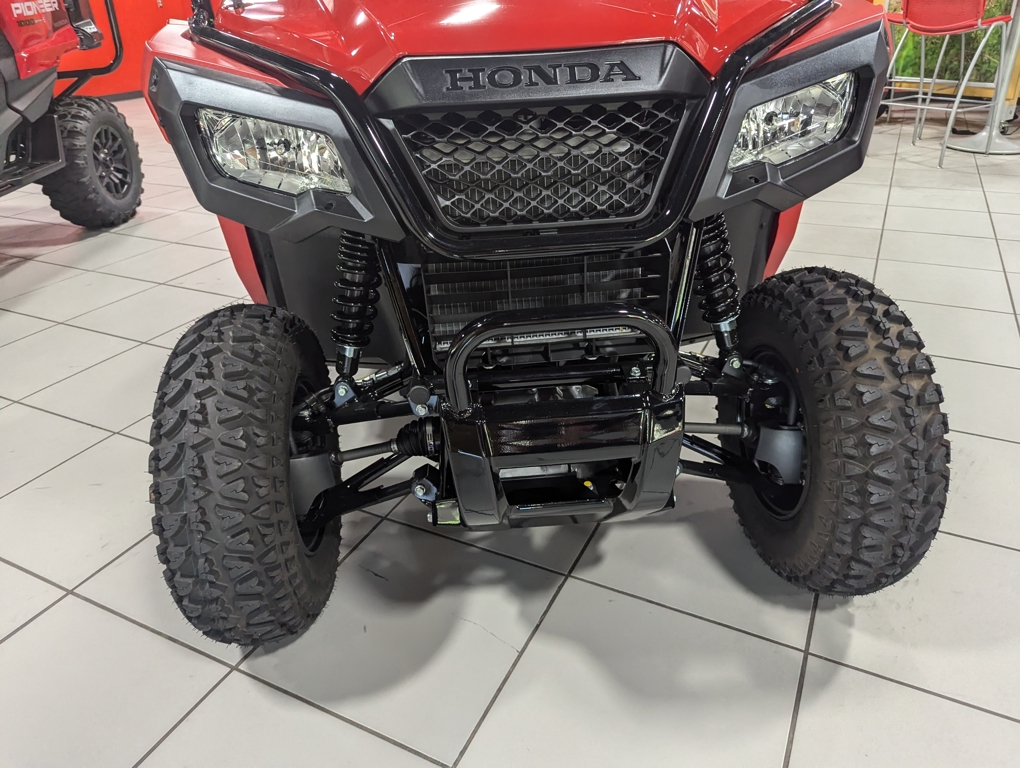

Bash Plate (Front)
Bed Capacity (kgs.): 204.1
Bed Capacity (lbs.): 450
Body Material: Plastic

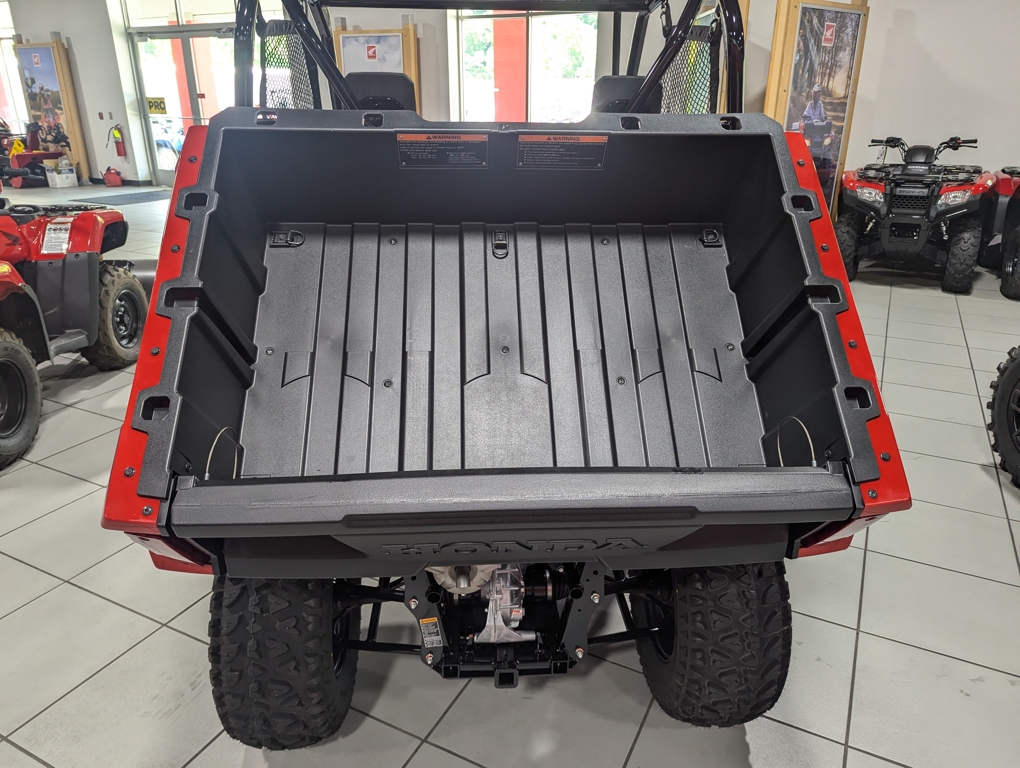

Cargo Bed Bed Height (in): 9.8
Cargo Bed Bed Height (mm): 249
Cargo Bed Bed Length (in): 25.9
Cargo Bed Bed Length (mm): 658
Cargo Bed Bed Width (in): 38.7
Cargo Bed Bed Width (mm): 983
Cargo Bed Tilt
Front Tire Diameter (in): 24
Front Tire Width: 8
Ground Clearance (in): 8.5
Ground Clearance (mm): 215.9
Height (Inches): 71
Height (mm): 1808.5
Length (mm): 2667

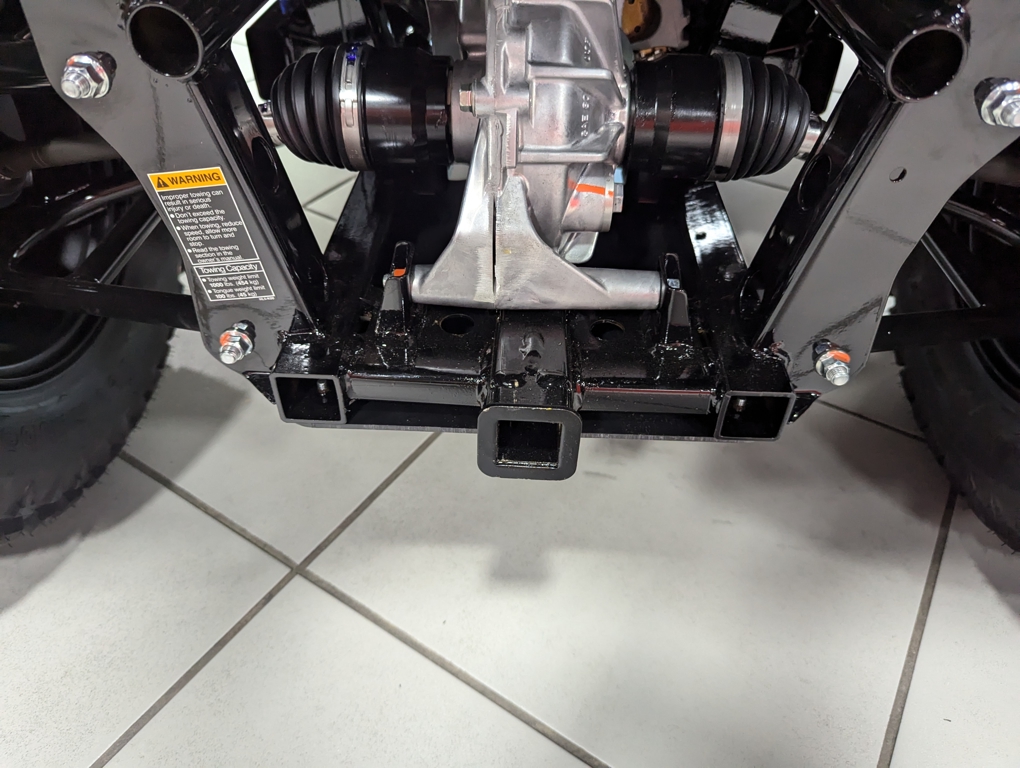

Rear Hitch

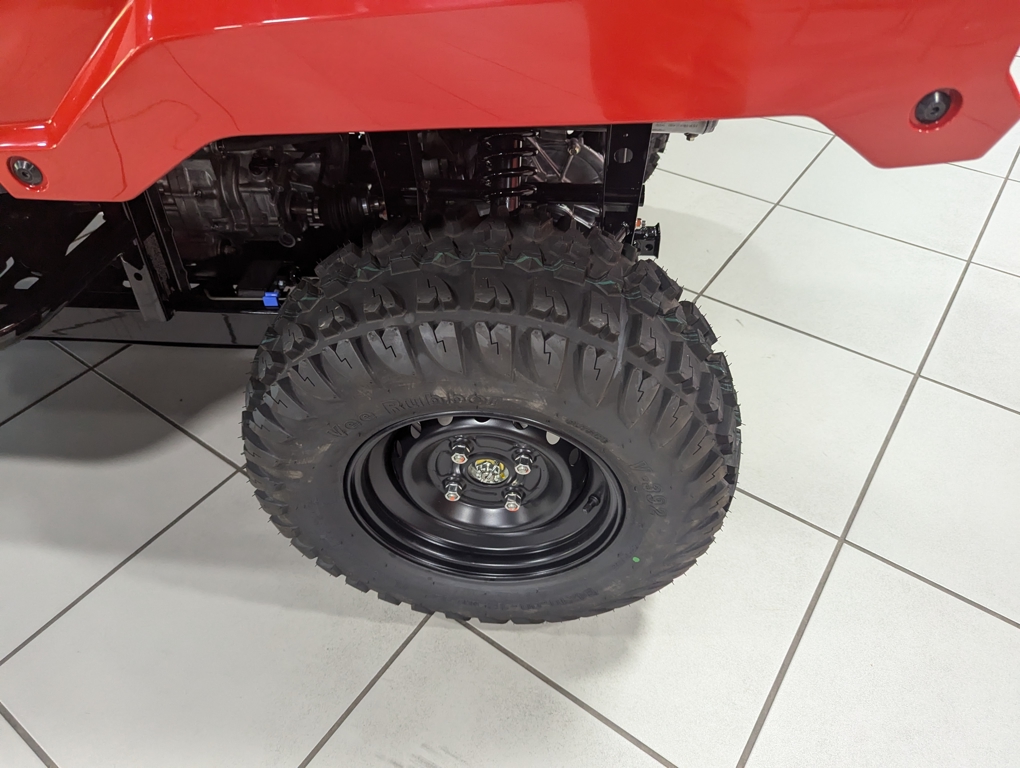

Rear Tire Diameter (in): 24
Rear Tire Width: 10
Towing Capacity (kgs): 453.6
Towing Capacity (lbs): 1000
Turning Radius (ft): 12.8
Wet Weight (kg): 481
Wet Weight (lbs): 1060
Wheelbase (in): 73
Wheelbase (mm): 1854.2
Wheels Composition: Steel
Width (Inches): 50
Width (mm): 1270

Engine

Bore (in): 3.78
Bore (mm): 96
Carburetion Type: Fuel Injected
Compression Ratio: 9.5:1
Cylinders: 1
Displacement (ci): 31.6
Engine Cooling: Liquid
Engine Size (cc): 518
Engine Stroke: 4-Stroke
Fuel Capacity (gal): 4.1
Fuel Capacity Reserve (gal): 1.1
Fuel Capacity Reserve (l): 4.2
Fuel Injector
Fuel Injector Size (mm): 36
Fuel Requirements: Regular
Starter Type: Electric
Stroke (in): 2.81
Stroke (mm): 71.5
Valve Configuration: OHV
Valves: 4
Valves Per Cylinder: 4

Drivetrain

Transmission Type: Manual / Automatic Clutch
Engine Braking System
Differential Lock
Differential Lock Location: Rear
Driveline Brand: TraxLok

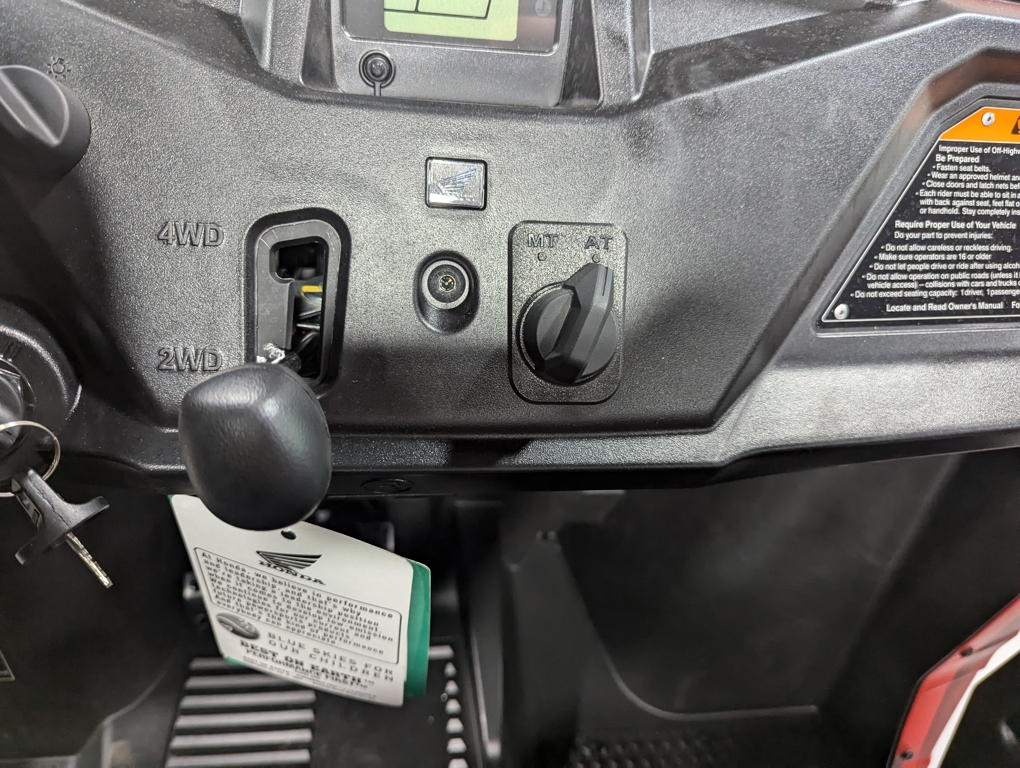

Driveline Type: Selectable 4X2 / 4X4
Number Of Driveline Modes: 2
Hi / Low Range
Number Of Speeds: 5
Primary Drive (Front Wheel): Shaft
Primary Drive (Rear Wheel): Shaft
Reverse

Chassis / Suspension

Frame: Steel
Front Travel (in): 5.8
Front Travel (mm): 147.3
Number Rear Shock Absorbers: 2
Rear Adjustable Shock / Spring Pre-Load
Rear Stabilizer Bar
Rear Suspension Material: Steel
Rear Travel (in): 5.9
Rear Travel (mm): 149.9

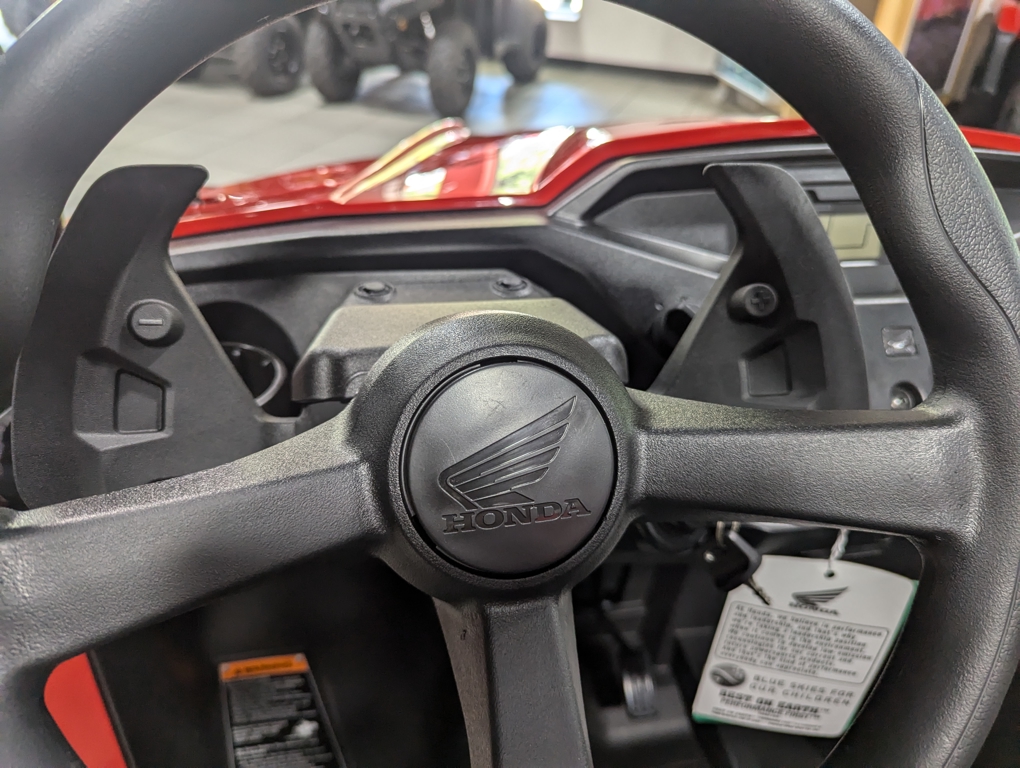

Steering Control: Steering Wheel
Steering Type: Rack & Pinion
Suspension - Front: Independent Double Wishbone
Suspension - Rear: Independent Double Wishbone

Comfort

Digital Instrumentation
Hour Meter
Seat Material: Vinyl
Seat Type: Bucket

Safety

Brakes - Front: Dual Hydraulic Disc
Brakes - Rear: Hydraulic Disc
Front Brake Diameter (in): 7.9
Front Brake Diameter (mm): 200
Rear Brake Diameter (in): 6.7
Rear Brake Diameter (mm): 170
Seat Belts

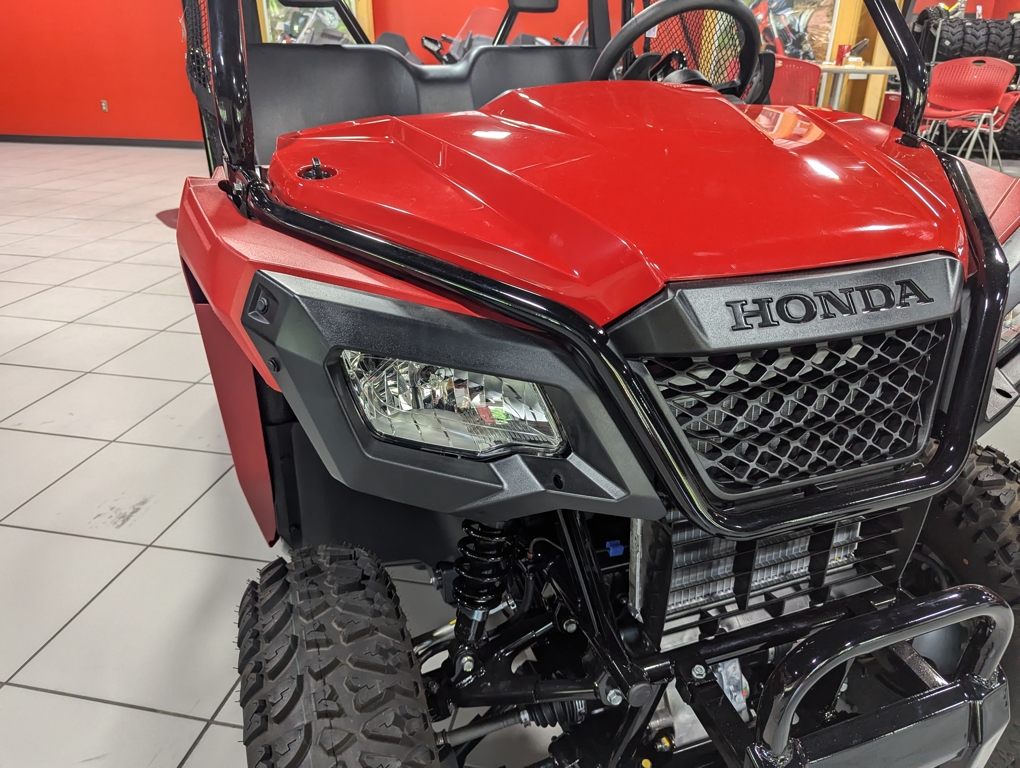

Halogen Headlight(s)
Headlight(s)

Other Information

Cab / Bed Divider
Cab Cage

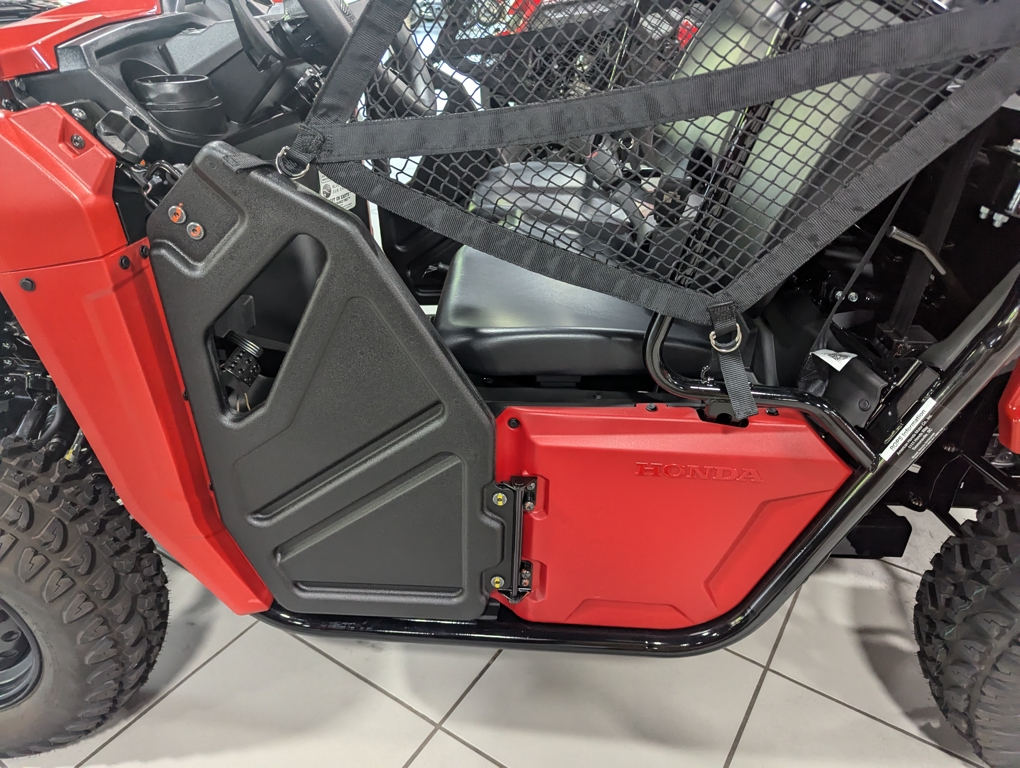

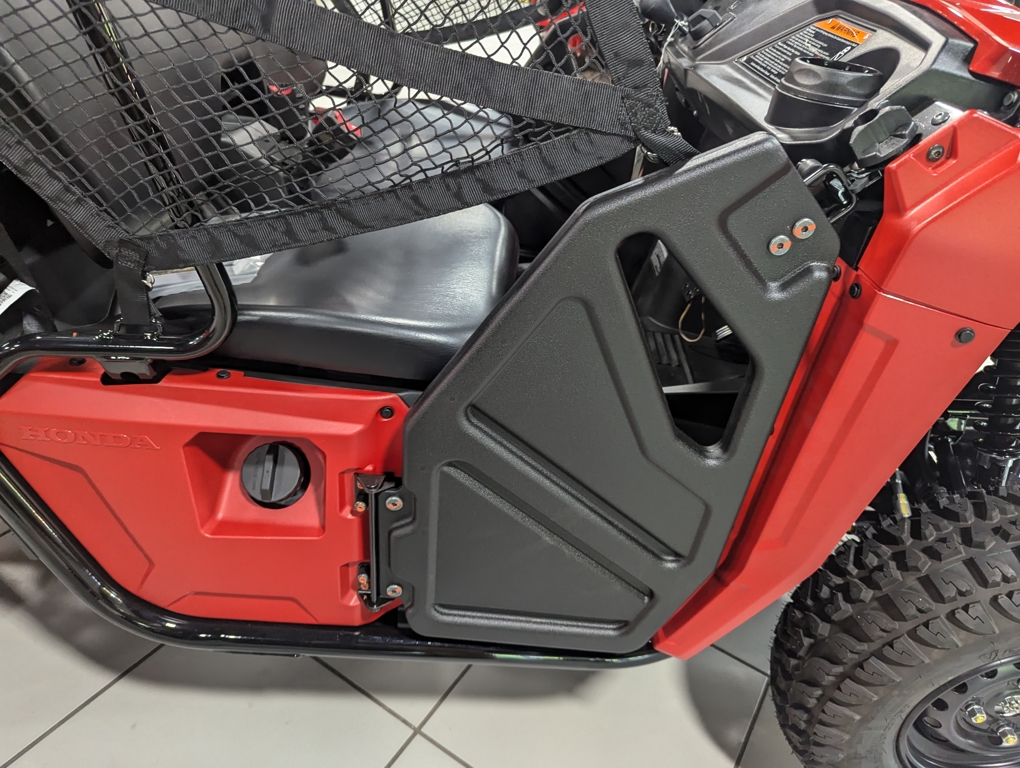

Cab Doors
Cab Doors Material: Soft
Cab Rollbar

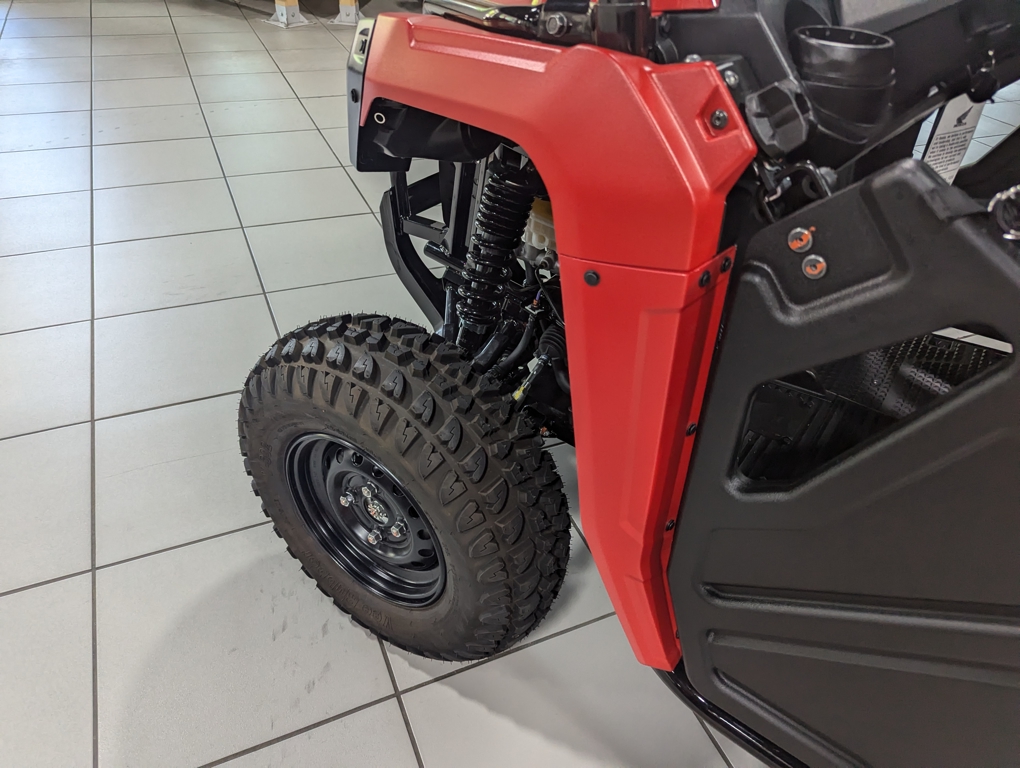

Front Fender Flairs
Power Outlet
CV Boot Cover
Radiator Guard
