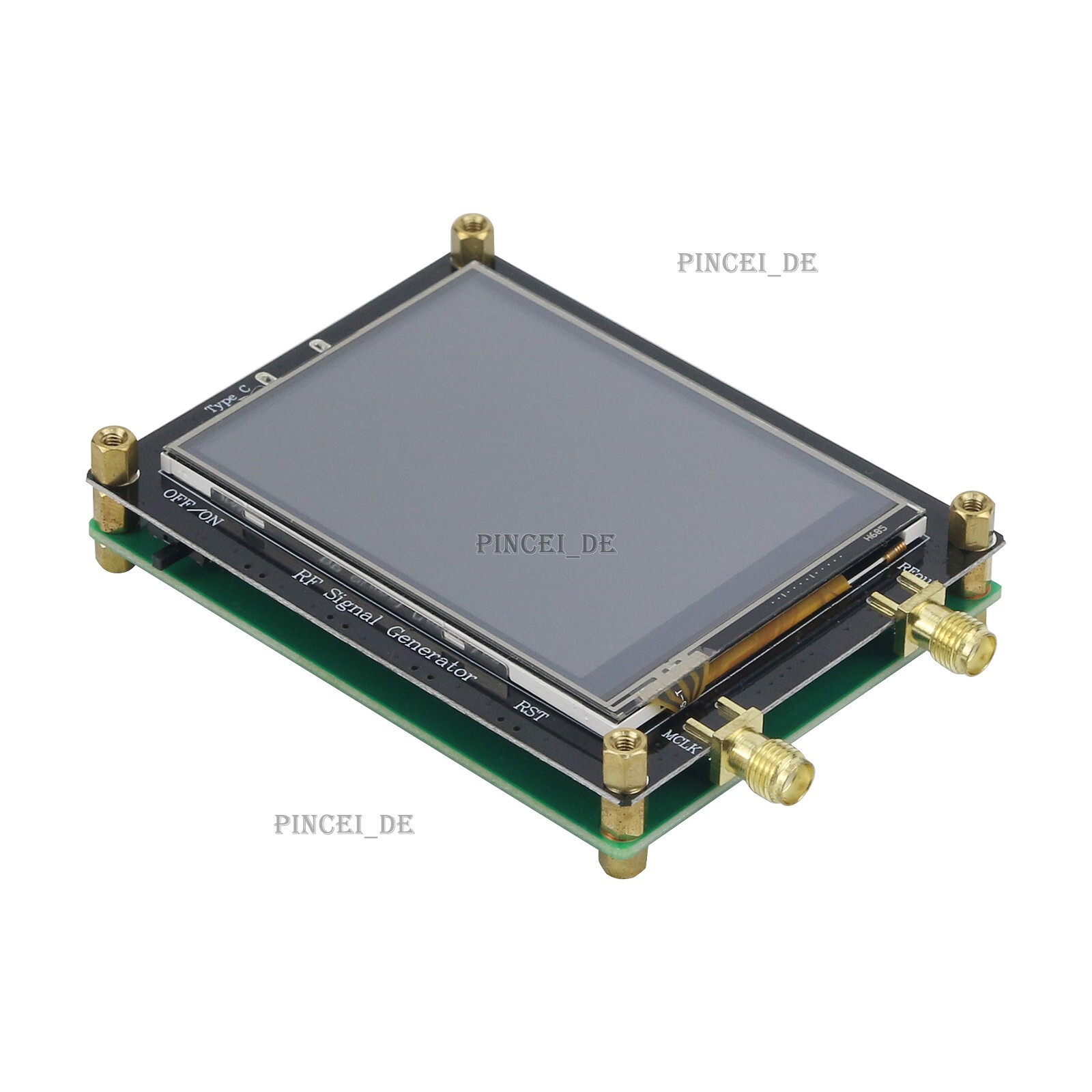

23.5-6000M RF Signal Generator 0.5PPM Low Noise Frequency Sweep Touch Screen PC Controllable
Description:
MAX2870 is an ultra-wideband phase-locked loop (PLL), integrated voltage-controlled oscillator (VCO), and can work in integer and fractional-N modes. With an external reference clock oscillator and loop filter, the MAX2870 can form a high-performance frequency synthesizer to generate a clock in the frequency range of 23.5MHz to 6.0GHz (23.5-6000M) and maintain excellent phase noise and spurious indicators. The internal multiple integrated VCO covering 3000MHz to 6000MHz and the 1-128 output divider are used to realize the clock output in an ultra-wide frequency range.
The device provides dual-channel differential output drivers, which can be set to provide output power from -4dBm to +5dBm. Both outputs can be muted by software or hardware control.
MAX2870 is controlled by a 3-wire serial port and is compatible with 1.8V control logic. The device is packaged in a lead-free, RoHS-compliant 5mm x 5mm, 32-pin TQFN package, and operates in an extended temperature range of -40°C to 85°C.
Applications:
1. Wireless infrastructure
2. Test and measurement
3. Satellite communications
4. Wireless LAN/CATV
5. Military and aviation/aerospace
6. PMAR/LMAR/public safety radio
7. Clock generator
Chip Characteristics:
1. Integer/fractional N frequency division mode
2. Manually or automatically select VCO
3. 23.5MHz to 6000MHz base frequency VCO
4. Output binary buffer/driver for expanding frequency range.
4.1. 1/2 /4 /8/16/32 /64/128.
4.2. 23.5MHz to 6000MHz.
5. High performance PFD.
5.1. In integer-N frequency division mode, 105MHz.
5.2. In fractional-N frequency division mode, 50MHz.
6. Reference clock frequency up to 200MHz
7. +3.0V to +3.6V power supply
8. Two programmable amplitude outputs -4dBm to +5dBm
9. Analog and digital lock detection indication
10. Hardware and software shutdown control
11. Compatible with 1.8V control logic
Module Features:
1. Module power supply TYPE-C: [email protected]
2. Output and external clock interface: SMA-K (inner screw inner hole)
3. The onboard default high-precision 25MHz 0.5ppm TCXO (can also be replaced or connected to an external clock)
4. Output frequency range: The fundamental frequency of the internal VCO is 3-6GHz, and the frequency below 3GHz is obtained from the fundamental frequency division. Full touch screen frequency input.
5. Output amplitude: -4~5dBm, 4 levels of touch screen control
6. Output frequency mode: point frequency, sweep frequency optional touch screen control
6. Provide PC upper computer control program
Package Included:
- 1 x Set of RF Signal Source
