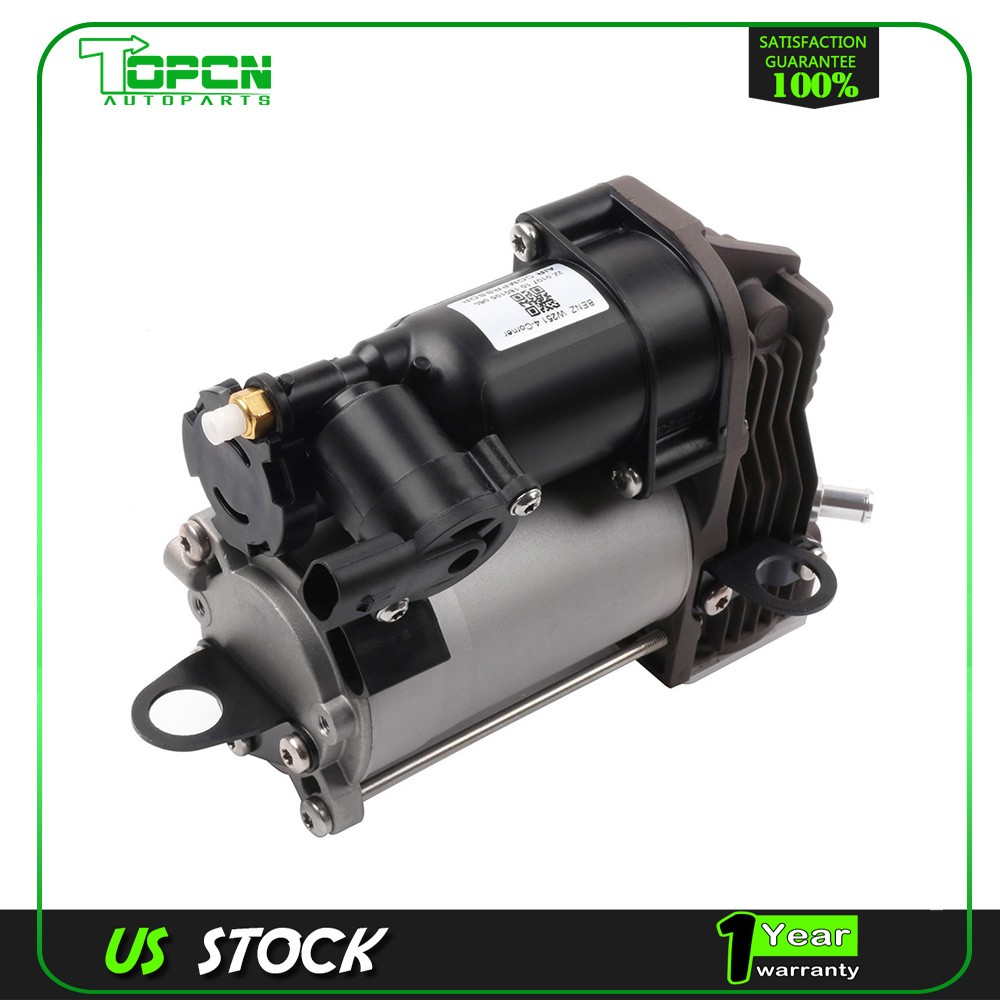

2PCS Air Compressor Pump Ride Valve Block?2513201204 For Mercedes W251 R320 R350
$137
DESCRIPTION
|
|
|
|
|
|
|
|
|
|
|
|
2PCS Air Compressor Pump Ride Valve Block?2513201204 For Mercedes W251 R320 R350
*Generation & Evolution:
Mercedes-Benz R-Class
W251 First generation (2006-2013)
Mercedes-AMG
R63 AMG (2007)
6.2 L M156 V8 Engine
The AMG Version of the W251
*Removal Guideline:
Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight ahead.
2.Lift vehicle and remove rear wheel.(picture 1)
3.Locate and remove the air line to deflate the air shock. Turn the metal clip approx. 90°to remove the air line fitting from the air shock.(picture 2)
4.Locate and remove the electrical connector from the top of the air shock.(picture 3)
5.Loosen and remove the upper and lower shock mounting nuts.(picture 4)
6.Support the axle to relieve pressure from the air shock's mounting points. Remove the upper and lower air shock mounting bolts.(picture 5)
7.Remove the air shock from the vehicle.(picture 6)
8.Removal complete.
*Installation Guideline:
1.Installation is in reverse order of air strut removal.
*Frequently Asked Questions:
How to prevent the damage of air springs/How to extend the service life of air springs/struts etc.?
An air strut with separable air springs
If your vehicle offers a separable air suspension (Audi Allroad A6 C5, Mercedes-Benz W164, BMW X5, etc.), you should regularly (about once a week) lift the car to the maximum position, and remove dirt with a high-pressure cleaner (keep the cleaner at a distance to the air spring about 30 cm/12 inches, otherwise water pressure can damage the air spring). The highest position may vary depending on your model and regulation options. Therefore, please test this by trying the different modes available to you (Sport, comfort, dynamic, off-road) and choose the one that sets your vehicle to the highest position. The dirt will most likely be found under the fold of the pneumatic chambers. If you find a frozen layer of bitumen on the piston guide (the part of a strut on which the air spring is installed), it is recommended to clean it as well. Whenever possible, avoid riding on fresh asphalt, as fresh bitumen mixed with sand immediately results in a build-up of abrasives on the piston and in turn contributes to accelerated wear and tear of the air spring.
A complete air suspension shock
Many cars such as Mercedes W220 or W211 are set up with a complete air strut - shock absorber and air spring visually form a complete spare part. In many cases, you can easily recognize these by the metal cups with which the air spring is tightly mounted. To best avoid any damage, we highly recommend to regularly check the condition of the dust protection seals of the air strut.
What is the difference between an air spring and an air strut?
The air spring is a part of the air strut. Some vehicles (e.g. Mercedes ML) allow you to change the air spring separately. At our online shop you have the opportunity to buy either the whole air strut or only the air spring. For some type of vehicles it is not possible to change the air spring separately. In this case the whole air strut should be replaced.
Which side of my car is the Right and Left?
The right and left sides of an automobile are determined as if sitting in the car facing forward. Thus, the left side is on the left when sitting in the car facing forward, and the right side is on the right. For American cars, the driver’s side is on the left, and the passenger sits to the right of the driver. For cars in Japan, Britain, Ireland, the Bahamas and some other former British colonies -- where they drive on the left side of the road -- the passenger sits on the left side, and the driver (along with all the driving controls) is on the right.
*Compatibility Chart
1, You can distinguish specific model of an automobile by VIN(Vehicle Identification Number).
2, VIN(Vehicle Identification Number) consists of total 17 English letters and arabic digits.
3, VIN does not include the letters I (i), O (o), and Q (q) (to avoid confusion with numerals 1 and 0).
Mercedes-Benz R-Class W251
R320 Bluetec Wagon 4-Door 3.0L 2009
R320 CDI Wagon 4-Door 3.0L 2007-2008
R350 4Matic Wagon 4-Door 3.5L 2006-2013
R350 Base Wagon 4-Door 3.5L 2008-2013
R350 Bluetec 4Matic Wagon 4-Door 3.0L 2010-2013
R500 Base Wagon 4-Door 5.0L 2006-2008
R500 Premium Wagon 4-Door 5.0L 2006
R500 Sport Wagon 4-Door 5.0L 2006-2008
R550 4Matic Wagon 4-Door 5.5L 2008
R63 AMG Base Wagon 4-Door 6.3L 2007
*OEM Part Number:
Air Suspension Compressor:
2513201204,2513201304,2513202004
2513202104,2513202704,2513202604
Valve Block:
A2513200158
2513200158
*Item Specifications:
- Key Words: 2PCS Air Compressor Pump Ride Valve Block 2513201204 For Mercedes W251 R320 R350
- Package Includes: Air Suspension Compressor & Valve Block
Notes: Please double confirm the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
| Item Specifics | |
|---|---|
| Placement on Vehicle : | Left Right Front Rear |
| Included Hardware : | Compressor |
| Lubrication Style : | Oil-Free |
| Drive Layout : | Front Engine RWD & 4WD |
| Platform : | W251 |
| Material : | Iron Aluminium Alloy Rubber |
| Color : | Silver Black |
| Type : | Air Suspension Compressor |
| Custom Bundle : | No |
| Return Policy : | 30 Days Free Return |
| Manufacturer Warranty : | 1 Year |
| Quantity : | 2PCS |
| Fitment Type : | Direct Replacement |
| OE Spec or Performance/Custom : | OE Spec |
| Adjustable : | Yes |
| Features : | Easy to Replace 100% Accuracy of Fit Sealed |
| Brand : | topcnautoparts |
| Manufacturer Part Number : | TA84164001P |
| Interchange Part Number : | 2513201204 2513201304 2513202004 2513202104 |
| OE/OEM Part Number : | 2513202704 2513202604 |
| Superseded Part Number : | A2513200158 2513200158 |
| Fit for : | For Mercedes-Benz W251 R Class |
| Fits 2 : | For Mercedes Benz R320 R350 R500 R63 AMG |
| Mounting Style : | Screw-On |
| Part Type : | Air Suspension Compressor |
| Important Notice : | Just like the picture, Professional installation required |
| Kit or Single Part : | Kit |
| Part Type : | Air Suspension Compressor |
| Important Notice : | Just like the picture, Professional installation required |
| Kit or Single Part : | Kit |
