DESCRIPTION

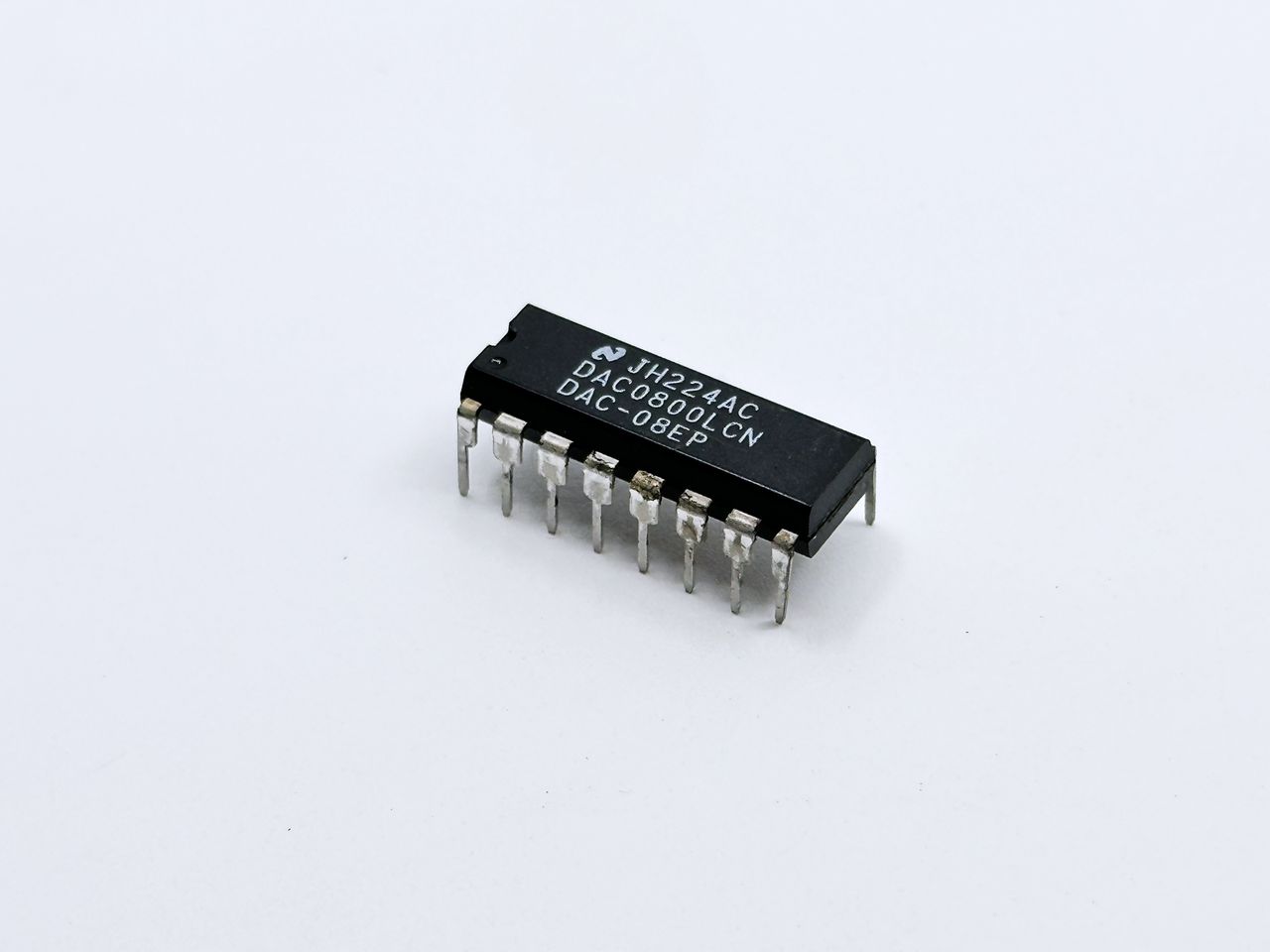

2X DAC0800LCN National Semiconductor 8-Bit Multiplying DAC Current Output 150ns Settling DIP-16

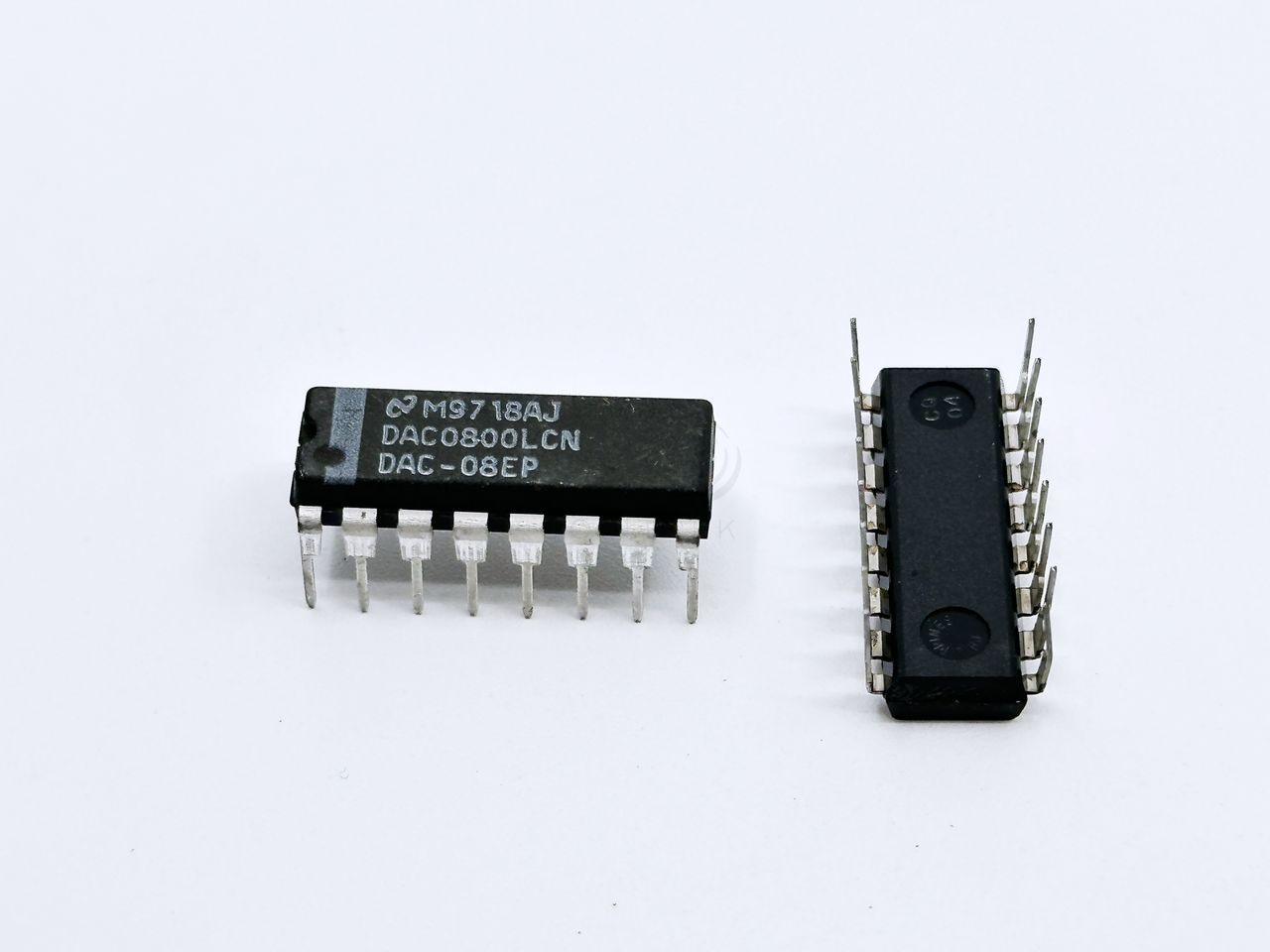

2 Pieces - DAC0800LCN National Semiconductor 8-Bit Multiplying DAC Current Output 150ns Settling DIP-16
| Specification | |
|---|---|
| Supply Voltage-Nom (Vsup) | 15 V |
| Analog Output Voltage-Max | 18 V |
| Analog Output Voltage-Min | -10 V |
| Linearity Error-Max (EL) | 0.19 % |
| Number of Bits | 8 |
| Surface Mount | NO |
| Converter Type | D/A CONVERTER |
| Input Bit Code | OFFSET BINARY |
| Input Format | PARALLEL, 8 BITS |
| Neg Supply Voltage-Nom | -15 V |
| Number of Functions | 1 |
| Power Supplies | +-15 V |
| Settling Time-Nom (tstl) | 100 ns |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Moisture Sensitivity Level | 1 |
| Operating Temperature-Max | 70 °C |
| Peak Reflow Temperature (Cel) | 260 |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Number of Terminals | 16 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |
| Seated Height-Max | 5.08 mm |
| Length | 19.305 mm |
| Manufacturer | NATIONAL SEMICONDUCTOR CORP |
| Package Description | PLASTIC, DIP-16 |
Note: This table may not be entirely accurate and should only be used as a general reference.
