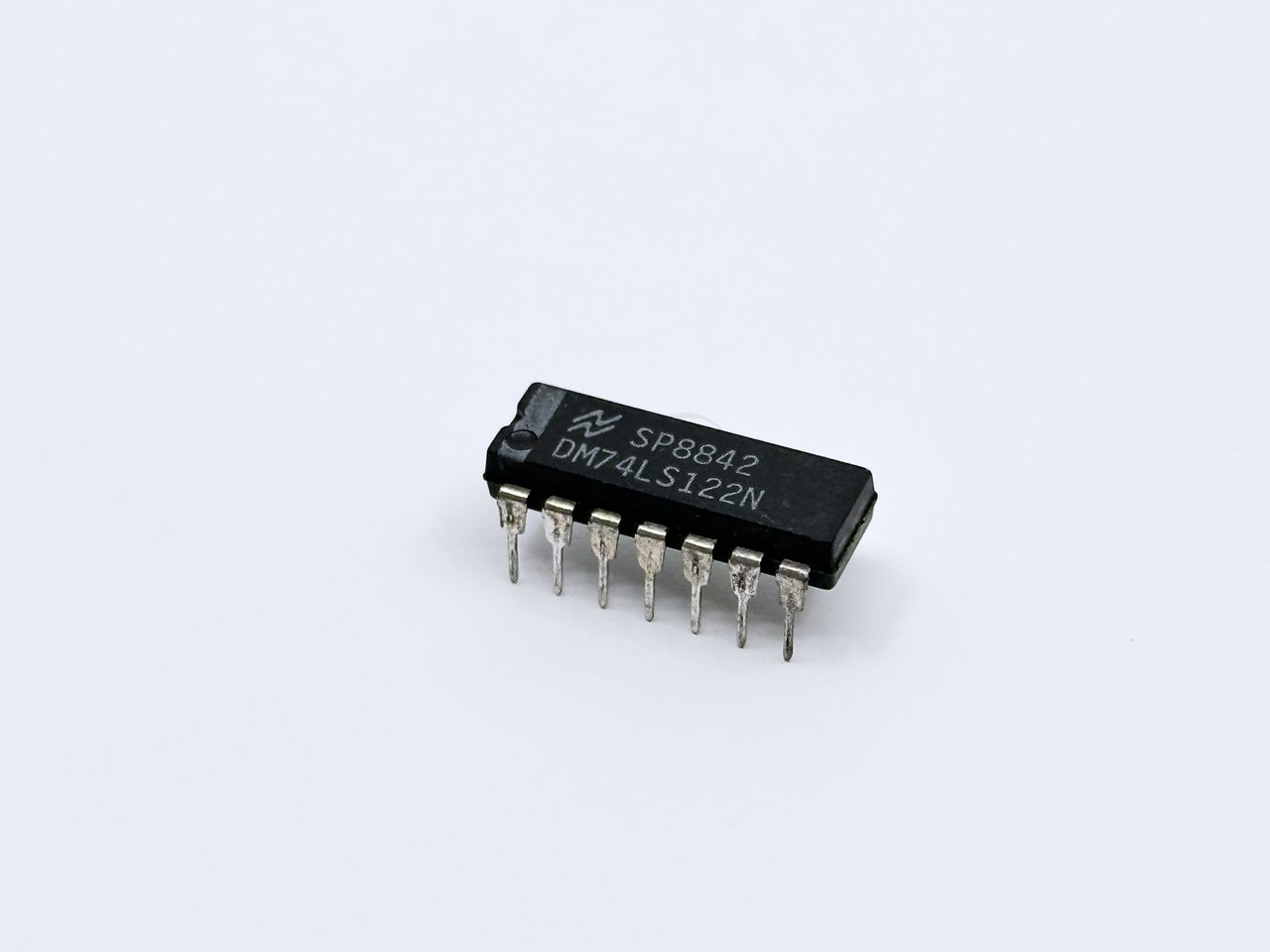

2X DM74LS122N National Semiconductor Retriggerable One-Shot Monostable Multivibrator Schmitt Trigger Input LS TTL 5V DIP-14

Ready to Ship

Ask a Question

30-Day Return

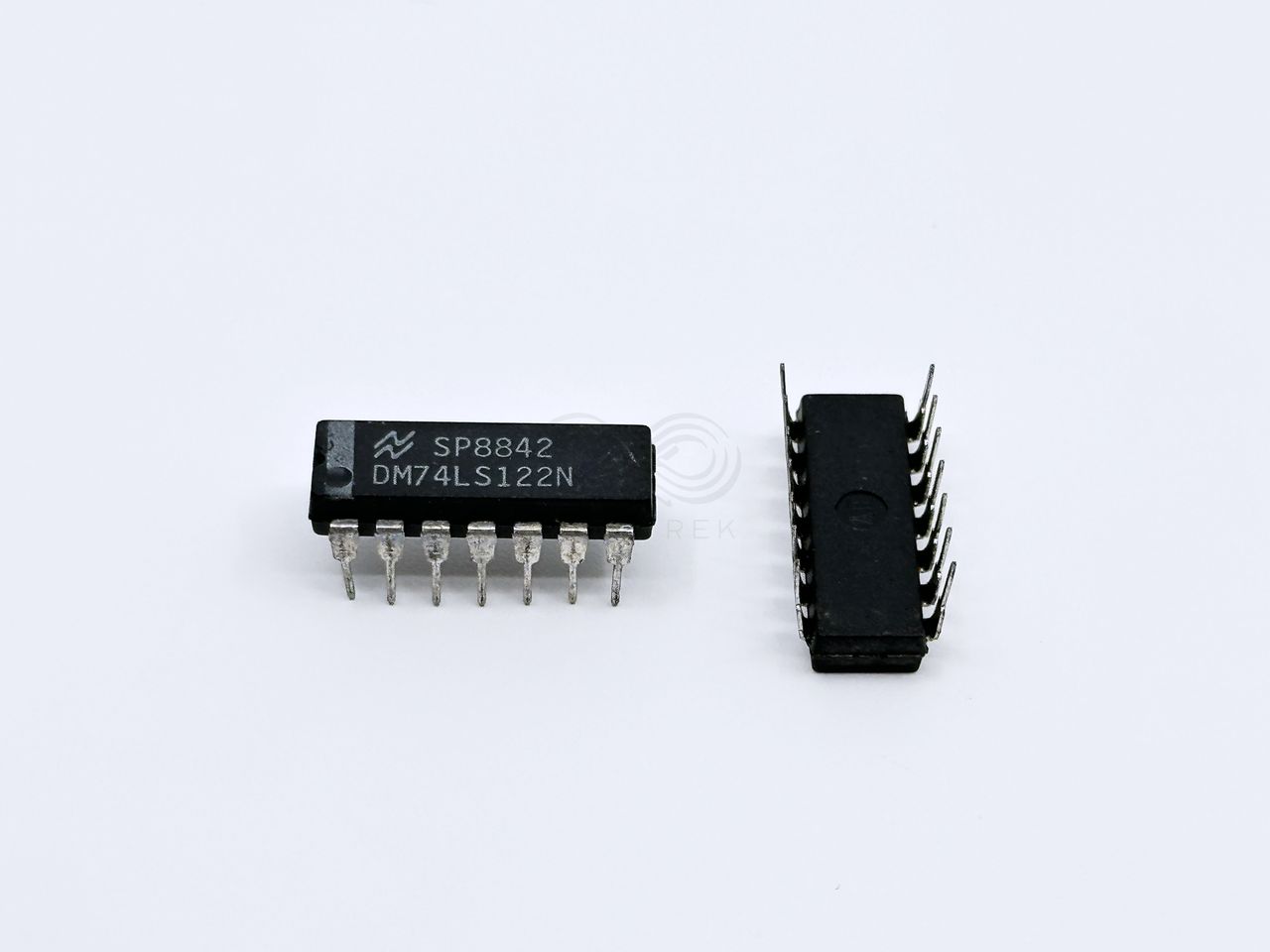

2 Pieces - DM74LS122N National Semiconductor Retriggerable One-Shot Monostable Multivibrator Schmitt Trigger Input LS TTL 5V DIP-14

Specification
Supply Voltage-Nom (Vsup)	5 V
Propagation Delay (tpd)	56 ns
Number of Functions	1
Surface Mount	NO
Package Code	DIP
Load Capacitance (CL)	15 pF
Family	LS
Logic IC Type	MONOSTABLE MULTIVIBRATOR
Technology	TTL
Additional Feature	RETRIGGERABLE; TRIGGERABLE FROM CLEAR INPUT ALSO
Number of Data/Clock Inputs	4
Output Polarity	COMPLEMENTARY
Power Supply Current-Max (ICC)	11 mA
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Temperature Grade	COMMERCIAL
Operating Temperature-Max	70 °C
Number of Terminals	14
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Seated Height-Max	5.08 mm
Width	7.62 mm
Length	19.18 mm
Package Description	DIP, DIP14,.3

Note: This table may not be entirely accurate and should only be used as a general reference.
