Kit Includes

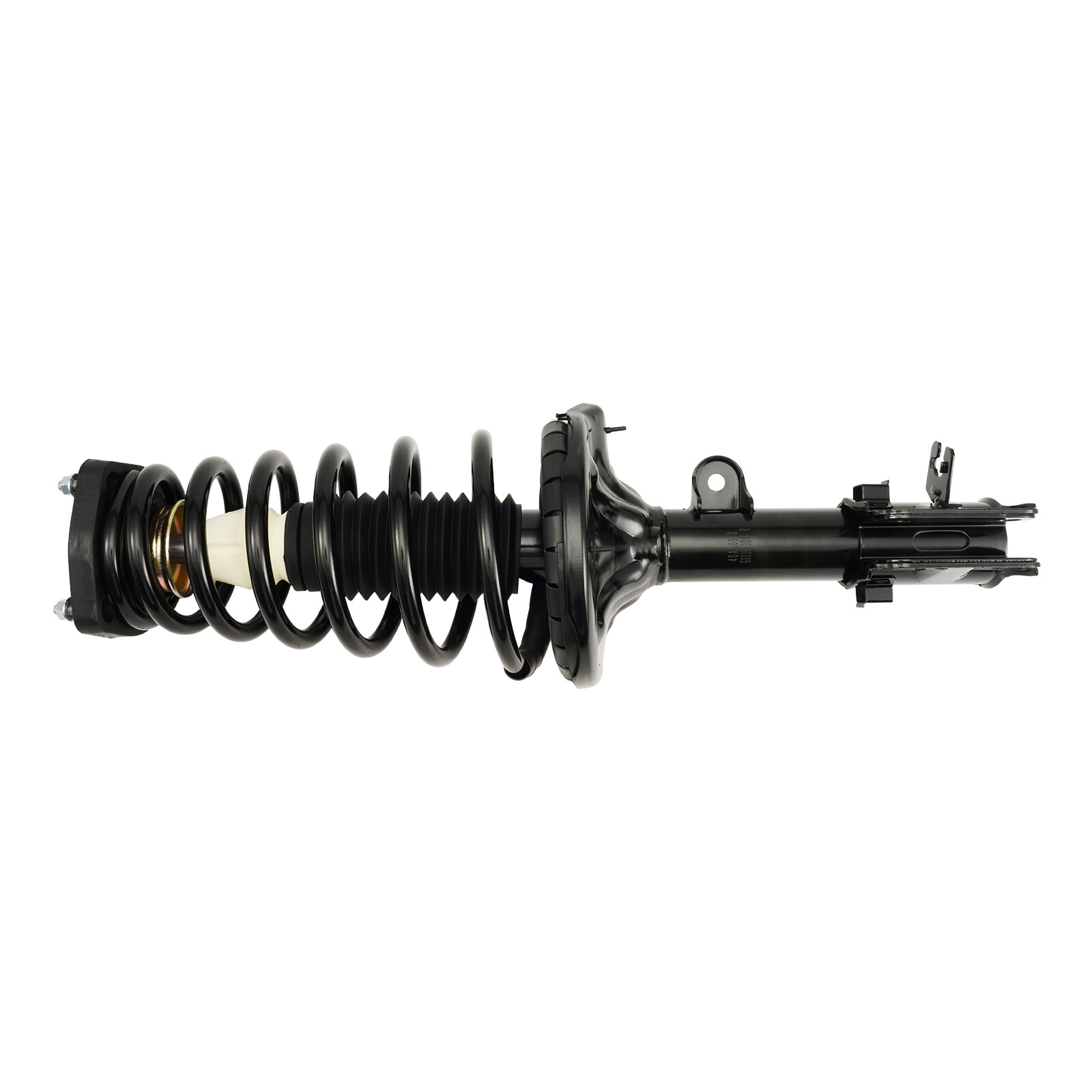

1x Complete Rear Strut Assembly (Driver) - 172222
1x Complete Rear Strut Assembly (Passenger) - 172221
Fitment
| MAKE | MODEL | YEAR RANGE | SPECIFIC DETAILS |
| For hyundai | TUCSON | 2005 - 2009 | All Models |
| For kia | SPORTAGE | 2005 - 2010 | All Models |
How to Install :
Step 1: Before You Lift the Vehicle, Loosen Lug Nuts One Full Turn.
Step 2: Jack up Vehicle and Use Jack Stands for Safety & Remove the Tire from the Rotor.
Step 3: (Wheel Alignment Is Necessary After Strut Replacement.) Marking the Position of All the Bolts Will Help Keep the Alignment Close to Original and save Time Aligning. Use a Colored Pencil to Mark the Old Strut on the Bolt.
Step 4: Use Penetrating Oil (Such As Wd40) to Coat Any Rusted Fasteners, Let Soak for Approximately 1 Hour.
Step 5: (Optional) While Waiting for Oil to Soak, Take This Time to Inspect All Other Components That May Need Replacement (Brake Pads, Rotors, Brake Hoses, Ball Joints, Cv Boots, Tie Rod Ends, Bushings, Sway Bars, Etc).
Step 6: Remove Any Brake Line or Wire Attachments from the Strut Body. Do Not Disconnect Brake Lines (If Possible)! Opening Brake Lines Will Require Bleeding of the Brake System.
Use Extreme Caution When Removing Brake Lines from Your Struts, As Any Damage to Your Brake Line Can Result in Expensive and Time Consuming Repairs.
Step 7: Remove Sway bar Attached to the Strut Assembly or Control Arm.
Step 8: Remove the Tie Rod (Only If It Attached to the Body of the Strut, If Not Leave It Attached to the Steering Knuckle).
Step 9: Remove the Strut to Knuckle Bolts at the Bottom of the Strut. on some Vehicles, the Brake Caliper and Rotor May Need to Be Removed to Gain Access.
Step 10: Remove the Upper Mounting Plate Bolts Located in the Engine or Trunk Compartment. Do Not Remove the Center Retaining Nut! It Is Not Safe to Unload the Spring from the Assembly in This Position.
Step 11: Carefully Remove the Old Strut Assembly from the Vehicle. Be Very Cautious Not to Let the Strut "Drop" down on Your Brake Line, Rotor or Drum.
Step 12: Install the New Complete Strut Assembly in the Reverse Order As Above (Steps 11-6). Using an Anti-seize Compound on All Fasteners Is Suggested.
Step 13: Carefully Double Check Your Work and Make Sure Everything Is Tightened to Manufacturers Torque Specifications.
Step 14: Replace the Tire the Rotor and Tighten to Manufacturers Torque Specifications.
Step 15: Slowly Lower the Vehicle down After Removing the Jack Stands. Pay Very Close Attention to Any Odd Sounds When the Vehicle Is Lowered Onto the New Complete Strut Assemblies.
Step 16: It Is Very Important That You Immediately "Road Test" Your Vehicle Right Away to Ensure That Installation Was Done Properly. Listen and Feel for Common Signs of Incorrect Installation While Driving Slowly over Speed Bumps, Rough Road or Potholes.
The function of shock absorbers:
1. Shock absorbers can ensure smooth driving of vehicles, and they have the function of buffering vibrations. If the suspension lacks shock absorbers, the car will run unevenly and shake
2. Suppress the shock and impact from the road surface when the spring rebounds after absorbing shock, in order to improve the smoothness of car driving
3. Quickly eliminate the vibration of the axle and wheels caused by the road surface, ensuring that the wheels grip the ground at any time, thereby improving the safety of vehicle driving
Installation steps:
1. Use a lift to lift the car at a moderate height for easy operation.
2. Loosen the wheel nuts in diagonal order, use a socket to completely unscrew the wheel nuts in diagonal order, and remove the wheel.
3. Use a caliper jack to fix the shock absorber arm, loosen the upper body fixing nut of the shock absorber, and replace the other three shock absorbers in sequence.
4. After replacement, fix the wheel fixing nuts in diagonal order (do not tighten), put down the car and tighten the wheel fixing nuts with a wrench.
5. Finally, perform four-wheel alignment to ensure stable vehicle operation.
