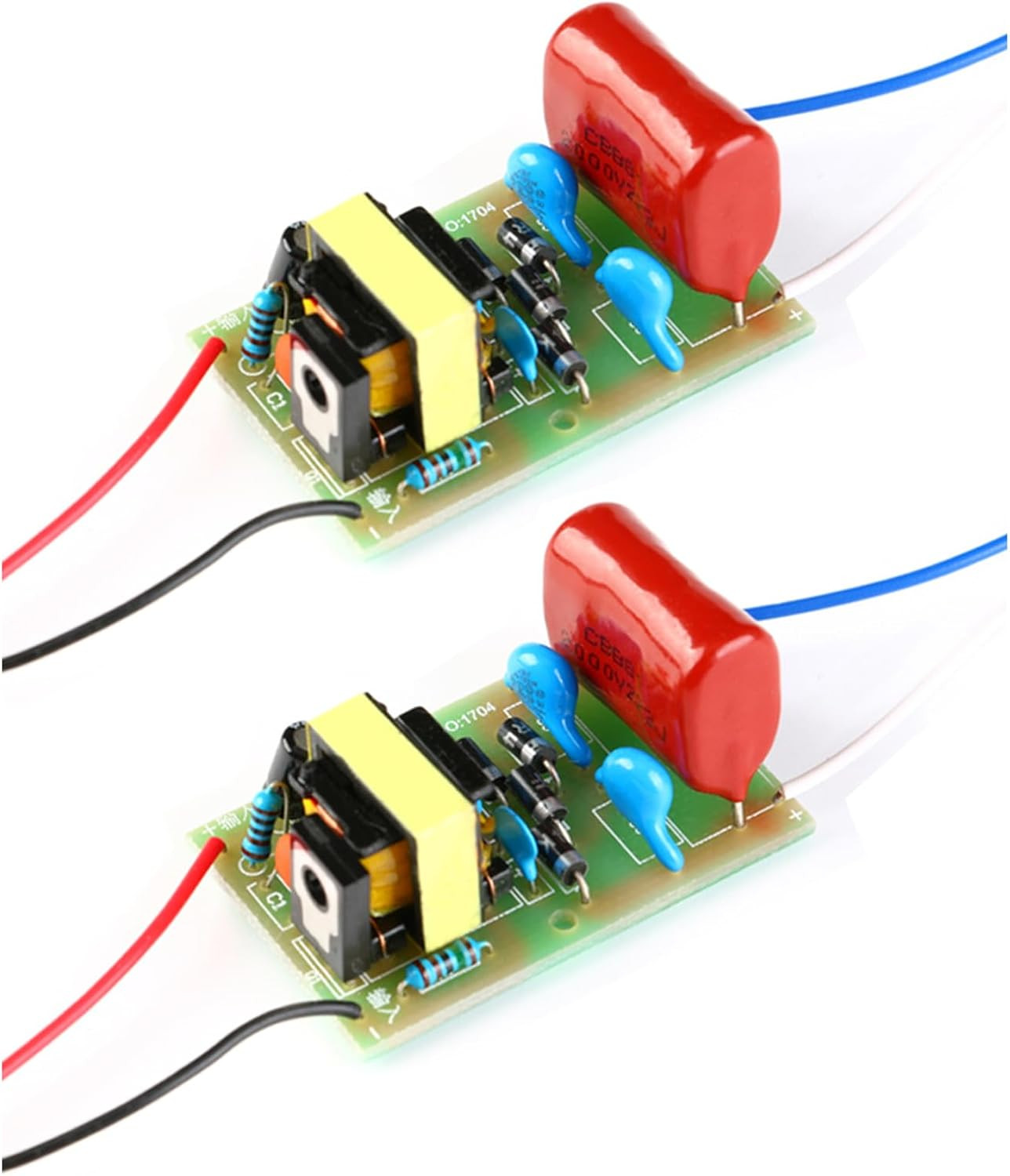

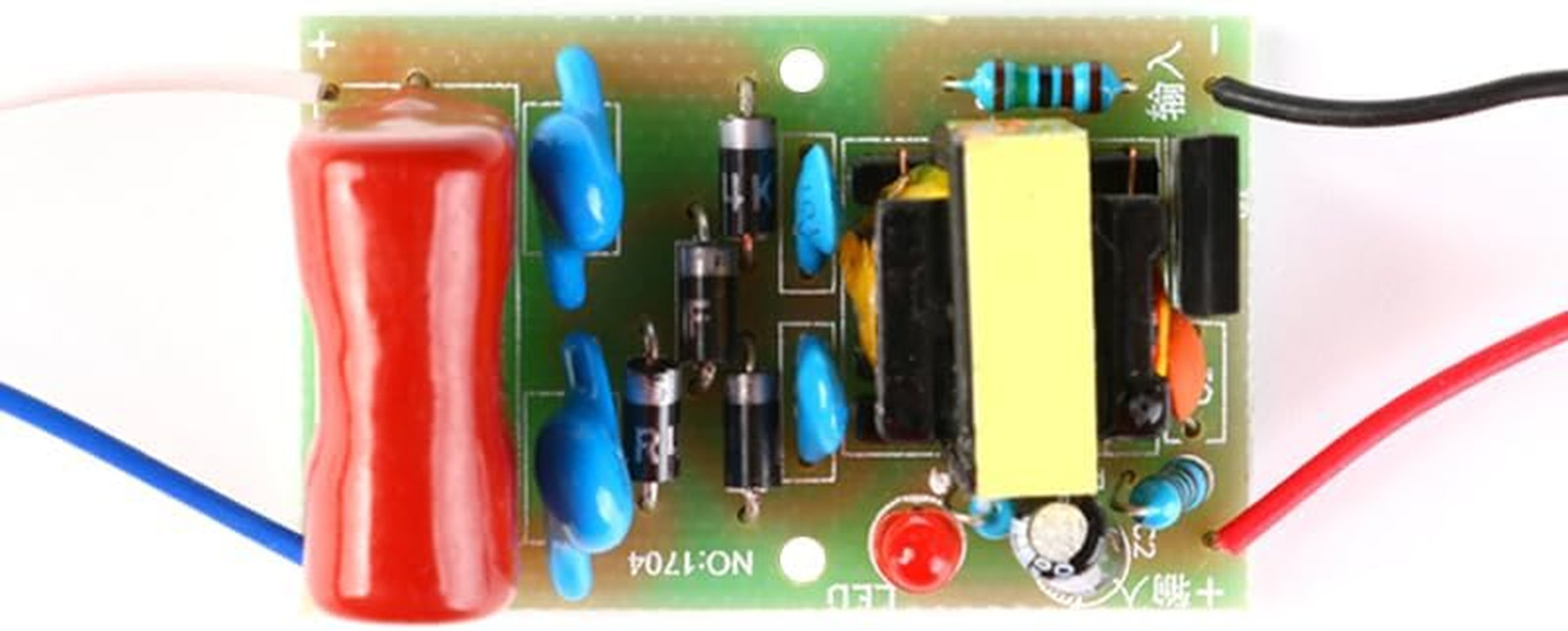

This is a high-voltage, low-current, and low-power boost module
When inputting 3V voltage, the output is approximately 1500V, when inputting 3.7V, the output is approximately 1800V, and when inputting 4.2V, the output is approximately 2000V
The output circuit is voltage doubling rectification
With a high-voltage discharge capacitor, 2000V 223
Capable of continuous operation, with a maximum discharge distance of approximately 1.5MM
Product description
We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer,hobbyist, student, or professional.
Our development boards and components are here to help.
Welcome to JESSINIE, for development boards and electronic components.
At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs.
At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer.
Choose JESSINIE for your development board and electronic components needs.
Thank you for choosing JESSINIE.
Specification
DC 3.7V boost 2000V, pulse boost module
Capable of continuous operation, with a maximum discharge distance of approximately 1.5MM
Input voltage: 3V ~ 4.2V
Input current: up to approximately 2A
No-load current: 130MA (at 4.2V voltage)
Output voltage: 2000V (if the battery voltage is low, the output voltage will also decrease)
Size: 4.15*2.6*2cm
Applications: popular science experiments, electronic instruments, negative ion generators, etc
