Overview:
"RRD-102V2.0" stereo radio module (FM Stereo radio Module) high sensitivity, low power consumption,ultra- small size of the FM stereo radio module.Using RDA Microelectronics of RDA5807M(or RDA5802NM),this circuit fewer external components,the noise factor is minimal. Small size,low power consumption,low cost,simple application,the use of a wide range of advantages.Is an easy-to-use and possessed highly cost-effective single-chip FM stereo radio module.
A: Move DVD,TV,MP3,MP4 and other built-in FM wide-band wireless receiver module.
B: mining,business,campus,residential,tourist areas and other public places,stereo FM radio
system.
C: wireless audio and wireless stereo headset functionality.
D: GPS navigation, TV broadcasting systems and other wireless FM radio.
E: high-end game consoles and wireless audio electronic toys.
F: mobile phones,mobile phones,intercom systems,mobile radio devices and other stereo radio.
G: PDAS and Notebook PC and other peripheral applications.
Function:
A: using a common 102BC module package,users can directly replace the use,without changing the circuit design. B: high sensitivity,low noise,anti-interference ability,very few external components,small size (11*11.2MM Max),extremely simple to use. C: 76-108MHz FM band worldwide compatible(76-91MHz,including Japan,America and Europe 87.5-108.5MHz). D: I2C serial data communications bus interface,support for external reference clock input.E: COMS technology fully integrated single-chip integrated circuits,power consumption is minimal.F: built-in high-precision A/D(analog) and digital frequency synthesizer.G: built-in LDO regulator,low power,wide voltage range(2.7-3.6VDC). H: built-in noise reduction, soft mute,bass boost circuit design.I: 32Ω load high power audio output,headphone connections are direct,no external audio driver amplifier. J: the application is simple,low cost,cost-effective.Color : show as picturesPLS NOTE that due to lighting effects, monitor's brightness / contrast settings etc, there could be some slight differences in the color tone of the pictures and the actual item!
Package Included:

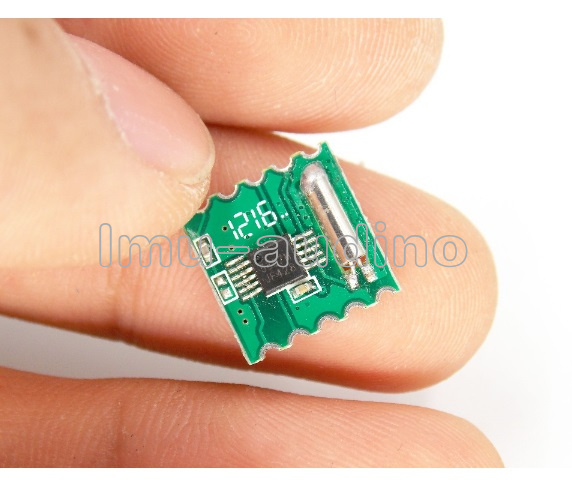

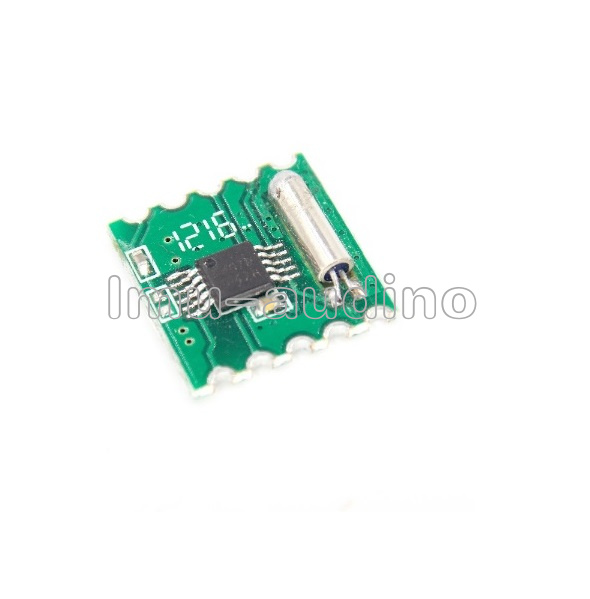

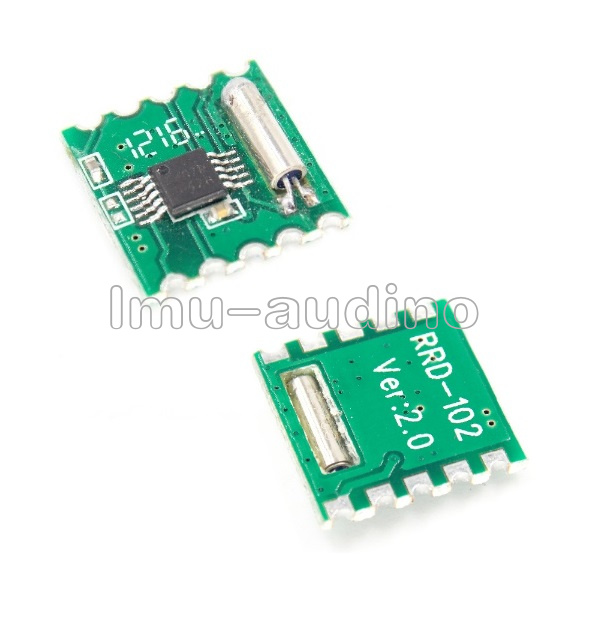

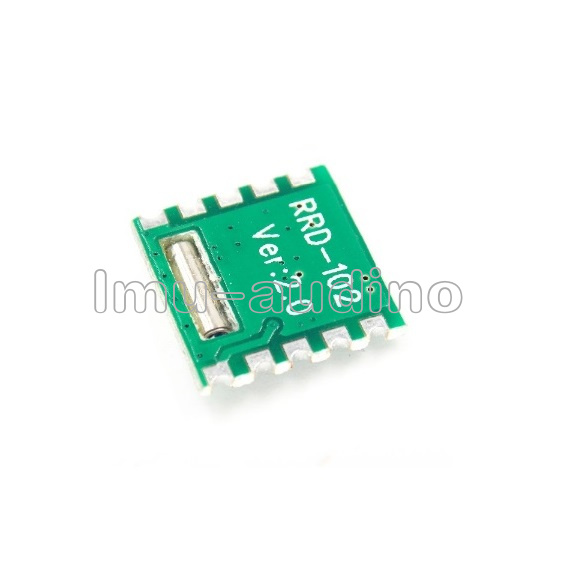

2 x FM Stereo Radio Module RDA5807M RRD-102V2.0 Wireless Module For Arduino
