DESCRIPTION
2X(Motherboard for RP2040 Core Board Compatible RP2 Micropython1896
2X(The RP2040 microprocessor (MCU) integrates a dual-core ARM architecture Cotex-MO+ core, directly integrates 264KB of RAM internally, supports up to 16M QSPI external expansion Flash, and highly flexible I/O settings, including , SPI, PIO (Programmable I/O).
Dual-core ARM -M0+@ 133MHz, 264kB built-in distributed in 6 blocks, Max external QSPI Flash expansion, directly connected to the AHB bus, equipped Complete interpolator and integer divider, on-chip programmable to generate core voltage, 2 on-chip PLL phase-locked loops for USB and core clock generation, 30 GPIO pins, 4 of which can be used as analog inputs.

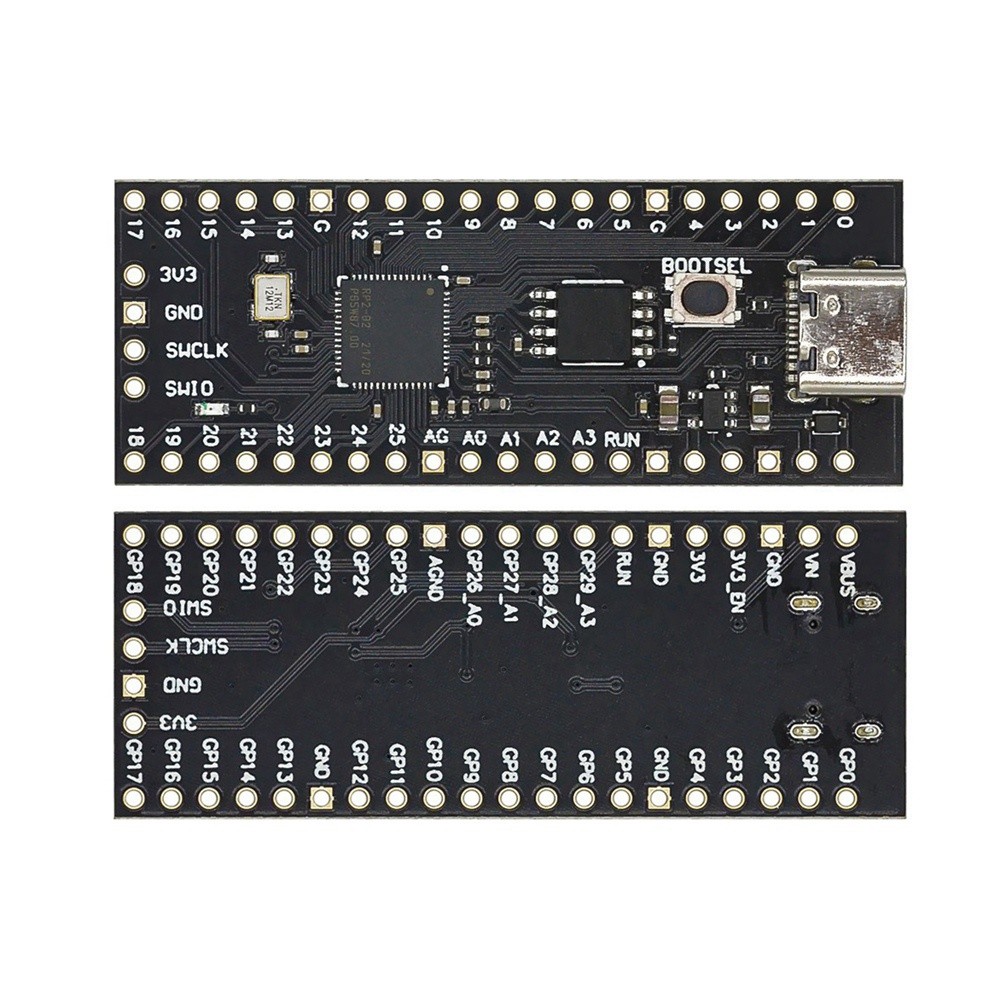

Peripherals : 2 serial ports/2 SPI/2 /16PWM channels/USB 1.1 controller and PHY, supports host mode and slave mode/8 PIO state machine. Regarding the YD-RP2040 core board, YD-RP2040 is a core board circuit board produced by VCC-GND® Studio using the RP2040 microprocessor (MCU) issued by the British for Company. It is convenient for users to expand peripherals and design and build circuits.
Light-emitting diode description: Power indicator light, red light, used to indicate power on status, LED, GPIO25, blue light, used for user programming control, RGB LED WS2812B, GPIO23, used for user programming control
Key description: KEY, GPIO24, used for user programming input control BOOT KEY, used for boot download KEY: used to reset the system, or enter boot download mode with BOOT KEY
Description:
About the advantages of using RP2040 chip
for , with its extremely cost-effective for computer board, has become one of the leading computer data manufacturers. Cost-effectiveness has always been the label of . It can simply be considered an unfamiliar controller. The performance index is high enough and the necessary peripherals are also av)
