Module description:
1.The module Operating voltage 12V;
2.Fault-tolerant design, even if the control line is broken, the relay will not operate;
3.The power indicator (green), the relay status indicator (red);
4.Module size: 50mm*26mm*18.5mm (L*W*H).
Interface:
-Input
VCC: Relay power supply +
GND: Relay power supply -
IN: Signal trigger input (High or Low Level Signal, select via jumper)
-Output
NO: Relay normally open.
COM: Relay Common Pin
NC: Relay normally closed.
High or Low Level Trigger Select:
1. Use High Level Trigger
When ¡°IN¡± input High Level Signal, the ¡°NO¡± connect with ¡±COM¡±
When ¡°IN¡± input Low Level Signal, the ¡°NC¡± connect with ¡°COM¡±
2. Use Low Level Trigger
When ¡°IN¡± input Low Level Signal, the ¡°NO¡± connect with ¡±COM¡±
When ¡°IN¡± input High Level Signal, the ¡°NC¡± connect with ¡°COM¡±
3. High or Low Level Trigger Select
Jumper connect with L, Low Level Trigger
Jumper connect with H, High Level Trigger
Package ：

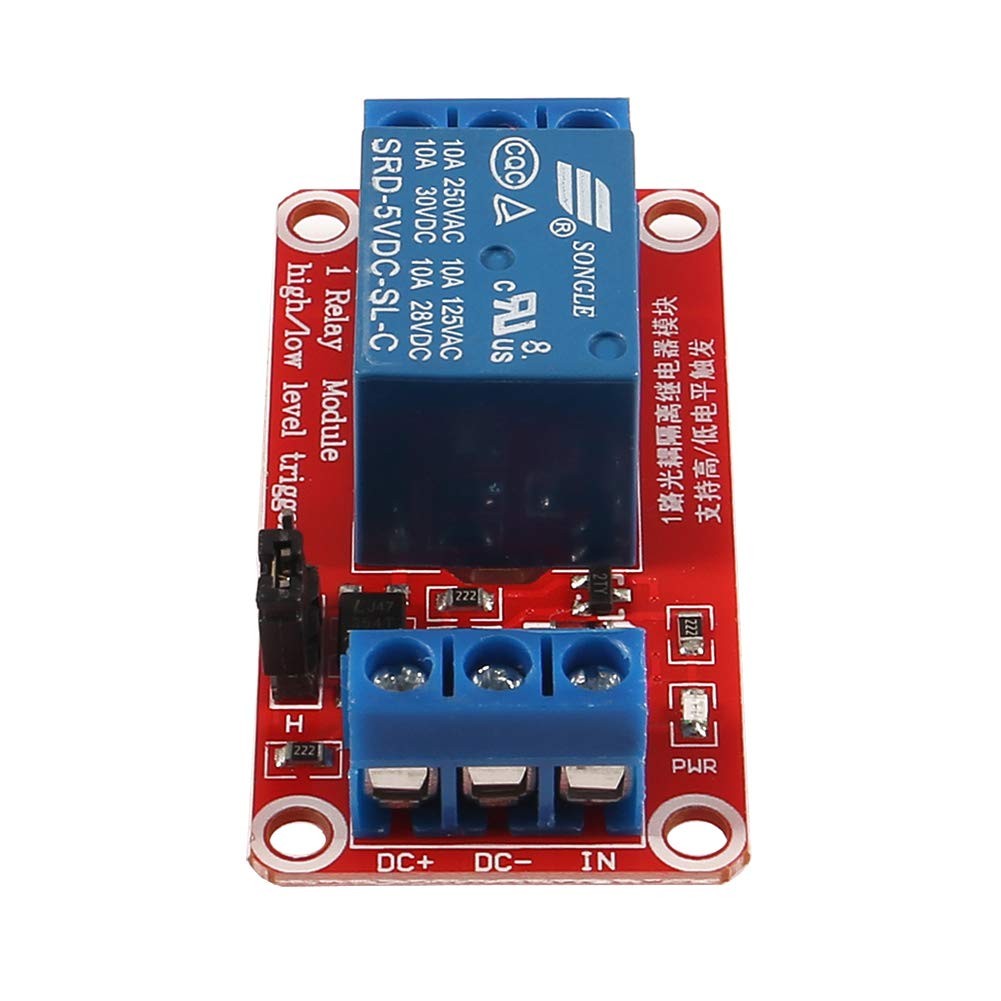

2* 12V 1 Channel Relay Module
This Relay Board provides a single relay that can be controlled by any 12V digital output from your microcontroller.
The module uses genuine quality relay, normally open interfaces , Maximum load: AC 250V/10A, DC 30V/10A.
SMD optocoupler isolation, strong driving capability, stable performance; trigger current 5mA.
The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient.
These 12v relay board works well for Arduino/ ARM /PIC /AVR /MCU/Raspberry/CNC machine/ PS4 etc.
