Package Include:

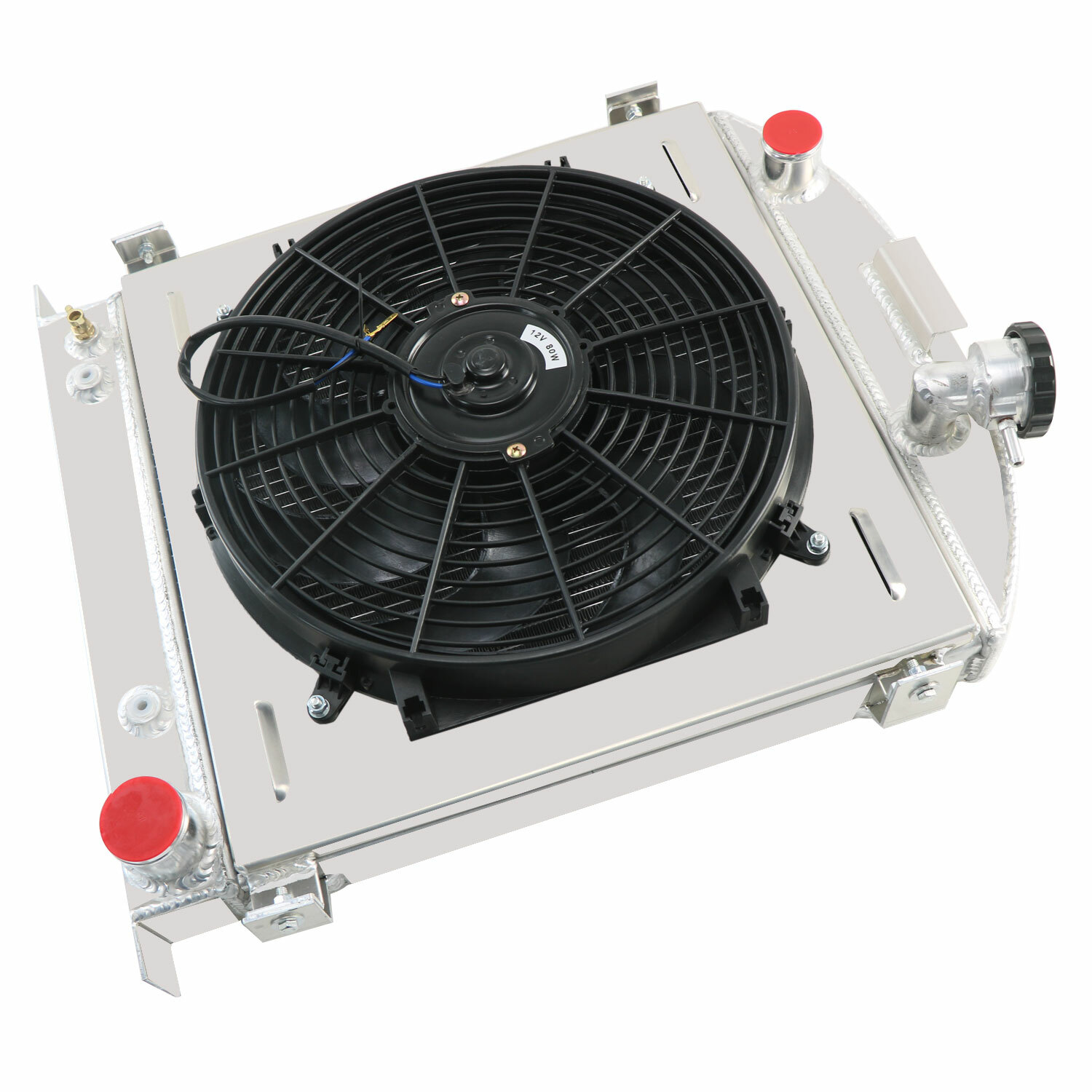

1 X 3-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 14" Fan (Includes mounting kits)
1 X Thermostat Relay Kit
Application:
This Radiator Fits:
FOR 1930-1932 FORD MODEL 3.3L CHEVY ENGINES
FOR 1933-1938 FORD MODEL SERIES CARS CHEVY ENGINES
Please Notice:
To
confirm that this part fits your vehicle, enter your vehicle's Year,
Make, Model, Trim and Engine in the Compatibility Table. Also review the
notes section in the compatibility chart for additional specifications
about this part.
This Radiator Size:
Material: AA5052 Aluminum
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Core Dimensions: 17 1/2" high x 17 1/2" wide
Overall Dimensions: 22 3/4" High x 19 1/8" wide.
Upper inlet: 1 1/2" located on driver side.
Lower outlet: 1 3/4" located on passenger side.
Auto trans cooler: ￠25×250×1/8-27NPT

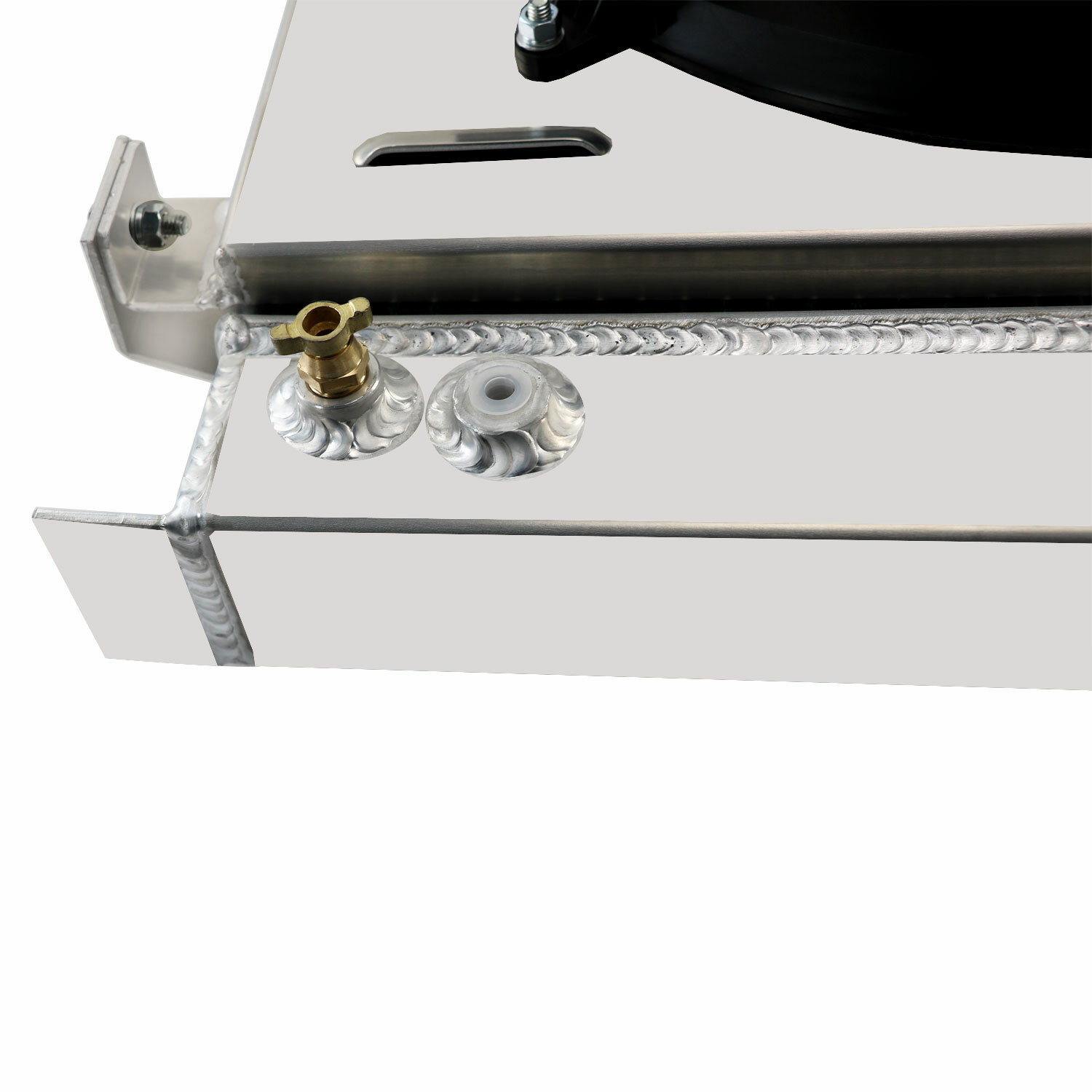

The tank is welded by TIG.
OEM Style Brass Petcock Drain

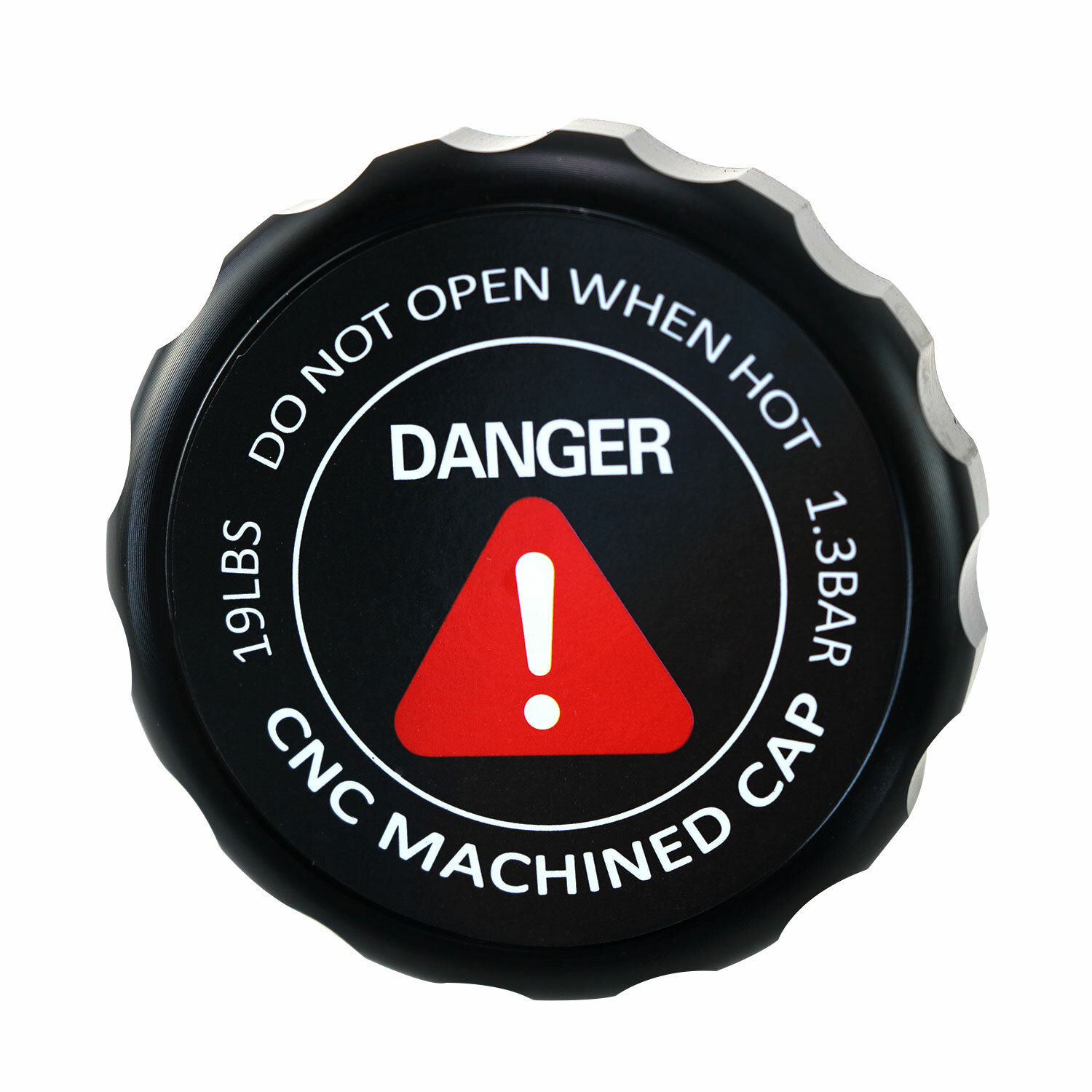

CNC Machined Filler Neck and Cap
Please Check the Size Before You Buy!
Fan Specification:
Diameter : 14'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 80W
Number of Blades: 8 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 2250cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
Fan Thickness: 2.64"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 80 watt motor will keep your engine cool.

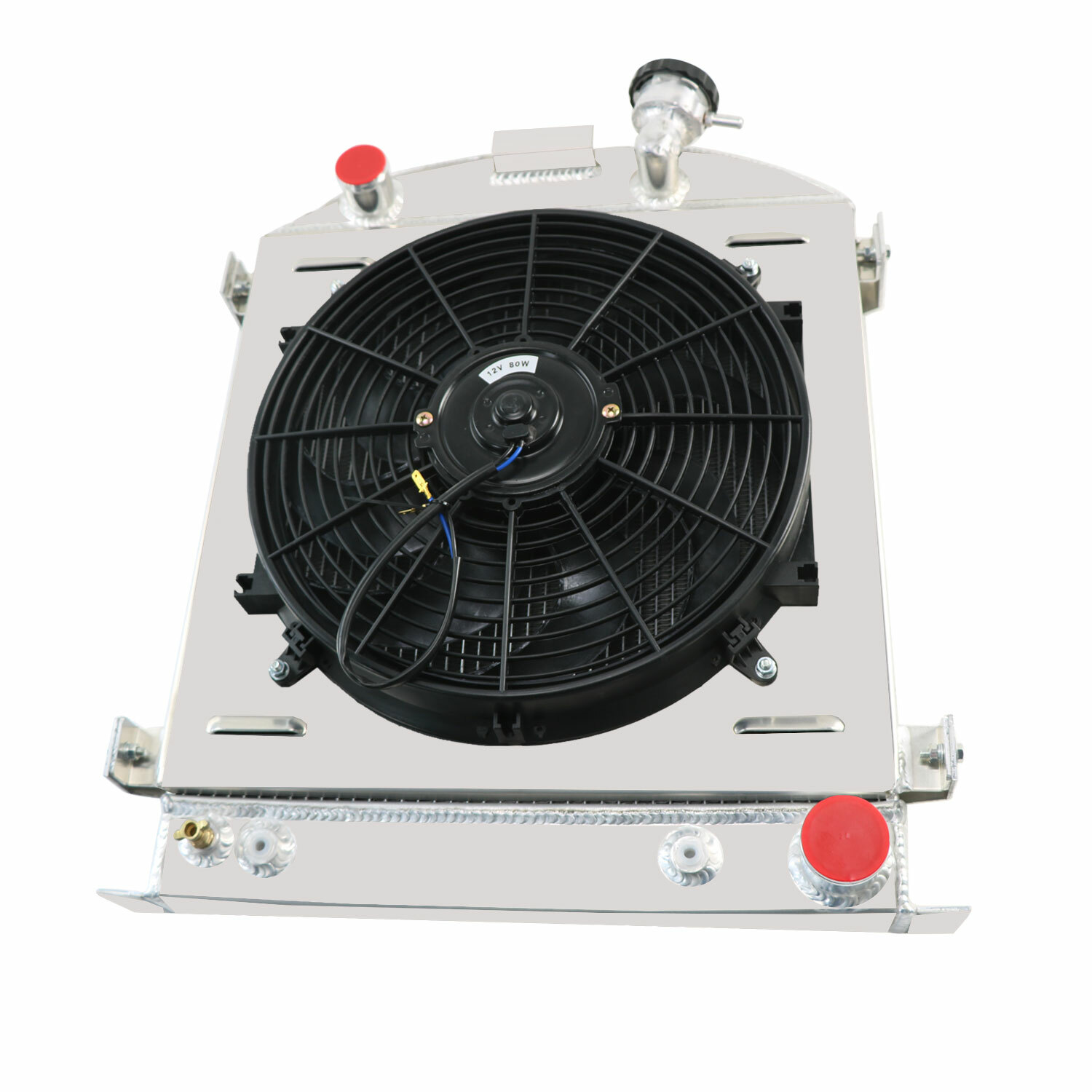

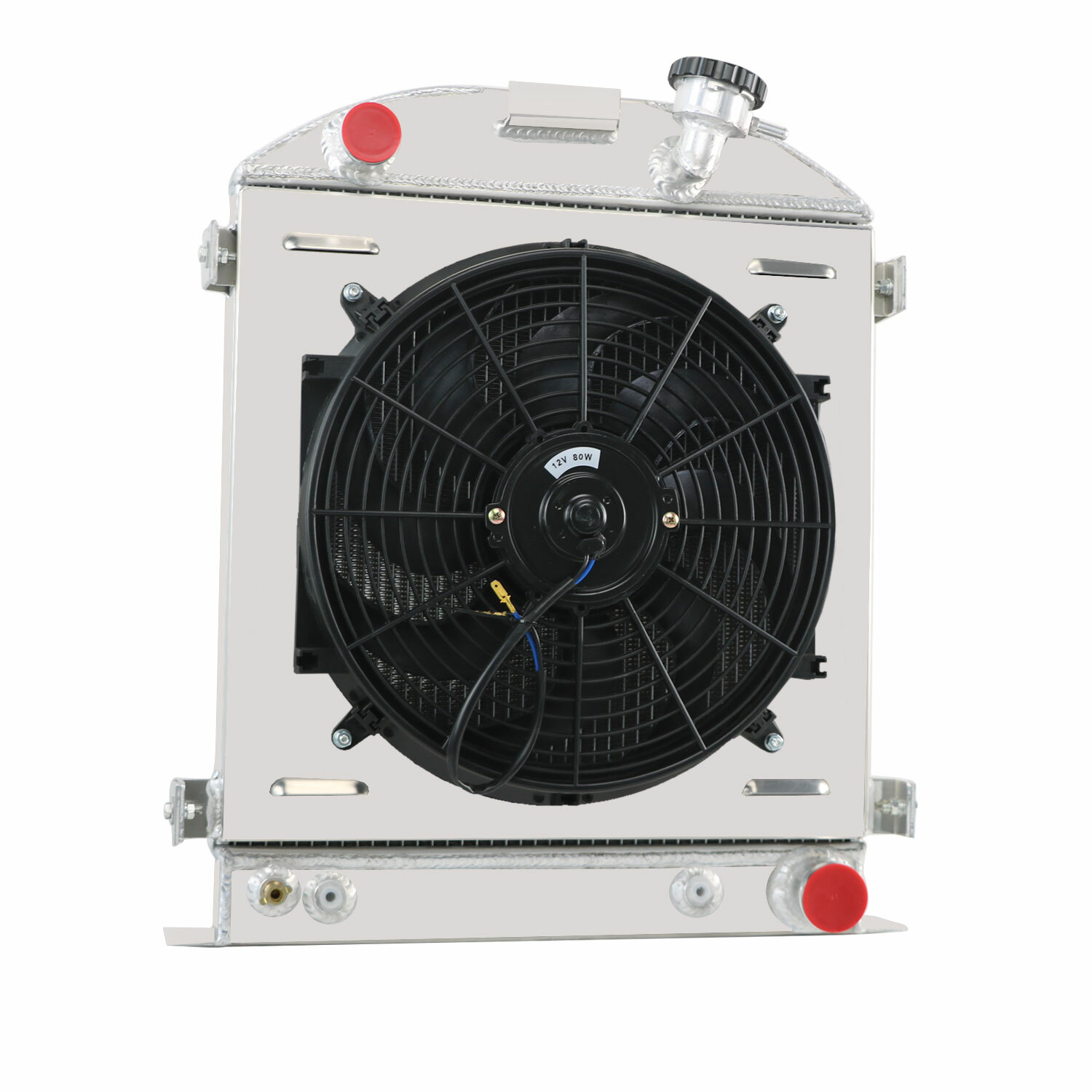

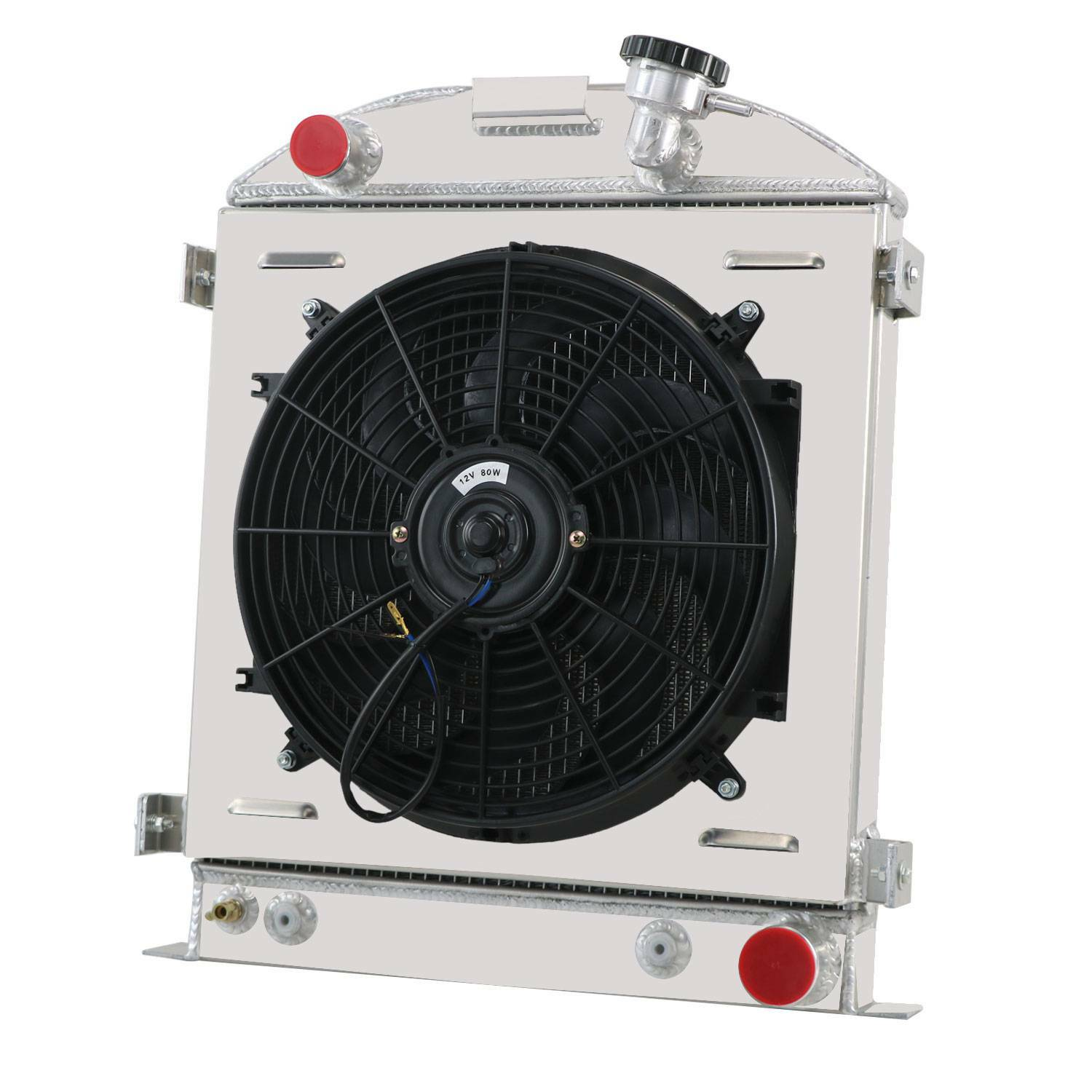

AA5052 Aluminum Shroud+Fan：
Our custom-made AA5052 aluminum fan shrouds are manufactured to fit our ALLOYWORKS and ASI PERFORMANCE radiators. These fan shrouds are fabricated for use with our electric cooling fans but allow for use with most low profile electric fans.
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect.
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.

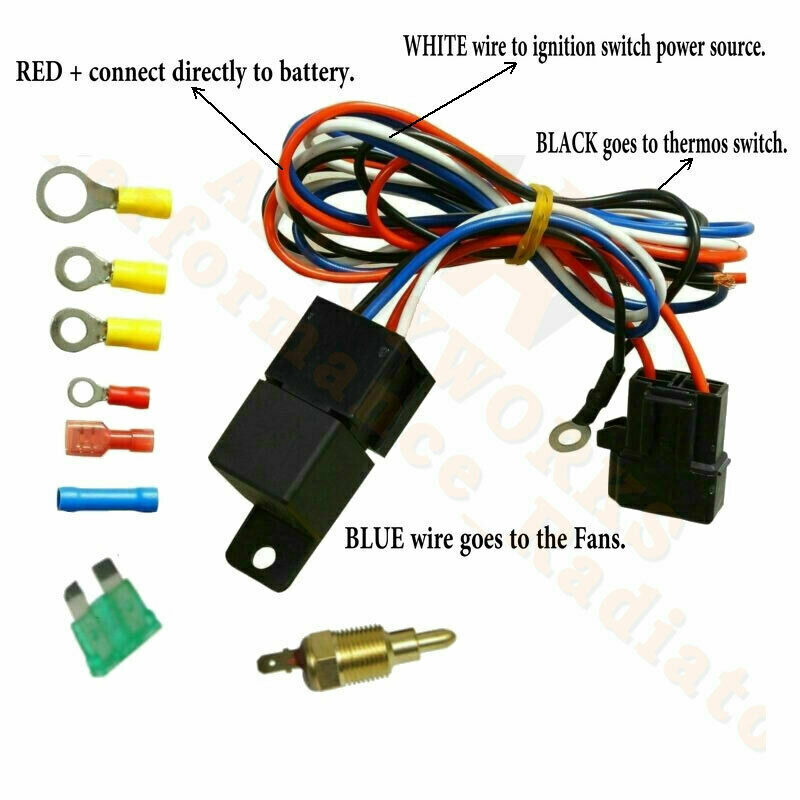

Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

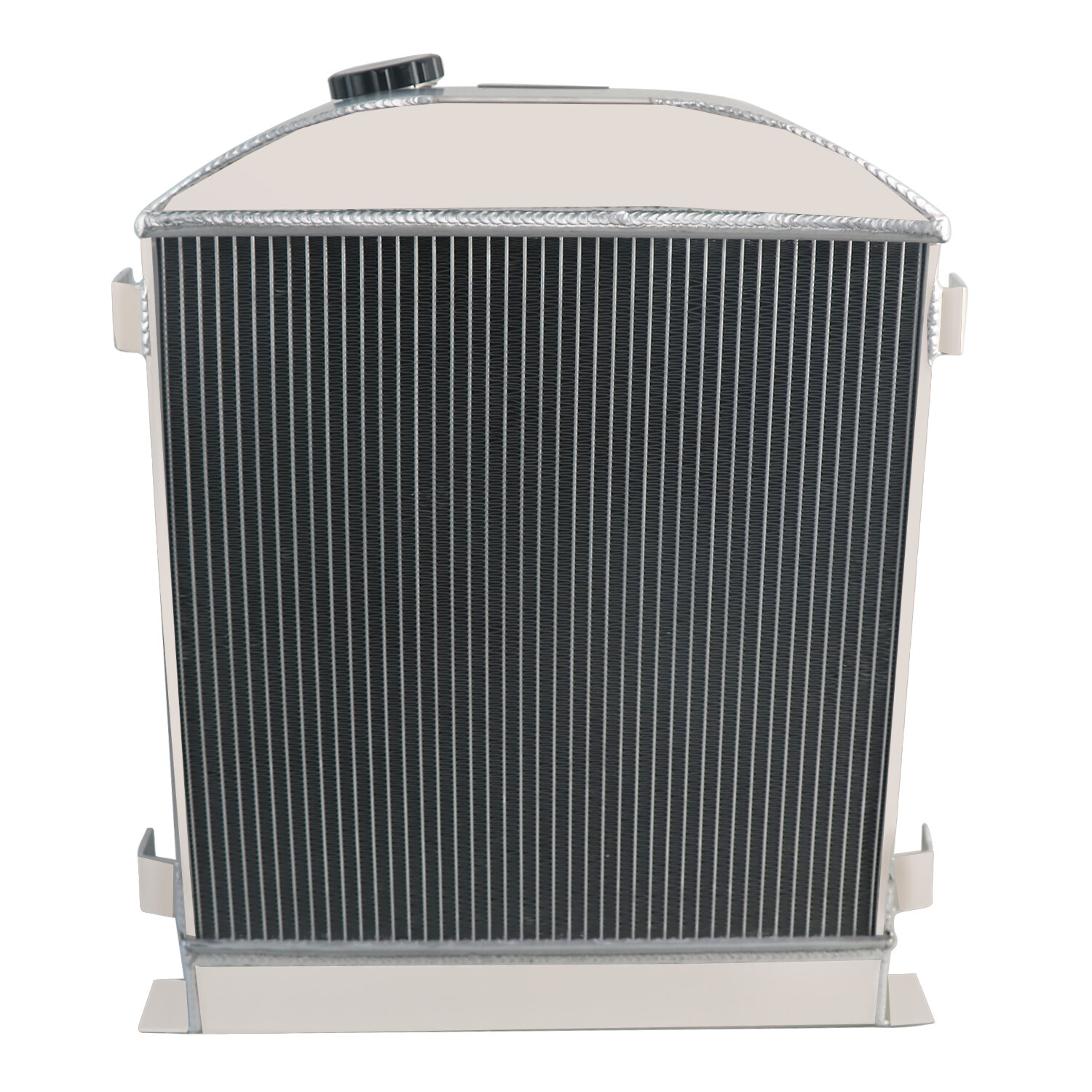

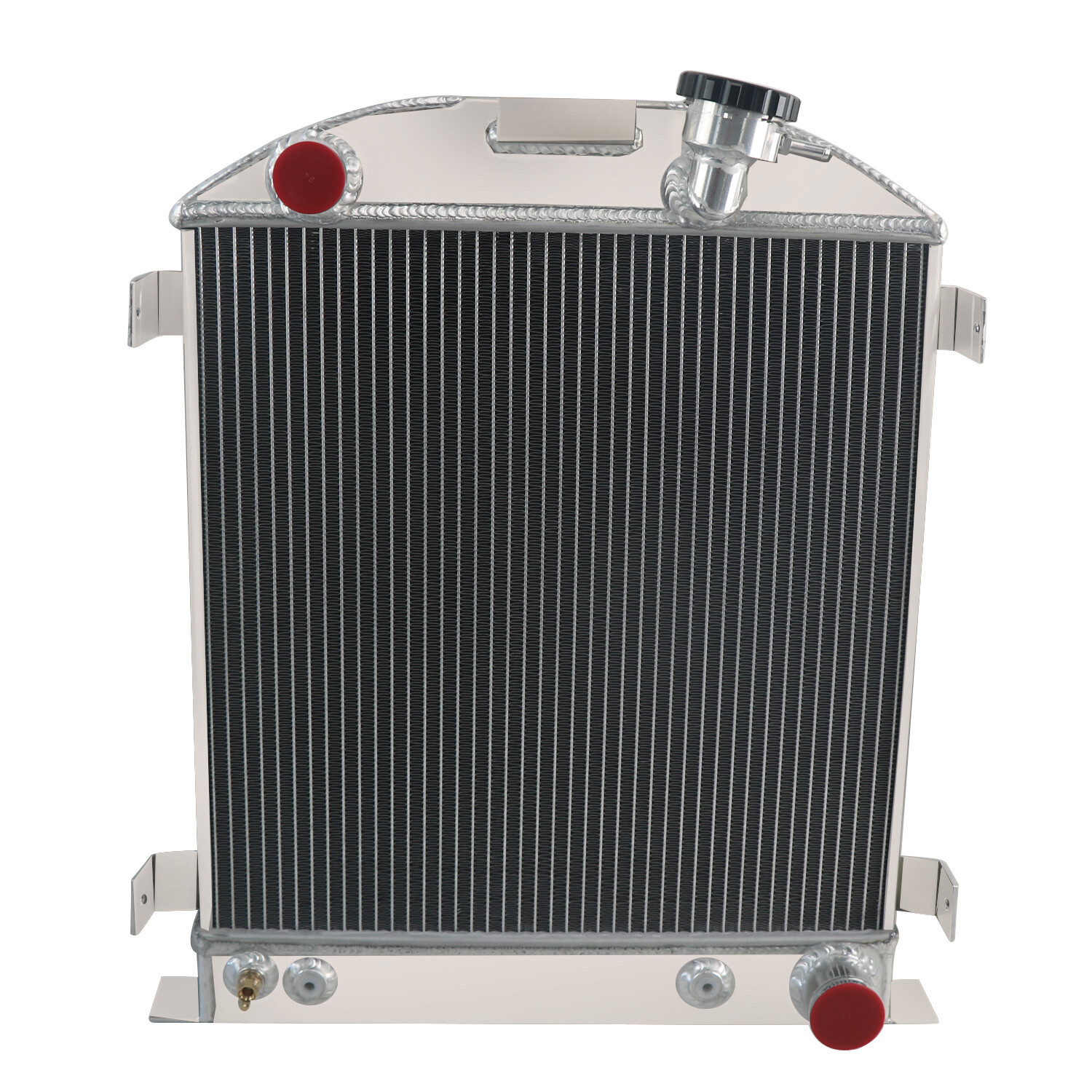

AA5052 Aluminum Radiator：
1.Our Radiator is made of AA5052 aircraft aluminum,5052 Aluminum major alloying element is magnesium,has a higher strength and greater corrosion resistance (including to salt water).
2.Higher density core: cooling rows are spaced 3/8" apart,giving you 25% more rows within the core than other aluminum radiators sold on eBay.
3.14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators.AA5052 aluminum radiator core can be made more efficient by changing the tube spacing and fin count. If the tubes are placed closer together and the fins are packed in tighter a denser core is created that throws off much more heat. A high efficiency core can have tubes on 3/8" centers and fin counts increased to 14 to 16 FPI,That may not seem like a big deal but the surface area is greatly increased. Combined with all the additional fins between the tubes this provides approximately 30% to 45% better cooling than the OEM radiator had.
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full AA5052 Aluminum Construction.aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure.
-
ALLOYWORKS radiator is a performance aftermarket car parts company providing a variety of aluminum radiator for all sorts of makes and models.
-
Shop with us with confidence you would be receiving the best quality products for the value.
-
No matter if it's for a car or truck we have exactly what you're looking for!
Browse through our eBay store if you wish to find out more of what we have to offer. thanks
Paypal ONLY --the easiest and most secure way to pay on line
- Items will be shipped 24 hours of payment verification.
- We do not offer local pick ups for any orders made through eBay.
- We use United States Postal Service (USPS), United Parcel Service (UPS) or Federal Express (FedEx) to ship our packages.
- Ground Carriers do not deliver to PO BOX or areas : Hawaii (HI) , Alaska (AK) , Puerto Rico (PR) , Army Post Office (APO) , Fleet Post Office (FPO), PR , HI , AK , APO , FPO ,Canada and International Countries.
-
We accept return in 30 days and appreciate communication in advance!
- All return items MUST be in brand new condition which means the item is never installed and kept in the original packaging.
- You must contact us to request a Return Authorization Number (RA#) before you send anything back. With RA#, we may address return issues with high efficiency. Without RA#, we may fail to find your transaction. Appreciate your understanding!
Shipping Damage
- Shipping damage is any item/package suspected of being broken or damaged in anyway during the shipping process. We purchase full insurance for this, however the damage must be reported to us within 3 days of receiving the package.
