Package Include:
1 X 3-Row Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Radiator Size:
3-Row of tubes Core Racing Design
Petock Drain:OEM style brass petcock drain
Core Diameter: Height 18 1/8"in x Width 18"in
Inlet Location Diameter: 1 1/2" located on the Passenger side
Outlet Location Diameter: 1 1/2" located on the Driver side
Transmission Oil Cooler: Yes
Vehicle Fitment:
1991-1994 Ford Explorer 4.0L1985-1994 Ford Ranger 2.8L 2.9L 3.0L 4.0L
1991-1994 Ford Bronco II 2.8L 2.9L
1994 Mazda B4000 4.0L
1991-1994 Mazda Navajo 4.0L
AA5052 Aluminum Shroud and Fans:
The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
3. Additional with thermostat,professional matching advice, consider for every detail and needed
FANS:
Volt :12v
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 S-Type blade
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

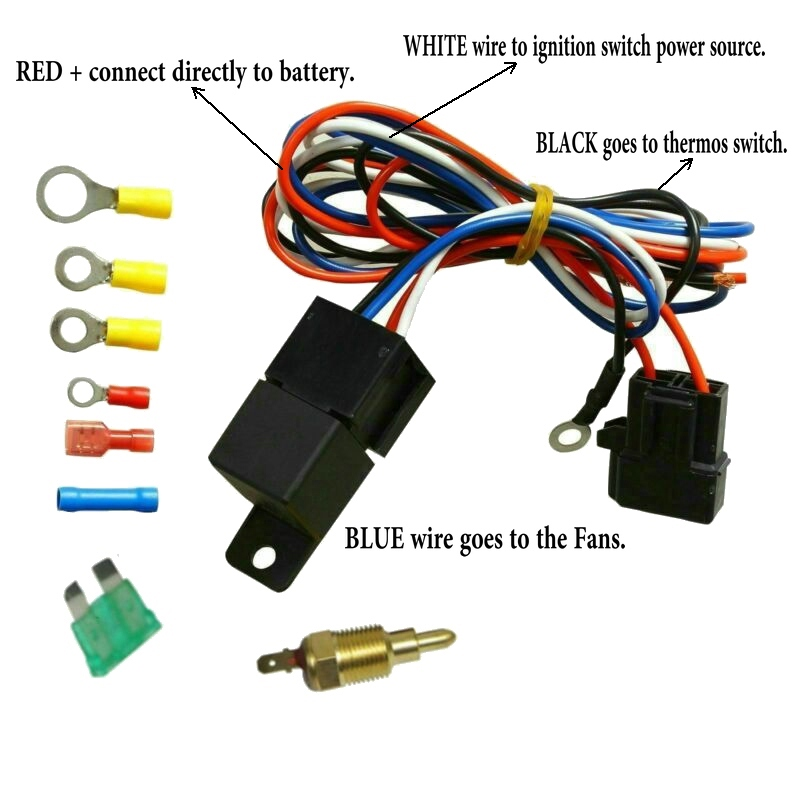

Thermostat Kit Installation:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
The advantages of our radiator：

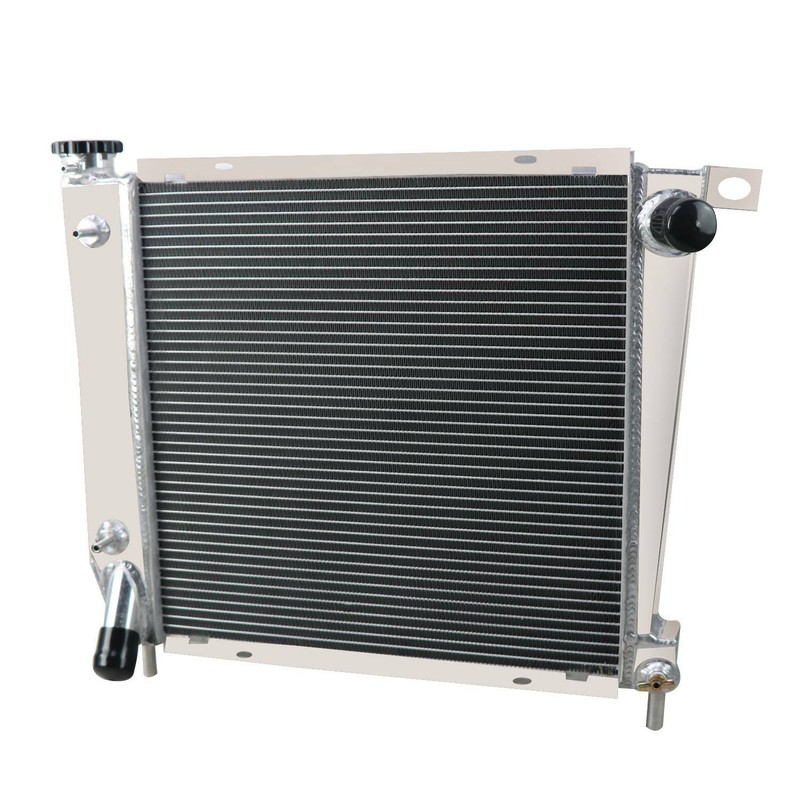

About this AA5052 Aluminum Radiator：
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1. Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
2. Brazed core technology to guarantee optimum performance and dependability
3. All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4. Billet Aluminum CNC machined fill neck rugged and durable
5. 16lbs ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.
6. OEM style brass petcock drain much better than other plastic one on eBay
7. Carefully crafted to exceptional OE standards for precise fit.
We are specialized in Cooling&Radiator.
All our products are 100% fully tested to ensure top quality.
Full set in box and 100% brand new.
We warranty that all our products are made of the best materials and advanced manufacture technique.
Customer service and high-quality products.
Easy to Install.
1-day handling time & At least 1 year warranty & Fast Local Delivery
Factory Price & Good After-sales Service & Easy Free Return
No Fitting Instructions Supplied!
Professional Installation is Highly Recommended!
Note: Please contact for quote if international postage NOT display.
Paypal --the easiest and most secure way to pay on line
Bank Deposit
60 Days Free Return, please notify us within 60 days after you've received your product.
Items to be returned must be in resalable condition.
Return Check List
Original packaging
PartsHawk RMA (return merchandise authorization) form
All accessories & hardware.
Very appreciated for your support. I hope you are happy with your purchase.
We maintain high standards of excellence and strive for 100% customer satisfaction!
Feedback is very important to us.
We request that you contact us immediately BEFORE you give us
or
feedback, so that we can satisfactorily address your concerns.
If you have any problem, please feel free to contact us via ebay message, we will reply your email within 24 hours (except weekends and holidays). We will do our best to solve your problem as soon as possible.
We appreciate your continued patience and willingness to work with us. Thank you for choosing us and have a great day!
