This Listing Is Including:

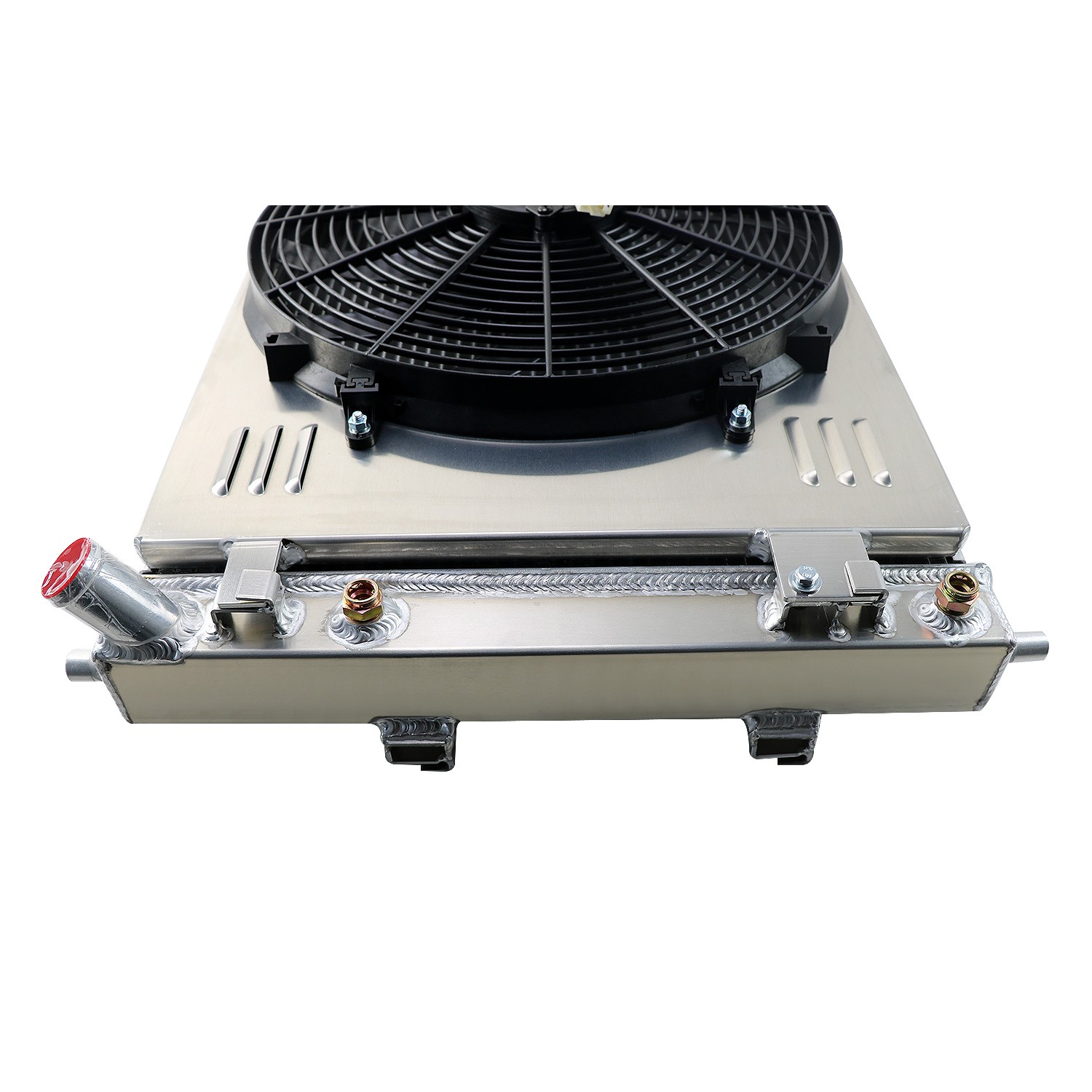

1 X 3-Row Aluminum Radiator
1 X Aluminum Shroud
1 X 16" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Radiator Size:
Brand:ASI Performance
Condition:New
Material:Aircraft 5057 grade aluminum tank & core
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Core Dimensions: 17.25'' x 23.425''
Overall Dimensions: 20.275'' x 28.94''
Inlet/Outlet Dimensions: 1.3''/1.3''
Automatic Transmission Cooler: φ26*292*5/8-18UNF(Z)
Engine Oil Cooler: φ26*292*5/8-18UNF(Z)
Petock Drain:OEM style brass petcock drain
Vehicle Fitment
2005-2007 Chevrolet Corvette V8 6.0
2008-2013 Chevrolet Corvette V8 6.2
2006-2013 Chevrolet Corvette V8 7.0
2003-2004 Chevrolet SSR V8 5.3
2005-2006 Chevrolet SSR V8 6.0
2008-2009 Saab 9-7x V8 6.0

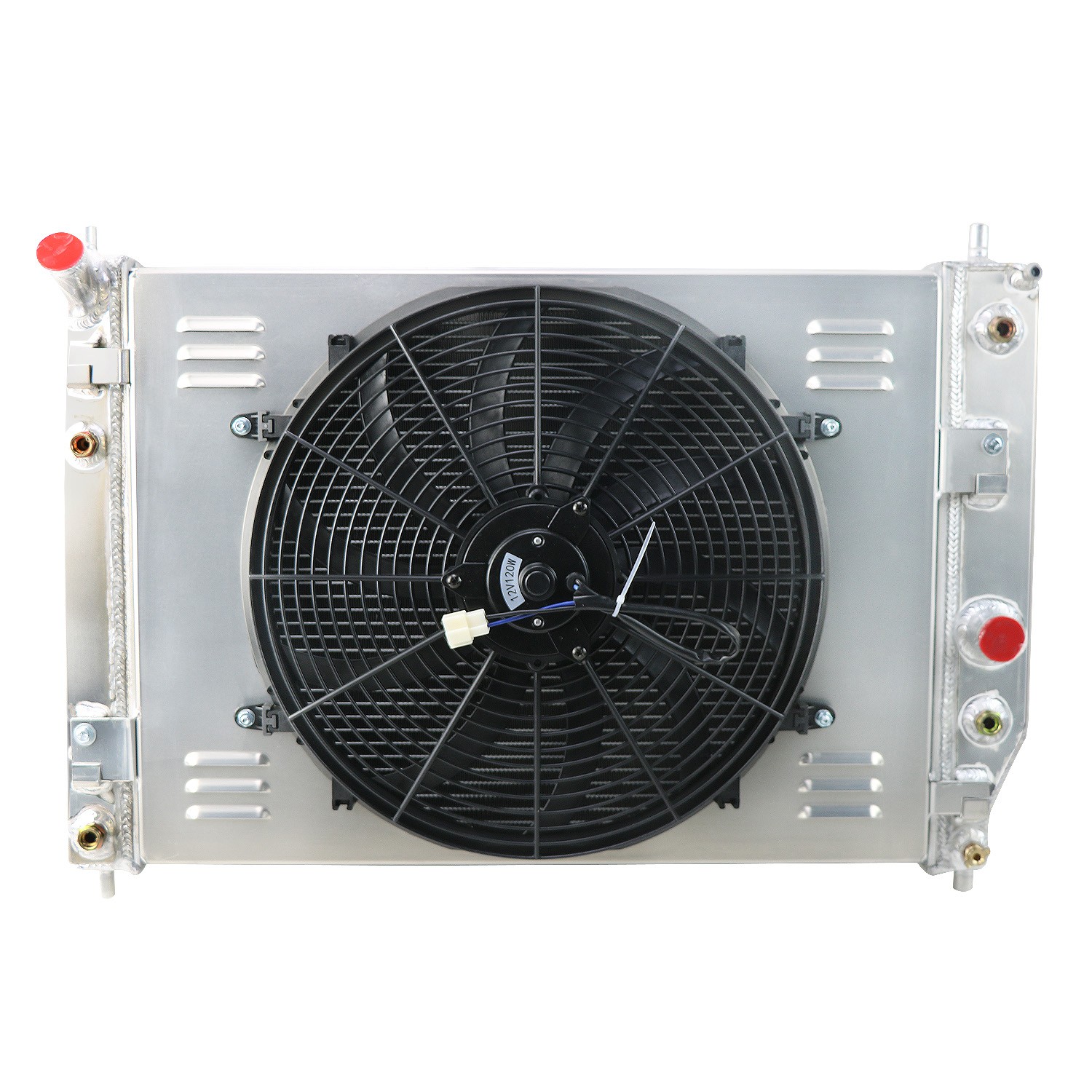

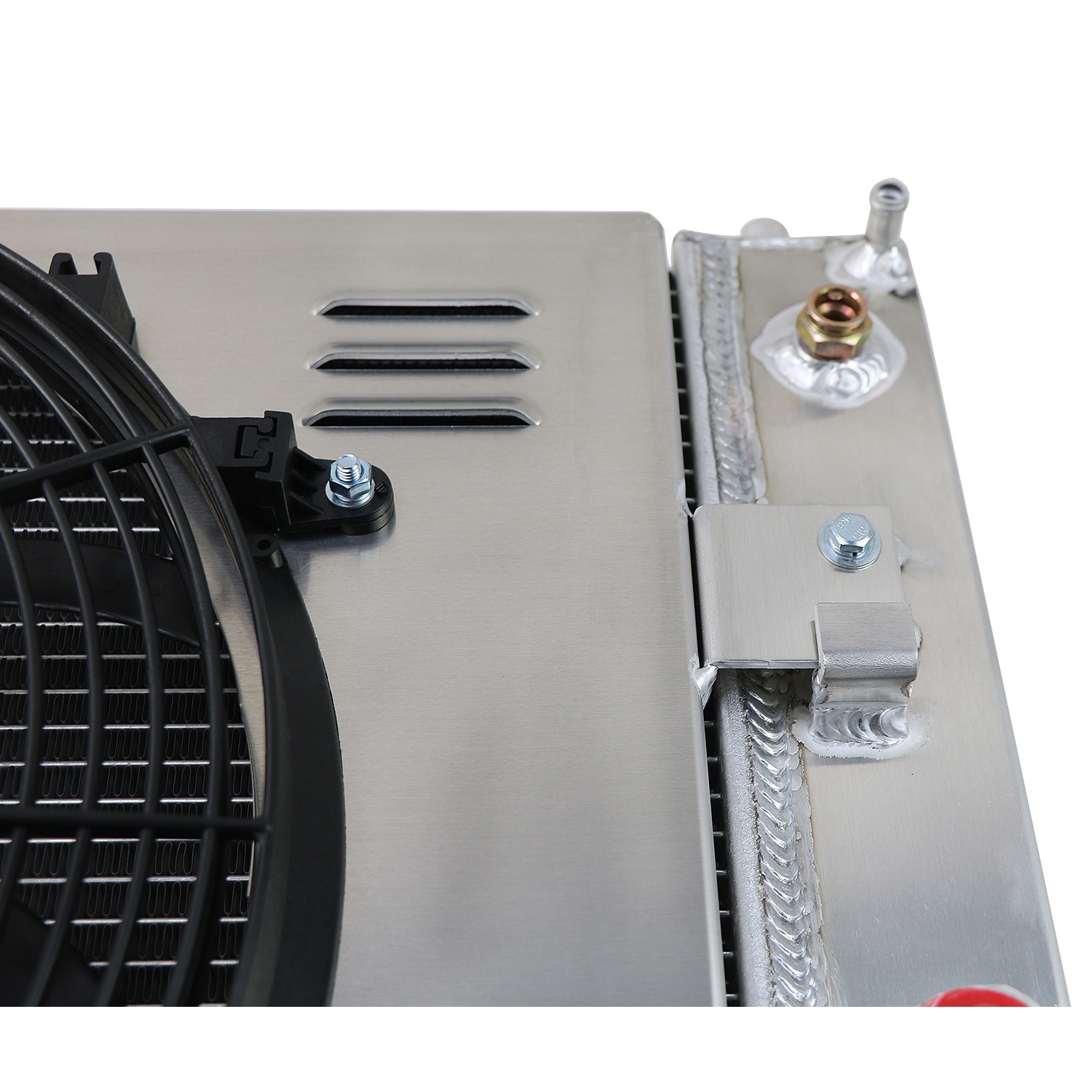

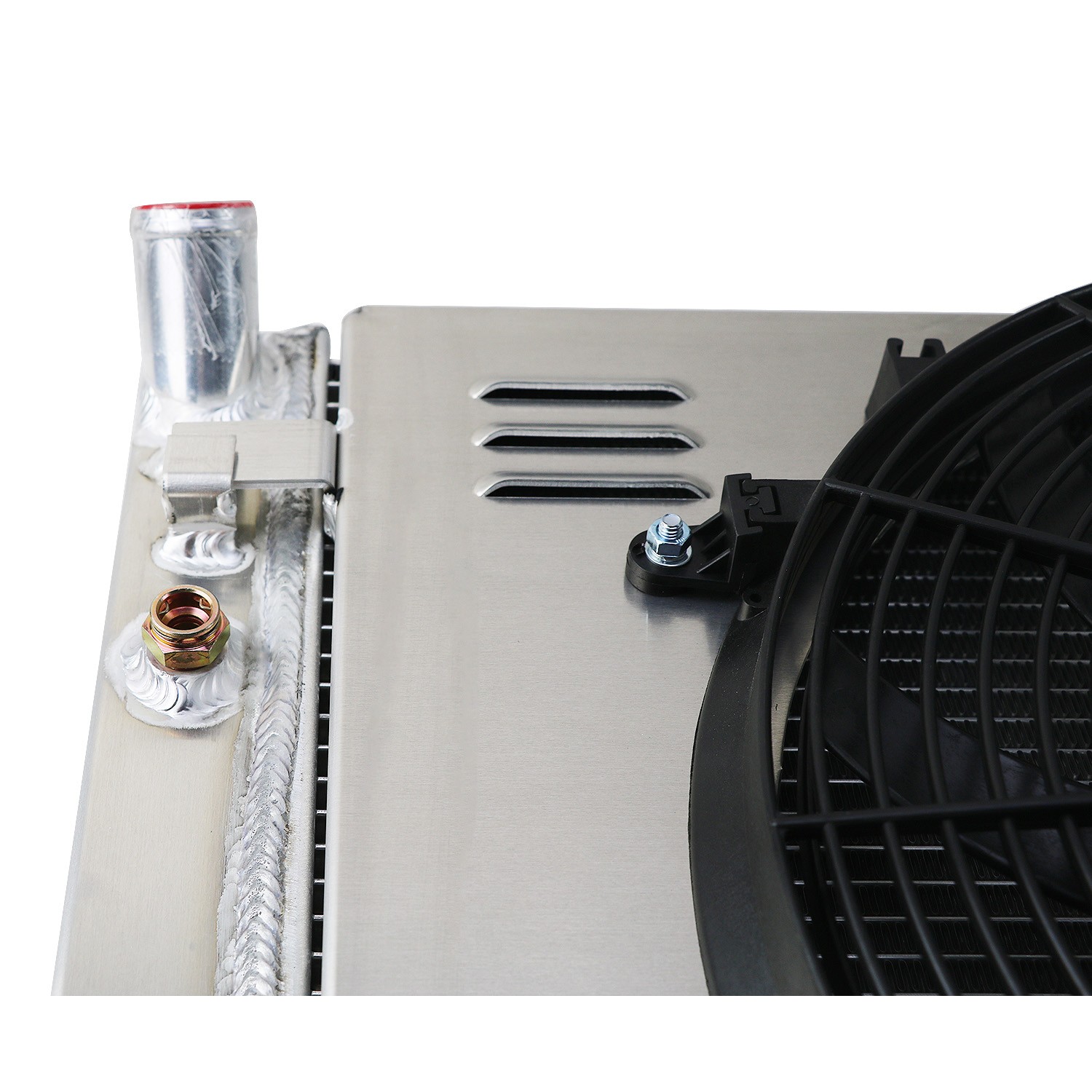

Shroud and Fans:
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
FANS:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 16.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
Description:
This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1. Covers vast selection of import and domestic applications
2. Stringently tested to guarantee optimum performance and dependability
3. Straightforward installation guaranteed
4. Carefully crafted to exceptional OE standards for precise fit,Aircraft 5057 grade aluminum and with raw aluminum finish
5. Made from high-grade materials for prolonged lifespan
6. OEM style brass petcock drain
