Have you found yourself replacing lamps or over paying for a simple Sensor change?
Do you want to save time and money?
Then you've come to the right place!
inc. has been in the repair industry for over 30 years!
We'll guide you through this simple process so that you never have to replace your lamps or over pay for a sensor change again!

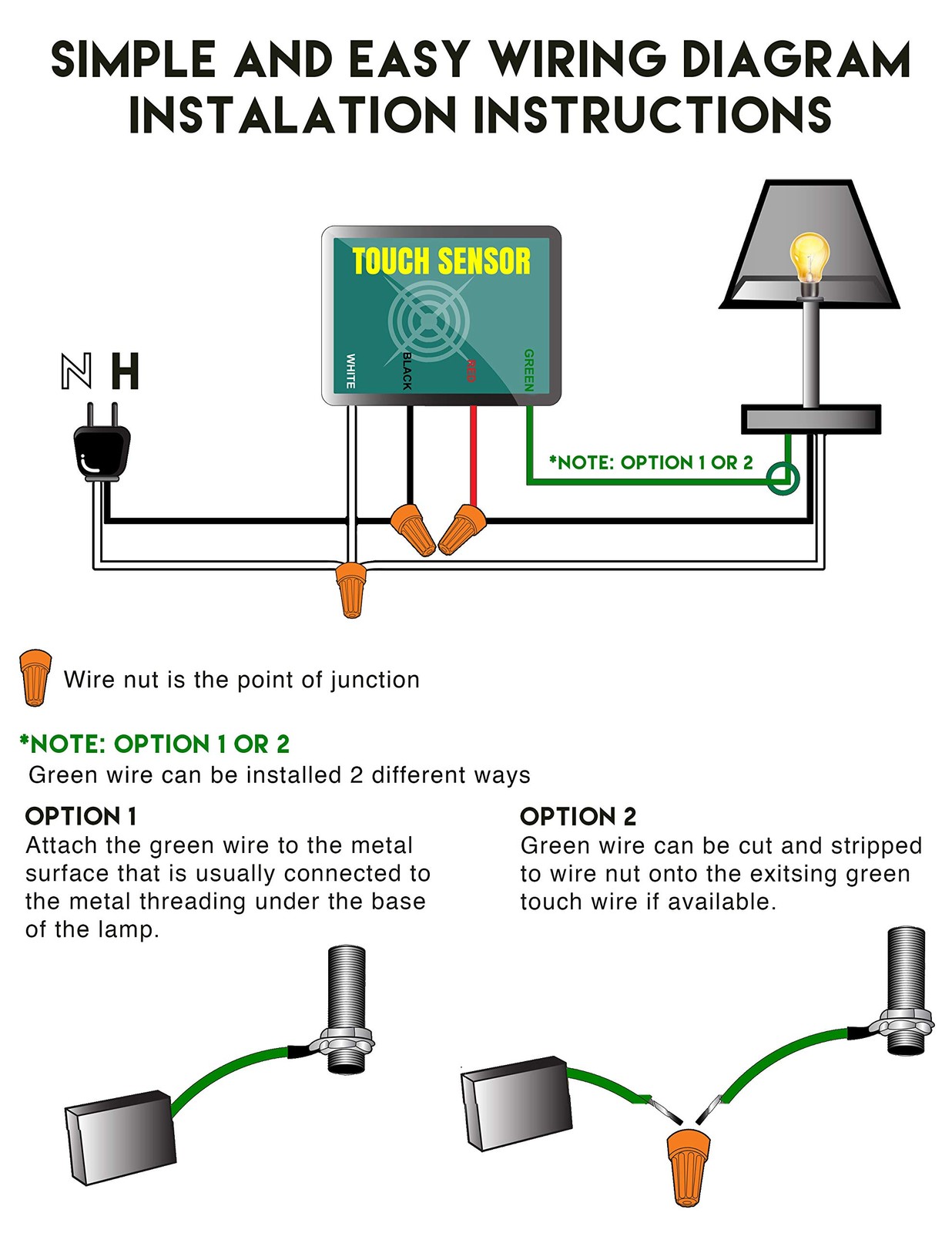

-Just follow our easy wiring diagram for directions color wire by color wire!-
Easy 4 step process to install
In most cases the previous touch sensor has permanent wire nuts, cut the wires to remove them and strip back to the raw copper wire (If they are removable wire nuts twist counter clockwise to remove, and the new orange wire nuts will turn clockwise for new wire connections) on both the wires from the plug and the wires from the lamp. (black and white on instructions).
1. Refer to wiring diagram while connecting each wire. If there is an existing touch wire in some cases it is easier to cut and strip the wire from the lamp so you can wire nut to join (Green) touch wire from sensor box. Use your own judgement you can always remove the bolt from lamp base and connect the yellow wire metal circle to the touch surface as intended. (see options 1 and 2 on instructions)
2. Connecting (WHITE) Using a wire nut connect WHITE wire from sensor box to one wire from the lamp and one wire from the plug (3 wire connection 1 lamp, 1 plug, and 1 white).
3. Connecting (RED) Using a wire nut connect RED wire from sensor box to the only remaining wire from lamp.
4. Connecting (BLACK) Using a wire nut connect the BLACK wire from sensor box to the only remaining wire from power plug.
- Don't forget your bragging rights here with us, or with friends and family!-
Now Get Yours Before We Run Out Of Stock!
Just Click “Add To Cart”
SAVE TIME AND MONEY: Tired of replacing an entire lamp or over paying for a quick touch sensor replacement, this easy to install sensor is what your'e looking for! This kit comes complete with an easy wiring diagram and 4 wire nuts to connect each wire.

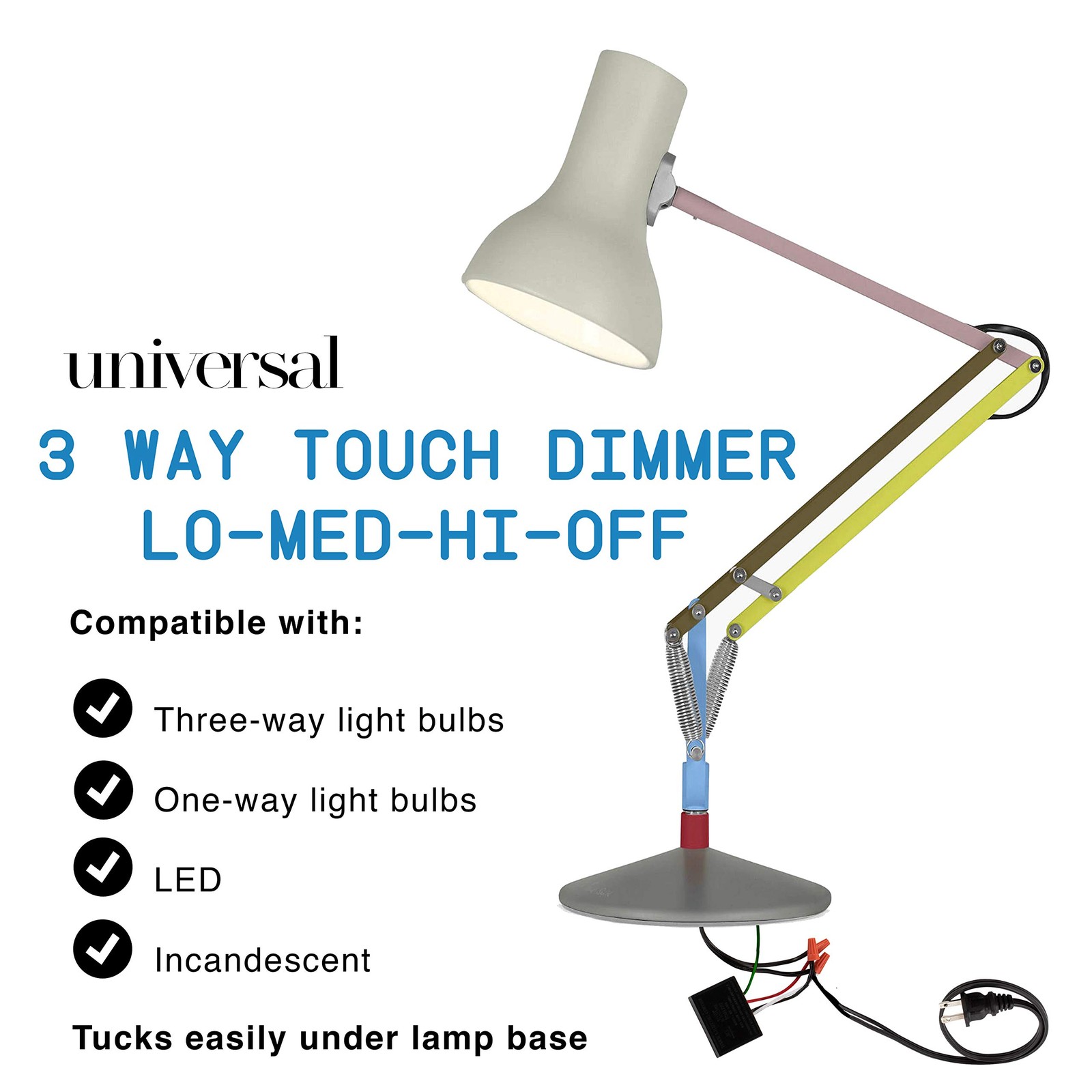

Wattage Rating: 150W 3 way touch sequence LO-MED-HI-OFF, Compatible with three-way light bulbs, or one-way Light bulbs, LED and Incandescent. NEW 20% Smaller sensor allows for easier installation for existing or non existing touch sensor devices.
Industry Standard: This style touch sensor is UL certified and used everyday for lamp repair by your local professionals, they are reliable and top quality.
30 day Guarantee: Not the right sensor for you? Trouble installing? No problem our hassle free money back guarantee ensures you won't regret this purchase!
