35KG Coreless Digital Motor Servo 7.4V High Speed High Torque Stainless Steel Gear Waterproof Standard Baja Servos 180 Degrees
Product Details
Size: 35KG-180°
Brand: ANNIMOS
MPN: DS3235SG180
EAN: 6405493765797
UPC: Does not apply
- Package Dimensions: 3.19 x 2.44 x 0.79 inches
- Item Weight: 2.82 ounces
- Item model number: DS3235SG180
- Manufacturer recommended age: 12 years and up
- Manufacturer: ANNIMOS
- High-speed Coreless motor technology.
- Used For: 1/10 1/8 scale Crawler / Buggy / Truck and any application where waterproof standard servos are used
- High precision potentiometers and High-resolution digital chip, stable performance, strong anti-interference ability, fast response, high precision, control is more delicate and smooth operation
- Full waterproof servo to maintain good water tightness in wet conditions.

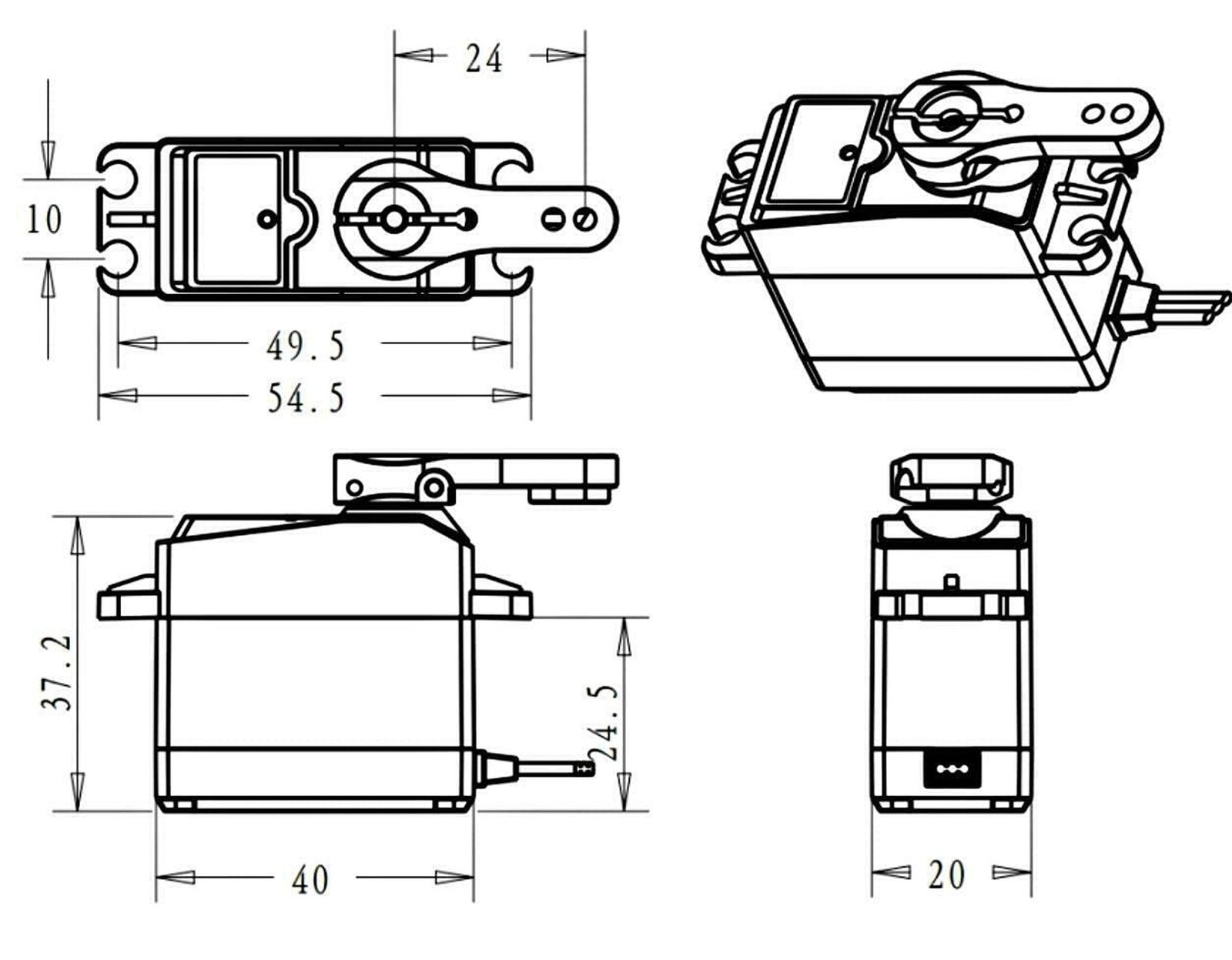

- Dimensions - 1.58x0.79x1.60inch (40x20x40.5mm)
Electrical Specification： Operating voltage range: 5-8.4 Volts Operating speed at no load ( 5V ): 0.18 sec/60° Operating speed at no load ( 7.4V ): 0.13 sec/60° Operating speed at no load ( 8.4V ): 0.11 sec/60° Stall torque at locked ( 5V ): 23kg.cm(319.4oz-in) Stall torque at locked ( 7.4V ): 30kg.cm(416.6oz-in) Stall torque at locked ( 8.4V ): 35kg.cm(486oz-in) Stall current at locked ( 5V ): 2.2A Stall current at locked ( 7.4V ): 2.9A Stall current at locked ( 8.4V ): 3.2A Idle current at stopped (5/7.4/8.4V): 5mA Control Specification: Control System: PWM (Pulse width modification) Pulse width range: 500-2500μsec Neutral position: 1500μsec Running degree: 180° (when 500-2500μsec) Dead band width: 2μsec Operating frequency: 50-330Hz Rotating direction: Counterclockwise (When 1500-2500μsec) Product Specification: Suitable for: for 1/8 1/10 1/12 Scale RC Cars, Trucks Motor Type: Coreless Motor Gear Type: Stainless Steel Spline:25T Gear ratio: 342 Bearing：Double Bearing Waterproof Performance：IP67 Connector Wire: 17.7in (450mm) Size: 1.570.791.59inch（40 20 38.5mm） Weight: 2.11oz (60g) CE /RoHs: Yes Packing List: 1DS3235SG 35kg Servo 125T Adjustable Metal Servo Arm One Set of Plastic Accessories (As Shown on The Picture)
