Description: 1.Support ASK / OOK modulation, receiver sensitivity of -108dBm;
2.Operating frequency: 433.92 MHz, bandwidth of about ± 150KHz;
3.Mains input voltage range: 2.2V-5V; Working current: Type:2.1mA (Requirement:=5V); Type :2.1mA (Requirement:=3V)
4. Quiescent Current: 1uA
5. Low power consumption;

6. Good selectivity and spurious radiation suppression, and easy to pass CE / Fcc international certification;
7. Good local oscillator radiation suppression, receiver module to work with (ie, more than single income) and not interfere with each other, used together without affecting receiving distance;
8. transmission rates, the general module for 2KHz, up to 10KHz;
9. Temperature range: -40-85 °C
10. Oltra-small size of 30*9 (mm) (can be customized according to customer)
11.External antenna: 32CM single core wire, wound into a spiral.
Specifications:

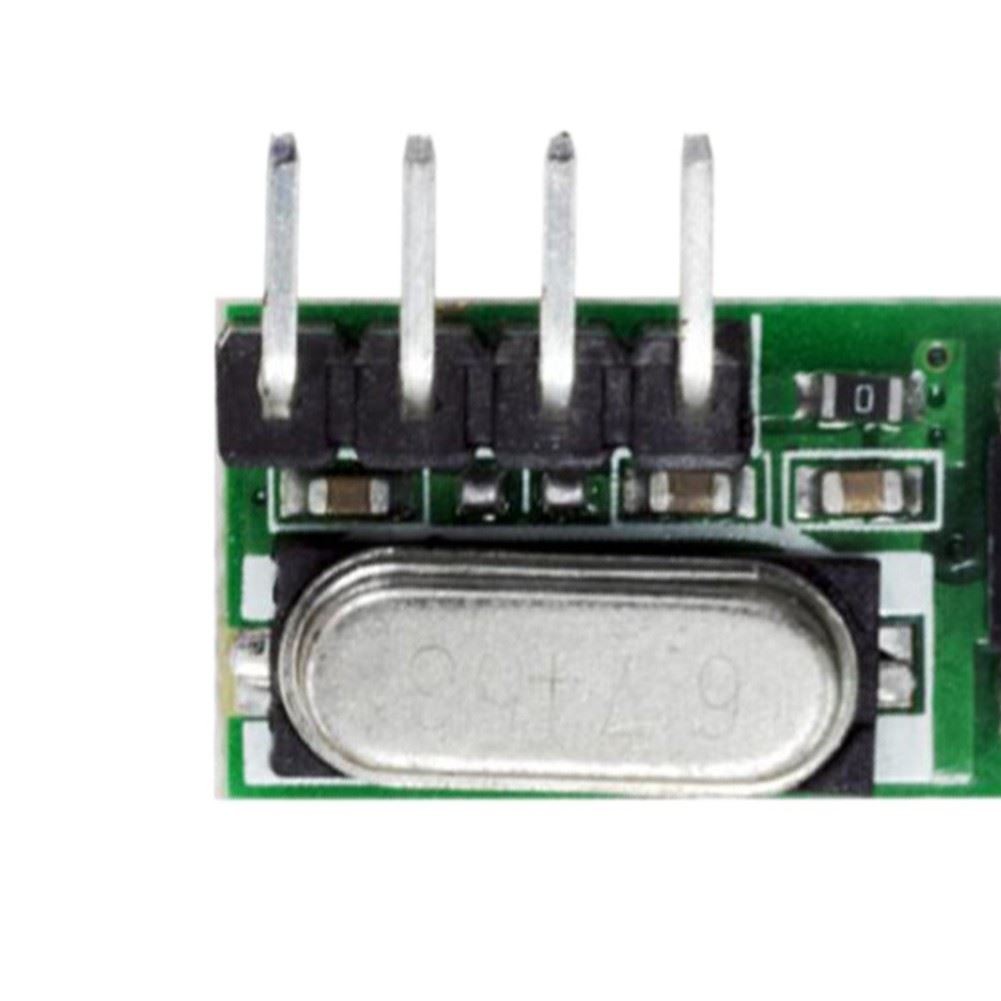

Receiver Module ] Product Model: RX470-4
RX470-4 : superheterodyne wireless receiver module is receiving UHF ASK demodulators support ASK and OOK modulation. The receiver module has high sensitivity (-108dBm),
Low-power performance, along with high dynamic range ( 60dB). Module uses highly integrated chip, built front-end low-noise amplifier,Mixers, filters, frequency synthesizer circuit, etc., can maximize the signal optimization.
color: As shown
Material: PCB
size: 30 x 9mm

Package Contents:
3* 433MhzRX470-4Superheterodyne Receiver Module
