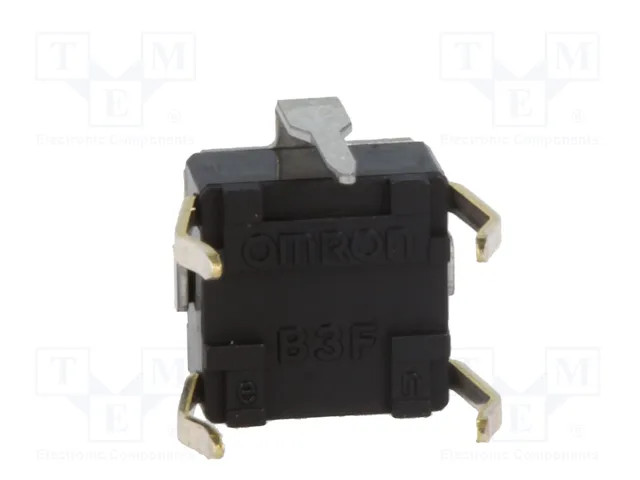

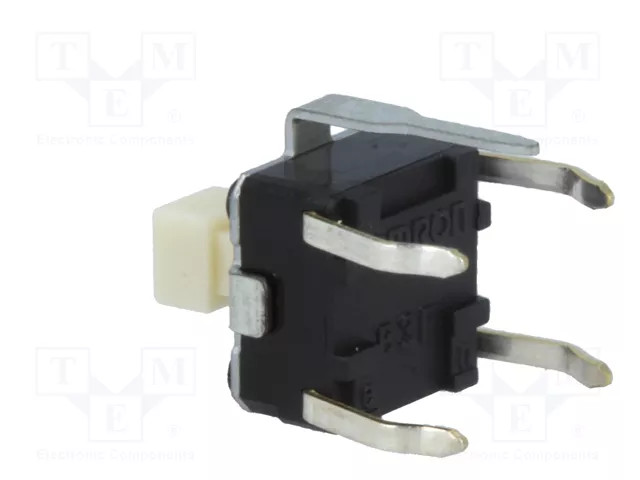

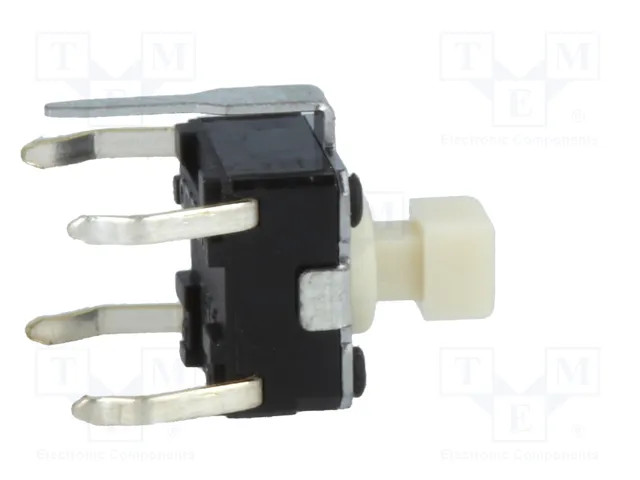

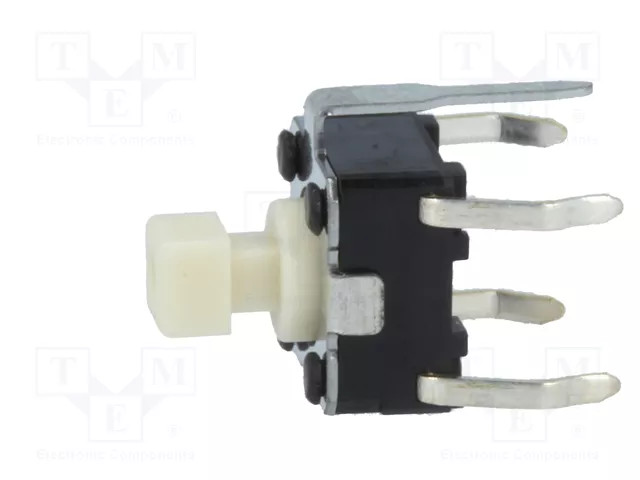

Microswitch TACT; SPST-NO; Pos: 2; 0.05A/24VDC; THT; none; 0.98N
OMRON Electronic Components
MPN: B3F-1150
EAN: 4536853146382
Body dimensions: 6x6mm
Button height: 7.3mm
Price per 4 pcs
Technical parameters
| Parameter | Value |
|---|
| Contact material | phosphor bronze |
| Type of switch | microswitch TACT |
| Contacts configuration | SPST-NO |
| Number of positions | 2 |
| Stable positions number | 1 |
| DC contacts rating @R | 50mA / 24V DC |
| Mounting | THT |
| Illumination | none |
| Operating Force | 0.98N |
| Body dimensions | 6x6mm |
| Button height | 7.3mm |
| Switching method | OFF-(ON) |
| Terminal pitch | 4.5x6.5mm |
| Manufacturer series | B3F |
| Operating temperature | -25...70°C |
| Button shape | square |
| Actuator colour | ivory |
| Key stroke | 0.25mm |
| Leads | straight |
| Max. contact resistance: | 100mΩ |
| Min. insulation resistance | 0.1GΩ |
| Contact plating | silver plated |
| Mechanical durability | 1000000 cycles |
| Related items | B32-1080 |
| Switches features | with ground terminal |
Weight: 1 g
