*Item Specifications:

1. Key Words: Rear Pair Air Suspension Shock Struts + Rear Pair Air Suspension Springs For Mercedes M-Class W164 ML320 ML350 ML450 ML500 ML550 GL-Class X164 GL320 GL350 GL450 GL550 With Adaptive Damping System

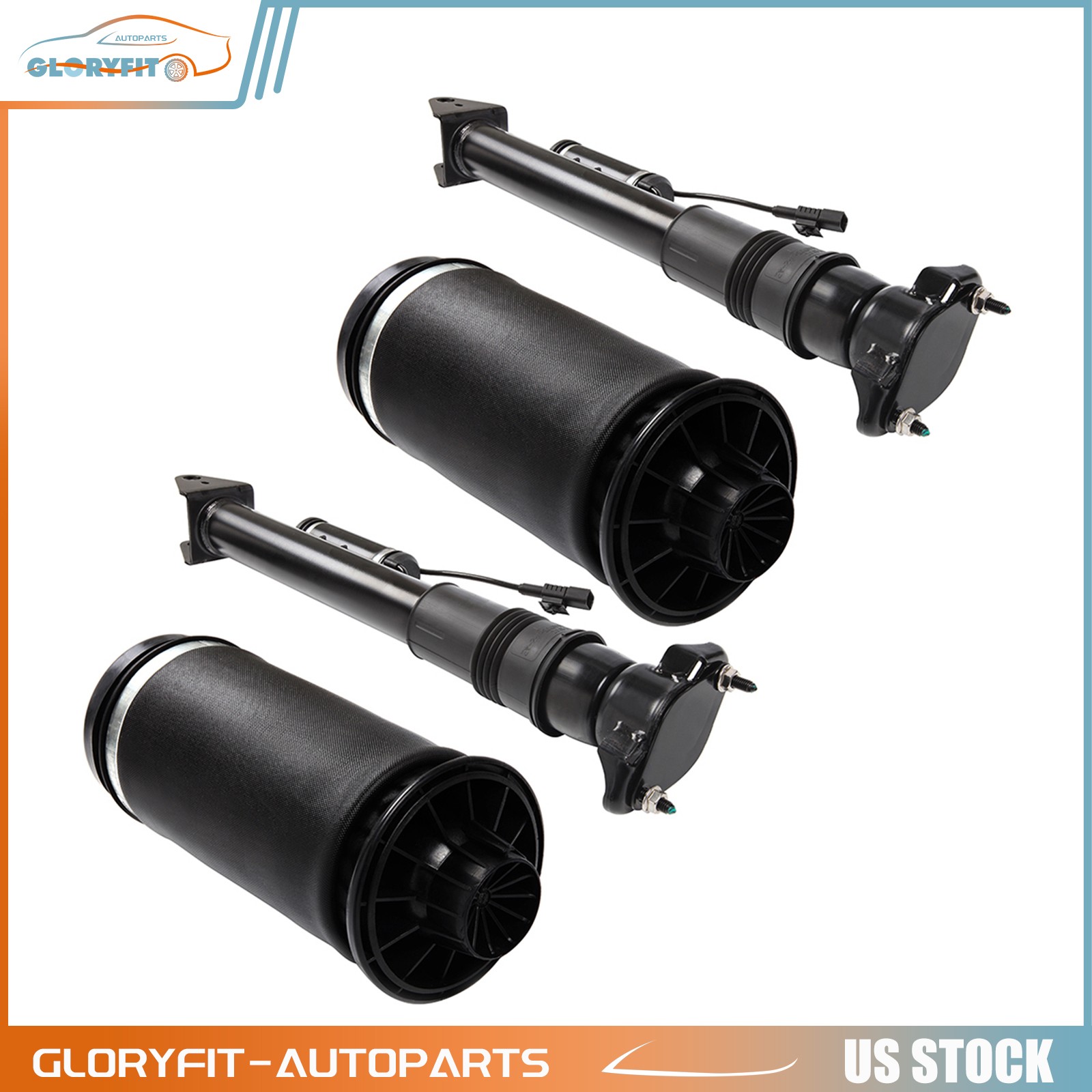

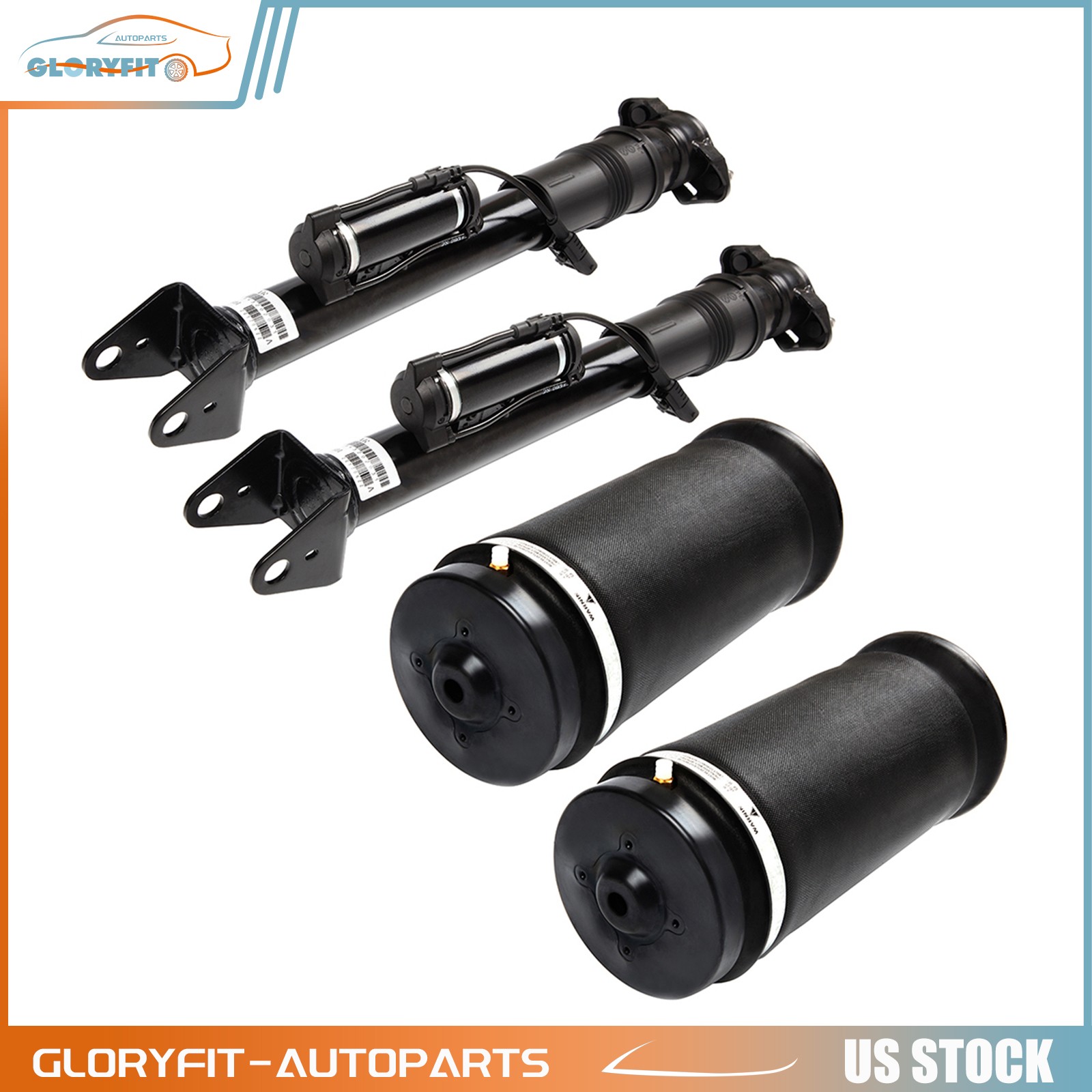

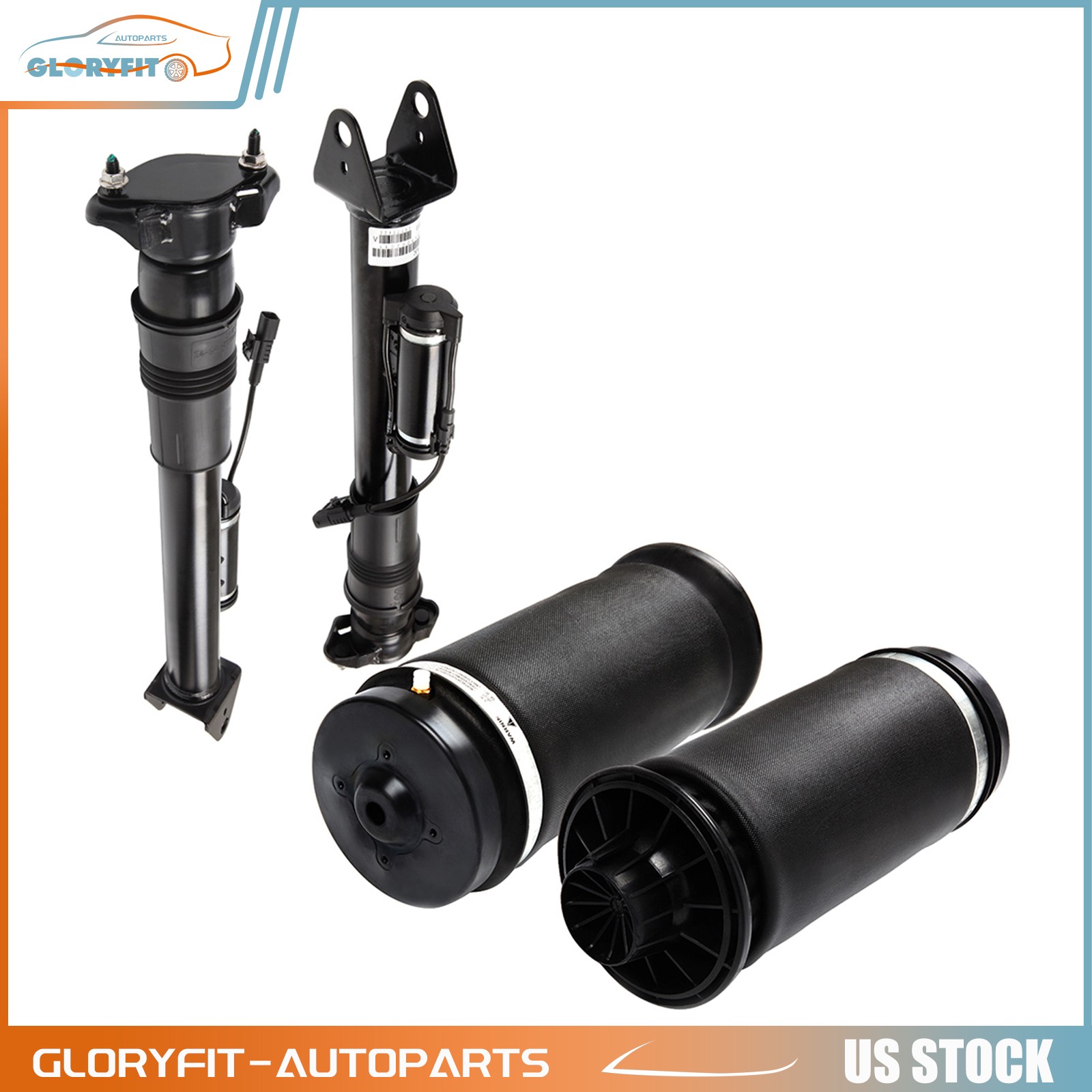

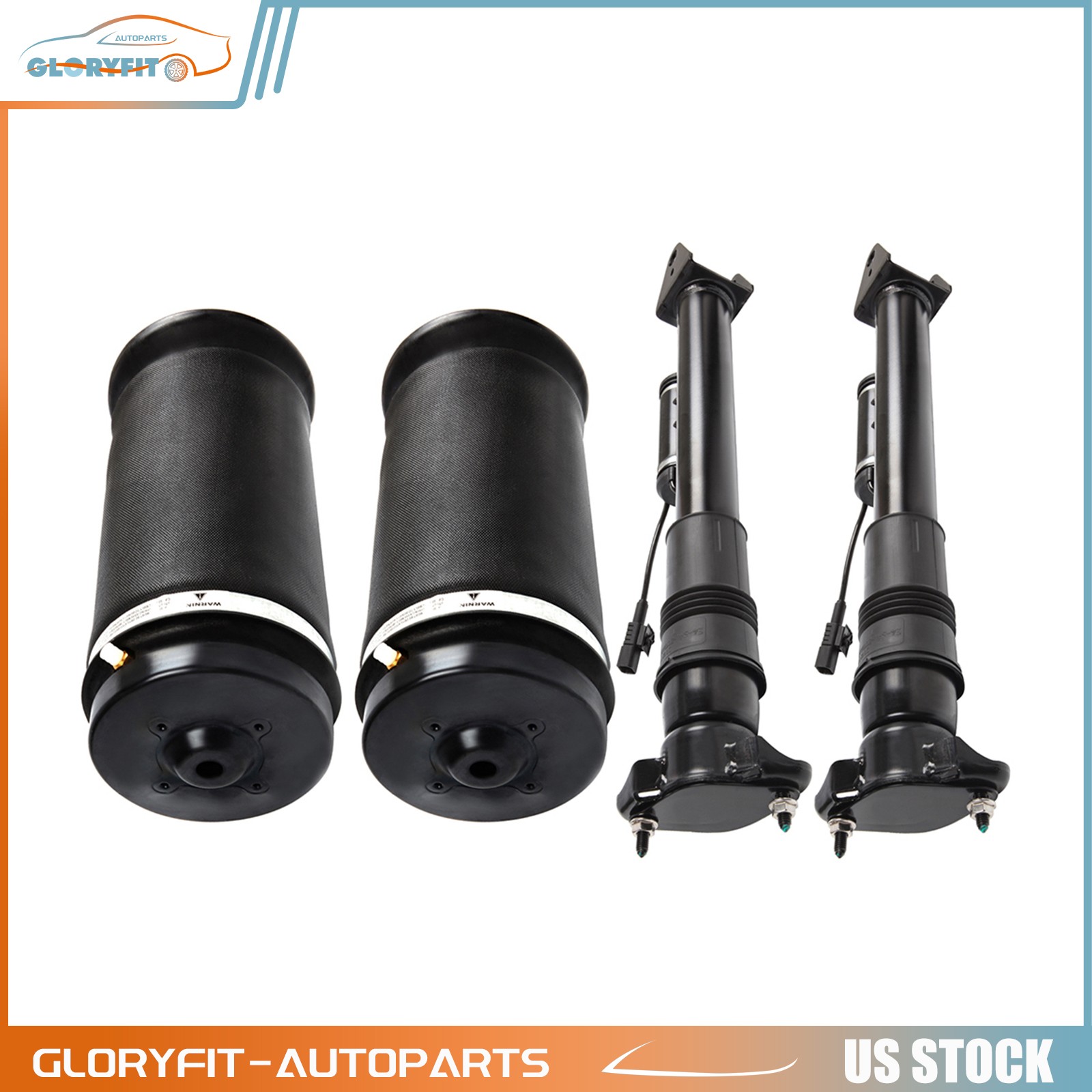

2. Package Includes: 2 Pairs for Rear Left & Right Air Suspension Shock Struts + Air Suspension Springs

Notes: Please double confim the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.

*Vehicle compatibility

1, You can distinguish specific model of an automobile by VIN(Vehicle Identification Number).

2, VIN(Vehicle Identification Number) consists of total 17 English letters and arabic digits.

3, VIN does not include the letters I (i), O (o), and Q (q) (to avoid confusion with numerals 1 and 0).

Mercedes-Benz GL-Class (With Adaptive Damping System)
GL320 Bluetec 4Matic Sport Utility 4-Door 3.0L 2009
GL320 CDI Sport Utility 4-Door 3.0L 2007-2008
GL350 Bluetec 4Matic Sport Utility 4-Door 3.0L 2010-2012
GL450 Base Sport Utility 4-Door 4.6L 2007-2012
GL450 Base Sport Utility 4-Door 4.7L 2007-2009
GL550 Base Sport Utility 4-Door 5.5L 2008-2011

Mercedes-Benz M-Class
ML320 CDI Sport Utility 4-Door 3.0L 2007-2008
ML350 4Matic Sport Utility 4-Door 3.5L 2006-2011
ML350 Base Sport Utility 4-Door 3.5L 2006-2007 2009-2011
ML350 Bluetec 4Matic Sport Utility 4-Door 3.0L 2010-2011
ML350 Introduction Sport Utility 4-Door 3.5L 2006
ML350 Lujo Sport Utility 4-Door 3.5L 2008-2009
ML350 Premium Sport Utility 4-Door 3.5L 2006
ML350 Sport AMG Sport Utility 4-Door 3.5L 2010-2011
ML350 Sport AMG Sport Utility 4-Door 5.5L 2010-2011
ML450 Hybrid 4Matic Sport Utility 4-Door 3.5L 2010-2011
ML500 Base Sport Utility 4-Door 5.0L 2005-2007
ML500 Introduction Sport Utility 4-Door 5.0L 2006
ML500 Premium Sport Utility 4-Door 5.0L 2006
ML500 Special Edition Sport Utility 4-Door 5.0L 2005
ML550 Base Sport Utility 4-Door 2008-2011

*Generation & Evolution:

Mercedes-Benz GL-Class
X164 First generation (2007-2012)
X166 Second generation (2013-present)

Mercedes-Benz M-Class
W163 First generation (1997-2005)
W164 Second generation (2005-2011)
W166 Third generation (2011-2019)
W166 Sport Utility
C292 Coupé Version
W167 Fourth generation (2019-present)

*OEM Part Number:

1643200731,1643201131,1643202031,1643202131,
1643202731,1643202831,1643203031,1643203131

1643200225,1643200425,1643200625,1643200725
1643200825,1643200925,1643201025,1663200325
1663200625

*Air Suspension Structure:

10  A164 320 06 31  Shock Absorber

10  A164 320 07 31  Shock Absorber

10  A164 320 11 31  Shock Absorber

10  A164 320 12 31  Shock Absorber

10  A164 320 13 31  Shock Absorber

10  A164 320 20 31  Shock Absorber

10  A164 320 21 31  Shock Absorber

10  A164 320 22 31  Shock Absorber

10  A164 320 26 31  Shock Absorber

10  A164 320 27 31  Shock Absorber

10  A164 320 28 31  Shock Absorber

10  A164 320 30 31  Shock Absorber

10  A164 320 31 31  Shock Absorber

20  A164 540 67 10  Wiring Harness

30  A164 320 07 25  Air Spring

30  A164 320 10 25  Air Spring

30  A166 320 03 25  Pneumatic Spring

35  A000 327 00 69  Connector

70  A003 997 56 90  Clamp

130  A211 328 00 58  Seal Holder

150  N 000000 003905  Nut

170  A164 328 01 04  Cover Plate

170  A164 328 02 04  Cover Plate

170  A164 328 05 04  Cover Plate

170  A164 328 06 04  Cover Plate

200  N 000000 003343  Nut

200  N 000000 005275  Nut

210  N 910105 016009  Hexagon Head Bolt

700  A210 540 21 81  Clutch

710  A000 545 69 80  Gasket

710  A008 545 63 26  Female Contact

*Platform Drive Layout:

Base Model-Rear Wheel Drive Layout

4Matic Model-Four Wheel Drive Layout

*Removal Guideline:

Caution: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specified in the instructions or in a different sequence.
1.To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to disconnect your battery.
2.Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath the vehicle if it is not adequately supported, as serious injuries and death can occur.
1.Set steering to straight.
2.Raise vehicle.
3.Remove rear wheel from the applicable side being replaced.(picture 1)

4.Locate and disconnect the air spring's air line connection to relieve stress from the suspension.(picture 2)

5.In the rear cargo area, remove all applicable trim panels to gain access to the upper shock mounting fasteners. Reference manufacture's instructions for removal of interior panelling(pictures 3,4)

6.With the trim panels removed, lift the insulation to gain access to the top mount nuts. Loosen and remove.(pictures 5,6)

7.Disconnect the shocks damping solenoid electrical connector, located just behind the shock, on the control arm.(picture 7)

8.Loosen and remove the lower shock mounting bolt, followed by the old shock.(picture 8)

9.Removal complete.

*Installation Guideline:
1.Install the replacement shock,solenoid side out.(picture 9)

2.Reinstall the lower mounting bolt.Tightening to manufacture’s specification.(picture 10)

3.Reconnect and reattach the ads electrical connection back to the original mounting location on the control arm.(picture 11)

4.In the rear cargo area, lift the insulation to gain access to the top mount nuts. Install and tighten.(pictures 12,13)

5.Reference manufacture’s specifications and installation instructions for interior panels and torque specifications.
6.Reinstall wheel.
7.Installation complete.

*Frequently Asked Questions:
How to prevent the damage of air springs/How to extend the service life of air springs/struts etc.?
An air strut with separable air springs
If your vehicle offers a separable air suspension (Audi Allroad A6 C5, Mercedes-Benz W164, BMW X5, etc.), you should regularly (about once a week) lift the car to the maximum position, and remove dirt with a high-pressure cleaner (keep the cleaner at a distance to the air spring about 30 cm/12 inches, otherwise water pressure can damage the air spring). The highest position may vary depending on your model and regulation options. Therefore, please test this by trying the different modes available to you (Sport, comfort, dynamic, off-road) and choose the one that sets your vehicle to the highest position. The dirt will most likely be found under the fold of the pneumatic chambers. If you find a frozen layer of bitumen on the piston guide (the part of a strut on which the air spring is installed), it is recommended to clean it as well. Whenever possible, avoid riding on fresh asphalt, as fresh bitumen mixed with sand immediately results in a build-up of abrasives on the piston and in turn contributes to accelerated wear and tear of the air spring.


A complete air suspension shock
Many cars such as Mercedes W220 or W211 are set up with a complete air strut - shock absorber and air spring visually form a complete spare part. In many cases, you can easily recognize these by the metal cups with which the air spring is tightly mounted. To best avoid any damage, we highly recommend to regularly check the condition of the dust protection seals of the air strut.

What is the difference between an air spring and an air strut?

The air spring is a part of the air strut. Some vehicles (e.g. Mercedes ML) allow you to change the air spring separately. At our online shop you have the opportunity to buy either the whole air strut or only the air spring. For some type of vehicles it is not possible to change the air spring separately. In this case the whole air strut should be replaced.

Which side of my car is the Right and Left?

The right and left sides of an automobile are determined as if sitting in the car facing forward. Thus, the left side is on the left when sitting in the car facing forward, and the right side is on the right. For American cars, the driver’s side is on the left, and the passenger sits to the right of the driver. For cars in Japan, Britain, Ireland, the Bahamas and some other former British colonies -- where they drive on the left side of the road -- the passenger sits on the left side, and the driver (along with all the driving controls) is on the right.

What does 4MATIC mean?
4MATIC is the marketing name of a four-wheel drive system developed by Mercedes-Benz. It is designed to increase traction in slippery conditions.

What does AIRMATIC mean?
AIRMATIC is a Mercedes-Benz trademark for vehicles with air suspension systems. Compared with a conventional steel suspension, the AIRMATIC air suspension provides advantages in terms of handling safety and ride comfort. The AIRMATIC air suspension automatically adjusts the damping force on each wheel according to the current state of the road.

What does ABC mean?
ABC (Active Body Control) is a registered Mercedes-Benz trademark. It is a high-quality suspension system, which automatically adapts the suspension setting to the respective driving situation. There is also a crosswind stabilisation integrated in ABC systems.

How can I see if my vehicle is equipped with AIRMATIC or ABC?
You can check which suspension you have by opening the bonnet of your car and examining the top of the shock absorber.
If your vehicle is equipped with AIRMATIC, you will have obvious air lines leading from the top of the shocks:

If your vehicle is equipped with ABC, you will have small black electrical plugs leading into the top of both shocks:
