DESCRIPTION

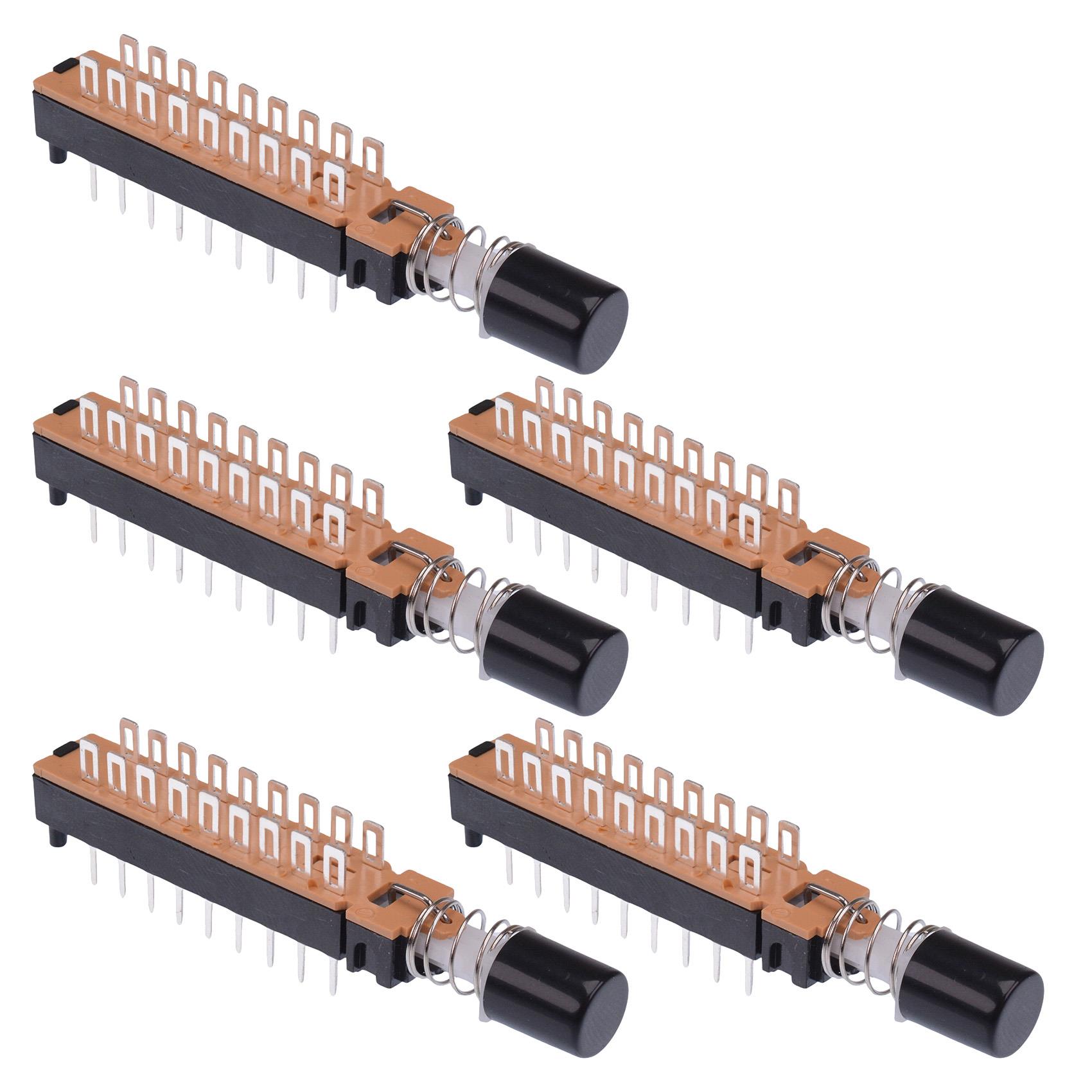

5 x 6PDT Changeover PCB Push Button Latching Switch with Caps
£
5.09
6-pole switch with a latching mechanism suitable for PCB mounting. The switch has PCB terminals underneath and solder terminals on the top.
- Pack Size: 5
- Includes black caps
- 6PDT contacts
- 18 PCB terminals and solder terminals
- Long lifespan
- 67 x 17.5 x 9mm overall dimensions (Length x Height x Width)
- Button Size: 3.3 x 3.3mm
Technical Information
| Rating | 300mA 30VDC |
| Contact Resistance | 20mΩ Max |
| Insulation Resistance | 100mΩ Min |
| Electrical Life | 10,000 Cycles |
| Operating Temperature | -20°C to 85°C |
