DESCRIPTION
5V700MA high-performance version optimized design, suitable for control board, single-chip board
The power supply system is very stable and reliable!
The power supply system is very stable and reliable!
Working temperature: -20°C to 70°C, high-grade green gold capacitors withstand temperature of 105°C for 10,000 hours, more than 5 years at 70°C, normal temperature
Approximately 20-50 years (not recommended to use above 70 degrees), output filter high-quality solid capacitors
Input characteristics:
Input voltage range: AC50V-277VDC70V-390V
No-load power: <0.05W Full-load power: <4W
Output characteristics: Multiple modules of the same voltage can be used in parallel to meet the needs of small space and large current.
Output voltage: 5V+-0.15V no load and full load, light load minus 0.1V, recovery at heavy load, 50% load ripple 60mV
Output current: 5V0mA-700mA, enter constant current working mode at full load
Test resistance: 5V with 7 ohms (4.9V)
Output indicator: green light
Output power: 3.5W efficiency is about 80%
Output protection: over voltage, over current, over temperature, over power, short circuit protection, etc.
Package Include:

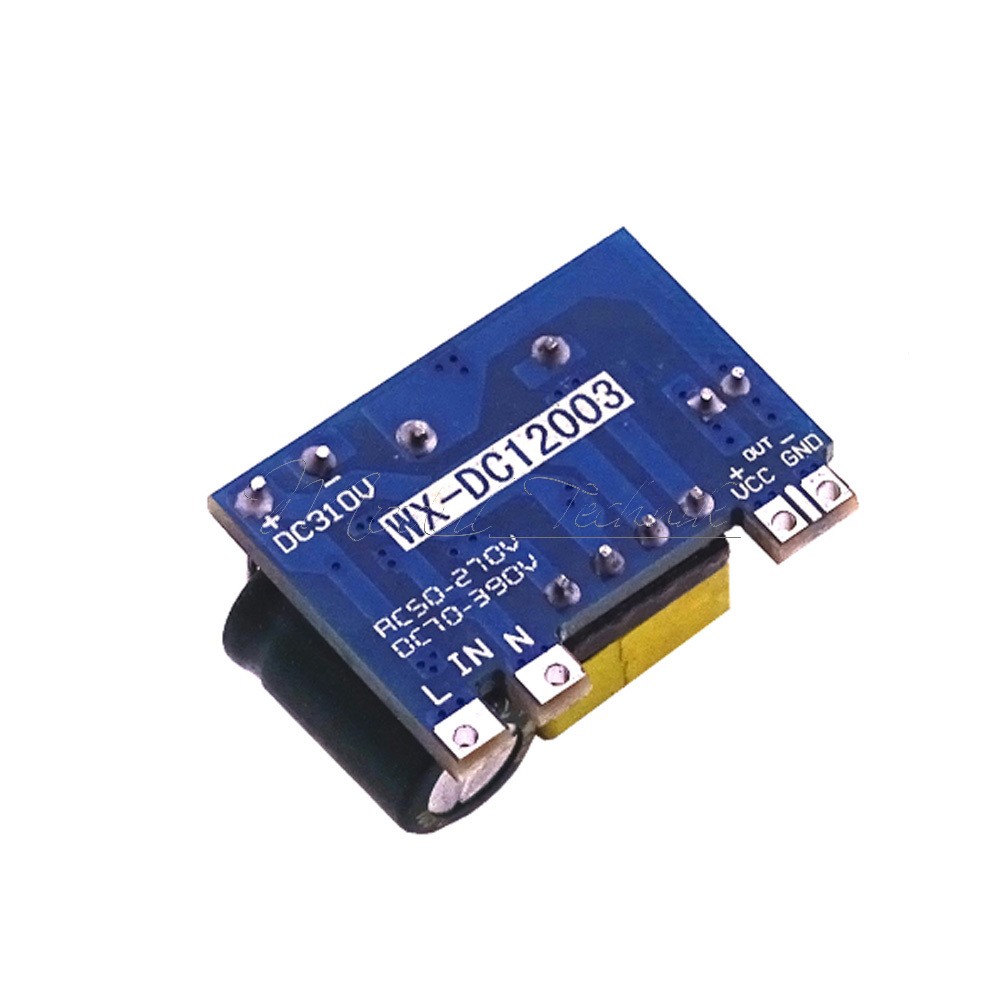

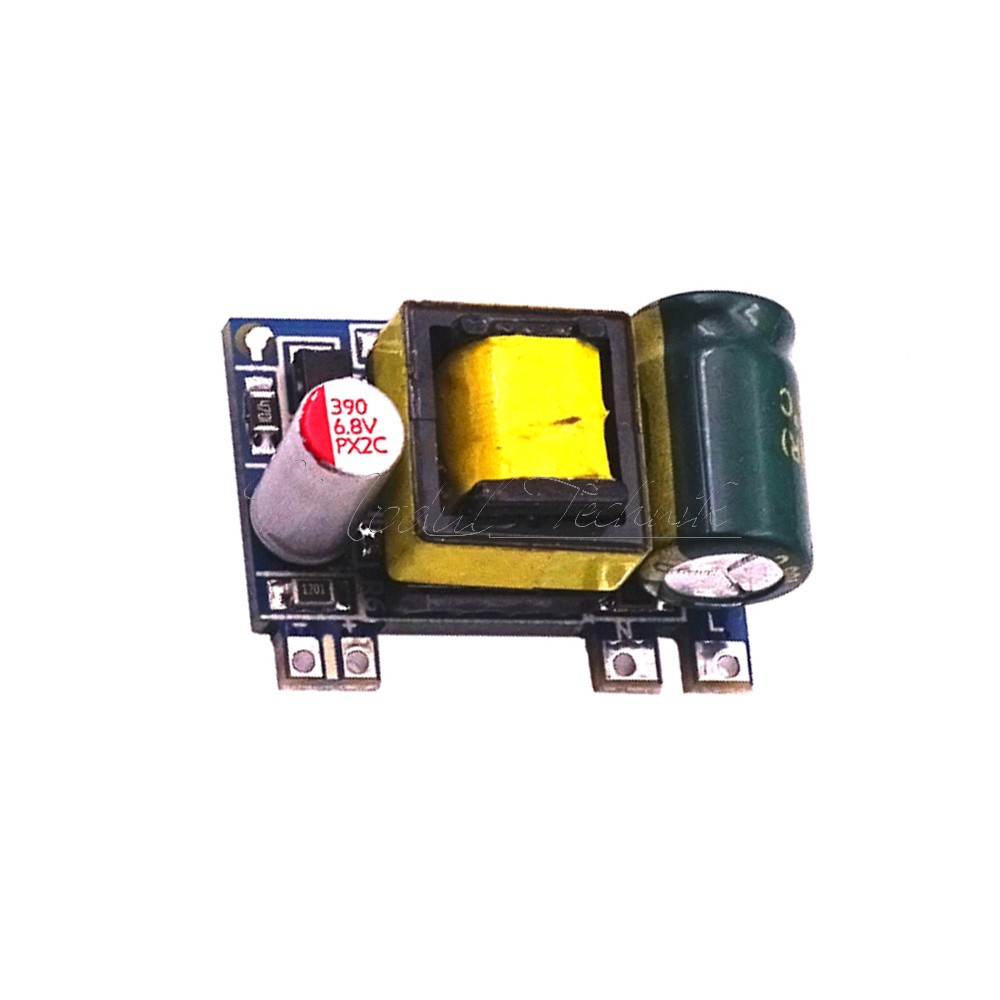

5PCS Isolation switching power supply module AC DC step-down module 220 to 5V
