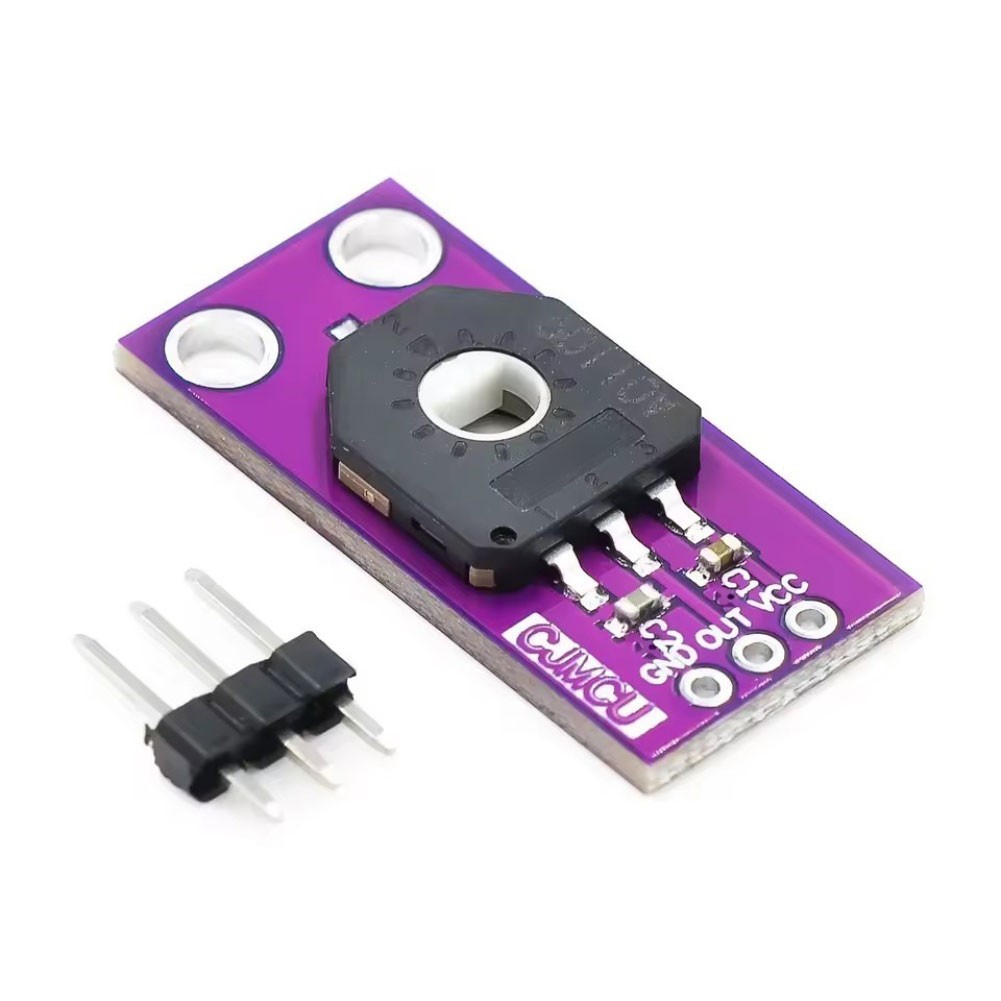

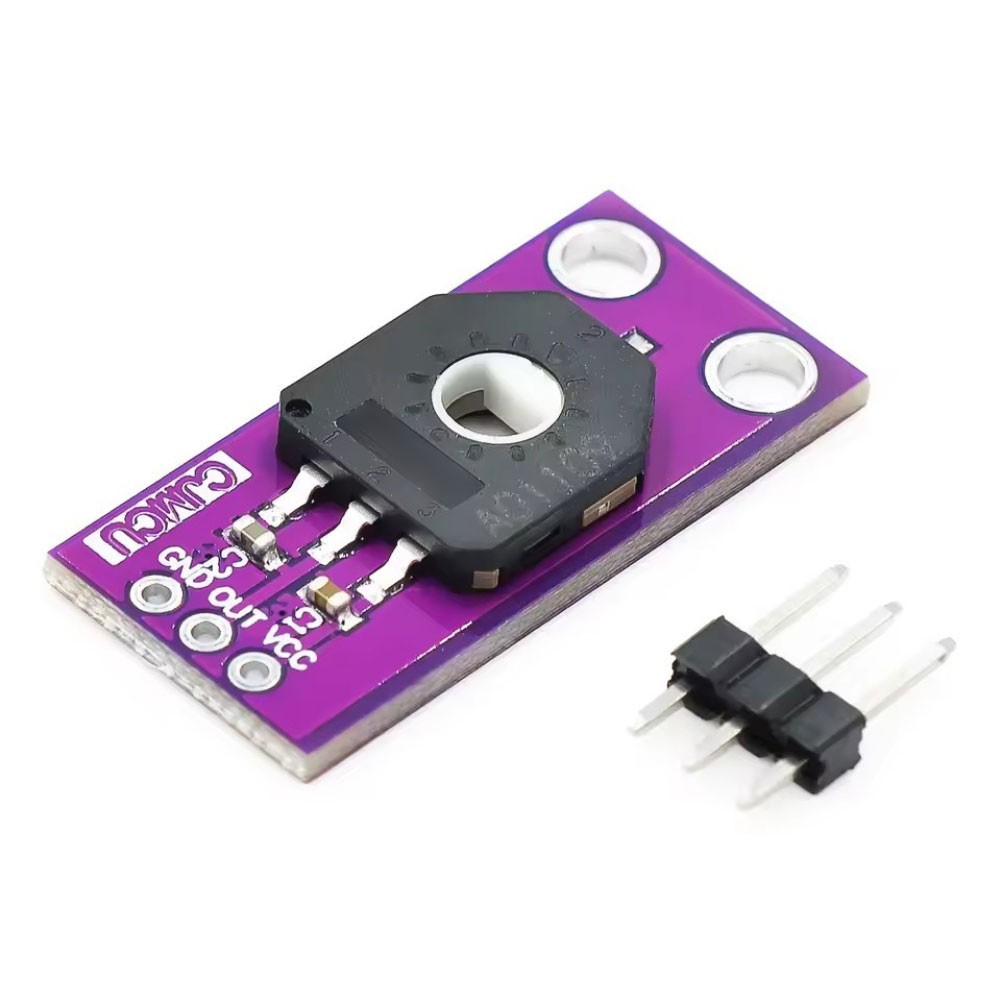

Features:
*Measurement: The CJMCU-103 Rotary Angle Sensor Module is designed for accurate rotary position measurement, providing a continuous effective rotation angle of 0° to 333.3° with a linearity of ±2%, making it for IDEAL for precise applications.
*for Design: With a lifespan of up to 300,000 rotations, this sensor module is built to withstand extensive use and long-term reliability in a variety of projects.
*Analog Voltage Output: The module features an analog voltage output, enabling seamless integration with other microcontroller platforms for straightforward data acquisition and processing.
*Wide Operating Range: The sensor operates effectively in a temperature range from -40℃ to +85℃,reliable performance even in extreme environmental conditions, suitable for diverse applications.
*Compact Form Factor: With a trimmer potentiometer rated at 10KΩ±30% and a rotating hole diameter of 4mm, the compact design allows for easy installation in tight spaces without compromising functionality.
Specifications:
Part Name: Rotation Angle Sensor
Material: PCB

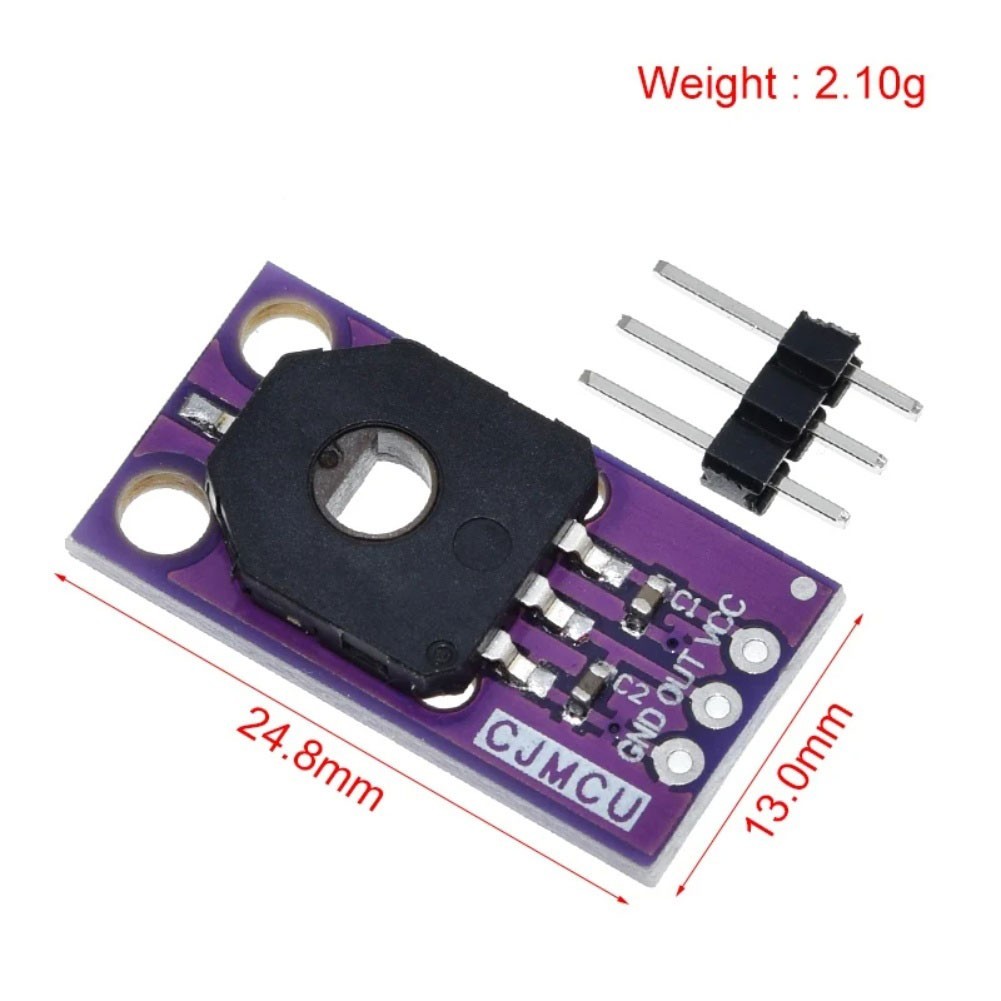

Size: None
Color: Purple
Measures: Rotational Position
Rotation Angle - Electrical, Mechanical: 0°-333.3°, Continuous
Output: Analog Voltage
Actuator Type: Shaft-to-Hole
Linearity: ±2%
Resistance (Ohms): 10kΩ
Resistance Tolerance: ±30%
Mounting Type: For Surface Mount
Termination Style:For SMD () Lug
Operating Temperature: -40°C-85°C
Package Content:

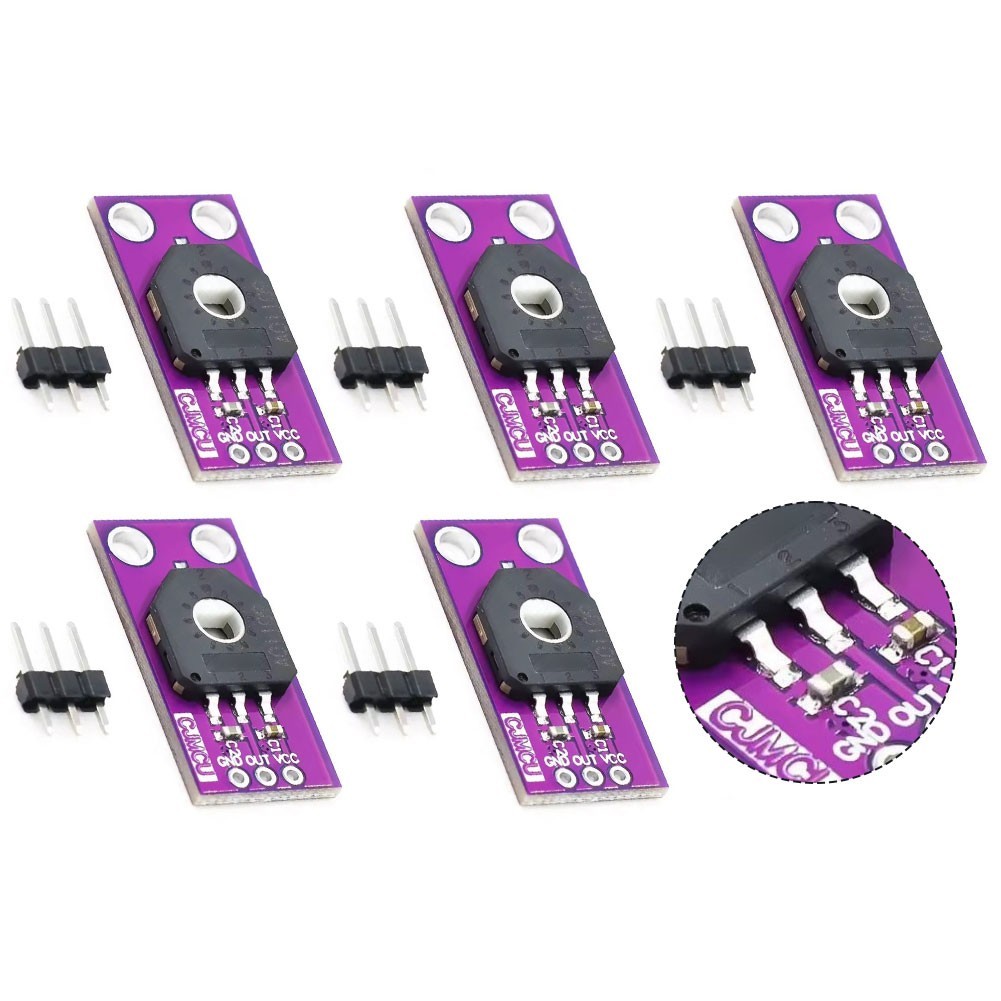

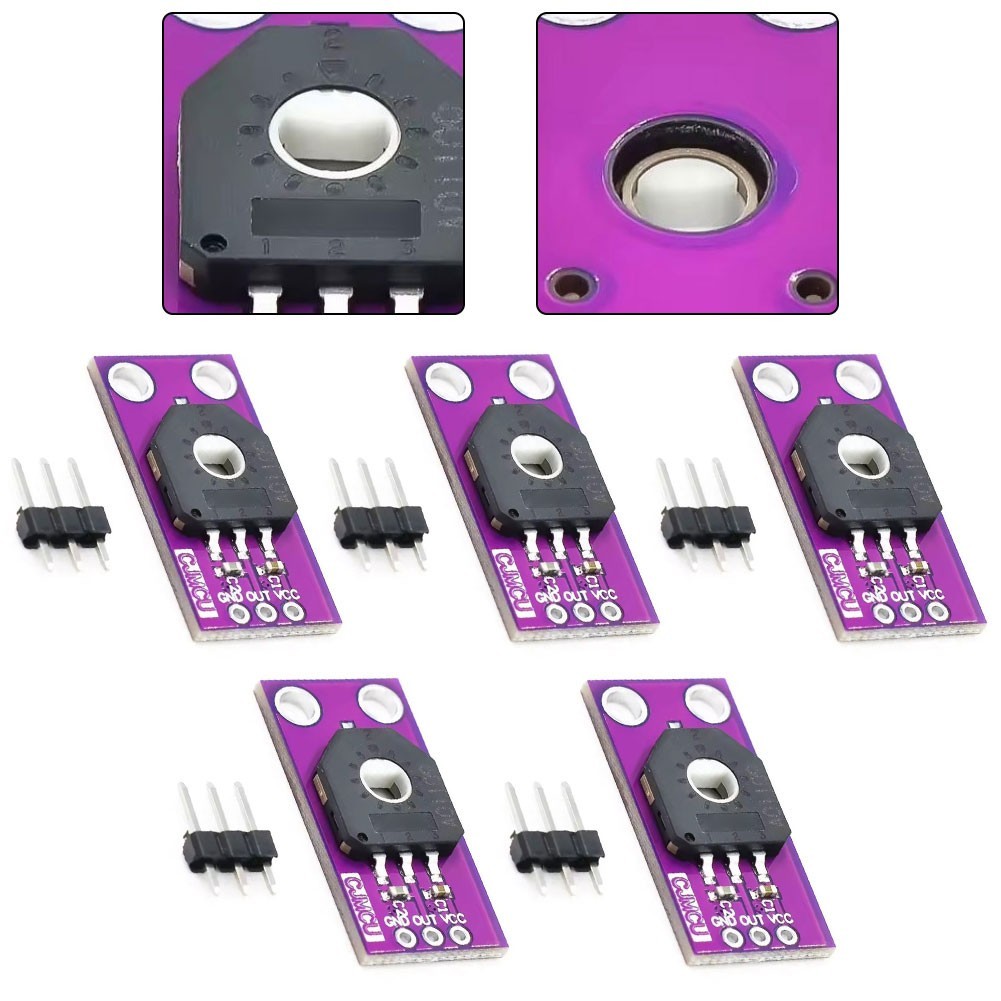

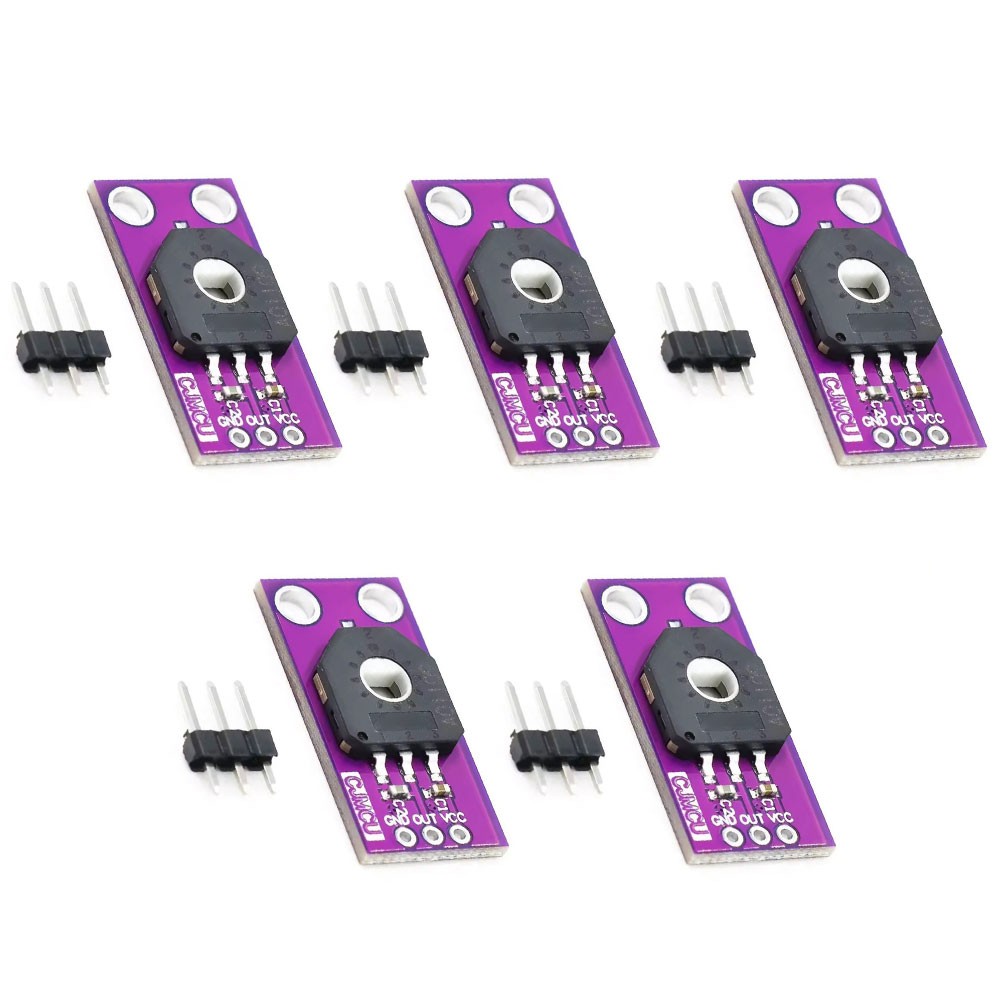

5*Rotation Angle Sensor
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
