- Excellent matching between amplifiers
- Linearizing diodes
- High impedance buffers
- High output signal-to-noise ratio
- Current-controlled amplifiers

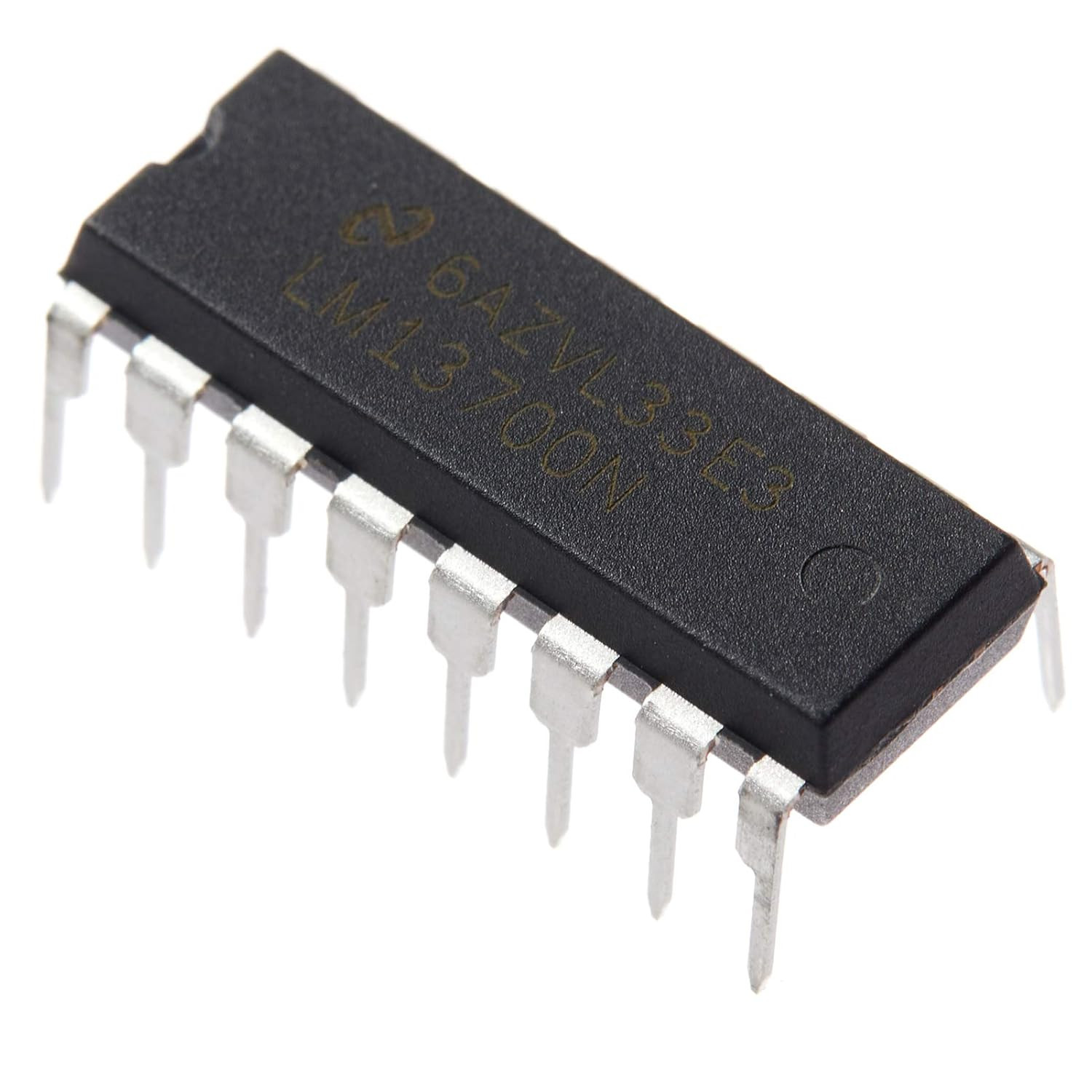

The LM13700N consists of two current controlled transconductance amplifiers, each with differential inputs and a push-pull output. The two amplifiers share common supplies but otherwise operate independently. Linearizing diodes are provided at the inputs to reduce distortion and allow higher input levels. The result is a 10 dB signal-to-noise improvement referenced to 0.5 percent THD. Power Dissipation (Note 3) TA = 25˚C LM13700N, LM13700AN：570 mW
Differential Input Voltage: ±5V
Buffer Output Current (Note 4): 20 mA
Storage Temperature Range: −65˚C to +150˚C
Diode Bias Current (ID): 2 mA
Package include:
5pcs*LM13700N
