Features:

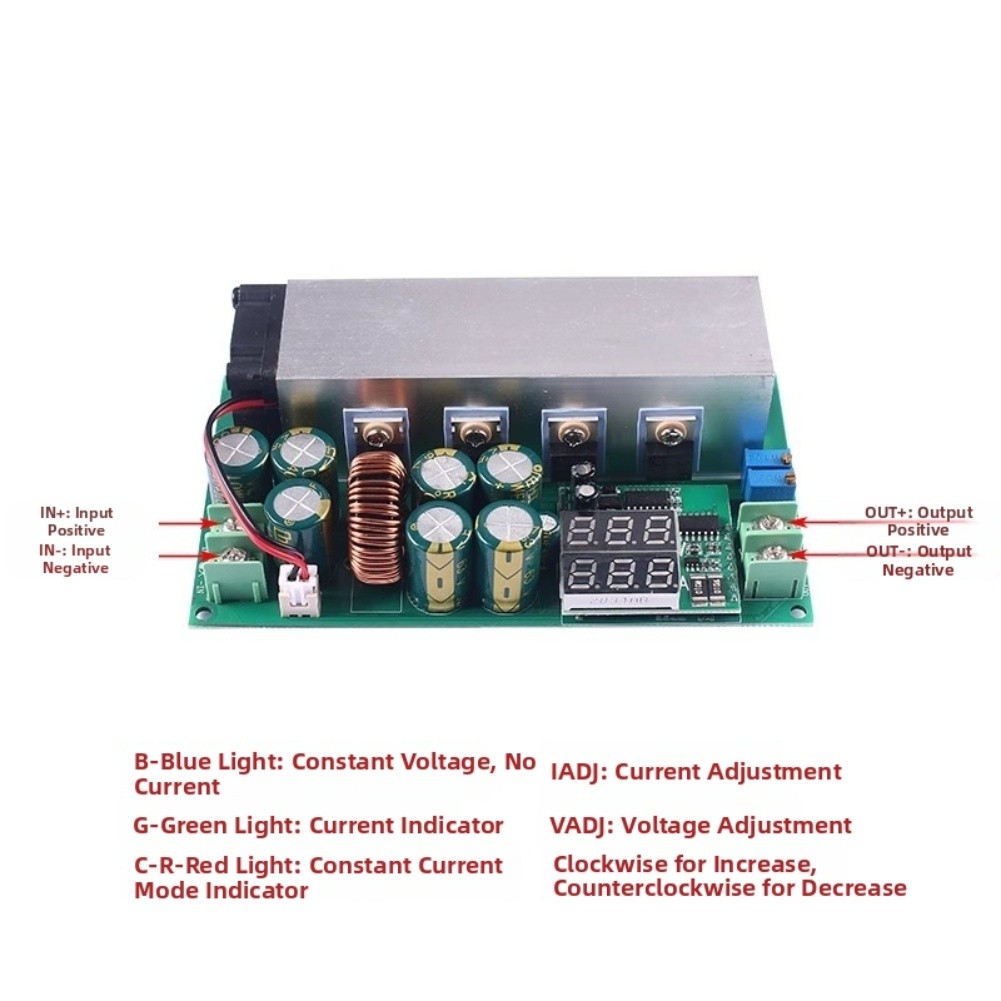

*Versatile Voltage Adjustment: This power supply module features a continuously adjustable output voltage and current, allowing users to tailor the settings to their specific needs for optimal performance in various applications.

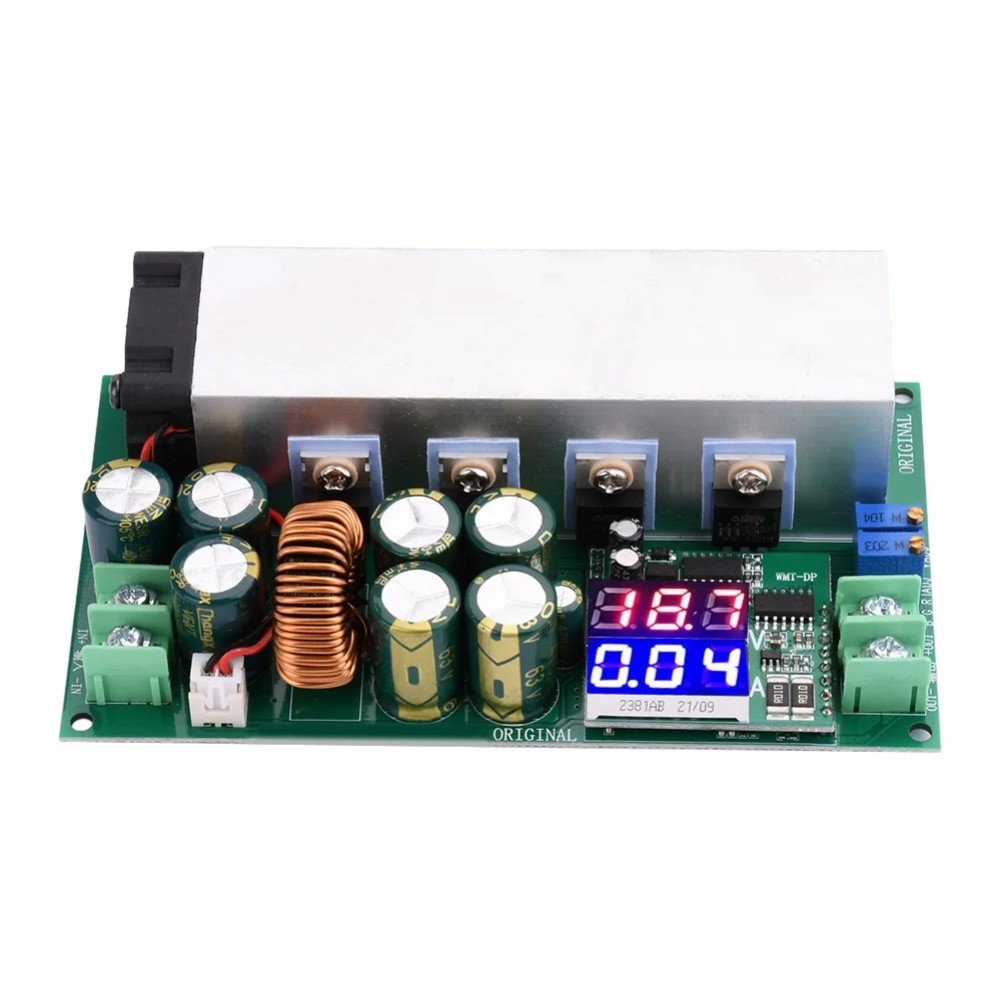

*Digital Display Function: Equipped with a digital display, the module shows real-time output voltage, making it easy to monitor and adjust settings for enhanced usability and precision.
*Easy Plug-and-Play Operation: Designed for simplicity, the module allows for quick and straightforward setup, enabling users to connect and start using it without complex for configurations.
*Robust Input Capacity: Capable of handling input voltages up to 80V, this power supply module is built with Long-lasting materials that make sure reliability and longevity in demanding environments.
*High Efficiency Performance: With an impressive efficiency rating of up to 93%, this step-down converter minimizes energy loss during operation, making it an economical choice for power management.
Specifications:

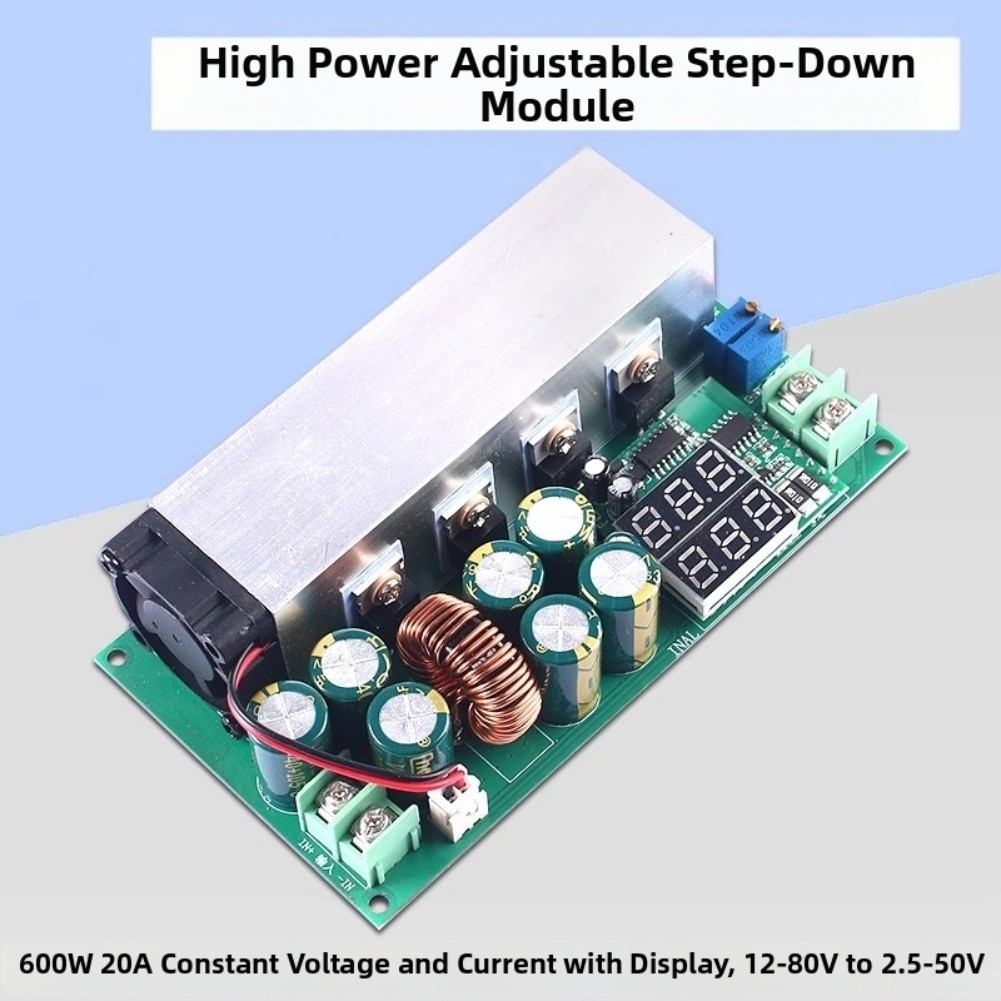

*Product Name:600W Adjustable Step-Down Power Supply Module
*Material:Plastic + Metal

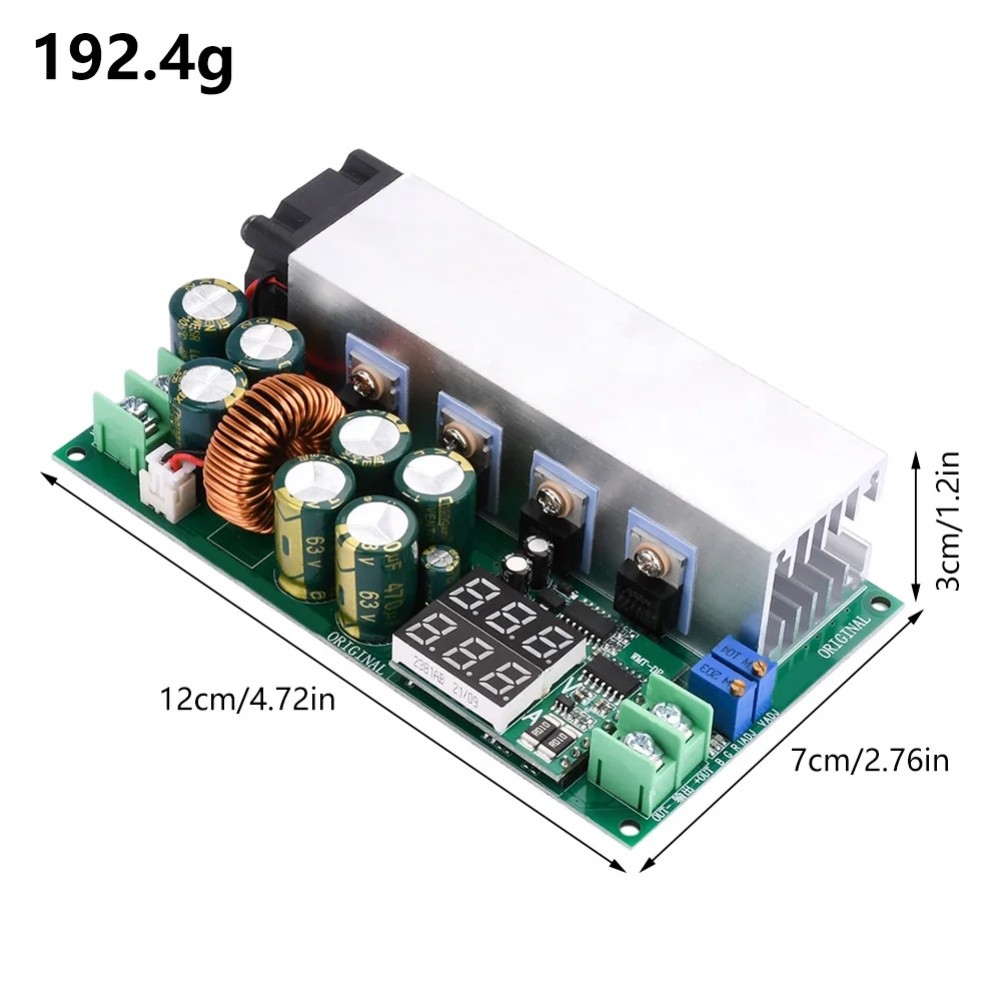

*Size:125mm (L) * 70mm (W) * 32mm (H)
*Color:As shown
*Input Voltage: DC12-80V (Do not use 72V batteries)
*Output Voltage: 2.5V-50V adjustable (step-down only) (Maximum output voltage = input voltage * 0.8)
*Output Current: 20A (maximum) 25A overcurrent protection
*Maximum Power: 600W
*Conversion Efficiency: ≥93%
*Protection: Overcurrent protection, backflow prevention
*Operating Temperature: -40-85℃
*Storage Environment: -20℃-+50℃
*Relative Humidity: 65±20%
*Wiring: For high-power applications, use the thickest possible cable.
Package Content:
1 x Power module
