Installation Guide：

1. please turn off FM radio,wifi or other electronic product to avoid the signal interference.
2. Please press the 1st button on monitor or press video select on remote to AV2 which works for wireless camera.

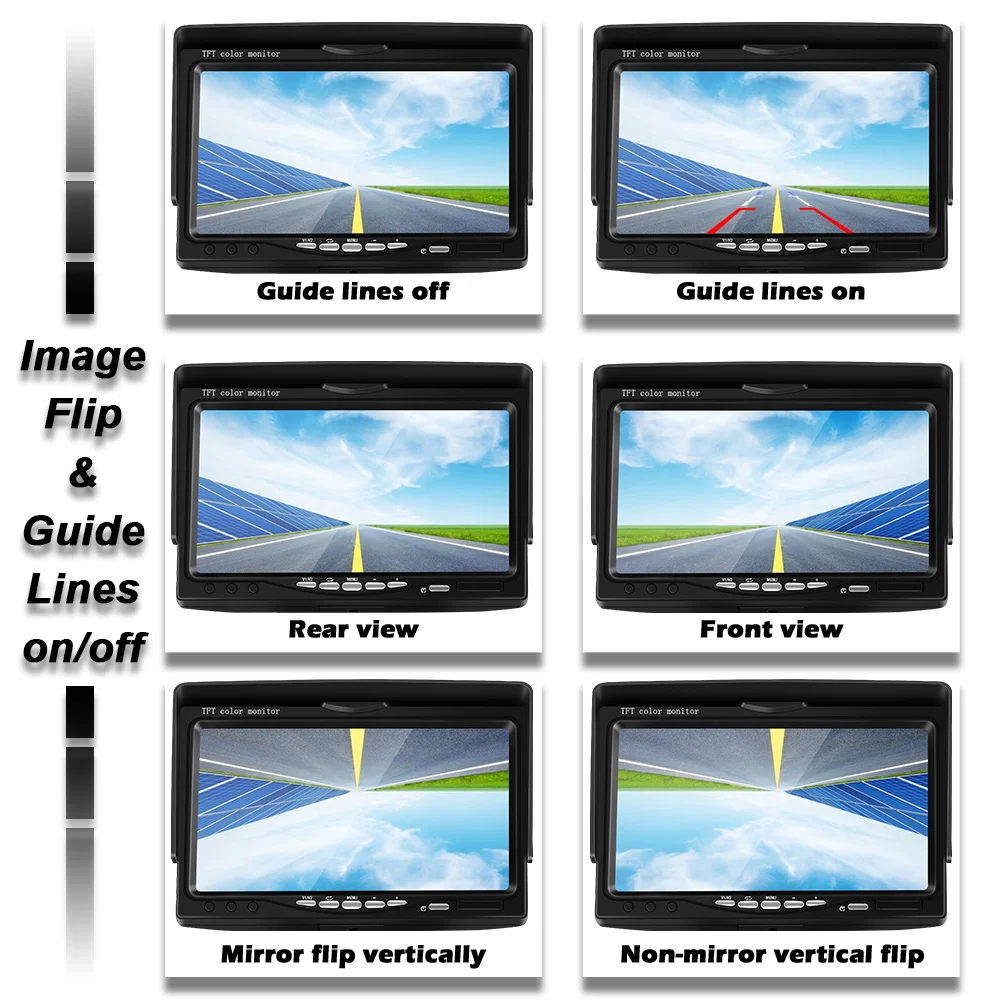

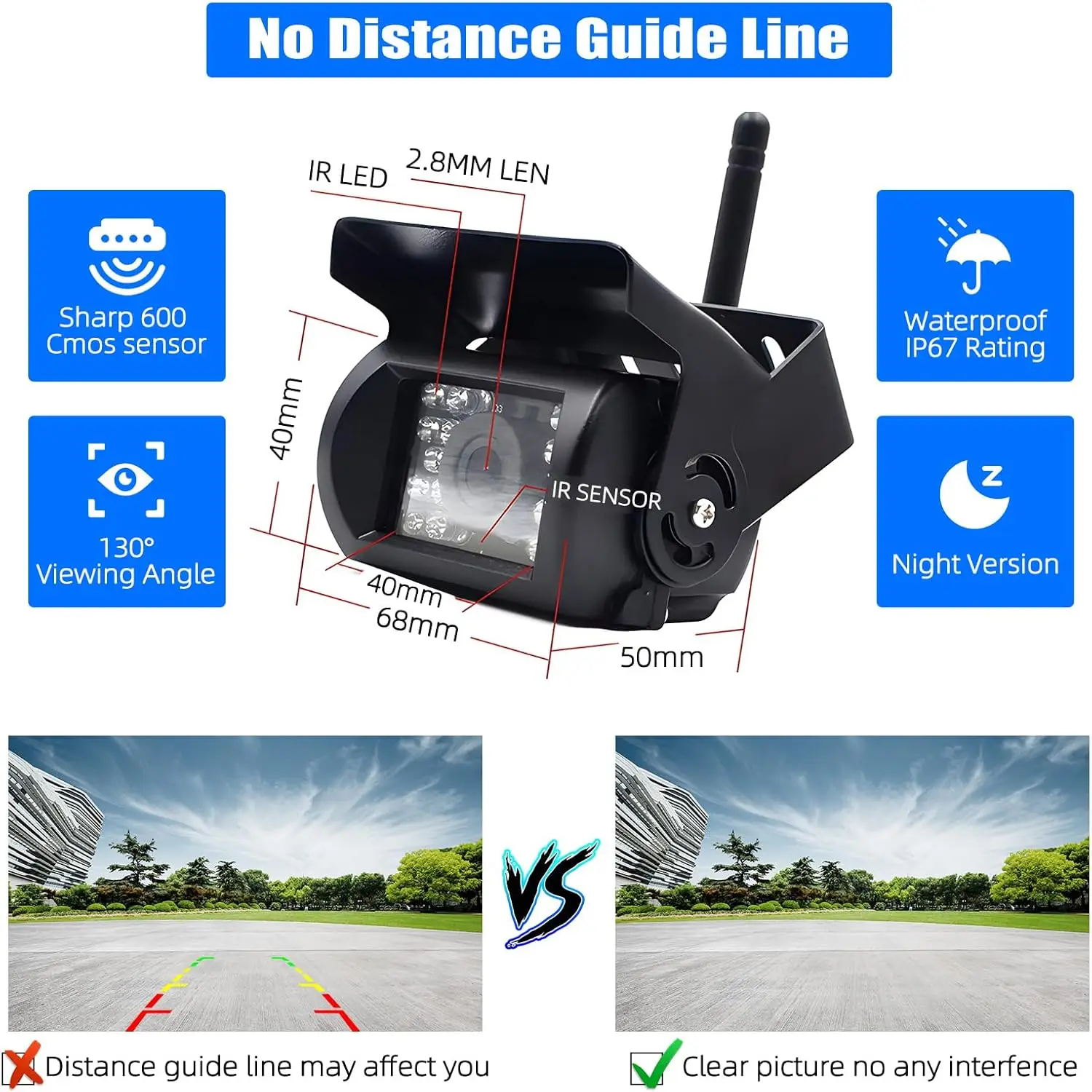

3. There are 2 channels for the cameras:2410(with guide lines for reversing) and 2470(without guide lines for monitoring). Please switch each by pressing the 2nd button on monitor or pressing model Select on remote
4. For maximum signal point the antennas towards each other
5. Keep monitor and camera at least the distance of 2 meters(about 78.7”). or camera and monitor will interfere with each other

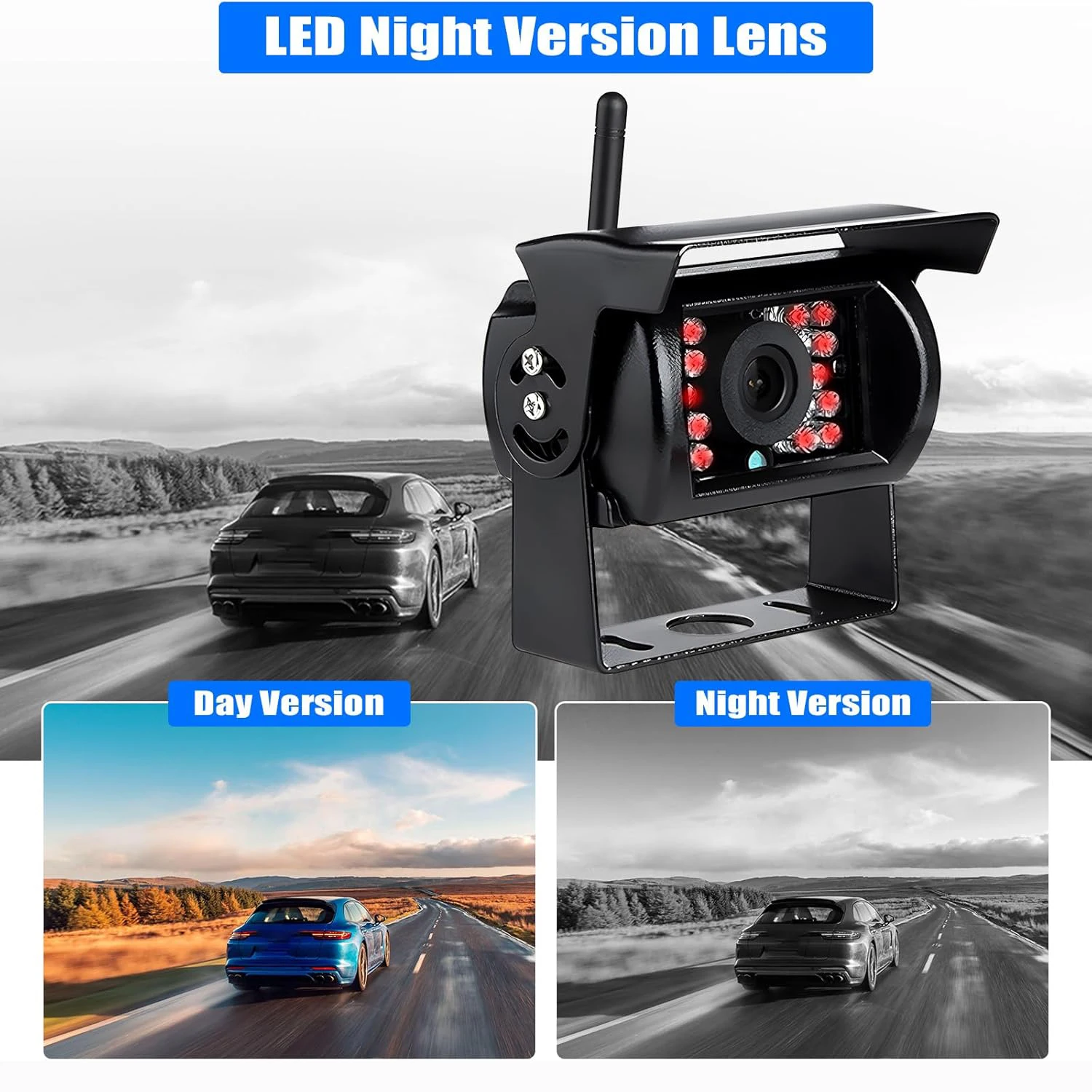

6. The IR camera has night vision, it will turn red when light is low

NOTE:

★★★ If you buy one camera, we will ship the camera with the reversing monitoring line by default (camera 2410)

Features:

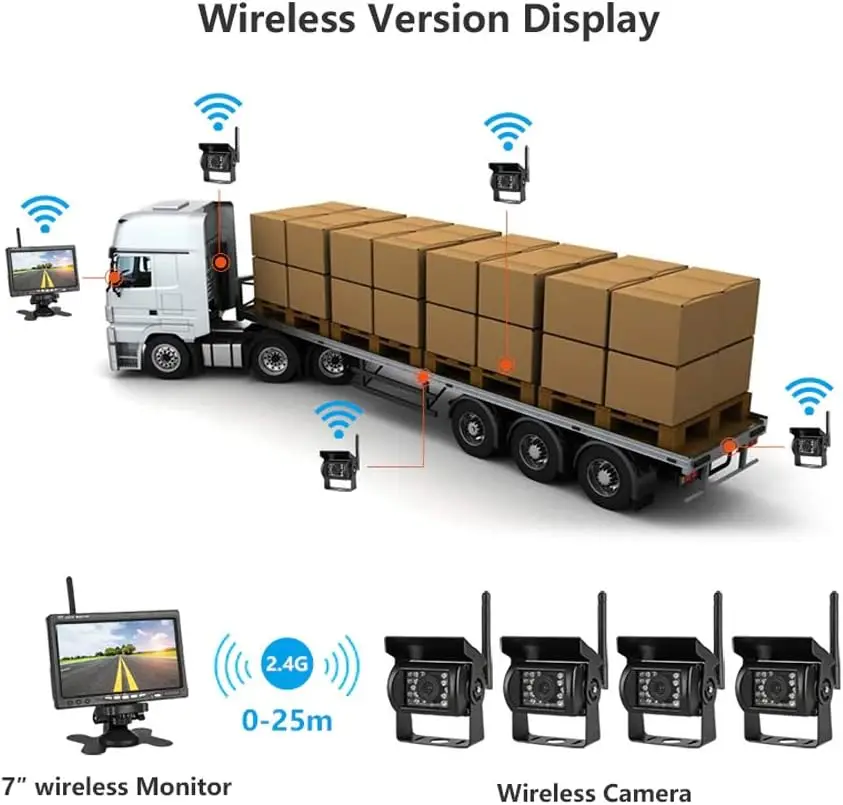

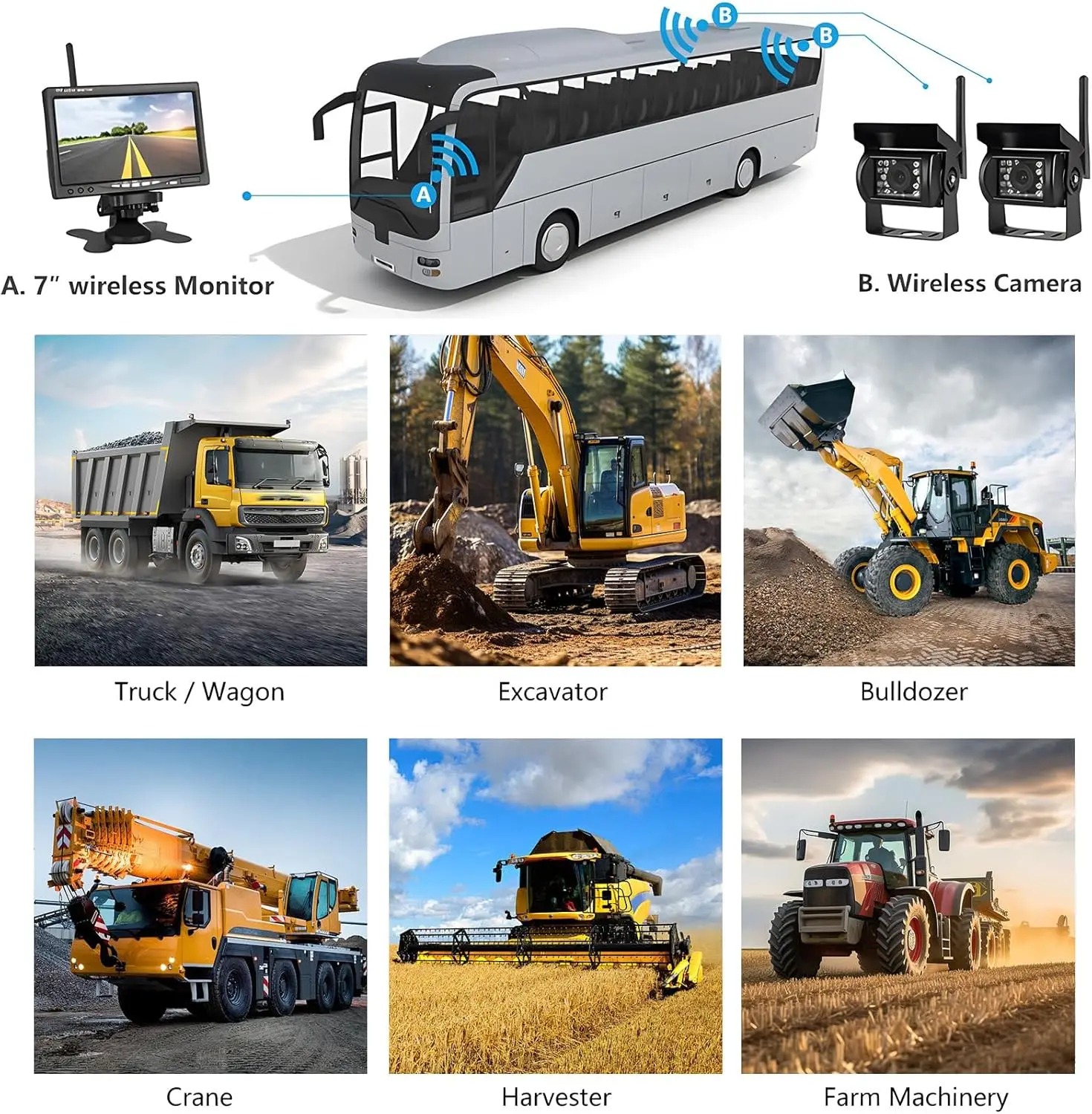

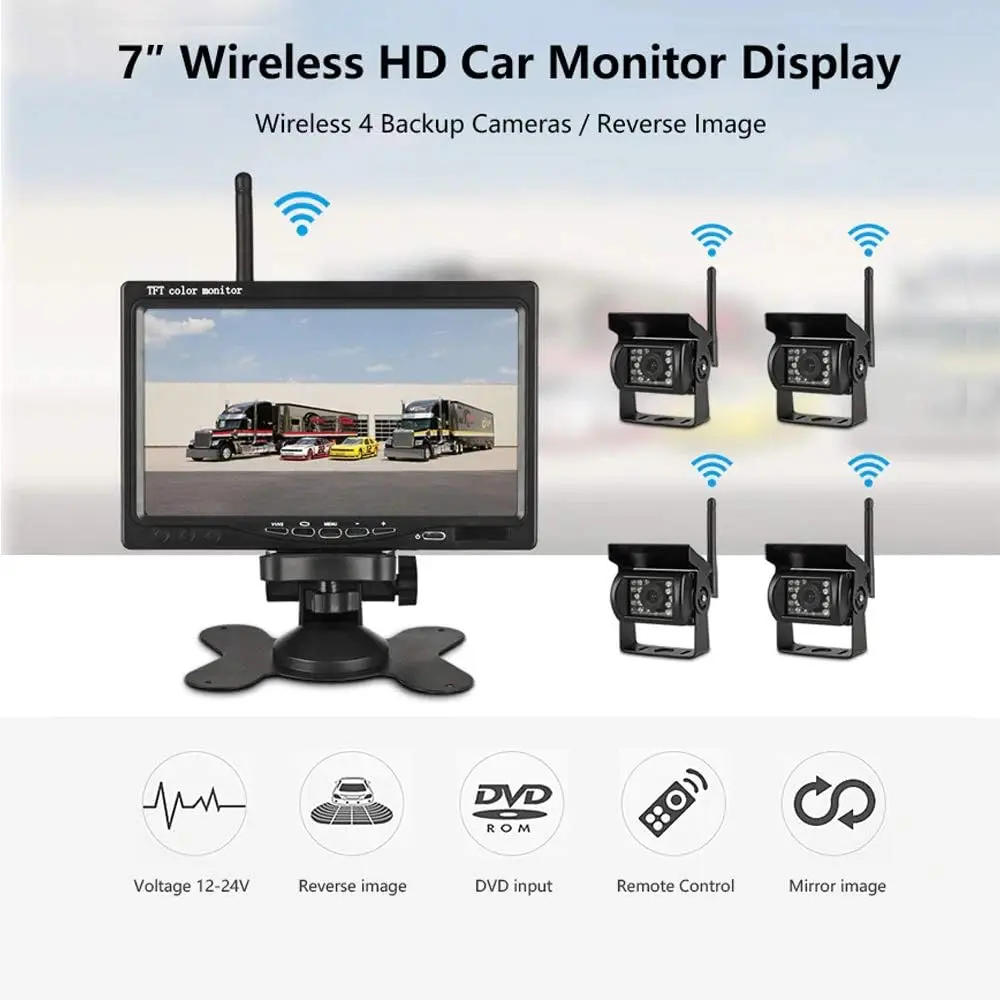

>7inch wireless HD Car monitor display,Built-in 2.4GHz Wireless Receiver,Can be used with 1-4 cameras,(need change the frequencies during using) suitable for multiple work scenarios.

>Built-in 2.4GHz wireless video transmitter,The signal can reach 100 meters in an open area.

>Two way of using , adjustable bracket may accord your working habits,let your driving more comfortable.

Monitor Specifications:

Display Screen: 7 inch Color TFT LCD

Transmission distance: 50 meters

Resolution: 800 x 480 Pixels

Operation: key operation and remote control

Screen ratio 16:9/4:3 adjustable

Brightness : 350cd/m2

Contrast: 300

Housing Material: ABS

Video Frequency: PAL/NTSC

Power supply: 12V-35V

Working Temperature: 0 to 60 degrees

Storage Temperature: -10 to 80 degrees C

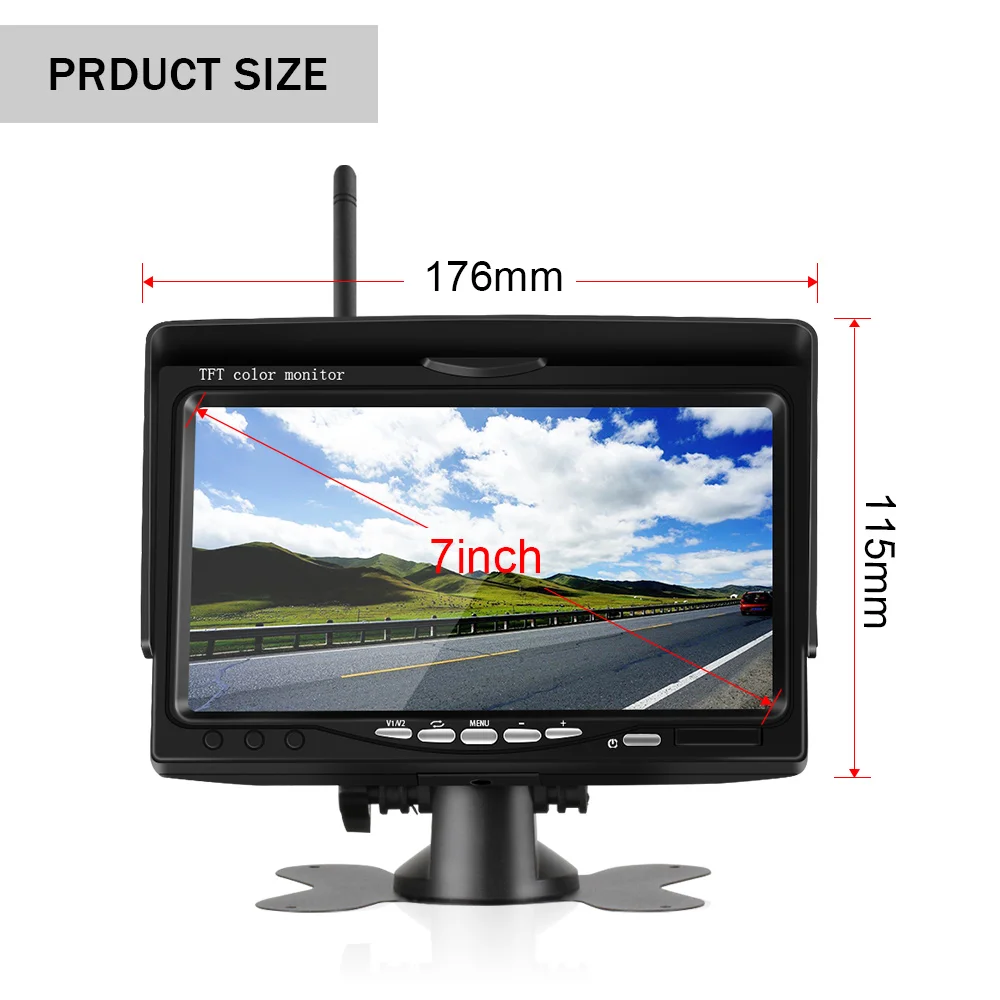

Product Dimensions(L x W x D): 172 x 114 x 22mm

Wireless transmission: built-in 2.4GHz wireless video transmitter

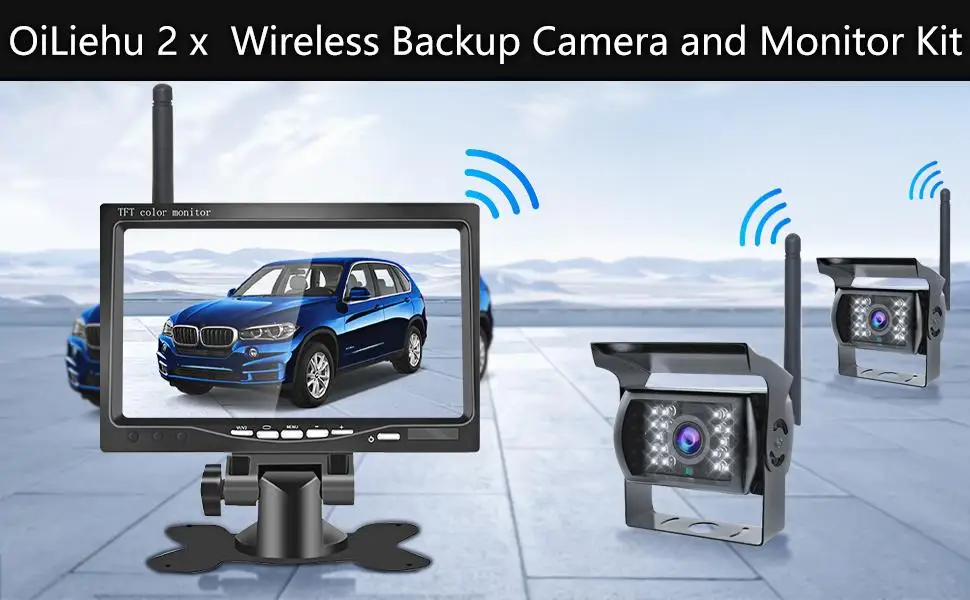

7 inch Wireless Monitor

HD Car Monitor Display with Wireless Connection Function.

Note:

If the monitor has a blue screen or no signal, please press the first button on the monitor or press the video on the remote control to select AV2 for wireless cameras. AV1 is suitable for wired cameras.

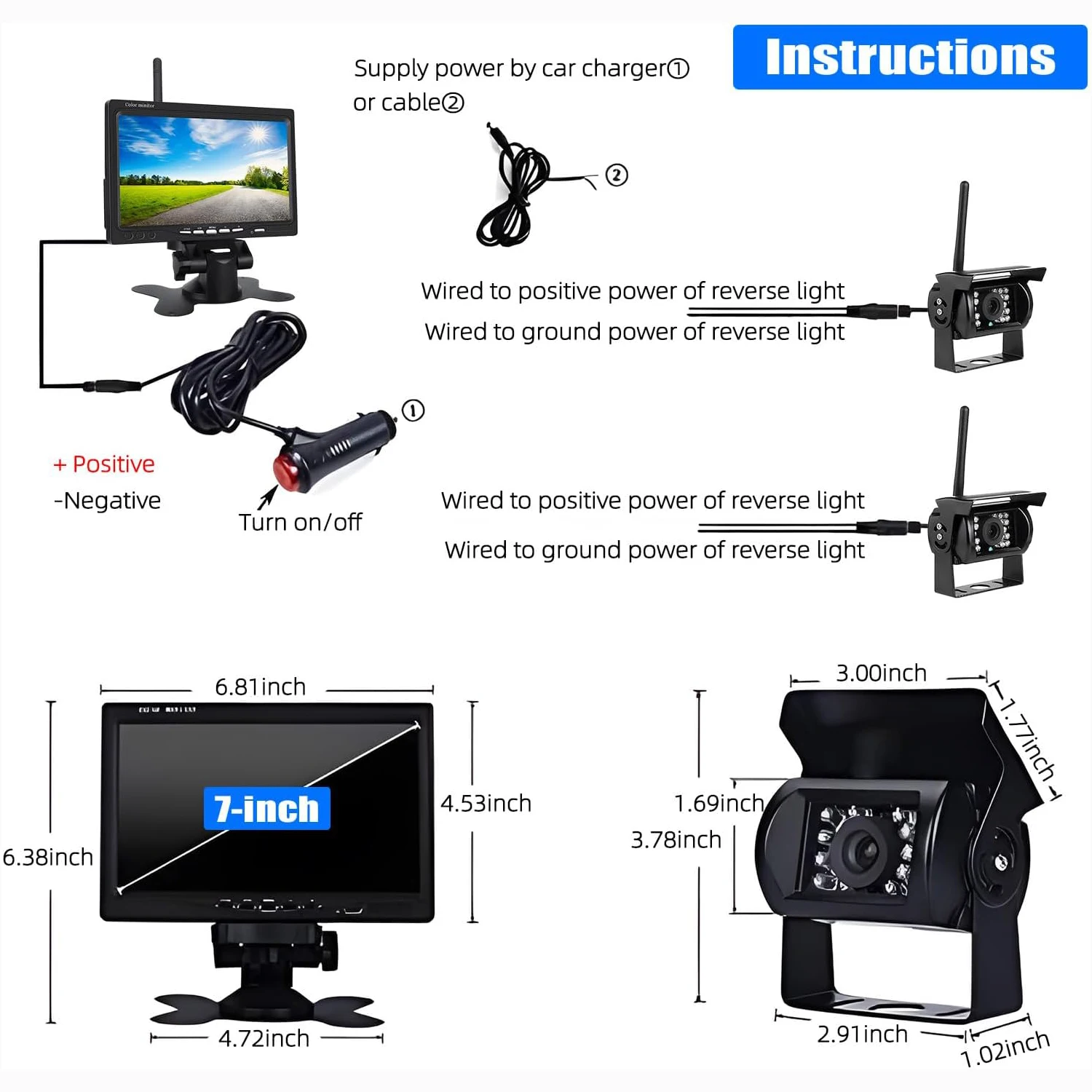

Installation:

Put the antennas on the camera and monitor
Connect the monitor with the car charger tightly. Then Plug the car charger directly into the Cigarette lighter
Connect the camera with the power cable, then connect the power cable to reverse light (Red port to positive, Black to Negative)
Troubleshooting Guide:

Please press the 1st button on monitor or press Video Select on Remote to AV2 which works for wireless camera;AV1 for a wired camera
For maximum signal point the antennas towards each other
Keep monitor and camera at least the distance of 2 meters (about 6.6ft), or camera and monitor will interfere with each other

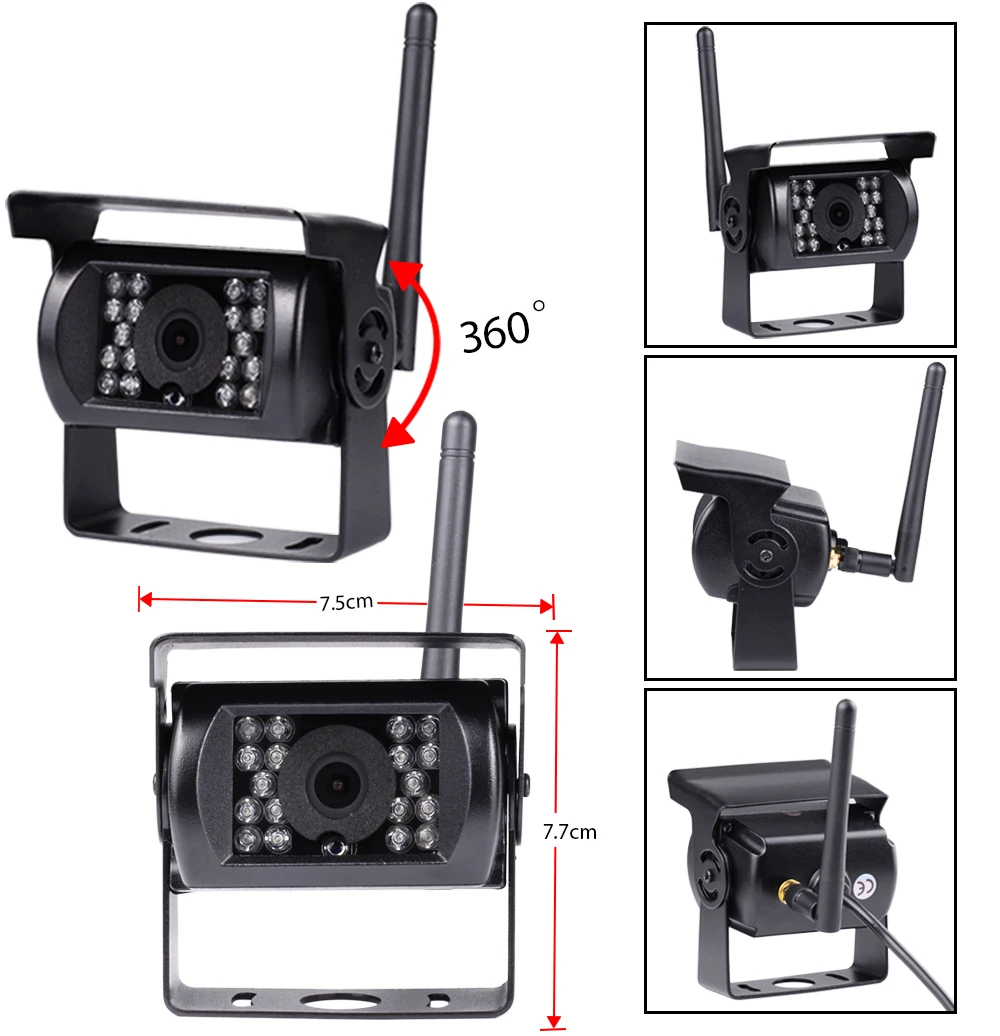

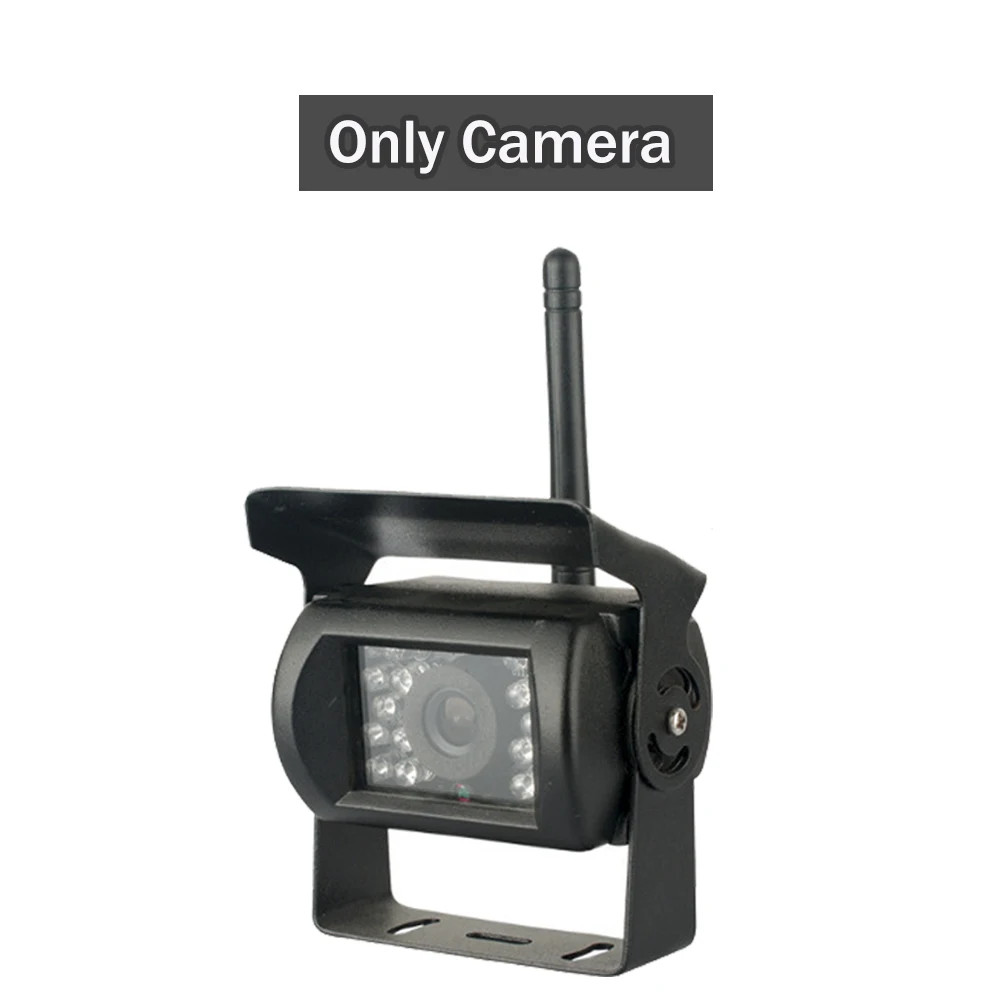

Camera Specifications:

Standard NTSC: 720*580 pixels

Resolution: 600 TVL

Lens: 2.5mm

Minimum illumination: 0Lux (LED ON)

Infrared light: 18pcs

Night vision distance:15 meters

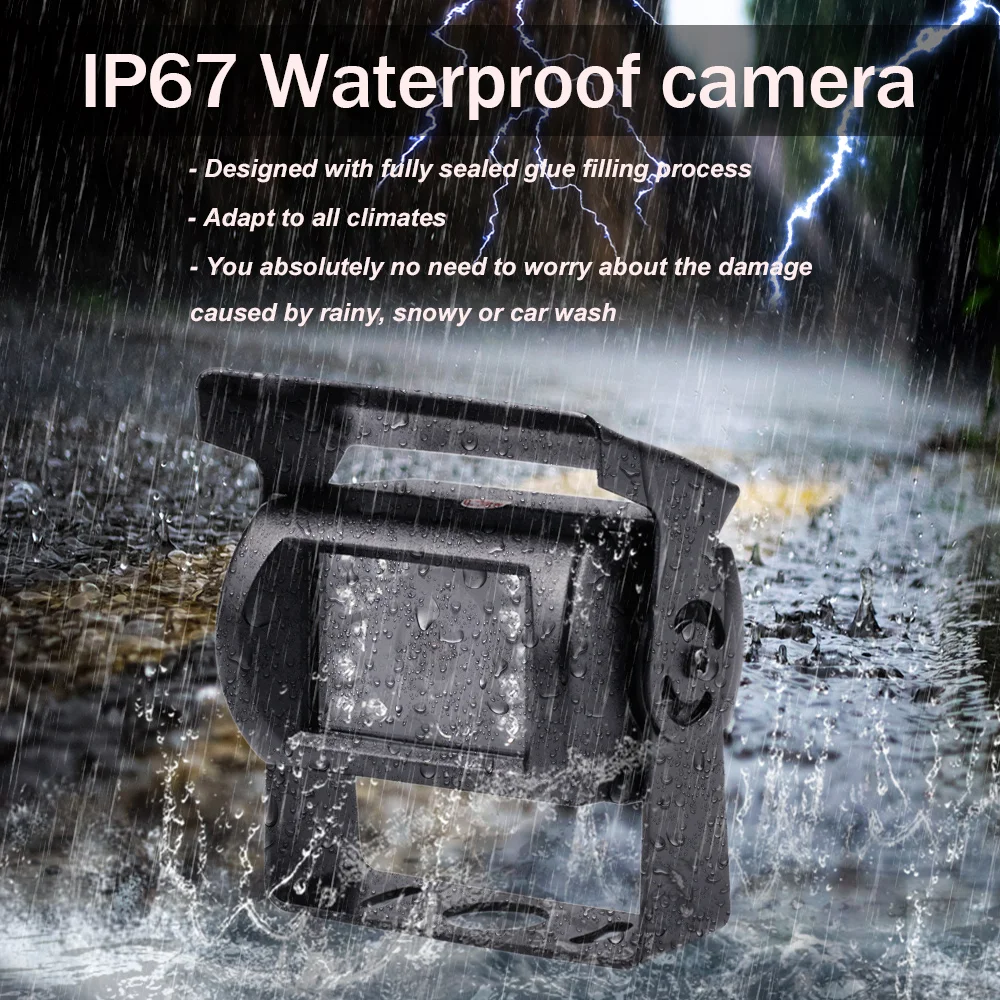

Waterproof: IP67

View angle:120 °

Operating voltage: 12 / 24V DC

Operating temperature: -20 ° C ~ + 70 ° C

Shell material: Aluminum

Mount material: Metal
