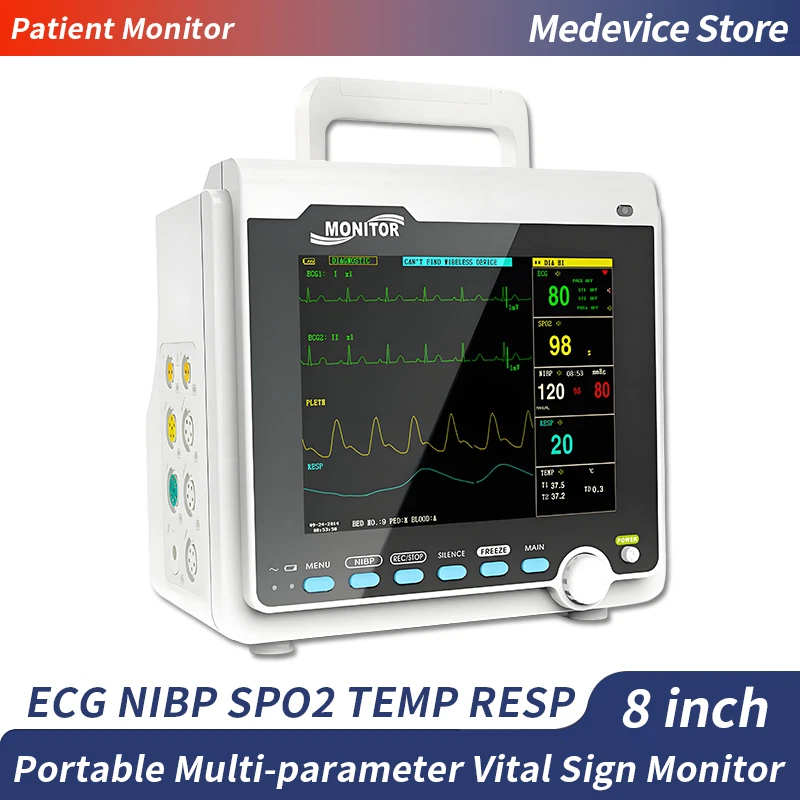

Product Introduction of Multi-parameter Patient Monitor

Product Overview

Designed for clinical monitoring, suitable for adults, children and newborns. The device integrates multi-parameter monitoring modules such as ECG, respiration (RESP), blood oxygen (SpO₂), non-invasive blood pressure (NIBP), body temperature (TEMP) and invasive blood pressure (IBP, optional). It is equipped with a high-resolution display, built-in battery. It has portability, high precision and intelligent alarm functions to meet the needs of multiple scenarios such as intra-hospital transfer, operating room, ICU, etc.

Core Function

Real-time monitoring of multiple parameters

ECG: supports 5-lead/3-lead mode, displays 2-channel waveforms, provides heart rate (HR), ST segment analysis, arrhythmia (PVC, ventricular fibrillation, etc.) detection and pacemaker signal recognition.

Respiration (RESP): monitors respiratory rate through chest impedance method and supports suffocation alarm (adjustable 10-40 seconds).

Blood oxygen (SpO₂): measurement range 0-100%, accuracy ±2% (70%-100% range), supports pulse rate monitoring.

Non-invasive blood pressure (NIBP): uses oscillometric method, supports manual, automatic and continuous modes, automatic switching between adult/child/neonatal modes, and overpressure protection function ensures safety.

Body temperature (TEMP): accuracy ±0.1°C, supports ℃/℉ unit switching.

Invasive blood pressure (IBP, optional): dual-channel monitoring, supports 8 pressure labels such as arterial pressure (ART) and central venous pressure (CVP), and needs to be used with special sensors.

Intelligent alarm system

Three-level alarm: high, medium and low priority, sound and light prompts differentiated response.

Alarm record: supports 8s/16s/32s waveform storage, and automatically prints alarm events and before and after waveforms after triggering.

Mute and pause: You can manually mute (up to 3 minutes) or pause the alarm, and the new alarm automatically resumes the prompt.

Technical parameters

Module indicators

ECG lead mode: 5 leads (I, II, III, aVR, etc.) / 3 leads; heart rate range: 15-300 bpm for adults, 15-350 bpm for children/neonates; ST segment analysis range: -2.0~+2.0 mV

RESP impedance monitoring; respiratory rate range: 0-120 bpm for adults, 0-150 bpm for children/neonates; accuracy ±2 bpm

SpO₂ measurement range 0-100%; pulse rate range 0-254 bpm; accuracy ±2 bpm (>40 bpm)

NIBP pressure range: 40-270 mmHg (systolic pressure) for adults, automatic adjustment for children/neonates; accuracy ±5 mmHg

TEMP range 0-50°C; resolution 0.1°C; accuracy ±0.1°C

Power supply AC 100-250V, 50/60Hz; built-in rechargeable battery, battery life of about 5 minutes, automatic shutdown after low battery alarm

Environmental adaptability Working temperature 0-40°C, humidity ≤85%; transportation and storage temperature -20-60°C

Product features

Portable design: lightweight body, built-in battery supports transportation, adapting to the needs of multiple scenarios in the hospital.

High-definition display: 5 waveforms on the same screen, parameter area, waveform area, and message area are displayed separately, and the information is clear at a glance.

Safety protection: in line with IEC 60601-1 CF type equipment standards, anti-defibrillation and electric knife interference, support equipotential grounding.

Intelligent interaction: knob + button operation, simple menu level, support Chinese and English interface switching and waveform color customization.

Extension compatibility: optional recorder, IBP module, support network connection to clinical information center (certified equipment required).

Applicable scenarios

Emergency department: rapid monitoring of vital signs, support for continuous monitoring during transportation.

Operating room: anti-electric knife interference design, suitable for real-time monitoring of surgical operations.

ICU/CCU: multi-parameter trend analysis, assisting in the management of critically ill patients.

Pediatrics/Neonatal: dedicated modes and sensors, adapted to children's physiological characteristics.

After-sales service

Warranty policy: 1-year warranty for the host, 6 months for multi-site probes/SpO₂ sensors, free repair for non-human damage.

Technical support: Provide circuit diagrams and calibration guides, authorized technicians can perform partial maintenance.

Return and exchange process: Need to contact the store customer service in advance. Shipping costs are borne by the user.

Statement: This device is not for home use and must be operated by professional medical personnel. Please read the instructions in full before use to ensure compliance with safety regulations.
