Approximate Dimensions: 6 5/8" x 2 1/2" x 2 3/4" (Width x Height x Depth)
Black Wire: Ground Wire
Blue Wire: Left Turn Signal
Red Wire: Brake Light
White Wire: Running Light
Yellow Wire: Right Turn Signal
Fitment: For Yamaha YZF R6 2003-2005 ,YZF R6S 2006-2008
Placement on Vehicle: Rear
Specificities:
Enhance the look with these EURO LED Tail Light with Turn Signals (you can remove your rear turn signals) Laser weld finished; not glued Direct bolt on.
Easy installation, no modification required Condition: Brand New Quantity: 1 Lense Color: Like the picture show.
Approximate Dimensions: 6 5/8" x 2 1/2" x 2 3/4" (Width x Height x Depth) measured at normal mounting position including housing. Fitment: Yamaha YZF R6 2003-2005 Yamaha YZF R6S 2006-2008.
Note:

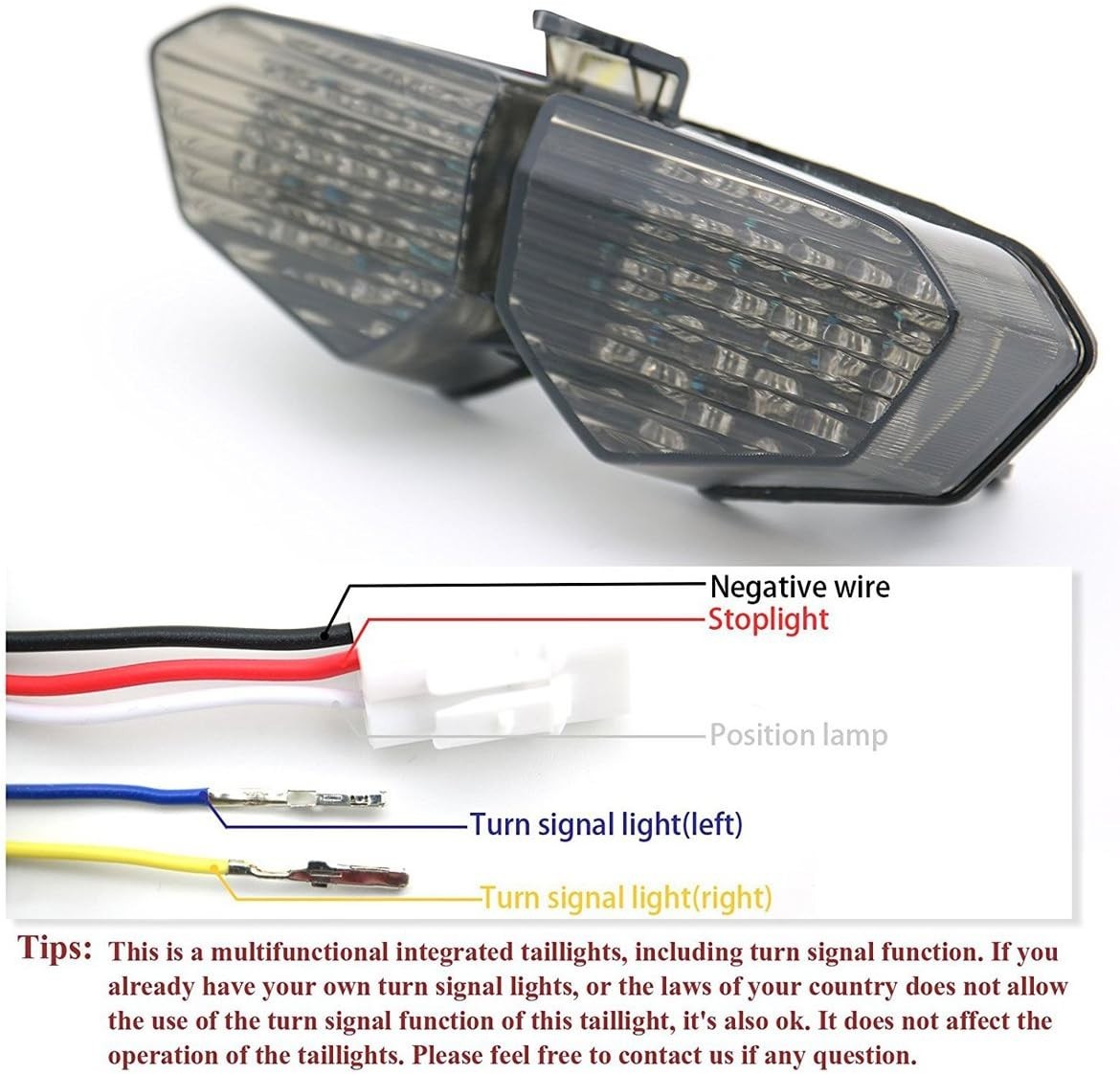

Wire Diagram (by color):
1. Black = Ground Wire
2. Red = Brake Light
3. White = Running Light
4. Yellow = Right Turn Signal
5. Blue = Left Turn Signal
The BLACK(ground wire), RED(break light) and WHITE(running light) wires must be inserted into the (white) wire clip provided and plugged into motorcycle wire clip.
**Please be sure to place the wire in the correct slots; based on the setup of the motorcycle.
Package included:
A TailLight
