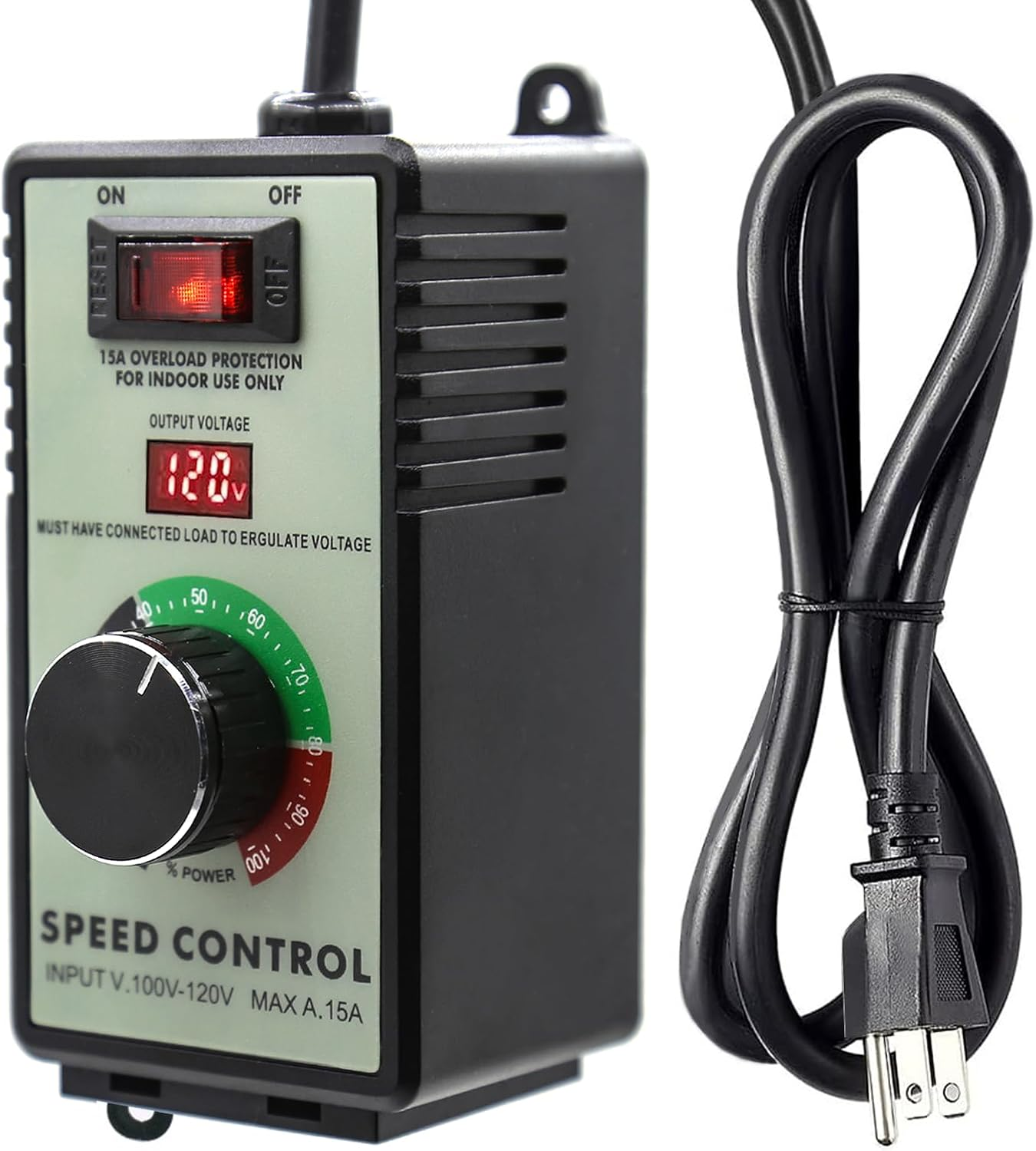

AC Motor Variable Speed Controller 120V 15A 4000W with Overload Protection Switch
Description
| Brand Name |
ZOWZEA |
| Manufacturer |
ZOWZEA |
| Part Number |
ZW-20230625 |
| Included Components |
Voltage Controller |
| Unit Count |
1.0 Count |
| Display Type |
LED |
| Smart Home Compatibility |
Not Smart Home Compatible |
| Color |
Black |
| Material Type |
Copper |
| Brand |
ZOWZEA |
| Material |
Copper |
Product description
Overload Protection Switch
The independent switch controls the input and output voltage, providing overload and short circuit protection. It replaces boat-shaped switches and fuses.
Precision Voltage Adjustment Knob
Voltage adjustment utilizes a precise potentiometer, offering high accuracy and excellent stability.
Tool Kit Hanging Hook
To facilitate the operation of an angle grinder, a tool kit hanging hook is designed for attaching tool bags. Its unique design ensures enhanced safety and practicality.
Precautions and instructions for use
1. Ensure proper voltage measurement: When the machine is empty, the measured output voltage is a virtual voltage. To obtain the correct output voltage measurement, connect a load of at least 20W before adjusting the voltage.
2. Suitable power and voltage range: Please use the machine within the specified rated power and voltage range. It is intended for use with AC grid power only.
3. Power limits for different loads: The mentioned 4000W power refers to the maximum limit when using resistive loads. For inductive loads, such as series motors, the power should be limited to 1/3 of the resistive load power. Exercise caution when using the machine with circuit board electronic products.
4. Normal heat generation: It is normal for the machine to produce slight heat during operation. Place and use the machine in a dry and well-ventilated area.
5. Safety precautions: This product features a flame-retardant plastic shell and must be properly grounded. Ensure that the power outlet is grounded for safe operation.
6.Incompatible with soft start voltage regulators: This machine is not designed to work with soft start or slow start voltage regulators.
Add to Cart
Add to Cart Price $22.99$22.99 $21.99$21.99 — no data Input Voltage AC 100V-120V AC 100V-120V AC 100V-120V Rated Current 9 amps 9 amps 18 amps Maximum current Max 15 amps Max 15 amps Max 40 amps Outer Shell Material ABS Plastic Metal Metal LED Display Voltage ✓ ✓ ✓ Recommended Power within 1000w within 1000w within 4000W Application AC motor appliance.like drill and fan, etc AC motor appliance.like drill and fan, etc AC motor appliance.like drill and fan, etc
- Electrical Specifications:Input voltage range of 110-120V, with a maximum current capacity of 15A and a rated current of 9A. Supports a maximum resistive load of 4000W and an inductive load of 1500W.
- Convenient Design:Featuring a back clip, allowing you to easily secure it to your belt while working. The rotary knob provides precise voltage control, while the LED voltage display ensures easy monitoring.
- Overload Protection:The switch automatically cuts off power when the current exceeds 15A, ensuring safety for both equipment and users. The flame-retardant casing provides an additional layer of protection.
- Standard Socket:The device features a standard socket at the bottom, compatible with both Type A and Type B plugs commonly used in the United States.
- Versatile Usage:Perfect for powering fans, small motors, soldering irons, and other inductive load devices. It can also be used with resistive loads such as kettles and electric heaters.
