AM2302 humidity-sensitive capacitance digital temperature and humidity module is a have already calibrated digital composite signal output of the temperature and humidity sensor.
It dedicated digital module acquisition technology and the temperature and humidity sensor technology, ensure that the product has a very high reliability and excellent long-term stability.
Includes a capacitive moisture sensor element and a high precision temperature measuring element, and connected to a high-performance 8-bit microcontroller. So the product has excellent quality, super fast response, strong anti-interference ability, extremely high performance-price ratio.
Every sensor in extremely precise humidity calibration laboratory calibration.
Calibration coefficient in the form of a program stored in the microcontroller, sensors inside in the process of detecting signal processing to invoke the calibration coefficient.

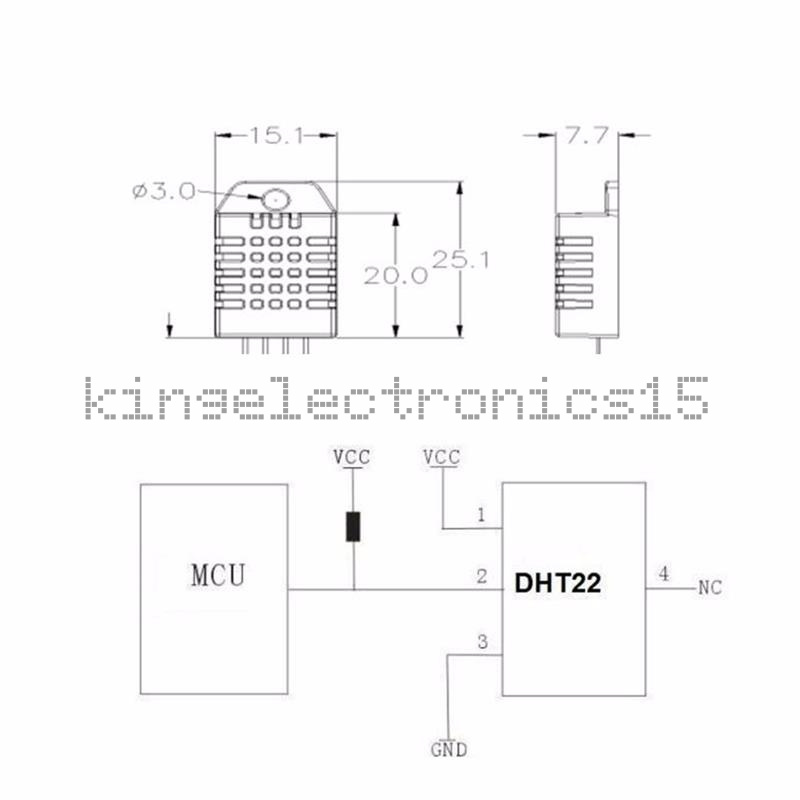

Standard single bus interface, make the system integration becomes simple and fast.
Super small volume, low power consumption, signal transmission distance of 20 meters, making it a all kinds of application of the best choice for even the most demanding applications.
Products for 3 fuses (single bus interface) connection is convenient.

Specifications:

Type: AM2302
Accuracy resolution: 0.1
Humidity range: 0-100%RH
Temperature range: -40~80℃
Humidity measurement precision: ±2%RH
Temperature measurement precision: ±0.5℃
Application：
HVAC, dehumidifiers, test and testing equipment, consumer goods, automotive, automatic control, data loggers, home appliances, humidity regulators, medical, weather stations, and other related humidity detection control, etc.

Features:

ultra-low power
No additional components
excellent long-term stability
All calibration, digital output
completely interchangeable
long distance signal transmission
relative humidity and temperature measurement.

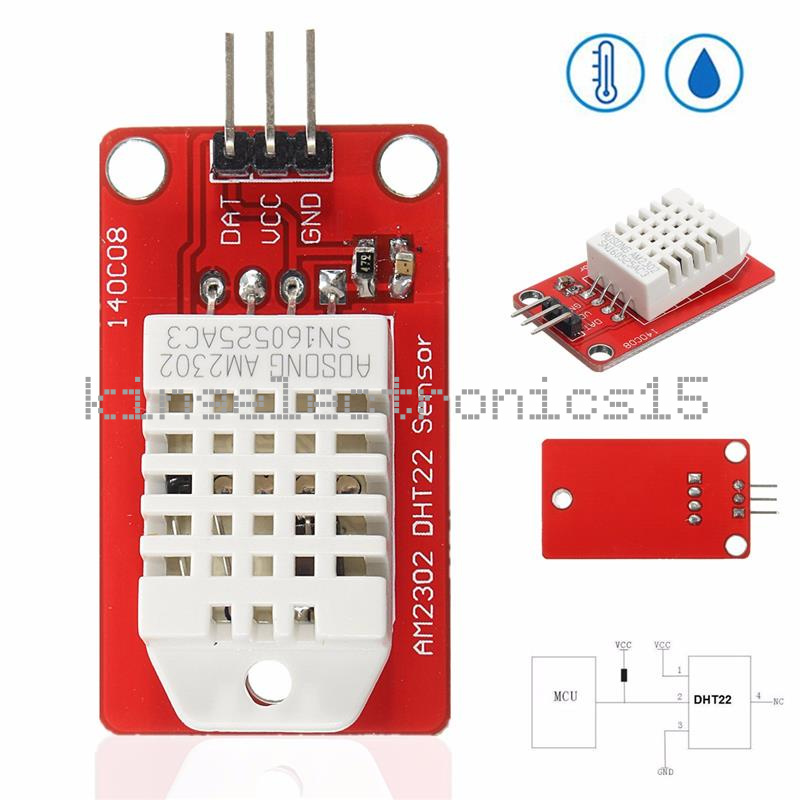

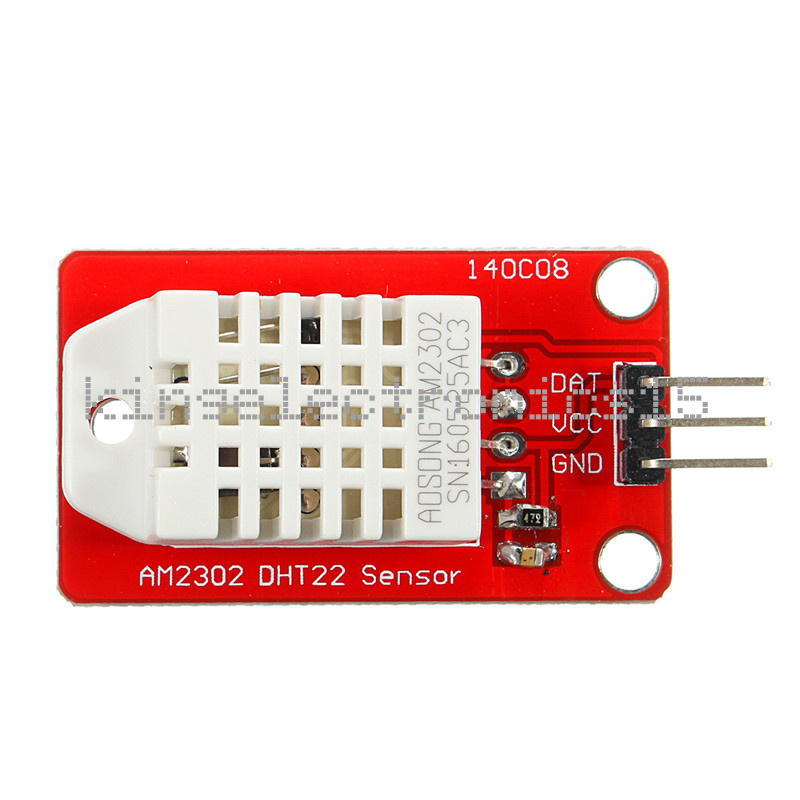

1 x AM2302 DHT22 Digital Temperature & Humidity Sensor Module For arduino R3
