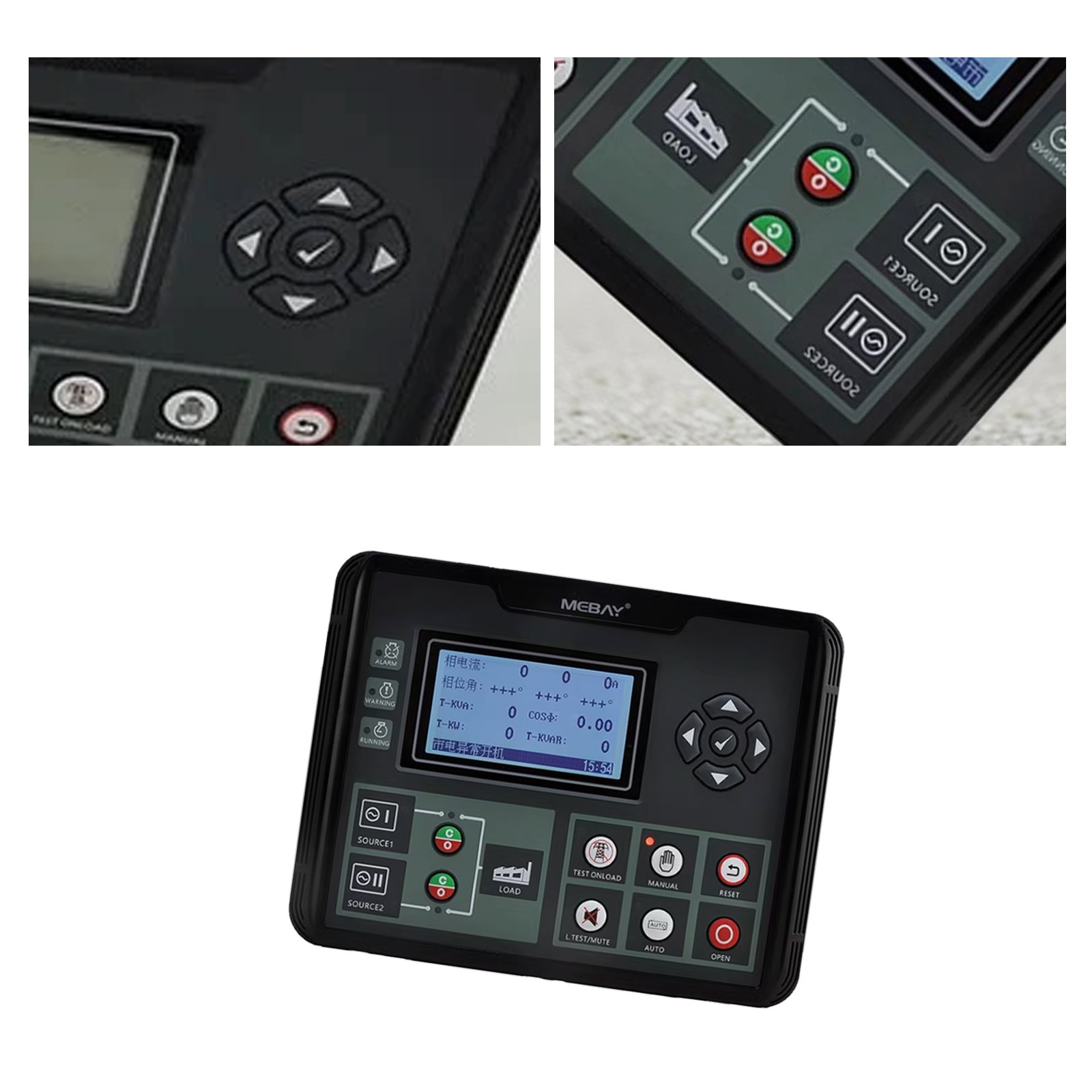

MEBAY ATS520IR Auto Diesel Generator Controller Dual Power Switch ATS Control Module LCD Intelligent programmable Panel RS485

Summary

This series of controllers is a dual power switching controller, which has programmable function, automatic measurement and control, LCD display of dual power intelligent switching module.

This controller uses 3.5 inch 240*128 large screen high resolution LCD display, a completely new and original UI design.Controller built-in Simplified Chinese, English and other display interfaces can be selected, and language interface can be customized according to customer requirements. All parameters of the controller can be adjusted by keys on the controller panel, or adjusted and monitored by PC through USB port or RS485 interface. It can be widely used in various types of power systems.

ATS520IR: On the basis of ATS520, power measurement and RS485 port are added.

Main Features

32 units Micro-procession technology is used.

3.5-inch 240*128 large screen high resolution liquid crystal display, with Chinese and English switchable, customized language according to customer needs;

Acrylic material is adapted to protect the screen.

With USB interface, the parameters can be set through USB interface to monitor real-time, and the parameters can be set when the controller does not turn on the power supply.

With RS485 communication port, can achieve “Three Remote” functions via MODBUS protocol.

S1/S2 has independent over-current warning function and trip warning function.

Detect and display power generation, municipal power, phase and other parameters;

S1/S2 accumulative active power, accumulative reactive power and accumulative closing times are displayed.

Automatic/manual state switching. In manual mode, the switch can be forced to close/open.

Two generators can be controlled to realize cycle operation, main operation and balanced time operation.

Adapt to 3P4W,3P3W,1P2W,2P3W(120V/240V,50/60HZ)

Input and output port status display;

Real time clock inside: preset time operate and auto maintenance is available. Genset working plan can be set as per week or month.

Records function: relative faults shall be recorded in real time.

With 8 relay output (including 2 channels of fixed functions, 6 channels of functions can be configured), a variety of functions are optional;

6-way switch input (2-way function fixed,4-way function can be configured) and many functions are optional;

Control Protection:to realize automatic ATS switching and complete fault display and protection of the generator set;

Standard water-proof rubber gasket. The waterproof can reach IP65.

Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.

Parameters Display

S1, S2 Voltage State

Generator Unit Status

Switching state

S1/S2 line voltage

S1/S2 Phase Voltage

S1/S2 Phase Angle

S1 Frequency

Generator Battery Voltage(If connected)

S2 Frequency and Current Load Percentage

Continuous power supply time

Last continuous power supply time

Cumulative power supply time of S1/S2

Cumulative closing times of S1/S2

Alarm serial number and number of alarms

Alarm type

Alarm incident

Input port status

Output port status

Real-time clock

The following parameters are only available for series I:

S1/S2 Total kWh

S1/S2 Total kVarh

3 phase current

Current phase angle

Active power kW

Apparent power kVA

Reactive power kVar

Power factor

Parameters

Options

Parameters

Power supply

DC8-36V Continuous

AC90-280V（L1N1/L2N2）

Power Consumption

Standby：24V：MAX 2W

Working：24V：MAX 6W

Mains AC Voltage Input

1P2W 30VAC-369VAC(L-N)

2P3W 30VAC-625VAC(L-L)

3P3W 30VAC-625VAC(L-L)

3P4W 30VAC-625VAC(L-L)

Gens AC Voltage Input

1P2W 30VAC-369VAC(L-N)

2P3W 30VAC-625VAC(L-L)

3P3W 30VAC-625VAC(L-L)

3P4W 30VAC-625VAC(L-L)

S1 Close Output

16Amp(AC250V) free output

S2 Close Output

16Amp(AC250V) free output

Programmable Relay output 1-6

10Amp(AC250V) free output

Switch Value Input

Available if connecting with Battery -

Working Condition

-25-65℃

Storage Condition

-40-85℃

Protection Level

IP65：when waterproof rubber gasket is added between controller and its panel

Insulation strength

Apply AC1.5kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min.

Overall Dimension

210mm*160mm*50mm

Panel Cutout

186mm*142mm

Weight

0.85Kg
