This Listing Is Including1 x 2-Row of tubes A5052 Aluminum Radiator only
For 1969-1972 Chevrolet Corvette 427 454 7.0L 7.4L V8 Big Block Engine
This radiator is designed for either a 7.0L(427ci) V8 or a 7.4L(454ci) V8 engine
Specifications:
Core Material: A5052 Aluminum
Tank Material: A5052 Aircraft Grade Aluminum
Including OEM Style Brass Petcock Drain.
High Performance Racing Spec.
2-Row of tubes Core Racing Design
Down Flow Or Cross Flow Type: Cross Flow
Overall Size: 18 5/8 Height X 31 5/8 Width
Core Size：17 Heigh X 27 1/2 Width
Inlet Diameter: 1 1/2in Driver Side
Outlet Diameter: 1 3/4in Passenger Side
Transmission Oil Cooler Fitting Type: ￠26*315*M12*1.25(Z), Inverted Flare
Please Check the Size Before You Buy!
Description:

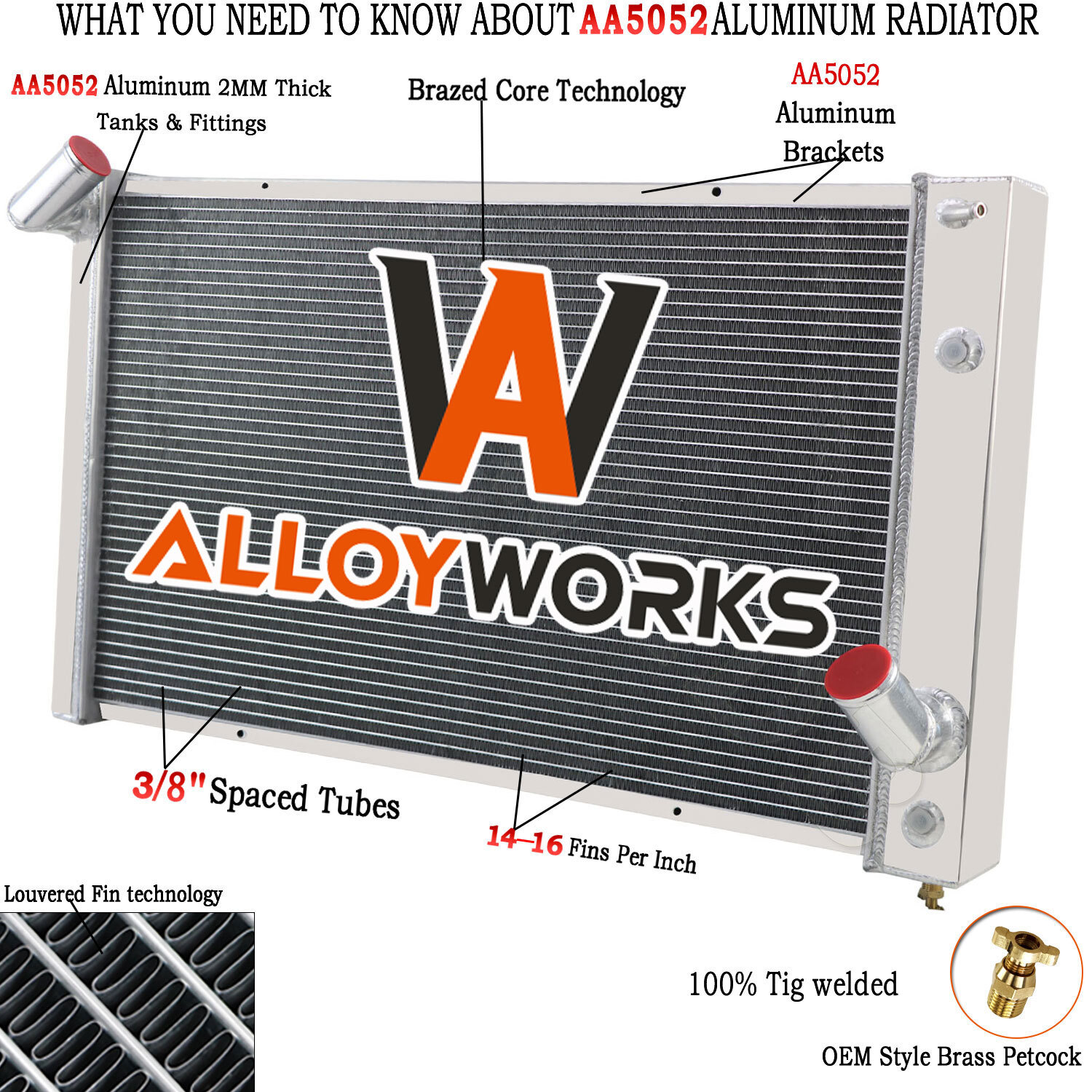

1.Our Radiator is made of AA5052 aircraft aluminum,AA5052 Aluminum major alloying element is magnesium,has a higher strength and greater corrosion resistance (including to salt water).
2.Higher density core: cooling rows are spaced 3/8" apart,giving you 25% more rows within the core than other aluminum radiators sold on eBay.
3.14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators. AA5052 aluminum radiator core can be made more efficient by changing the tube spacing and fin count. If the tubes are placed closer together and the fins are packed in tighter a denser core is created that throws off much more heat. A high efficiency core can have tubes on 3/8" centers and fin counts increased to 14 to 16 FPI,That may not seem like a big deal but the surface area is greatly increased. Combined with all the additional fins between the tubes this provides approximately 30% to 45% better cooling than the OEM radiator had.

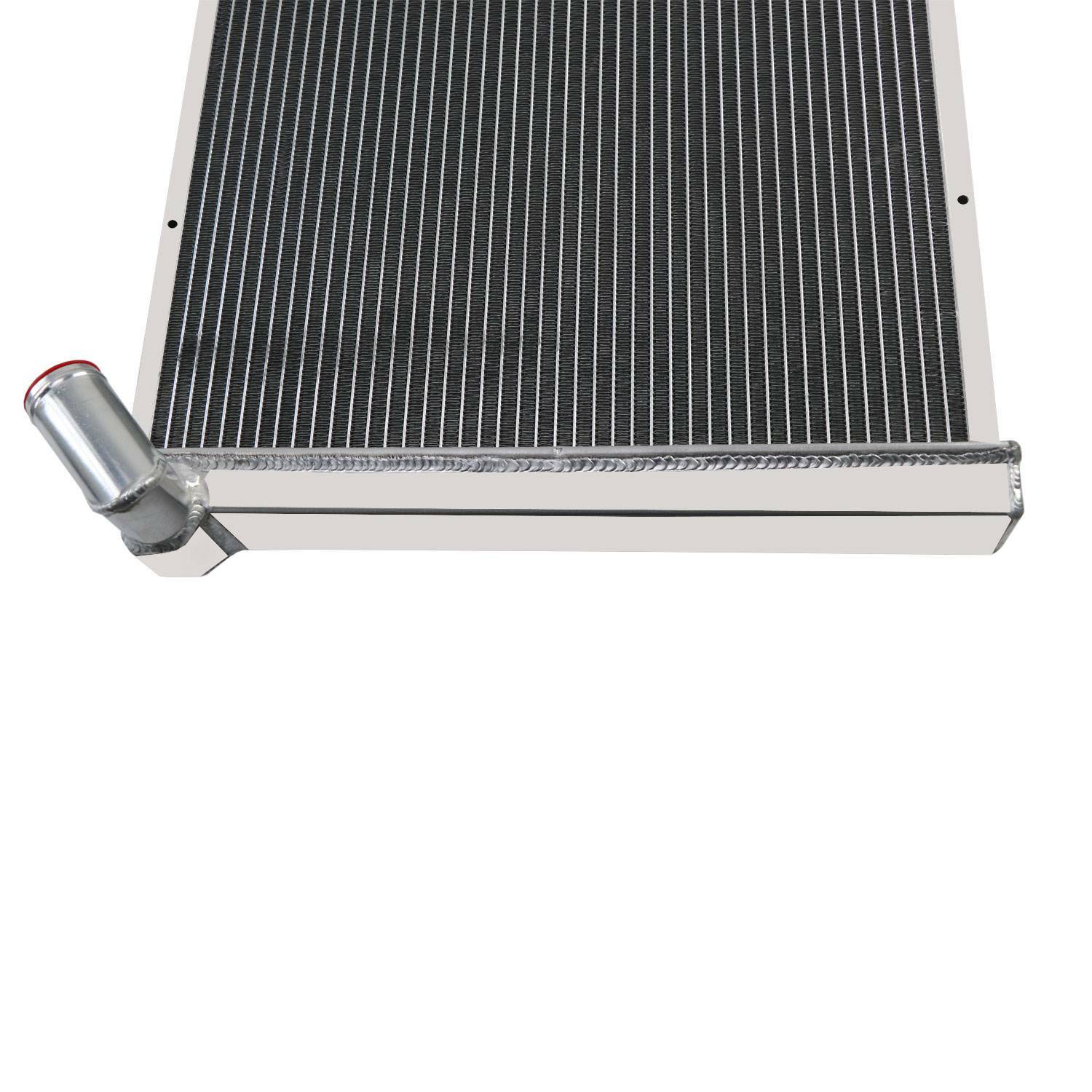

The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG. Stronger & Higher Capacity for Coolant than OEM units, Made of High Quality Full A5052 Aluminum Construction.aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure.
