Fitment:
1967-1972 Chevrolet C/K Series 10 20 30 Pickup Suburban V8
1969-1972 Chevrolet Blazer 5.0L 5.7LV8
1967-1979 G/P Series P10 P20 P30 G10 G20 G30 Van
1970 1971 1972 GMC Jimmy I6 V8
1967-1972 GMC C/K Series K25/K2500 K35/K3500 C15/C1500 Pickup Suburban
1967-1979 G/P Series P15 P25 P35 G15 G25 G35 Van
Fits L6 V6 V8 Engine:4.1L 4.8L 5.0L 5.7L 6.6L 3.8L 5.3L 6.5L 5.4L 4.6L
For the year and models, please check the compatibility.
Package includes:
1X 3-Row Aluminum Radiator (Includes Radiator Cap)
1X Aluminum Shroud
2X 12" Fans (Includes mounting kits)

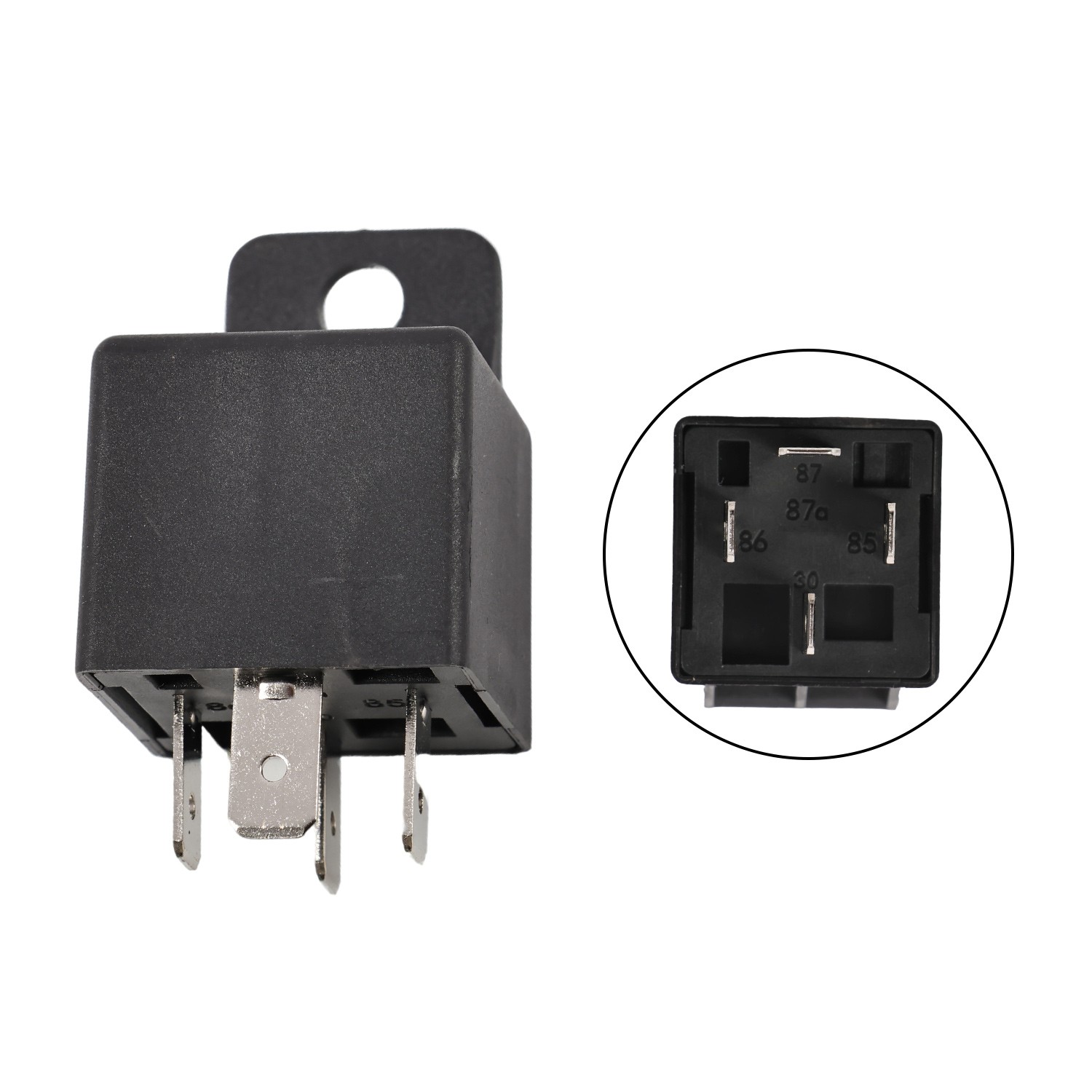

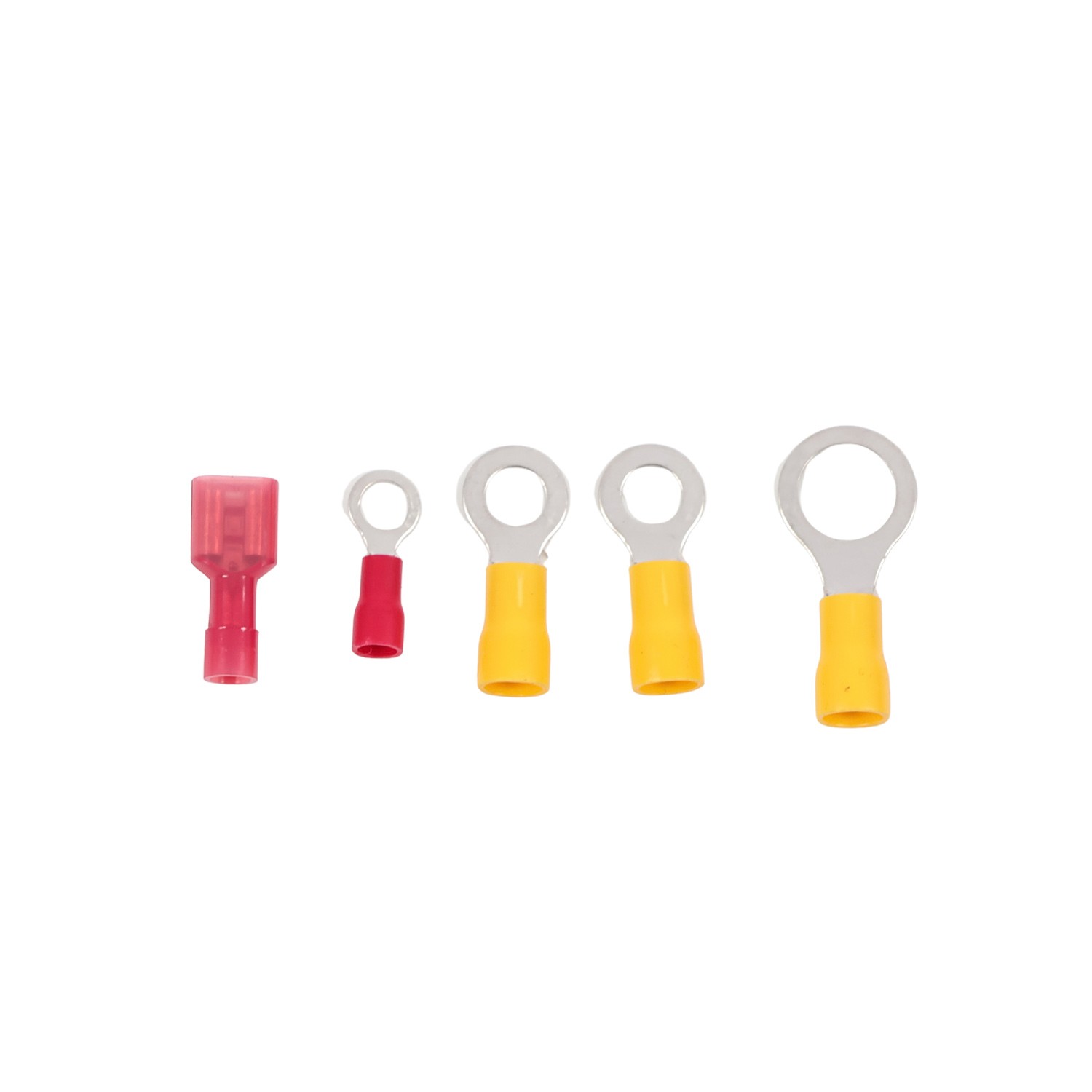

1X Thermostat Relay Kit
Just as pictures show

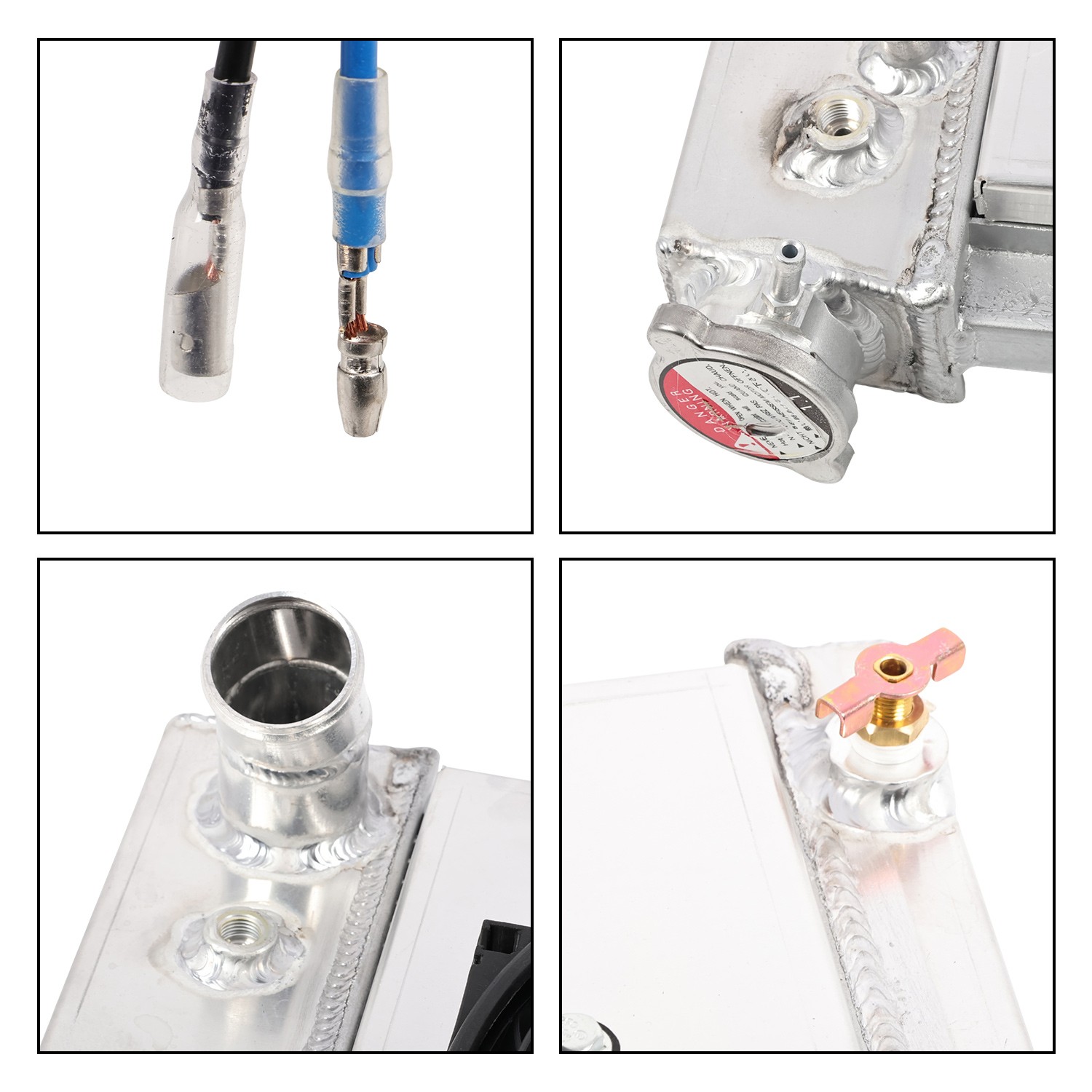

Radiator:
100% Brand new and never been used.
Made of High Quality Full Aluminum Construction
Stronger and Higher Capacity for Coolant than Stock Units
Materal: Aluminum
Row: 3 Row/Core
Inlet/Outlet: 1.50" / 1.75"
Core Size: 718 x 408 x 44mm (28.27" x 16.06" x 1.73")
Overall Size: 864 x 490 x 140mm (34.02" x 19.29" x 5.51")
Professional Installation is Highly Recommended
No Instruction Included
Fan:
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
Blade Material: Plastic
12V/80W
Fan Diameter (in): 12”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan CFM: 800 CFM
Maximum Fan RPM: 2000 RPM
Amp Draw: 7.5 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This set up will run Fans & pull air in through radiator.
Features:
-Ensure exact fit, form and function for an easy drop-in installation;
-Built with high density multi-lowered fins for maximum cooling efficiency;
-Improve Cooling Efficiency;
-100% Leak Tested;
-Built to strict quality control standards;
How to clean radiator:
1. Start the vehicle, to rise to normal temperature. Slowly open the tank cover, the fluid shake from the tank after filling the mouth, the cleaner can be mixed with any brand of coolant. Idle running not less than 15 minutes, not cleaning vehicles not less than 30 minutes for two years. And then discharge coolant, flush water tank, until out of clear water, suitable for any water cycle system.
2. After cleaning, after waiting for pipeline rehabilitation add fluid to water tank, and inject new coolant and water purification.
How to replace the radiator:
1. Disconnect the battery.
2. Drain the radiator fluid into a suitable container.
3. Remove the old radiator:
-Take off any plastic covers around the radiator.
-Disconnect the electrical connector to the fan, and unbolt and remove the fan assembly.
-Disconnect the radiator hoses from the radiator.
-Disconnect the transmission cooling lines from the bottom of the radiator.
-Remove any clamps, brackets, or screws holding the radiator inside its frame.
-Lift the radiator up and out of the car.
4. Install the new radiator:
-Slide the new radiator into place.
-Connect any clamps or brackets that hold the radiator in place.
-Connect the transmission cooling lines carefully.
-Connect the engine cooling hoses to the radiator.
-Replace the fan and fan shroud.
-Reconnect the fan electrical connection.
-Replace the plastic covers.
5. Fill the radiator with fluid.
6. Check your work to make sure that there are no leaks.
(Tools need to be prepared: Screwdrivers, Wrenches, Drain pan)
Note: Do please keep children and pets away when replacing the radiator)
Note:
1. Project operation, the vehicle normal temperature 60 to 80 degrees.
2. Add detergent if the tank is too full can take some antifreeze.
| Item Specifics | |
|---|---|
| Brand | Nakkaa |
| Type | Full Aluminum Radiator Shroud Fan Thermostat Kit |
| Features | Crossflow Radiator |
| Manufacturer Warranty | 3 Years |
| OE/OEM Part Number | DPI369,CC369,CU369,0369AA,369,MC369 |
| Interchange Part Number | CU369,CUC369,CC369,DPI369,RAD369,MC369 |
| Rows | 3 Rows |
| Style | Downflow |
| Material | Aluminum |
| Color | Silver |
| Fitment Type | Direct Replacement |
| Mounting Style | Bolt-On |
| Placement on Vehicle | Front |
| Fitment 1 | For Chevy C/K Series C10/C20/K10/K20/K30 Pickup Trucks 67-72 |
| Fitment 2 | For Chevy Suburban Truck 70-72/Chevy GMC Jimmy 67-72 |
| Fitment 3 | For Chevy Blazer GMC K5 K15/K1500 Truck Pickup 68-72 |
| Fitment 4 | For Chevy Blazer GMC S/T Series Pickup Trucks 1967-72 |
| Fitment 5 | For GMC C/K 15/1500 35/3500 Pickup Truck 1968-1972 |
| Fitment 6 | For GMC 15/1500/25/2500/35/3500 Pickup 1969-1972 |
| Fitment 7 | For GMC JIMMY 1970-1972 |
