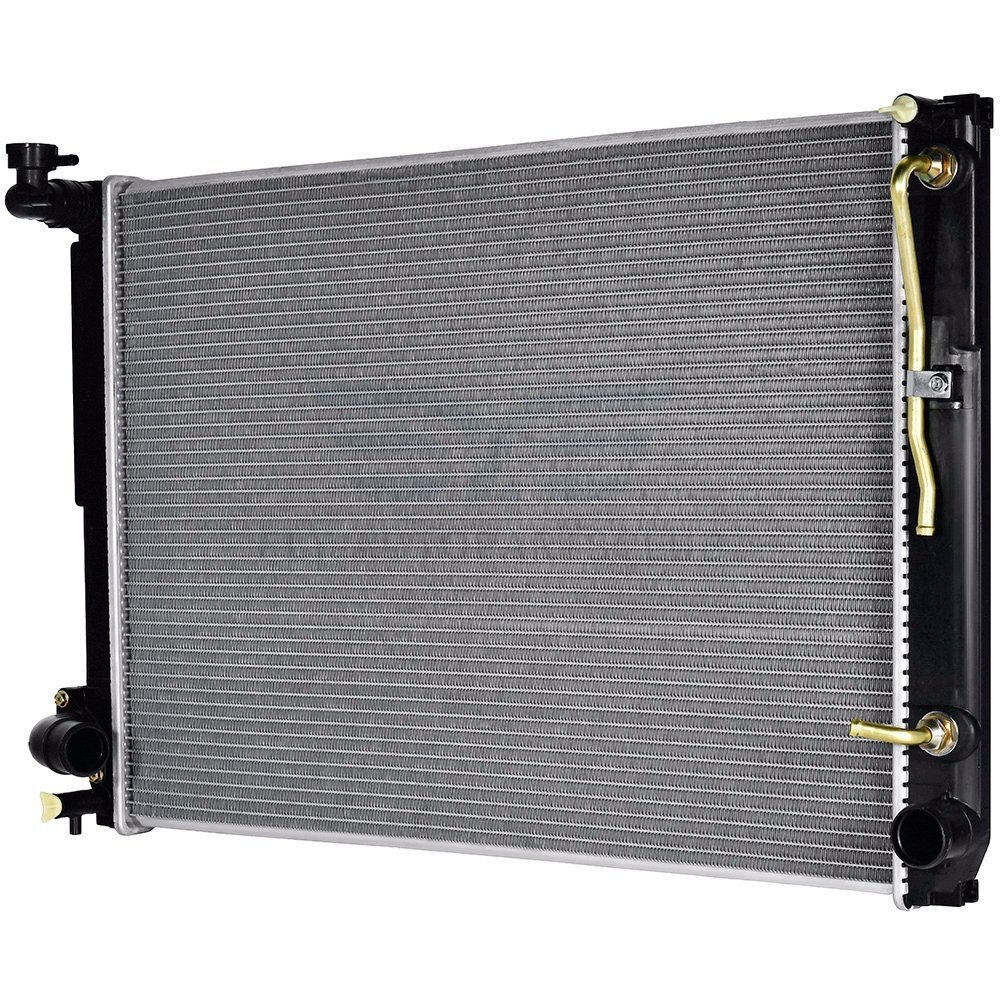

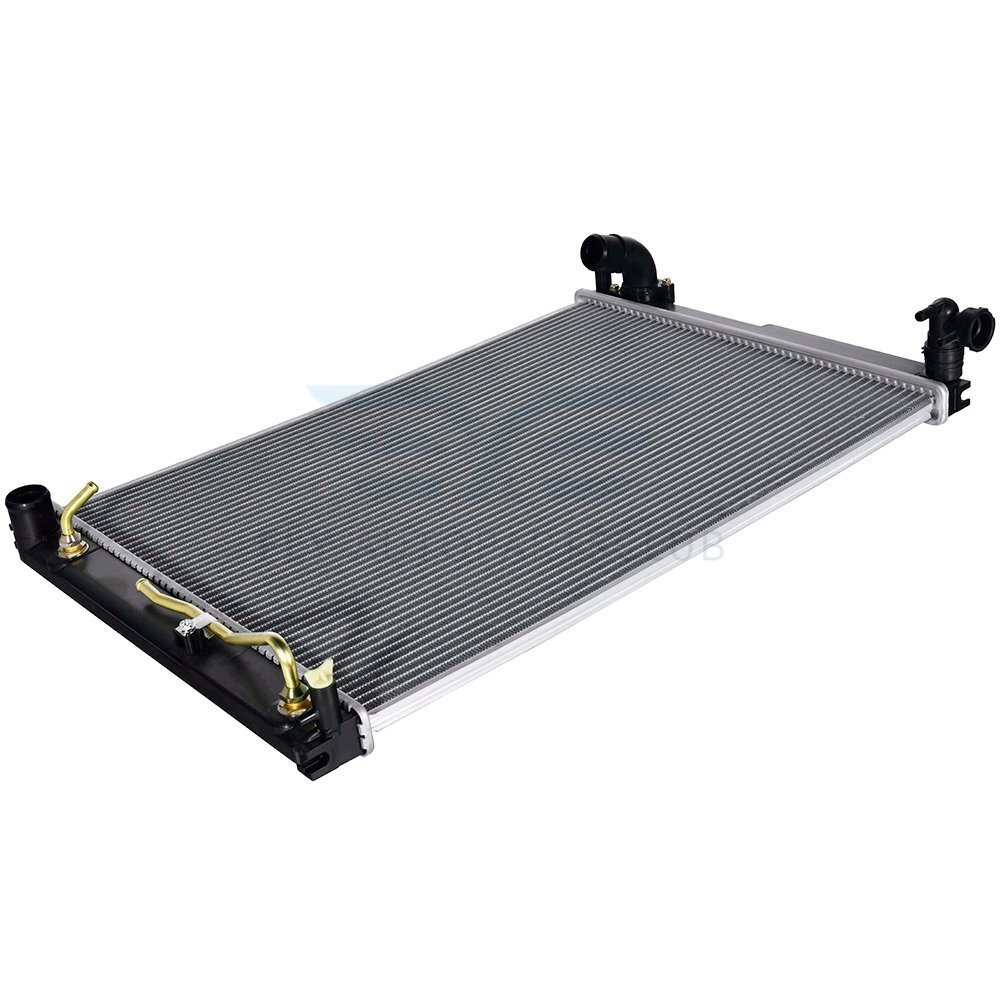

Fit For:

2007-2009 Lexus RX350 Base 3.5L

Please verify the item fits your vehicle or not by compatibility

What is a Radiator:

The radiators are special devices that can cool other parts of a craft, consuming a small amount of electric charge when operating.

They transfer the heat from the fluid inside to the air outside to maintain the temperature of your vehicle

Features:

• Low noise
• High efficient heat transfer, good temperature control
• Compact structure, light and economical
• Manufactured to high quality control standards
• Premium grade tubes, fins, headers, tanks, and other components
• Built with high density multi-lowered fins for maximum cooling efficiency

Common Faults:

• Lack of antifreeze/coolant
• There is gas in the cooling system, resulting in the coolant circulating abnormally
• The radiator fan does nont turm, resulting in highh temperature in the water tank.
• The pump is damaged or the transmission belt is slipping causing the pump to work poorly.
• Thermostat is damaged and unable to carry out a large cycle, resulting in a continuous increase in the radiator pressure.
• Too much scale in the water tank and water jacket causes poor heat dissipation ,resulting in highh temperature in the water tank.

Note:

• Tighten the rotary cover and leave your vehicle idling for 10-20 minutes after installing the product on your vehicle  and adding the coolant. When the coolant is completely cooling, open the cover and fill the product with coolant. Please make sure there is no gas in the product.
• Before you start up your vehicle, please make sure there is coolant in the radiator.
• Professional installation is highly recommended

Tips:

• Completely drain and flush the system using Cooling System Flush prior to installation. Flushing the system is critical to prevent system contamination and failure.
• Consider replacing the Radiator Hoses (and Hose Clamps), Thermostat and Radiator Cap as part of routine preventative maintenance. System contamination can cause these parts to degrade and fail over time, which can lead to severe engine damage from overheating.

How to clean radiator:

• Allow the engine to cool down
• Jack up the vehicle
• Drain the coolant
• Run the flush solution through the radiator
• Drain the flush solution
• Run water through the radiator
• Lower the vehicle
• Refill the radiator with antifreeze/coolant

Radiator Replacement:

Step 1: Raise and support the vehicle.
Step 2: Drain the coolant from the radiator
Step 3: Disconnect the radiator reservoir hose.
Step 4: Remove the upper radiator hose.
Step 5: Remove the lower radiator hose.
Step 6: Disconnect the cooling fan electrical connector.
Step 7: Remove the cooling fan mounting bolts.
Step 8: Remove the cooling fan
Step 9: Disconnect the transmission cooler lines
Step 10: Remove the radiator mounting bolts
Step 11: Remove the condenser mounting bolts.
Step 12: Remove the radiator.
Step 13: Mount the radiator.
Step 14: Install the condenser mounting bolts.
Step 15: Install the radiator mounting bolts.
Step 16: Connect the transmission cooler lines.
Step 17: Mount the fan.
Step 18: Install the cooling fan mounting bolts.
Step 19: Reinstall the connector.
Step 20: Install the lower radiator hose.
Step 21: Install the upper radiator hose.
Step 22: Connect the radiator reservoir hose.
Step 23: Fill the radiator with coolant.
Step 24: Bleed the air from the cooling system.
