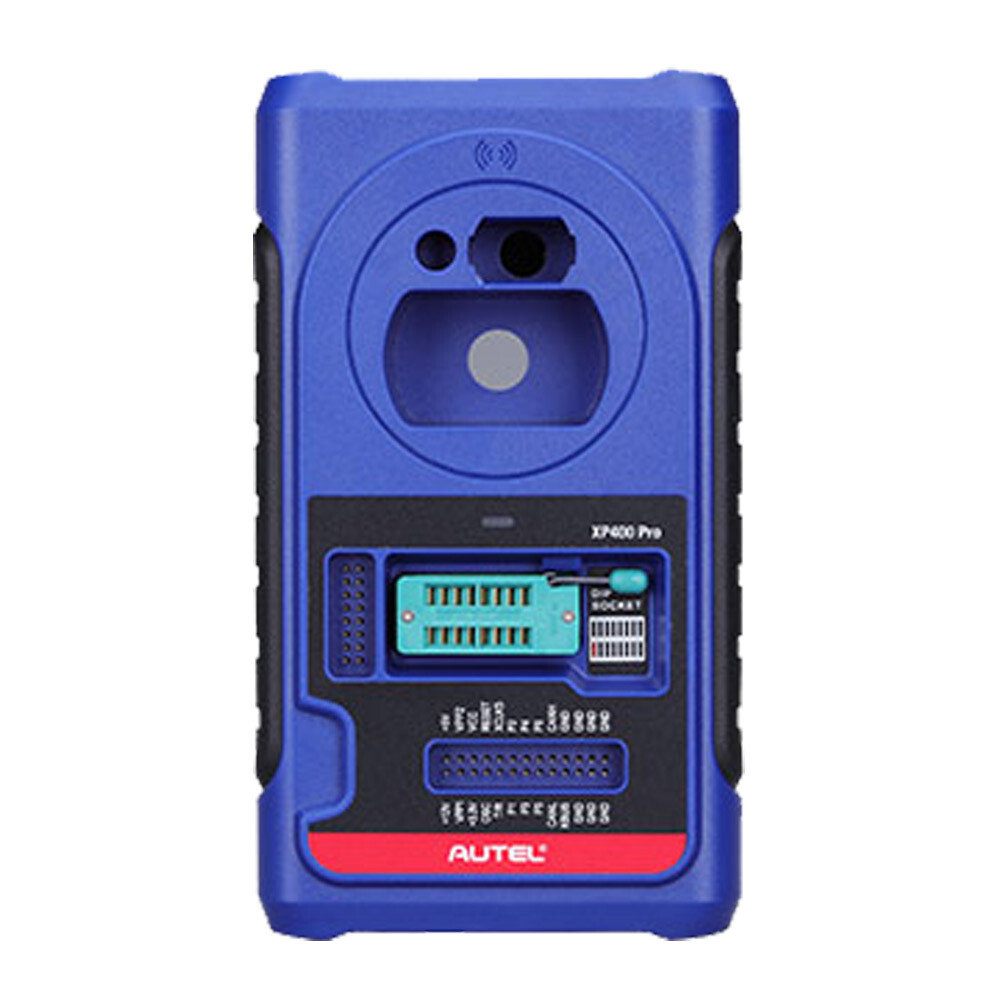

Autel XP400 PRO Key and Chip Programmer Work with Autel IM508/IM608/IM608PRO/IM100/IM600

Overviews:

Autel XP400Pro is a replacement for XP400. It adds more functionality for BM-W, Merc-edes-Be-nz, as well as EEPROM reading. With the new protocols, the end-user will be able to read over 2000 (chips, components, devices) types including EEPROM and MCU Read, additional Odometer Read/Write, and more. Also, added functions for EWS3, W209, NEC, and more. NOTE: Don't connect directly AUTEL XP400 Pro with your car or it will be damaged.

Autel XP400 Pro Highlights:

1. XP400 Pro is an Advanced All-in-One Key Programmer 2. One Year Free Update Online on Autel Official Website 3. Could Be Used with Autel IM508 and Autel IM608, Also IM100 and IM600 as well (Notice: XP400Pro is compatible with IM100 / IM600. The only thing the IM100 and IM600 will not have when used with XP400Pro is the 4 channel Labscope software and AutoAuth) 4. Supports Key Renewal on 11 Key Types with Additional Adapters - IMKPA, Key Programming Accessories Kit Please note that the product does NOT support Read/Write IC Card function. The ''IC Card Induction Area'' was also removed from XP400 Pro.

XP400 Pro Features:

1. Expanded EEPROM functions for more component access 2. 170+ types Odometer component reading functions 3. 180+ Immobilizer ECU component types 4. 40+ Engine ECU component types 5. 2000+ MCU component types 6. 440+ EEPROM component types 7. Compatible with IM508 and IM608 8. Includes 1-Year Warranty 9. Free Software Updates for Life of Tool

ADVANCED KEY PROGRAMMING VEHICLE COVERAGE when combined with XP400PRO:

Benz: - One-tap Key Programming via OBD - 3rd Generation IMMO CAN-Line/ K-Line Add Key, All Key Lost
BMW: - Smart IMMO Programming (support EWS3/ 4, CAS 1/ 2/ 3/ 4, FEM/ BDC) - Add Key/All Key Lost Volkswagen/
Audi: - One-tap Online Programming - Add Key/All Key Lost Via OBD for 2013 - 2020 Models
GM: - Read IMMO Password, Add Key/ All Key Lost up to 2020 Ford: - Add Key/All Key Lost (No PIN Needed) up to 2020
Mazda: - Add Key/All Key Lost (No PIN Needed) up to 2020 FCA - Read IMMO Password, Add Key/All Key Lost up to 2020
Renault: - Add Key/All Key Lost (No PIN Needed) up to 2020 LandRover/Jaguar: - Add Key/All Key Lost up to 2019 Volvo:
- Semi-smart Key Learning via OBD up to 2018 - Smart/Blade/Fobik Key Learning via Dump

Powerful IMMO Functions:

1. Auto Detect Make/ Model/ Year/ System
2. Read PIN (All Key Lost)
3. Key Learning
4. IMMO ECU Reset/Adaption
5. IMMO ECU Refresh/Coding
6. Remote Learning
7. AUDI Q5/ A4/A5 2015-2017 Key Learning
8. VW MQB Key Learning
9. BMW FEM/BDC Key Learning and Adaption 10. BMW CAS4 Key Learning and Adaption
11. Mercedes Key Learning
12. 2015-2018 Land Ro-ver & Jag-uar write key via dump
13. Volvo Smart Key Learning/ knob-style smart key

Comparison Table for XP400, XP400 Pro and Xhorse VVDI Prog:

XP400Pro Adds Support for Following Chips: EEPROM-->>AMD-->>AM29FXXX series chip EEPROM-->> FUJI-TSU-->> MB29FXXX series chip EEPROM-->> ST-->> M29FXXX series chip Engine control module-->> ST-->> M29FXXX series chip IMMO-->> BE-NZ-->> ESL_W209_W906(Moto-rola) read/write/erase function IMMO-->> BM-W-->>EWS3 module read/write function REMOTE_RENEW (renew key)-->> NEC-->> V51 and V5 chip read/write/erase

XP400 Pro Adds Support for Following IMKPA Accessories (Need to Buy IMKPA Accessories Separately)

APB113 PCF79XX adaptor board APB114 EWS3 adaptor board APB115 NEC adapter board APB118 NEC ELV adaptor board APB119 TB28FXXX adaptor board APB120 TMS370 adaptor board APB121 AM29FXXX adapter board APB122 AM29FXXX adaptor board1 APB123 AM29FXXX adaptor board2 APB126 M35080/D80 adaptor board APB127 MC68HC0(7)05BXX adaptor board APB128 MC68HC05X32 adaptor board

XP400 Pro Specifications:

Operating Temperature: -10℃ ~ 70℃ (14℉ ~ 158℉)
Storage Temperature: -20℃ ~ 85℃ (-4℉ ~ 185℉) Port Type: B-USB, DB26, DC12
Input Voltage: 5 VDC, 12VDC
Operating Current: < 500 mA Maximum Consumption: 2.5 W

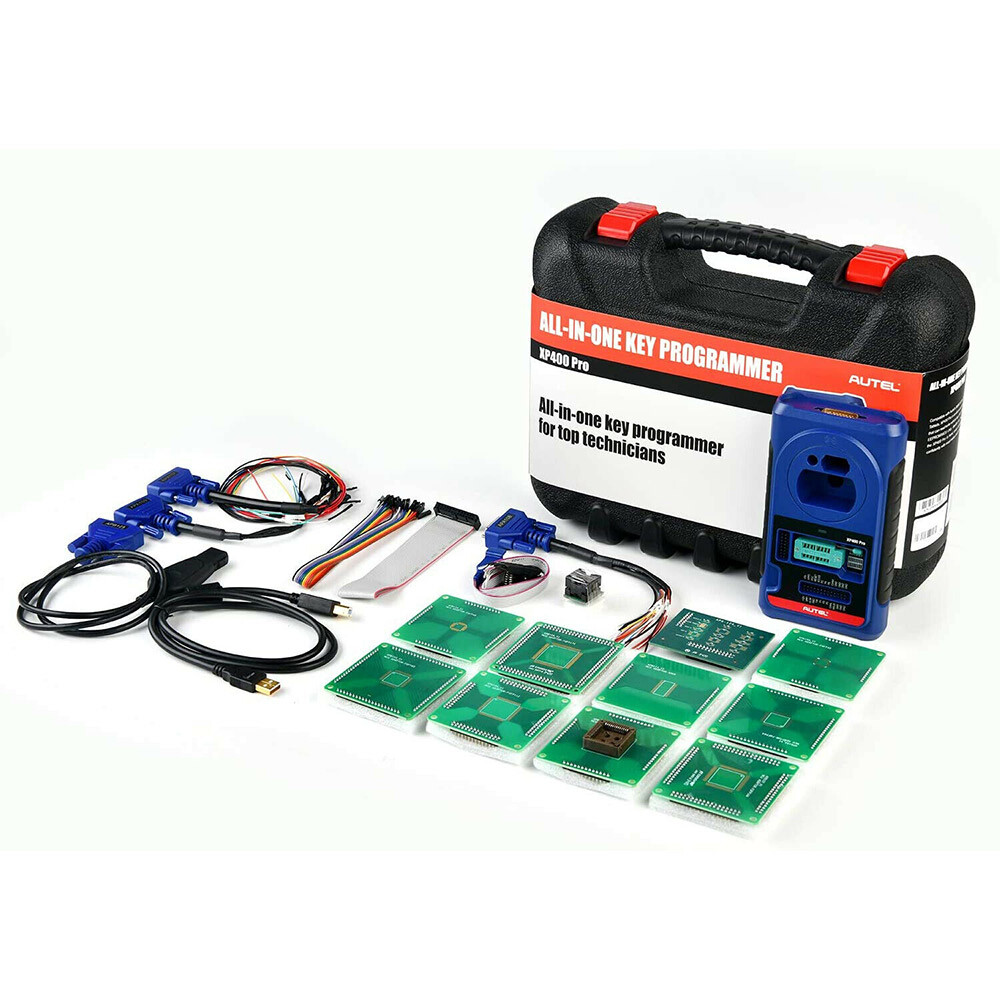

Autel XP400 Pro Package includes:

1pc x XP400 Pro Main Unite
1pc x APB129 – EEPROM Adapter
1pc x APA002 – EEPROM Socket
1pc x APB125 – Mercedes Infrared Collector 1pc x APB103 – MCU_PLCC52 Adapter
1pc x APB104 – MCU_FQFP64 Adapter
1pc x APB105 – MCU_FQFP80 Adapter
1pc x APB106 – MCU_FQFP112 Adapter
1pc x APB107 – MCU_FQFP144 Adapter
1pc x APB108 – MCU_FQFP176 Adapter
1pc x APB109 – MCU_FQFP32 Adapter
1pc x APB110 – MCU_FQFP48 Adapter
1pc x APB111 – MCU_SO28 Adapter
1pc x APA101 – Spare Signal Cable
1pc x APC101 – USB Cable (Standard USB –Type B USB)
1pc x APA103 – EEPROM Clamp
1pc x APA107 – ECU Cable
1pc x APA108 – MCU Cable
1pc x APA109 – MC9S12 Cable
1pc x Dupont Line
