Three Key Modes function of our this cable:
Shutdown mode:
Every time the car is started, the start-stop will be automatically turned off. If it is manually turned on in the middle, it will still be turned off after the car is turned off and locked.
Memory mode:
Manually switch the start-stop switch once, and the start-stop state will be saved and memorized, and will not be affected by power failure.
Service mode (original factory mode):
Start-stop treasure does not work by default, the effect is the same as the original car.
Three modes transferred settting steps:
- Press the Start/Stop button so it is illuminated. Wait more than 3 seconds.
- Press Start/Stop button 3 times in a row (button should not be illuminated)
- Wait for light on button to become illuminated.
- Press button x2 for memory mode; Or Press button x3 for shutdown mode; Or Press button x4 for Service Mode
Installation:
1. PLease turn off the power of the car before installation.

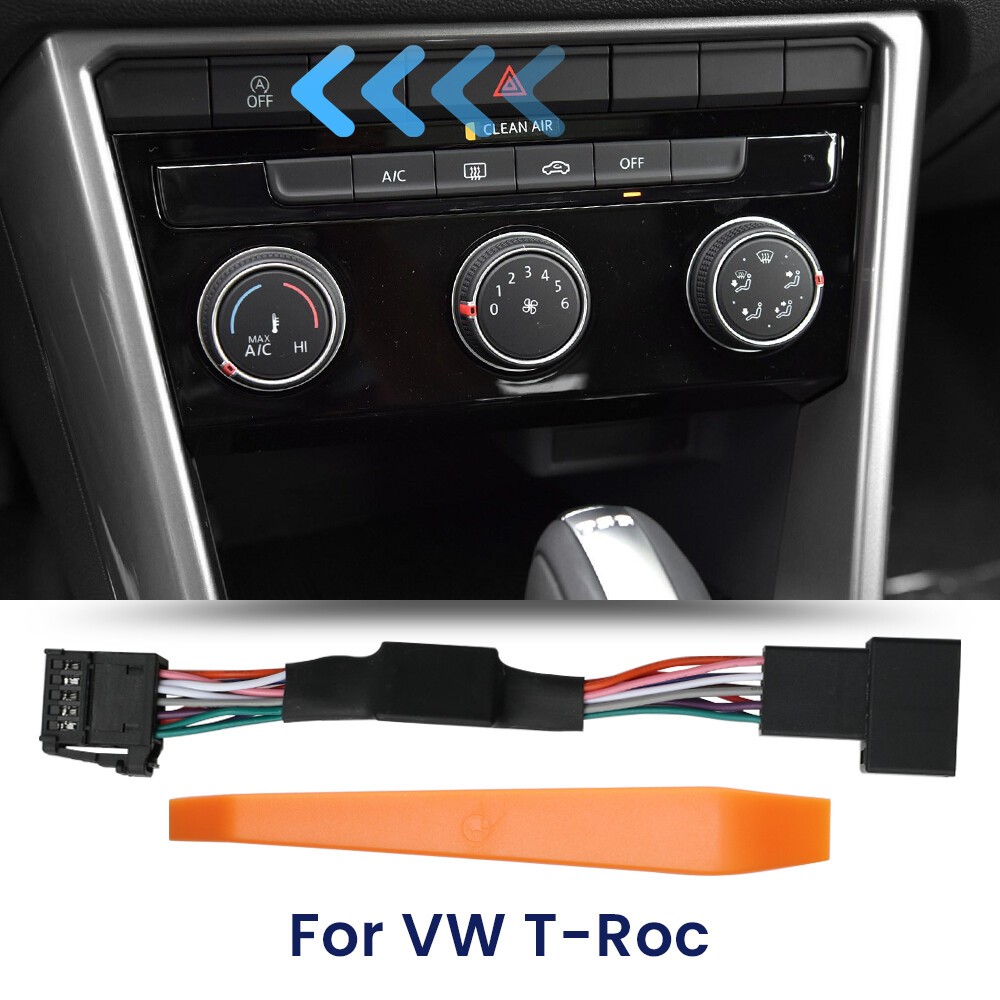

2. Remove the center console panel by removal tool, and connect the cable between A-off switch interface and original cable plugs. Then the original car start and stop switch button can be transferred.
( NOTE: The indicator light on means OFF, and the indicator light off means ON.)
Fitment:

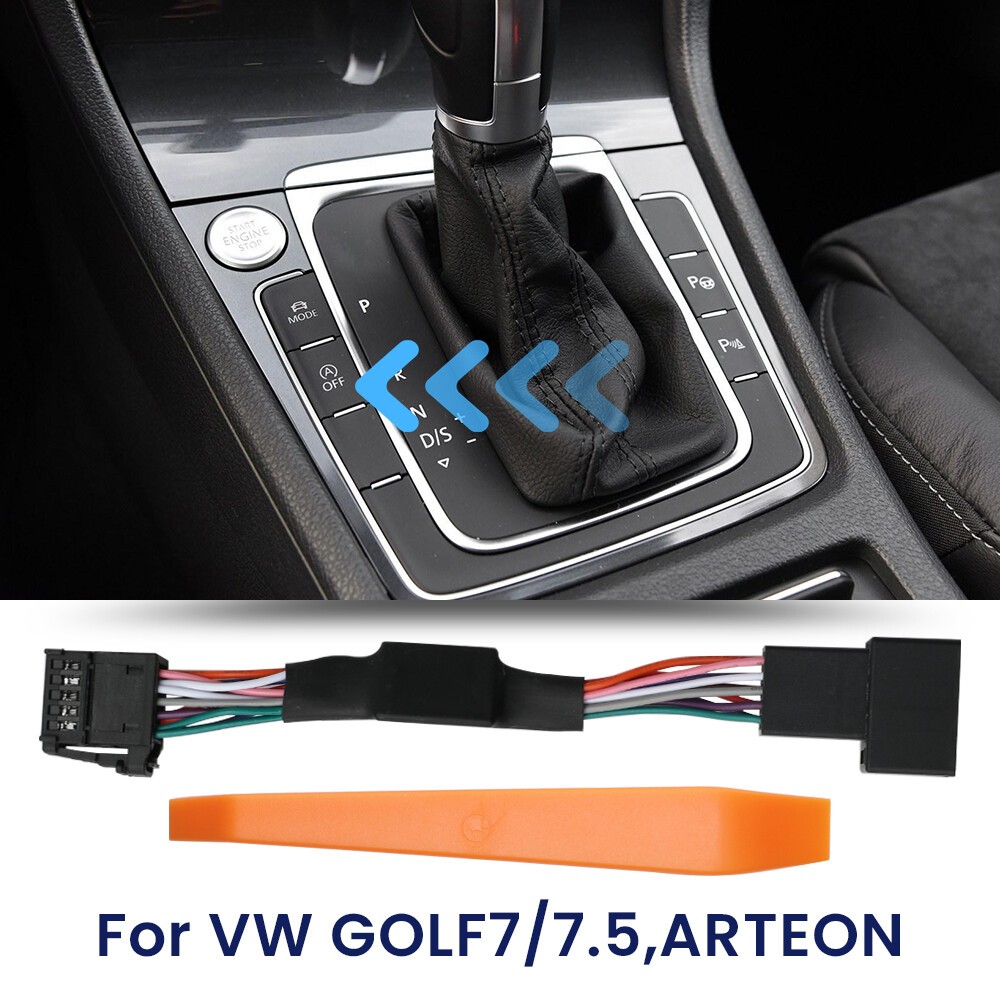

- For VW Golf 7 / 7.5
- For VW Passat B8 B8.5
- For VW Touran...
(Car Types is for reference only, Pls provide us your car center console with A-OFF switch photos to our customer service, we'd happy to help you check the compatible before payment to avoid the purchasing mistake, thank you very much!)
