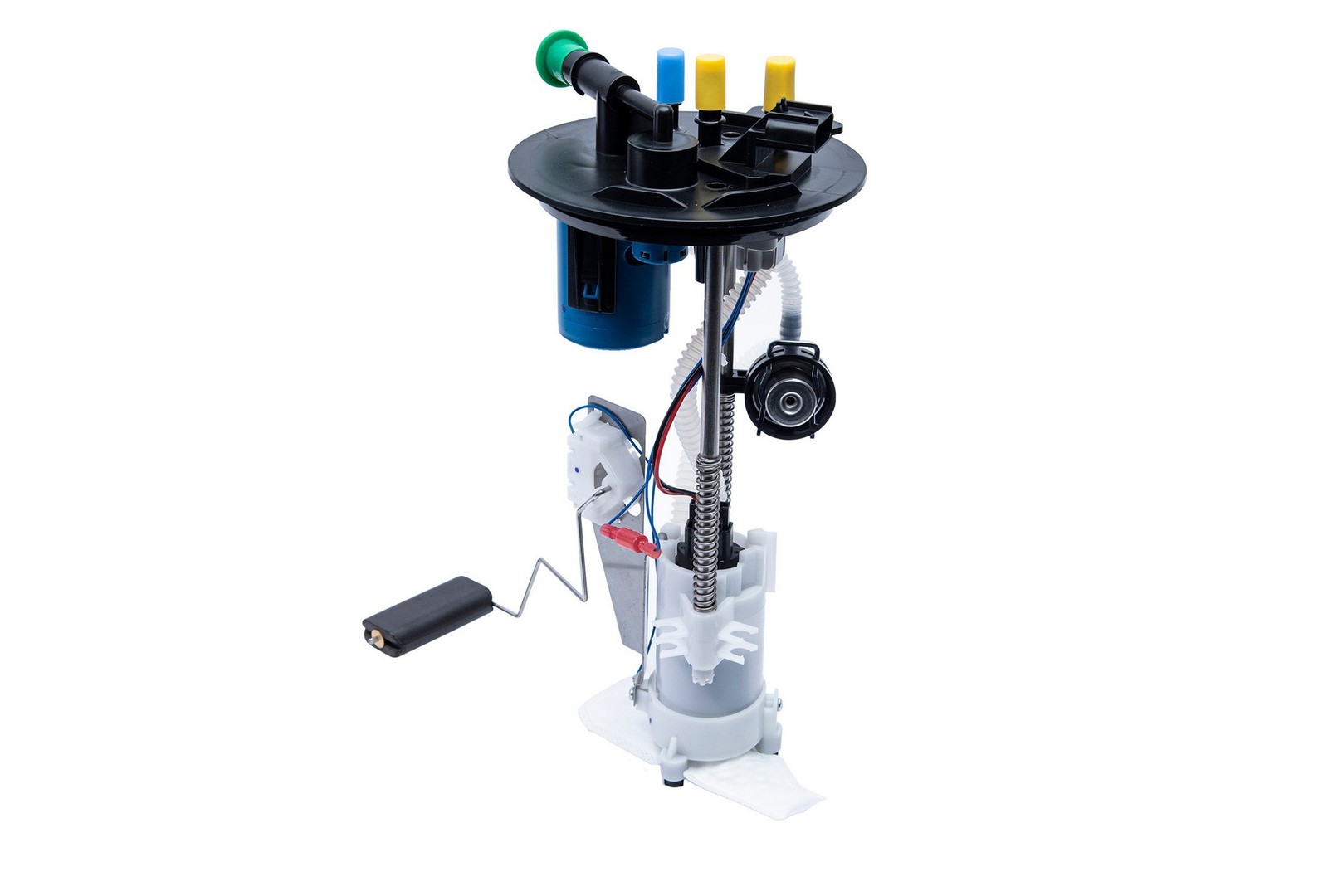

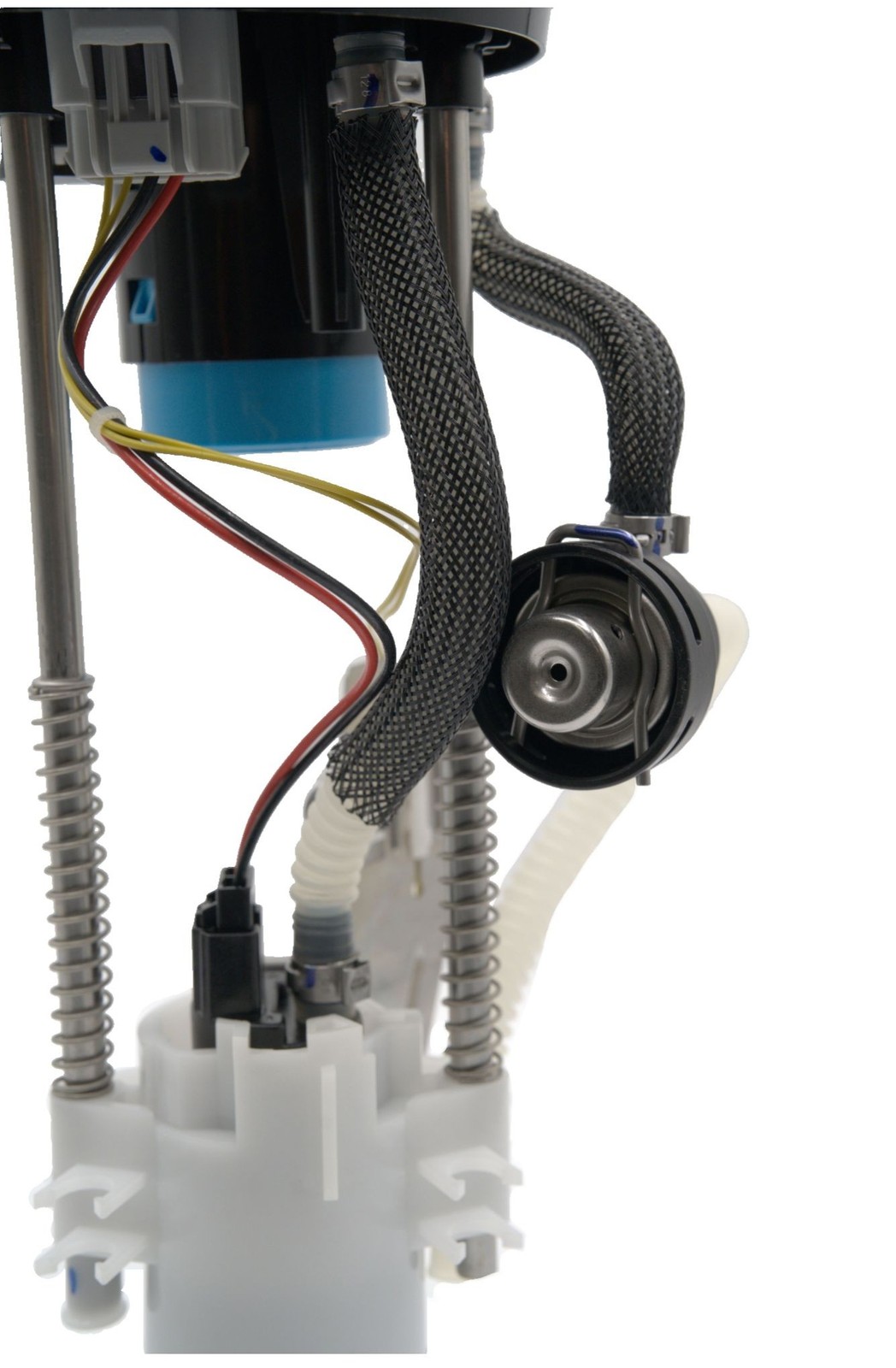

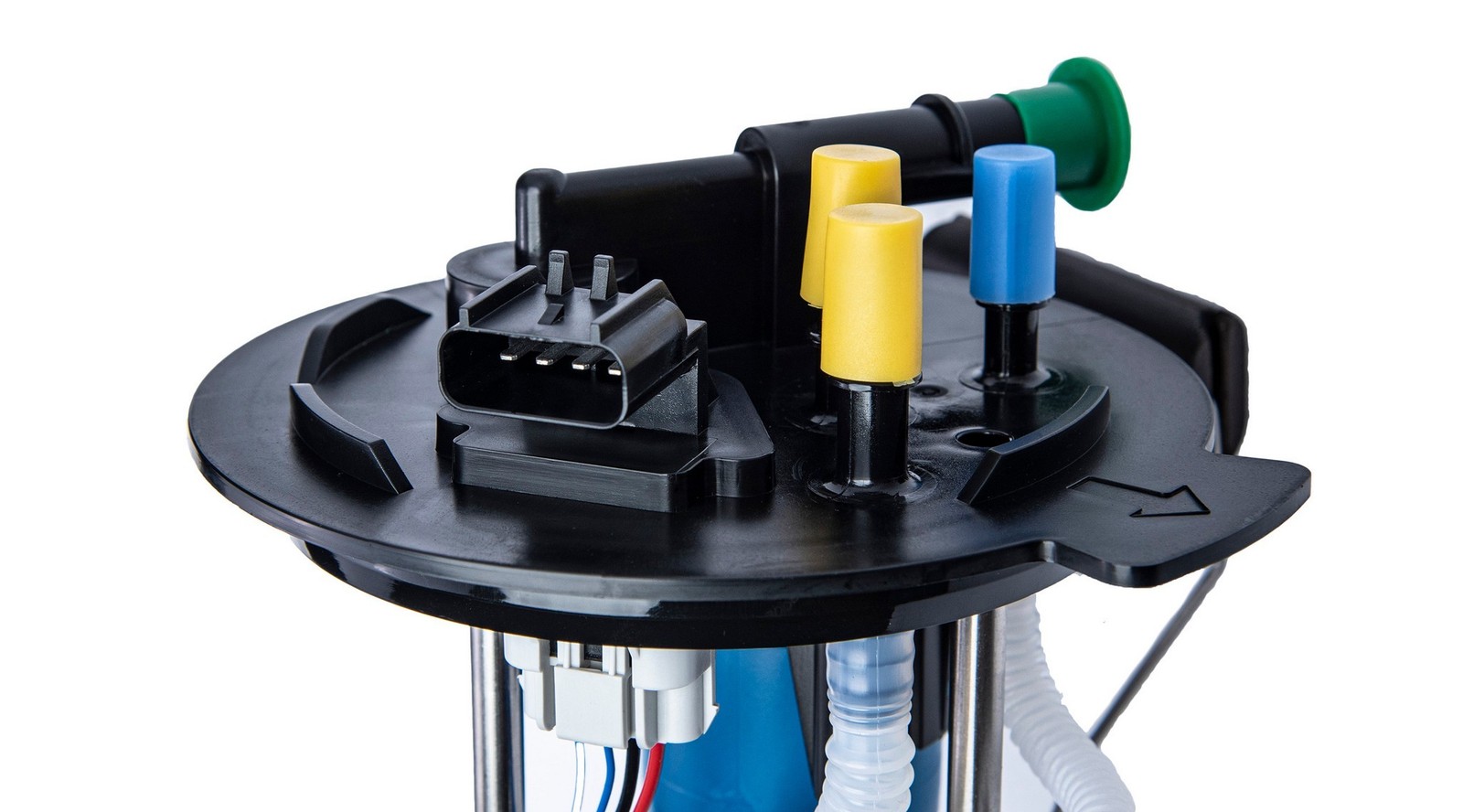

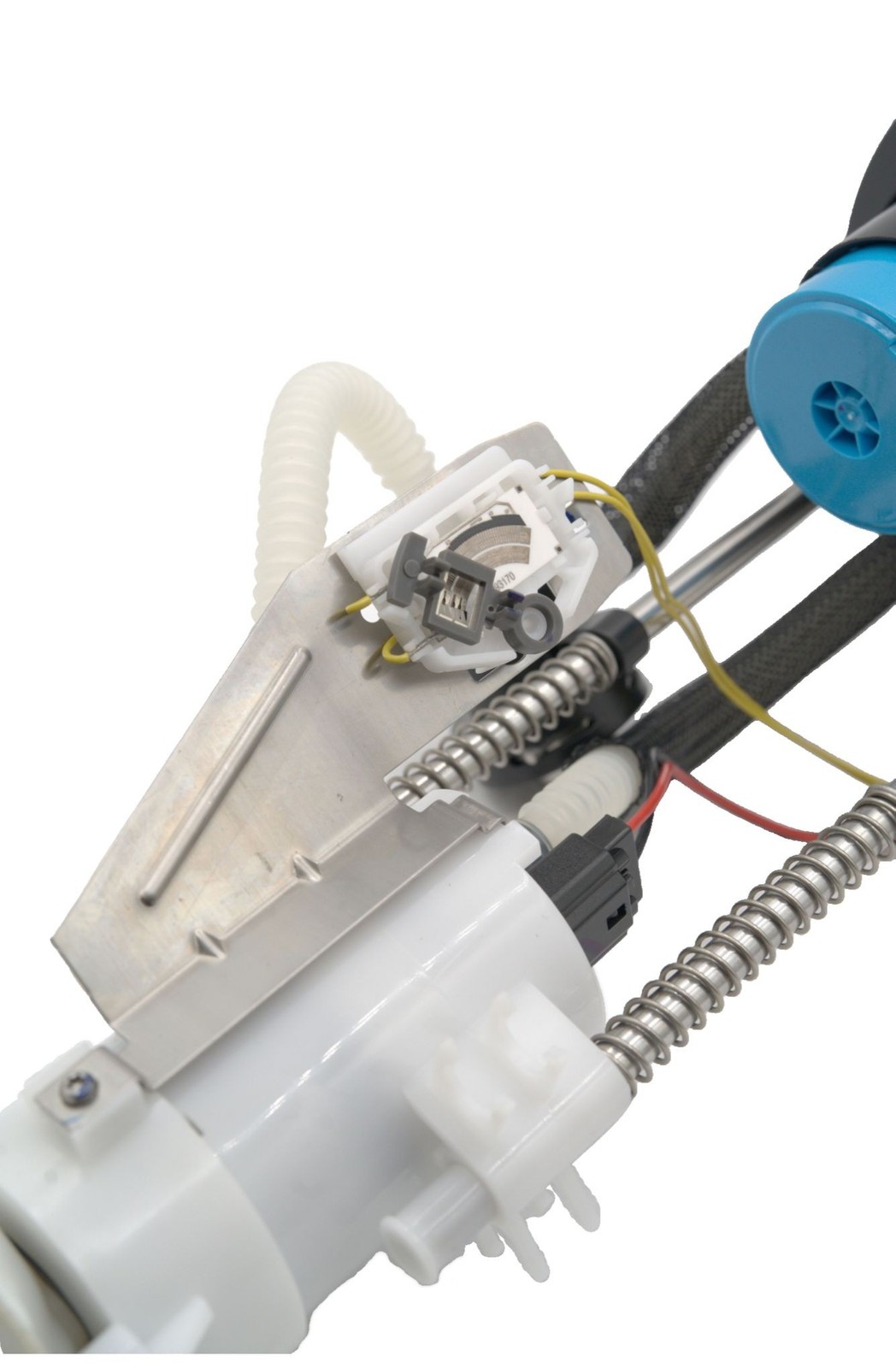

Autobest Fuel Pump Module Assembly for Ranger, B2300, B3000 F4819A

Fitment Chart:

Years	Make	Model	Body Type	Liters	Cylinders	Wheel Base	Notes
2007-2011	Ford	Ranger		2.3L	L4	111.6"	Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Strainer and Tank Seal,111.6
2007-2011	Ford	Ranger		2.3L	L4	111.5"	Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Strainer and Tank Seal,111.5
2007-2011	Ford	Ranger		4.0L	V6	111.5"	Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Strainer and Tank Seal,111.5
2007-2011	Ford	Ranger		4.0L	V6	111.6"	Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Strainer and Tank Seal,111.6
2009-2010	Ford	Ranger		4.0L	V6		Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Strainer and Tank Seal,111.6
2009-2010	Ford	Ranger		2.3L	L4		Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Strainer and Tank Seal,111.6
2007-2009	Mazda	B2300		2.3L	L4		Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Strainer and Tank Seal
2007-2008	Ford	Ranger		3.0L	V6	111.6"	Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Strainer and Tank Seal,111.6
2007-2008	Ford	Ranger		3.0L	V6	111.5"	Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Strainer and Tank Seal,111.5
2006-2007	Mazda	B3000	Standard Cab Pickup	3.0L	V6		Regular Cab,Standard Cab Pickup
2006-2007	Mazda	B3000	Standard Cab Pickup	3.0L	V6		Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Strainer and Tank Seal,Standard Cab Pickup; From 5/1/06
2006	Mazda	B2300		2.3L	L4		FROM 5/1/2006; Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Strainer and Tank Seal



Specifications:

Part Category: Fuel Pump Module Assembly
Brand: Autobest
Manufacturer Part Number: F4819A
Product Type: Factory Replacement
Type: Fuel Pump Module Assembly
Average Current Draw(A): 7
Average Flow Rating(GPH): 39.7
Connector Gender: Female
Connector Quantity: 1
Connector Shape: Rectangle
Country of Orign: China
Fuel Filter Included: No
Fuel Sending Unit Included: Yes
Fuel Tank Pressure Sensor Included: No
Gasket or Seal Included: Yes
Gasket Or Seal Material: Fkm
Grade Type: Regular
Housing Material: Pom
In Tank or External: In tank
Inlet Size: 0.433
Inlet Type: Strainer
Installation Warnings: No
Internal Or External Strainer: Internal
Life Cycle Status Code: Available to order
Maximum Pump Pressure (PSI): 68
Minimum Pump Pressure (PSI): 62
Mounting Hardware Included: No
Negative Ground: No
Outlet Quantity: 1
Outlet Size: 3/8
Outlet Type: Quick connect
Package Contents: Pump & kit
Package Height (in): 7.28
Package Length (in): 14.17
Package Width (in): 11.02
Interchange Part Number: 1FBA-13-350 AL5Z-9H307A E8808M FG0883 P76478M PFS-558 SP2386M
Replaces Part Numbers: USEP8808M
All Interchanges: 1FBA-13-350,AL5Z-9H307A,E8808M,FG0883,P76478M,PFS-558,SP2386M,USEP8808M
