【Precise Ignition Timing Adjustment】This automotive timing light accurately detect the ignition timing scale on the engine flywheel or pulley, helping you quickly adjust the ignition timing. The ignition timing light can also detect the vehicle's knock control system and vacuum advance angle control systems, adjusting the advance angle according to changes in speed. Tby reducing the engine's fuel consumption, noise, wear and resistance, restoring the engine's optimal performance.

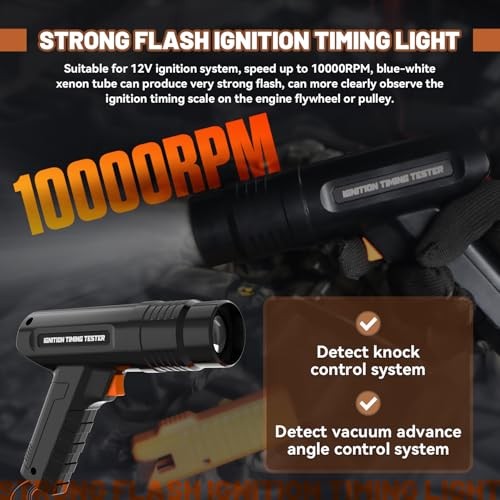

【Ergonomic Comfort handle & Strong Flash】Portable handle design, it offers a comfortable grip. The buttons are conveniently placed for easy start - stop operations, ensuring a easy and smooth operating process. The ignition timing light Equipped with a high brightness xenon lamp, it has a wide irradiation range and can produce a strong flash. Whether in sunlight or a repair workshop with complex lighting, it can clearly display the ignition timing scale on the engine. Its speed ranges from 200 - 10000 RPM.
【Widely applicable】This timing light is suitable for vehicles like automobiles, motorcycles, boats, trucks, SUVs, etc., which are equipped with two-stroke and four-stroke gasoline engines, and it's applicable to 12V ignition systems. It's highly suitable for professional maintenance personnel and DIY enthusiasts.

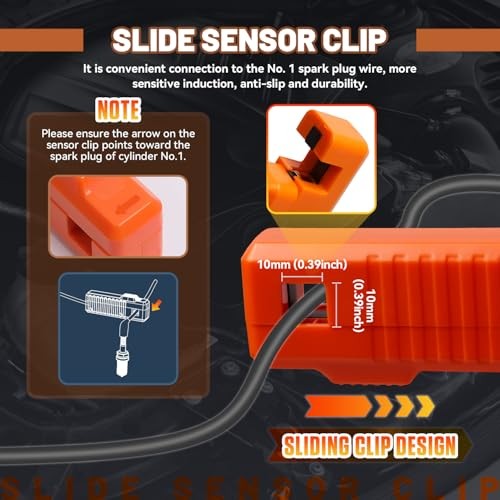

【Durable Housing & Sensor Clip & Extra-long Cables】The housing of the 12V ignition timing light craftsman is made of excellent ABS material, featuring high strength and impact resistance. It remains in top condition even after long-term and frequent use. The sensor clamp features a non - slip and lightweight design, enabling it to be easily clipped onto the high - voltage wire of cylinder No. 1. The cable lengths of both the sensor clips and power clips is 59 inches respectively, enabling more flexible operation and easily handling various complex environments.
【Multi-protection for Safe Operation】The engine timing light has reverse polarity protection and overload protection. In case of reversed power supply polarity or excessive current, the circuit will be automatically cut off and the light will stop working. This prevents battery and the light itself from being damaged due to misoperation or overload, thus extending the service life.
【Easy Operation】It only takes a few simple steps to complete the operation. (1) Start the engine and preheat it to the normal operating temperature. (2) Connect the red and black wires of the timing light to the positive and negative poles of the battery respectively, and connect the sensor clip to the high-voltage wire of the Cylinder No.1, and ensure the arrow on the sensor clip points to the spark plug of cylinder No.1. (3) The engine maintains stable idle operation, aim the timing light at the specified timing mark, and judge the ignition timing according to the position of the pointer. (4) If the ignition timing is incorrect, turn the distributor to make adjustments.
【NOTE】We're to help you, If t is a problem with the timing light, please don't hesitate to tell us and we will replace it for you!! When using the timing light, please make sure the arrow on the orange sensor clip points toward the spark plug of Cylinder No.1 and the sensor clip needs to be close to the spark plug end.
【3 Years 】We provide 3-year after-sales service and 7 x 24 hour customer service to ensure your shopping experience. If you encounter any problems during use, please let us know. We will help you solve the problem.
