BC Racing BR Series Coilovers for 2010-2014 Cadillac CTS Wagon RWD
SKU: ZN-01-BR
BC Racing BR Series Coilovers for the 2010-2014 Cadillac CTS Wagon are BC Racing's entry-level coilover and the most popular kit in their entire lineup — they offer the most accessible entry into adjustable coilover suspension without sacrificing performance, comfort, build quality, or handling. Every kit is extensively tested on the CTS Wagon chassis and refined until it balances ride quality with performance — the reason CTS Wagon coilovers from BC Racing are the best-selling adjustable kits in their segment worldwide.
Every BR Series kit is built around a mono-tube damper with simultaneous compression and rebound adjustment at every corner — a wide damping range without the complexity of a race-only setup. Ride height is fully adjustable independent of spring preload, so you set the stance and the ride separately. The off-the-shelf setup from BC Racing is deliberately balanced — spring rates and valving chosen so the kit feels comfortable day-to-day without giving up performance when you push it. Drivers who want a different recipe can spec Swift Springs, custom spring rates, or fully custom valving at checkout; BC will tune the dampers to match, which is a depth of customization most brands only offer on their top-tier kits.
BC Racing has been manufacturing adjustable coilovers since 2004 and is one of the most popular coilover brands in the automotive tuning industry for a reason: competitive pricing, deep customization, proven reliability, and a fully rebuildable damper design that lasts years instead of seasons. These CTS Wagon coilovers arrive tuned for the CTS Wagon chassis and ready to bolt in — no break-in period, no guessing at setup. Every kit ships with a 2-year manufacturer warranty, lifetime access to BC service parts (pistons, seals, shafts — no unit replacement required when it's time for a rebuild), and in-house tech support from both BC Racing and the Springrates team.
Features

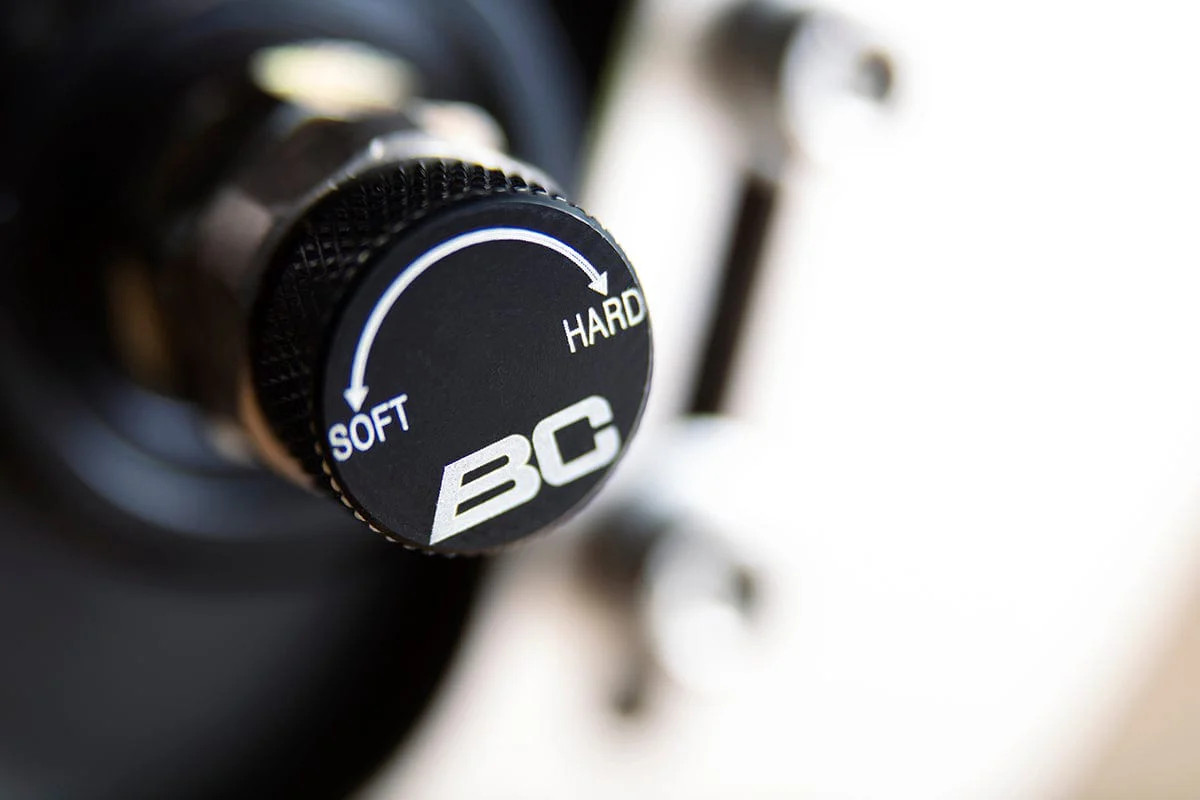

- 30-level simultaneous compression/rebound damping adjuster
- Mono-tube damper with linear piston and hardened chrome shaft
- Ride height adjustable independent of spring preload
- Upper mount hardware varies by chassis — camber plates, pillowball, or reused OEM mounts. See the Specifications table for what's included on your kit.
- Swift Spring and custom spring rate upgrades available at checkout
- Custom damper valving paired with custom spring rates on request
- Fully rebuildable — replacement parts available from BC for the life of the shock
- 2-year manufacturer warranty against defects
Specifications
| Part Number |
ZN-01-BR |
| Part Name |
BR Series Coilovers |
| Vehicle |
2010-2014 Cadillac CTS Wagon |
| Drivetrain |
RWD |
| Damping Adjustment |
1-Way (30 levels) |
| Ride-Height Adjustable |
Yes |
| Spring Rate - Front |
210 kg/mm |
| Spring Rate - Rear |
220 kg/mm |
| Spring Size - Front |
62-97-210K |
| Spring Size - Rear |
89-62-220K |
| Camber Plates - Front |
Not Applicable |
| Camber Plates - Rear |
Not Applicable |
| Suspension Design - Front |
True Coilover |
| Suspension Design - Rear |
Divorced |
| Notes |
GM Sigma II |
Vehicle Fitment
- 2010 Cadillac CTS Wagon RWD
- 2011 Cadillac CTS Wagon RWD
- 2012 Cadillac CTS Wagon RWD
- 2013 Cadillac CTS Wagon RWD
- 2014 Cadillac CTS Wagon RWD
Note: Factory ride height cannot be achieved with this product. This product is designed to lower the vehicle. Swift Springs, custom spring rates, and any other customization is not available through this eBay listing.
- All coilover kits are 2WD unless specified AWD
- Spring specs shown on listing are for Standard Drop unless otherwise stated for Extreme Low.
- Notes regarding electronic damping (EDC, DDS, etc.) pertain to physical fitment only. BC Racing coilovers DO NOT interface w/ OEM electronic damping control systems.
- All warranty claims must be submitted to BC Racing North America.
- Images may be generic and not of the actual SKU.
