Item Specifications
🏷️ Brand: Blackmagic Design
🔢 Part Number: BMDPCB214A / SIN MLF1 V-0
📅 Copyright Date: 2012
🔌 Connectors: Two 30-pin ribbon cable interfaces (J1, J13) and one 40-pin main interface (J2).
Detailed Description
Design & Features

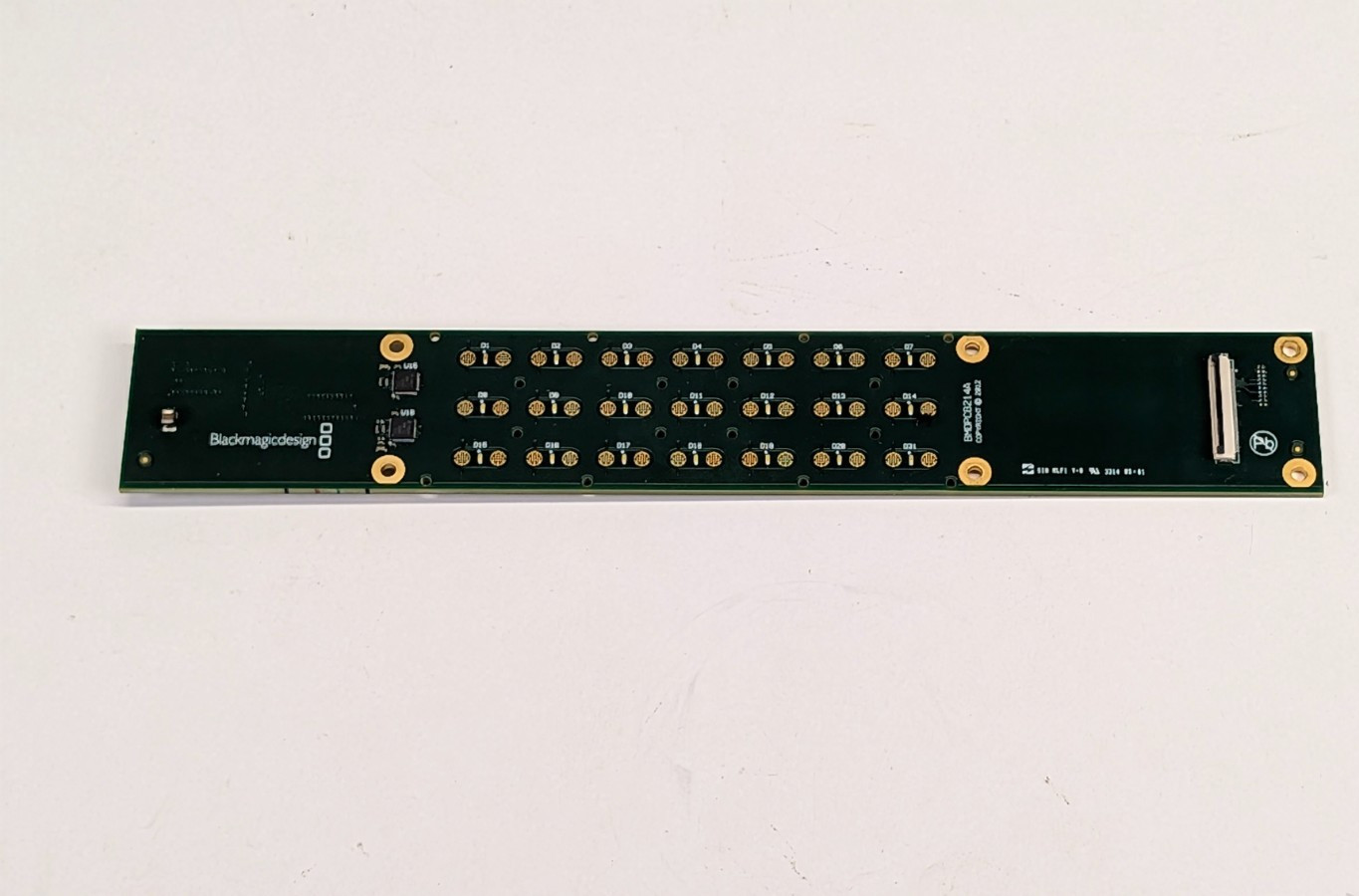

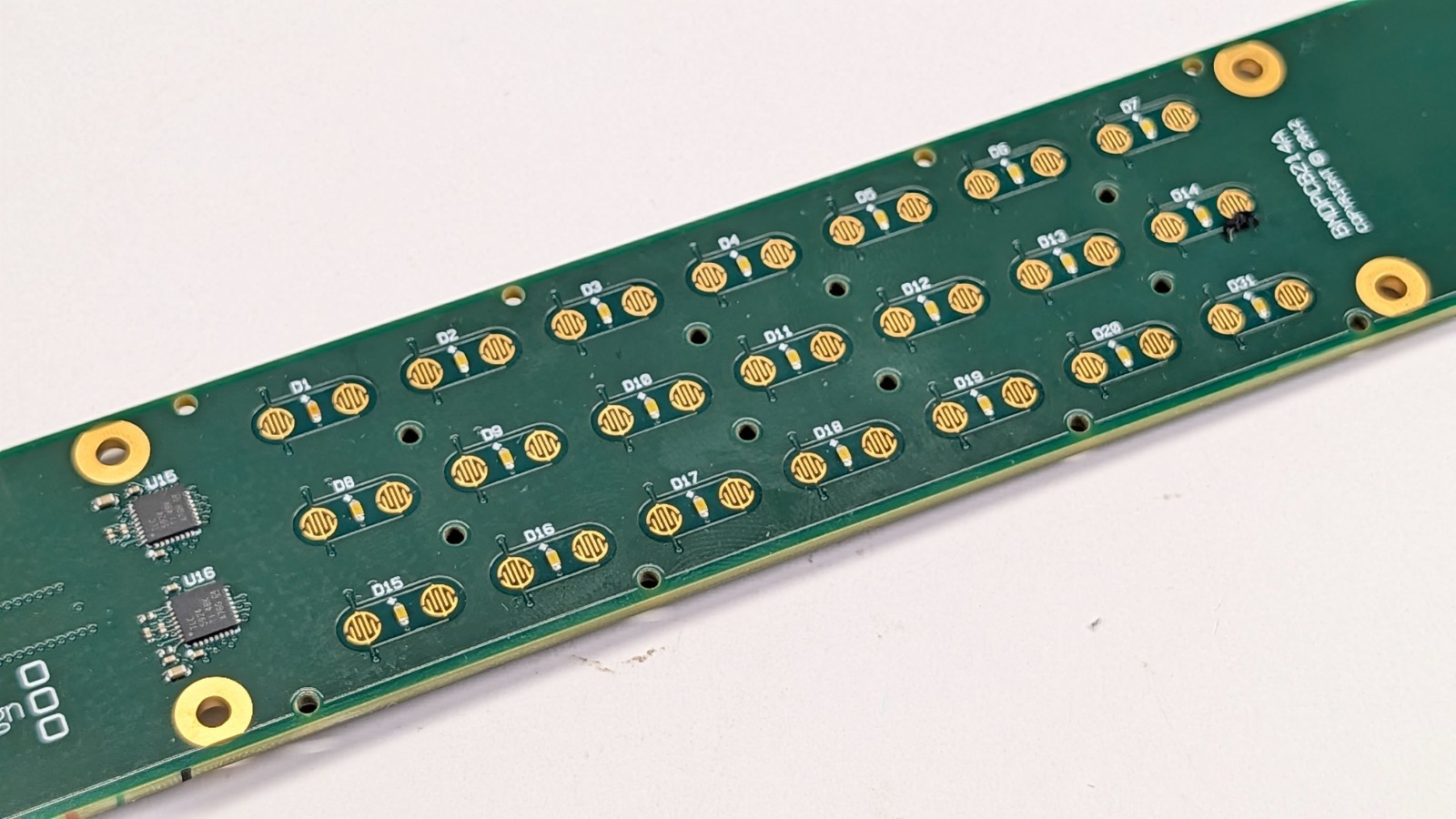

This internal PCB is the button logic and LED illumination board for the Blackmagic ATEM Studio 4K front panel. It features a grid of gold-plated tactile contact pads (D1 through D32) designed for use with conductive rubber membrane buttons.
Construction & Tech Specs
The board utilizes Texas Instruments TLC5924 16-channel LED drivers (U15, U16) to manage the tally and button backlighting. It is a high-quality, multi-layer green solder mask PCB with gold-plated mounting holes for grounding and structural integrity.
Utility & Compatibility
This is a direct replacement part for the ATEM Studio 4K series switchers. It is ideal for repairing units with unresponsive buttons, dead LEDs, or liquid damage to the front control interface.
