DESCRIPTION

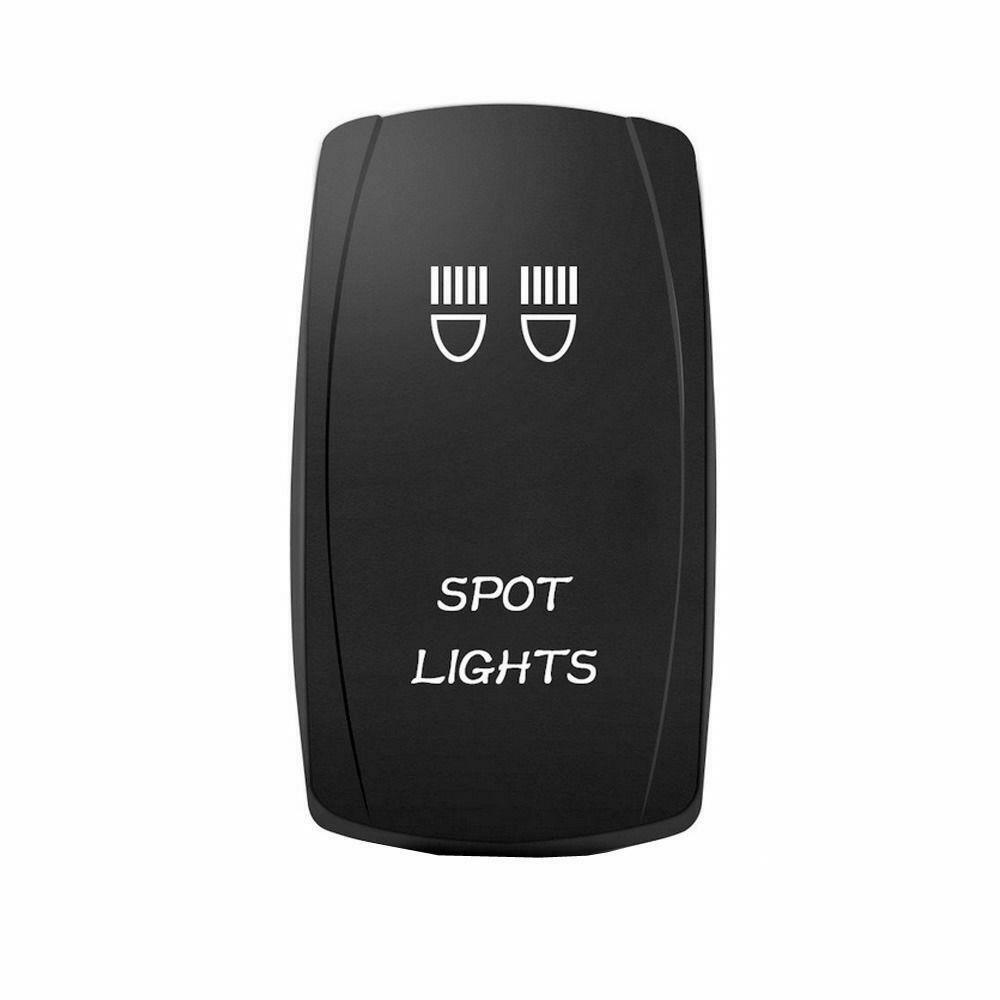

Blue LED Laser Rocker Switch Spot Lights Fog Driving Light ON/OFF 5 Pins 12V 20A
20 Amp 12 Volt ON-OFF Rocker Switch Laser Etched With Two Blue LED.
★ This is the standard size of most switch holes in modern vehicles. All symbols are laser etched directly onto the switch face to ensure long image life.
[Application]
Standard 5 Pins switch, it is mainly used for controlling the LED light fixtures of Car, SUV, ATV, UTV, Boat and Yacht, such as led light bar, headlights, tail lamps, work lights, fog lights, auxiliary lights and so on.
[High Quality Materials]
Made of strengthened plastic and well-conductive pins, it comes with little jumper connectors and single connectors all nicely made with ends on them and a rubber protector on the female ends.
[Cool Illuminated Light]
Built in two premium LEDs emits cozy beam, penetrating to surface cover that illuminates the patterns, no longer fumble for the switch but clearly see it at the dark.
[Design Style]
Black hard surface rocker, SPST on-off switch,laser etched backlit with two LED lights,all symbols are laser etched directly onto the switch.
Lower LED is independent and can be wired to separate dash light circuit.
Item Specifics:
Model Name: SPOT LIGHTS Switch
Material Type: Black hard surface rocker
Terminals: 5 Pins
LED Color: Blue
Rated Volt: 20Amp 12V / DC，10Amp 24V / DC
Surface size: 2" (50mm) x 1"(25mm)
Standard size mounting hole: 1.41" (36mm) x .86" (22mm)
Waterproof rating: IP65
Operating Temperature: -25 ℃ ~ 80 ℃
Electrical Life: Over 10000 make and break cycles
Package Include:
1 x Blue LED Switch
3 x 15cm Cable
