Features:
* Built and tested to strict quality control standards.
* Stable performance and high reliability.
* Dual-frequency, high-precision positioning.
* Supports GPS/GLONASS/Beidou multi-satellite systems. Equipped with a low-noise amp (For LNA), it achieves ± for 2-meter positioning accuracy and is compatible with For Garmin GPSMAP 8000/8400/8600 series marine navigation systems.
Specifications:

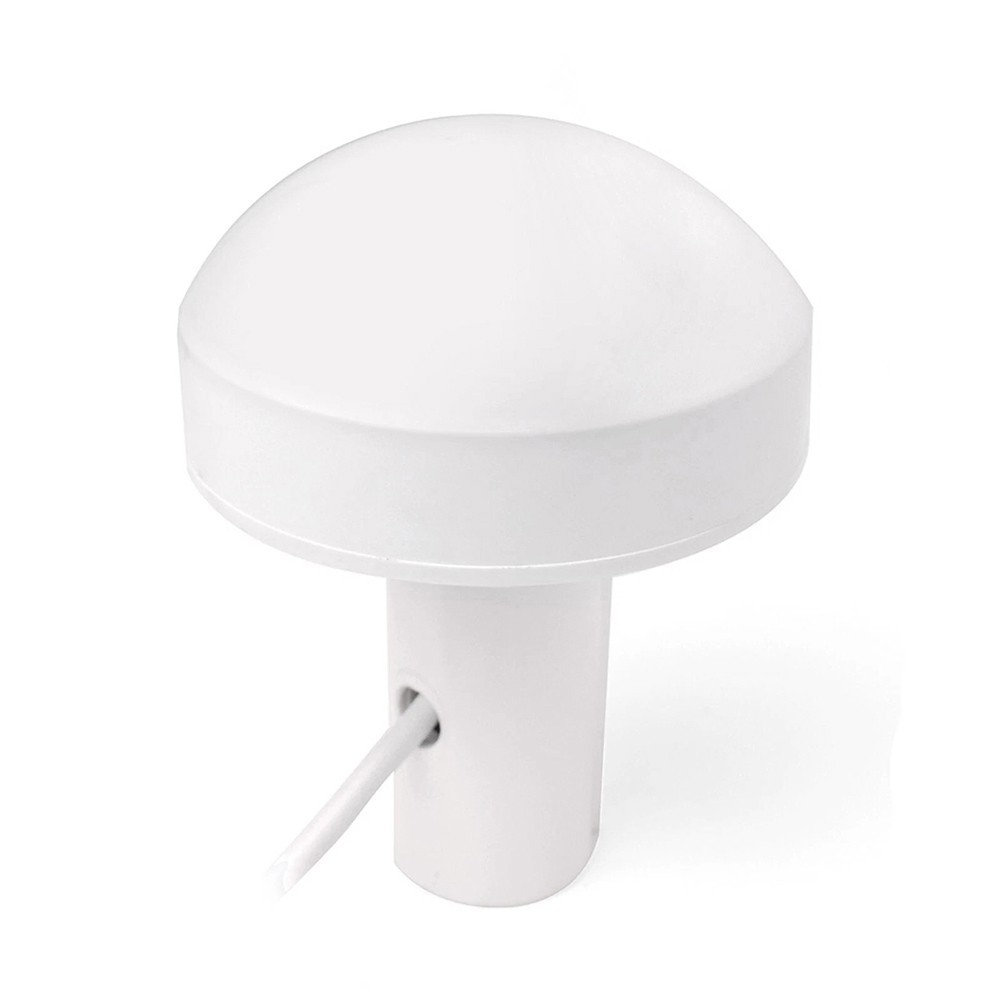

Part Name: GPS Navigation External
Frequency Range: 1575 ± 5 MHz
Voltage: 3V-5V
Gain: >26 dB
Gain: 3.5 dBic
For LNA Gain: 28 dB (typical)
Noise Figure: 1.5 dB (typical)
Operating Temperature (°C): -45°C to +85°C
Storage Temperature (°C): -50°C to +90°C

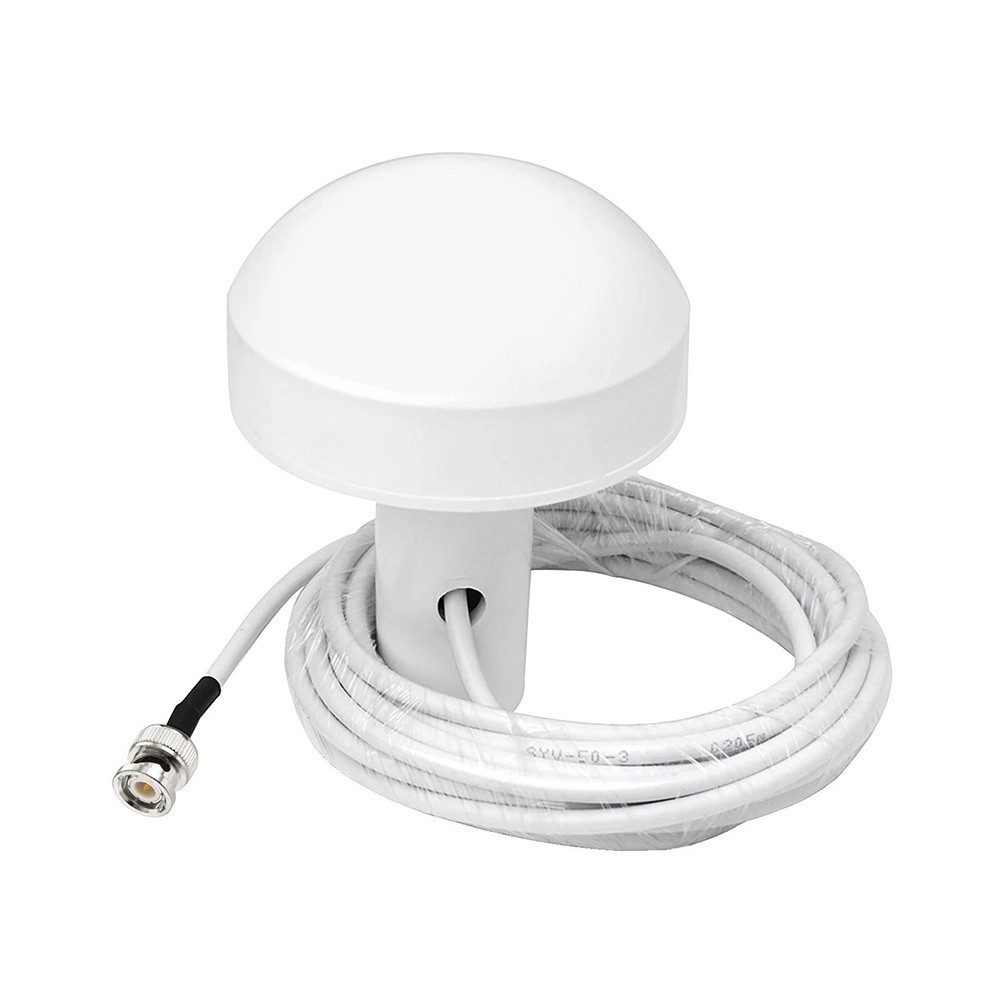

Cable Length: 5 m (16.5 ft)
Connector Type: BNC Male

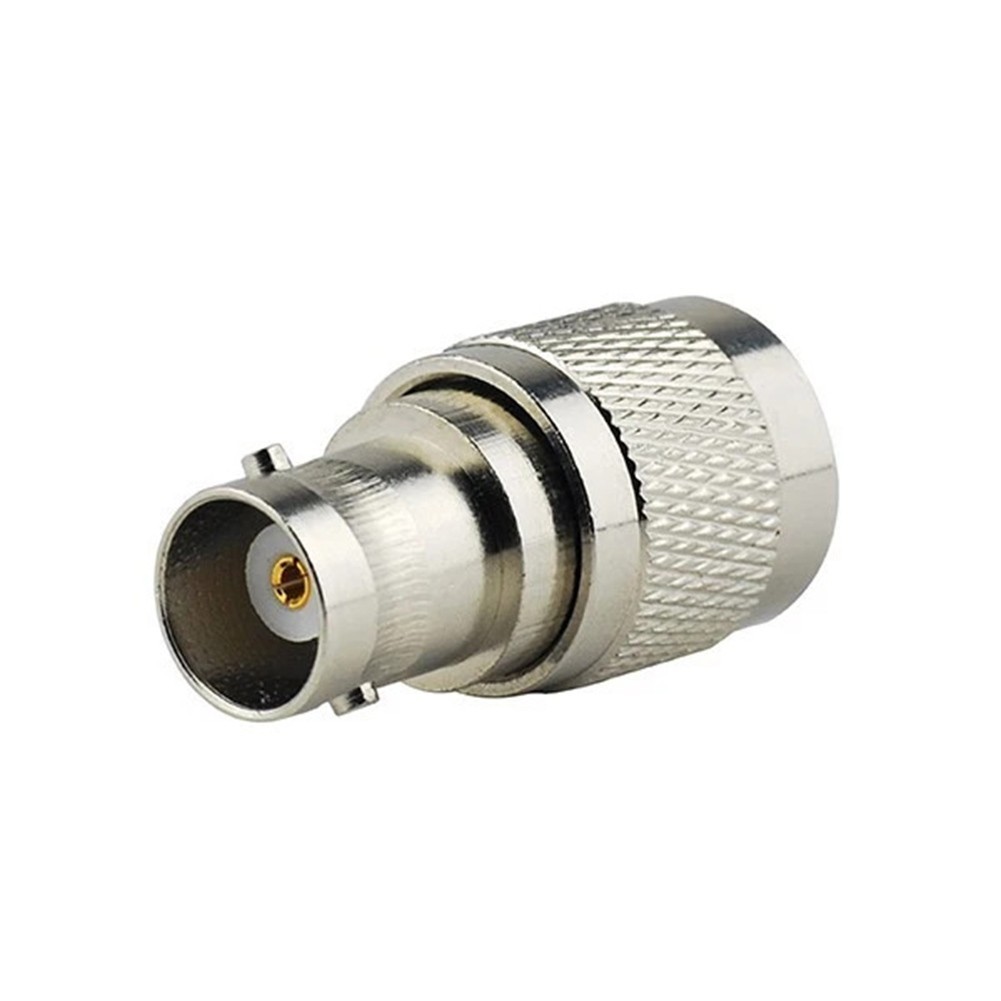

Accessory Adapter: TNC Male to BNC Female
Impedance: 50 ohms
Ingress Protection: IPX7
Material: Nylon
Color: White
Base Size: 6.5 cm × 9.3 cm ( for 2 1/ for 2 in × 3 9/16 in)
Vertical Height (from Base) Thread Length: 110 mm
Screw Hole Inner Diameter: Approximately 8 mm Standard marine threads, compatible with all antennas with 1- to 14-inch threads.
Compatible GPS navigation models: (listed below)
GPSMAP 178, 178C, 180, 182, 182C, 185, 188, 188C, 192C, 196, 198C
GPSMAP 200, 205, 210, 215, 220, 225, 230, 232, 235, 238, 278, 292, 295, 296, 298C depth sounders
GPSMAP 376C, 378, 396
GPSMAP 420, 420s, 421, 421s, 430, 430s, 431, 431s, 440, 440s, 441, 441s, 478, 492, 495, 496, 498C depth sounder
GPSMAP 520, 520s, 521, 521s, 525, 525S, 526, 526S, 530, 530S, 531, 531S, 535, 535S ,536,536S,540,540S,541,541S,545,545S,546,546S,550,550S,555,555S
GPSMap 720, 720S, 740 740S
For MAP 205
For NavTalk for pilot
For StreetPilot ColorMap, StreetPilot III GPS
For GP-1650 GP-1650W GP-1650WD GP-1650WF GP-1650WDF GP-1850 GP-1850W GP-1850WD, GP-1850WF, GP-1850WDF, GP80, GP80P, GP150, GP150D, NX300D
For Panasonic HP-33A, HP-628A, HP-828A, HP-1228A, HA-102
Package Contents:
1 x
1 x Connector Adapter

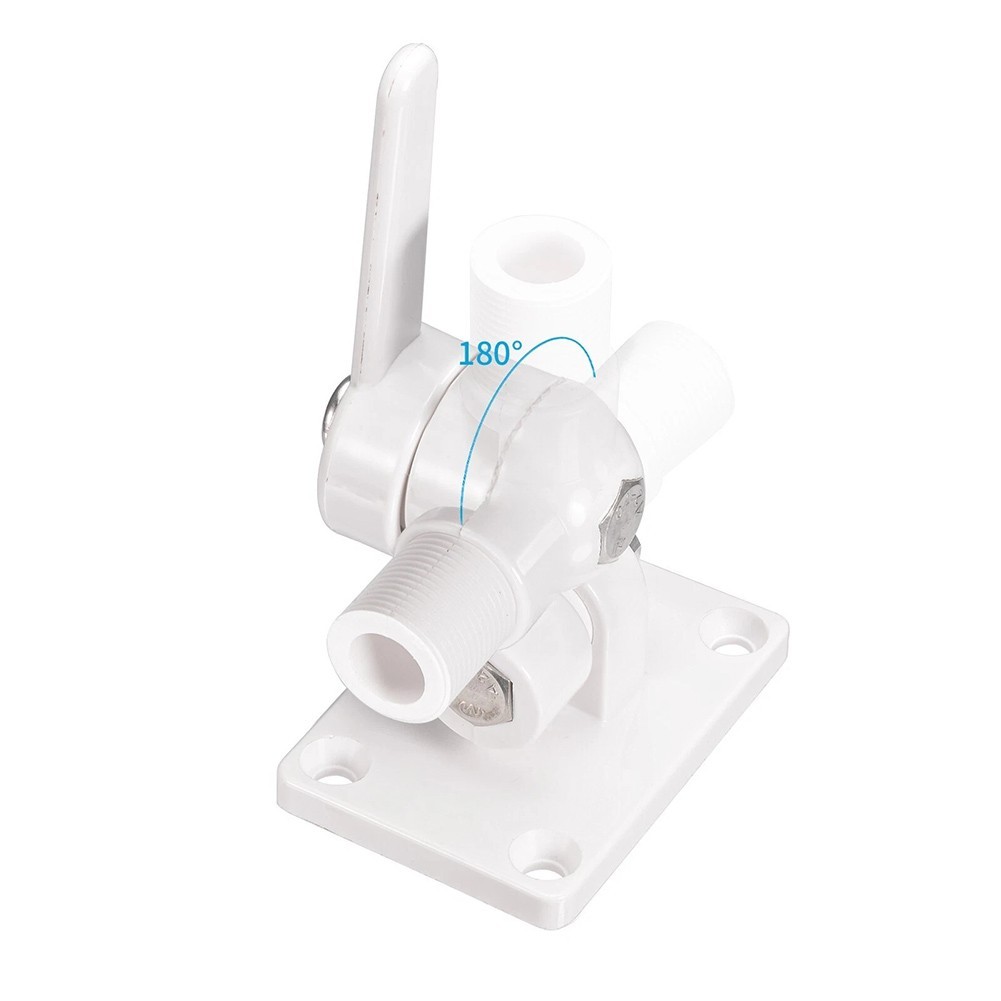

1 x Marine VHF Bracket
Note：
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
for 2.Please allow slight manual measurement deviation for the data.
