Breadboard Kit with Power Supply Module 2pcs 830 Point 2pcs 400 Point Solderless
- Package include: you will reveive 10 pieces high quality Solderless Breadboard Assortment Kit, including 2pcs Power Supply Module, 2Pcs 830 Tie-Points+2Pcs 400 tie-Points Breadboard, 2pcs Jumper Wires Battery Clip+2set 65pcs Flexible Breadboard Jumper Wires.

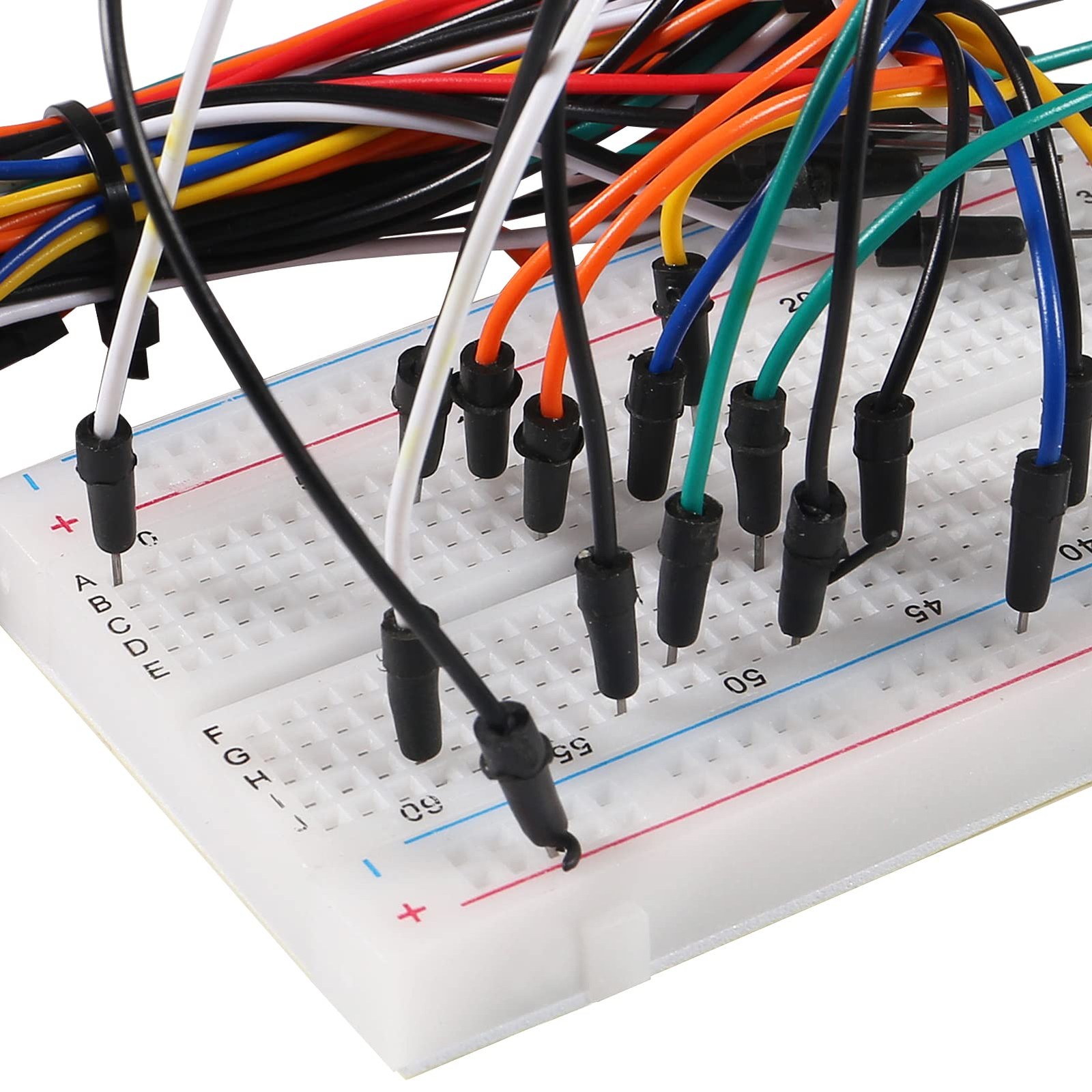

- 830 Tie-Points&400 Tie-Points Breadboard: these 830 tie points breadboards and 400 tie-points breadboards are made with white ABS plastic body with black printed legend. with self-adhesive tape on its back, could connect any components with 20-29 Awg (0.3-0.8mm) wire.
- Breadboard Jumper Wires: there are 2 sets (total 130pcs) Flexible Breadboard Jumper Wires with assorted lengths wires 4 different lengths of male to male breadboard jumper wires including 12cm, 16cm, 20cm, 25cm.
- Wide application:this kit can be used for Arduino robot, SCM power expansion, electronic building blocks, intelligent car, etc. The breadboard wires accept resistors, capacitors, transistors, diodes, LEDS, pots and most all other types of components.
- Easy to install: the breadboard is made of ABS plastic, each row and columns has corresponding letters and numbers, reduce the mistake handling. No welding and tool required, convenient for experiment and DIY projects.
Features:High quality solderless breadboard assortment and jumper wires kit is ideal choice for setting up a trial circuit, prototype or experimenting. These products are durable and reusable, a popular choice for construction or repair, suitable for Arduino breadboard and electronic project.
Product Specification
Breadboards：
Breadboard color: White
Material: ABS Plastic Panel, Tin Plated Phosphor Bronze Contact Sheet
400 Points breadboard size: 3.2 x 2.1 x 0.3 inch/ 82 x 55 x 9 mm
830 Points breadboard size: 6.5 x 2.1 x 0.3 inch/ 165 x 55 x 8.5 mm

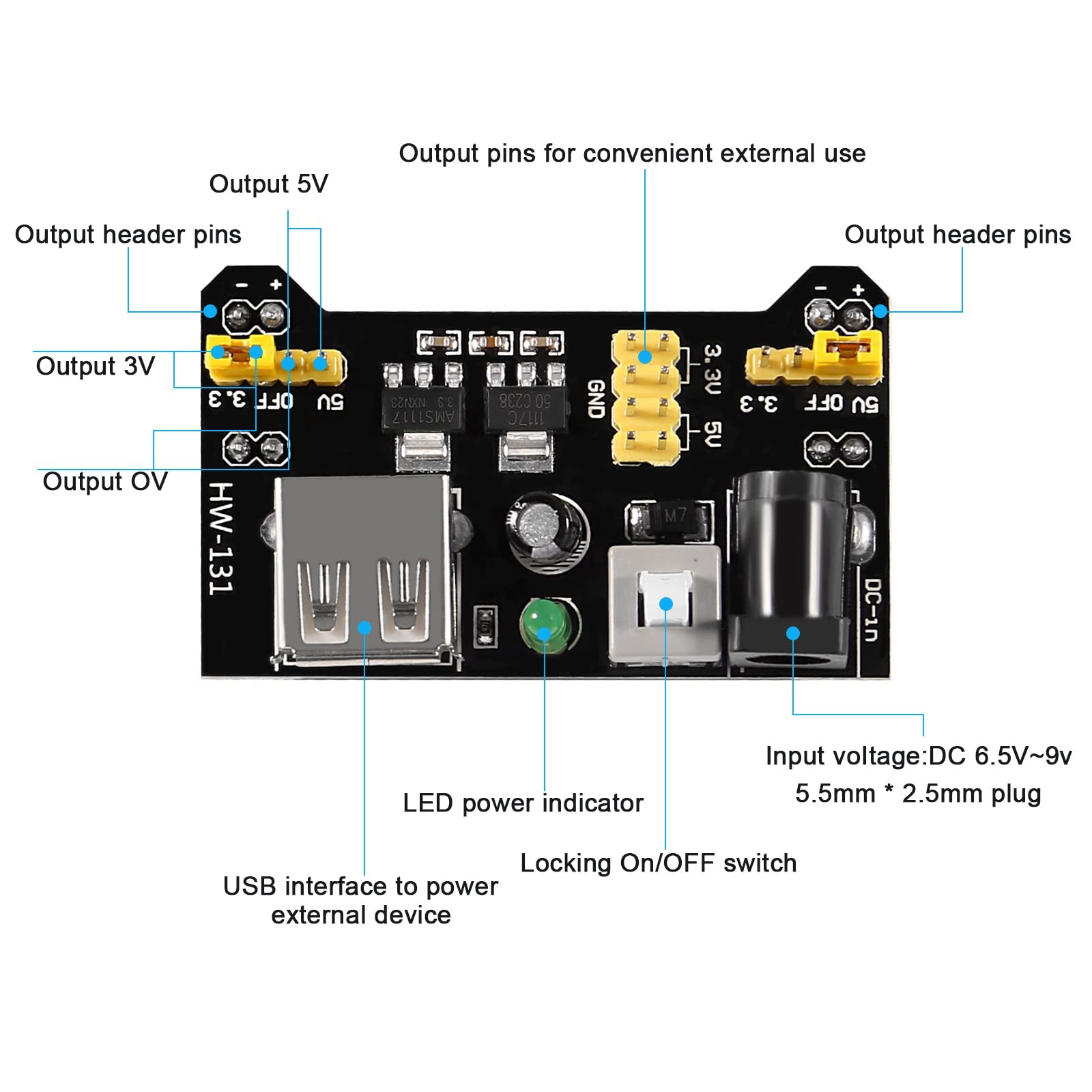

Power Supply Module:
Size:53mm x 35mm
Apply to breadboard，compatible with 5 V, 3.3 V
Input voltage: 6.5-12 V (DC) or USB power supply
Output voltage: 3.3V/5V can switch over
Maximum output current: <700 ma
Fluctuation two road independent control, can switch over to 0 V, 3.3 V, 5 V. On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.
Jumper Wires:
Quantity: 2 sets(65pcs for each set)
Material: High-grade copper core
Cable Length: About 8 inch / 20cm
Voltage / Current: 300V/3-5A
Color: assorted colored
Battery Clip:
Type: T Type Battery Clip
Male DC Plug：2.1mm X 5.5mm
Application: 9V batteries and 9V snap battery holders
Package includes:
2PCS 830 Tie-Points Breadboard
2PCS 400 Tie-Points Breadboard
2PCS Power Supply Module
2PCS Jumper Wires Battery Clip
2Sets Flexible Breadboard Jumper Wires
