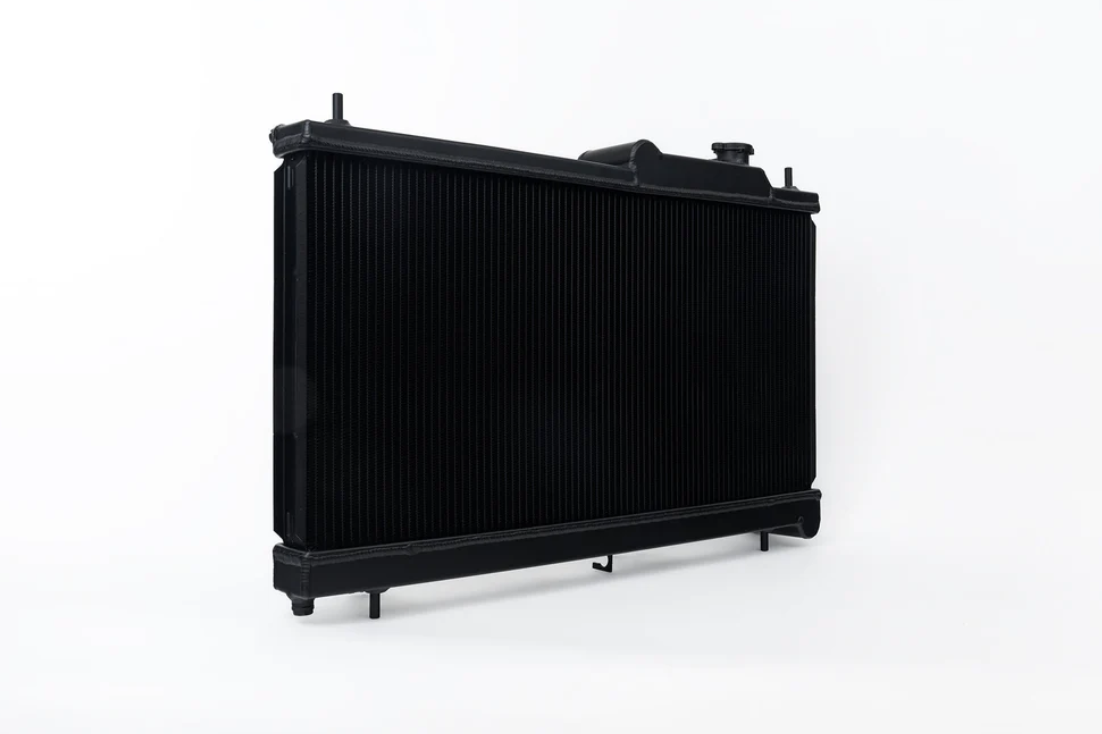

CSF Race-Spec Radiator Black For Subaru WRX / STI / 15-21 Subaru WRX 2-Row

boostprojects

$485

CONTACT SELLER SEE ON EBAY

boostprojects

$485

DESCRIPTION

CSF Race-Spec Radiator Black For Subaru WRX / STI / 15-21 Subaru WRX 2-Row

BRAND NEW IN BOX

PRODUCT DESCRIPTION :

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your WRX/STI running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab. The CSF WRX/STI radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.

FITMENT :

For 2015-2021 Subaru VA WRX STI Turbocharged 2L H4
For 2015-2021 Subaru VA WRX Turbocharged 2L H4
For 2005-2009 Subaru 3rd Gen Outback XT Limited H4 (Manual)
For 2005-2009 Subaru 3rd Gen Outback XT H4 (Manual)
For 2008 Subaru 3rd Gen Outback Touring H4 (Manual)
For 2008 Subaru 3rd Gen Outback Premier H4 (Manual)
For 2005-2008 Subaru 3rd Gen Outback Limited H4 (Manual)
For 2005 Subaru 3rd Gen Outback İ H4 (Manual)
For 2005-2009 Subaru 3rd Gen Outback H4 (Manual)
For 2009 Subaru 3rd Gen Outback 2.5i Special Edition H4 (Manual)
For 2008 Subaru 3rd Gen 2.5i Limited L.L. Bean Edition H4 (Manual)
For 2006-2009 Subaru 3rd Gen 2.5i Limited H4 (Manual)
For 2008 Subaru 3rd Gen Outback 2.5i L.L. Bean Edition H4 (Manual)
For 2007 Subaru 3rd Gen Outback 2.5i Basic H4 (Manual)
For 2006-2009 Subaru 3rd Gen Outback 2.5 H4 (Manual)
For 2008 Subaru 3rd Gen Outback 2.5 XT H4 (Manual)
For 2008 Subaru 4th Gen Legacy Touring H4 (Manual)
For 2005-2008 Subaru 4th Gen Legacy Limited H4 (Manual)
For 2005 Subaru 4th Gen Legacy İ H4 (Manual)
For 2006-2009 Subaru 4th Gen Legacy GT spec.B H4 (Manual)
For 2005-2009 Subaru 4th Gen GT Limited H4 (Manual)
For 2005-2008 Subaru 4th Gen GT H4 (Manual)
For 2009 Subaru 4th Gen Legacy 2.5i Touring H4 (Manual)
For 2007-2009 Subaru 4th Gen Legacy 2.5i Special Edition H4 (Manual)
For 2007-2009 Subaru 4th Gen Legacy 2.5i Limited H4 (Manual)
For 2006-2009 Subaru 4th Gen 2.5i H4 (Manual)
For 2008-2014 Subaru GR/GV Impreza WRX STI Turbocharged 2.5L H4 (Manual)
For 2008-2014 Subaru GR/GV Impreza WRX Turbocharged 2.5L H4 (Manual)
For 2012-2016 Subaru GR/GV Impreza Touring H4
For 2012-2016 Subaru GR/GV Impreza Sport Premium H4
For 2012-2016 Subaru GR/GV Impreza Sport H4
For 2012-2016 Subaru GR/GV Impreza Premium H4
For 2012-2016 Subaru GR/GV Impreza Limited H4
For 2008-2016 Subaru GR/GV Impreza H4
For 2009-2010 Subaru GR/GV Impreza 2.5 GT Turbocharged 2.5L H4 (Manual)
For 2009-2013 Subaru 3rd Gen Forester X Touring H4 (Manual)
For 2009-2013 Subaru 3rd Gen Forester XPremium H4(Manual)
For 2009-2013 Subaru 3rd Gen Forester X H4(Manual)
For 2016-2017 Subaru GT Crosstrek Touring H4
For 2016-2017 Subaru GT Crosstrek Sport H4
For 2016-2017 Subaru GT Crosstrek Premium H4
For 2016-2017 Subaru GT Crosstrek Limited H4
For 2016 Subaru GT Crosstrek Hybrid Touring H4
For 2016 Subaru GT Crosstrek Hybrid H4
For 2016-2017 Subaru GT Crosstrek H4

FEATURES

High-Performance Core Features CSF's Exclusive B-Tube Technology Core Featured Ultra Efficient 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact 100% All-Aluminum TIG-Welded Construction CNC Machined Mounting Brackets Innovative "Multi-Fit" Combo Pipe and Plug Design, Included True "Drop-in Fit" Requires No Modifications to Install Individually Leak and Pressure Tested Black Finish for High-End Stealth Look For Manual Transmission Only Supersedes CSF #7042
