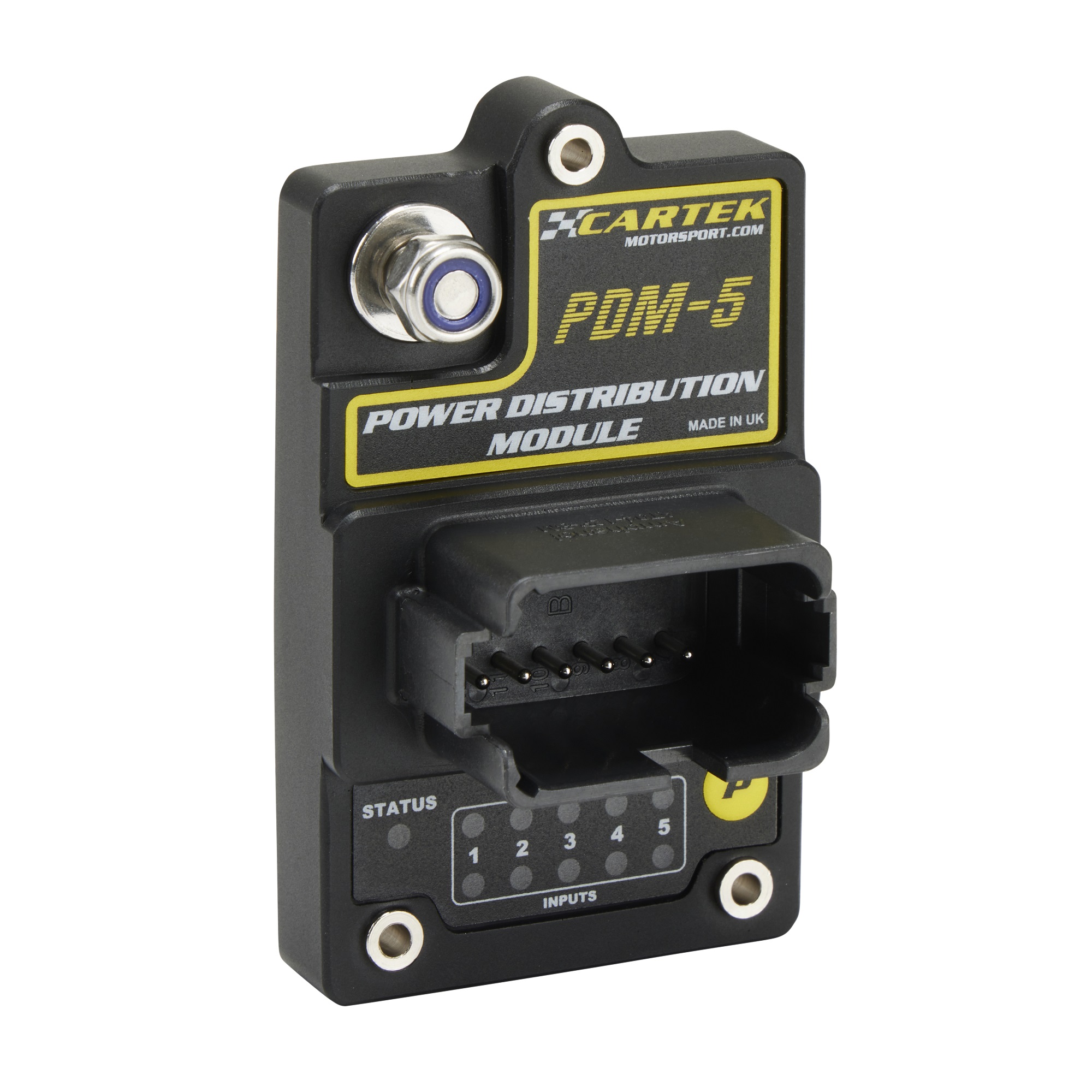

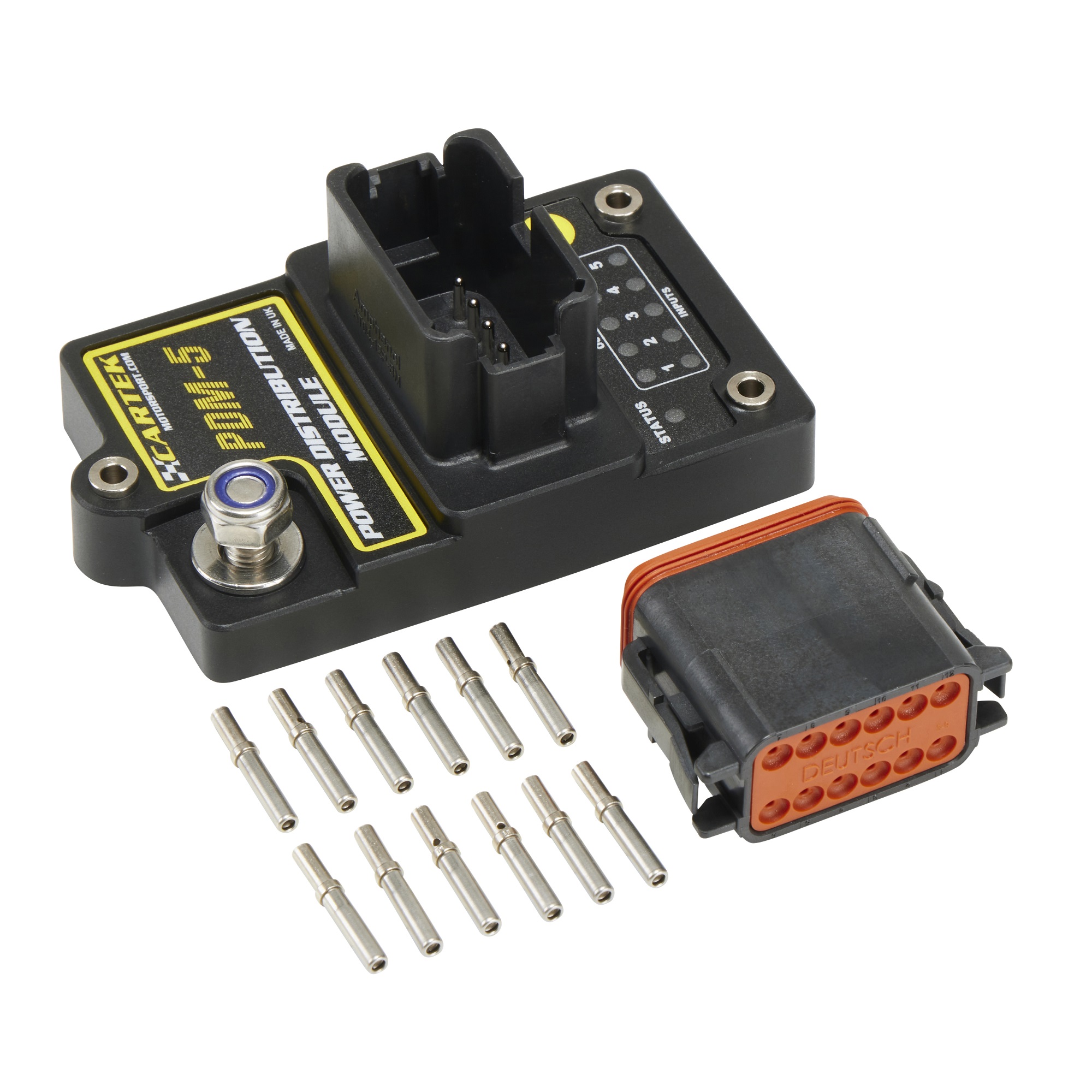

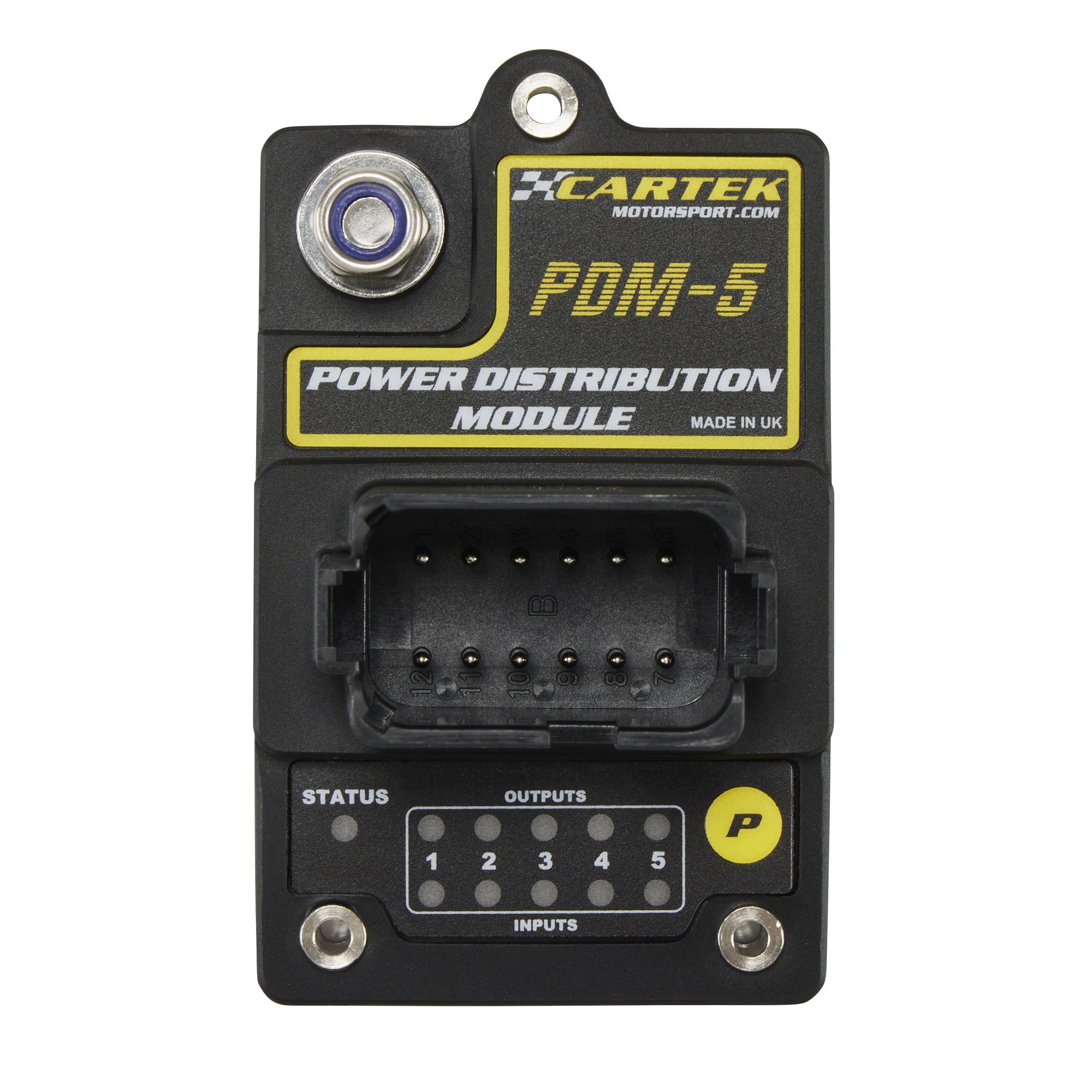

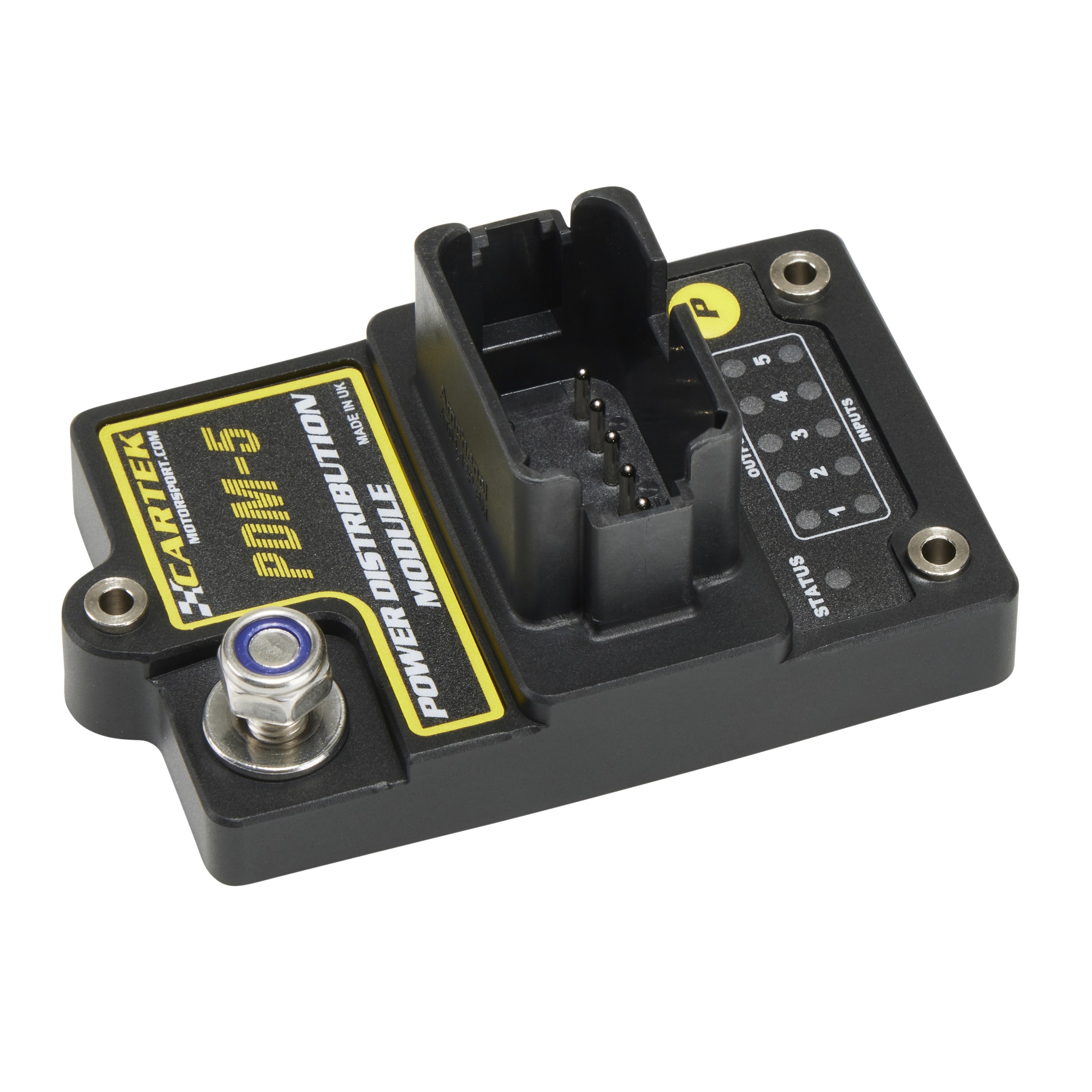

Cartek 5 Channel Configurable Power Distribution Module - Lightweight & Compact
The Cartek 5 Channel Configurable Power Distribution Module is a lightweight, compact unit that replaces fuses, relays, and circuit breakers across five independent electrical circuits. Each output is user-configurable up to 20A, with integrated over-current protection, status LEDs, and on-device setup that removes the need for laptops or external tools.
Here’s a breakdown of the key features, how they work, and what you gain from them:
- Compact, fully sealed enclosure: A fully potted construction protects internal components from water, dirt, shock, and vibration, providing long-term reliability in harsh environments and reducing the risk of electrical failure during competition.
- Five independently configurable outputs: Each channel handles up to 20A with selectable current settings in 5A steps, giving you precise control over electrical load management and allowing you to match protection levels to specific circuits.
- Integrated pushbutton configuration: Onboard programming means you can set up and adjust the module without a laptop or special software, saving time in the garage and simplifying mid-event changes.
- Built-in overcurrent and short circuit protection: All outputs are electronically protected against faults, helping you prevent component damage and reducing troubleshooting during faults or wiring issues.
- Selectable soft-start function: Channels can be configured with a soft-start feature to manage high inrush current devices like fans and pumps, avoiding voltage dips and extending component life.
- Versatile input signal options: Control inputs support high or low signal triggers, rising or falling edge detection, and PWM signals up to 200Hz, giving you flexible control integration with a wide range of switches or ECU outputs.
- Multiple output control modes: You can assign channel functions such as flashing, delayed on, or delayed off, which simplifies timed functions like indicators, fan over-run, or heated screen controls without additional timers or relays.
- Configurable auxiliary input: A dedicated Aux pin can be set up as an ignition input from a battery isolator, master switch, or ignition circuit, allowing reliable startup sequencing and circuit logic.
- RGB LED status indicators: Each channel features input and output status LEDs with colour-coded feedback, helping you monitor circuit health and function quickly without external diagnostic tools.
- CAN data stream diagnostics: Output status and fault information can be transmitted over CAN, enabling real-time monitoring and logging of electrical behaviour via your existing data system.
Bulky fuse and relay boxes take up space, add weight, and complicate wiring in a race car. This PDM replaces all of them with a single, compact unit that simplifies installation and maintenance. You can configure each of the five channels directly on the module to control devices like lights, fans, wipers, and heaters, without extra timers or relays. With built-in protection and flexible input options, you reduce wiring complexity while improving system reliability.
Fit a compact PDM that lets you take control of five circuits without external programming tools or extra hardware. Replace relays, fuses, and circuit breakers with a single unit that is reliable, easy to install, and simple to configure.
Dimensions: 87 x 52 x 35mm
