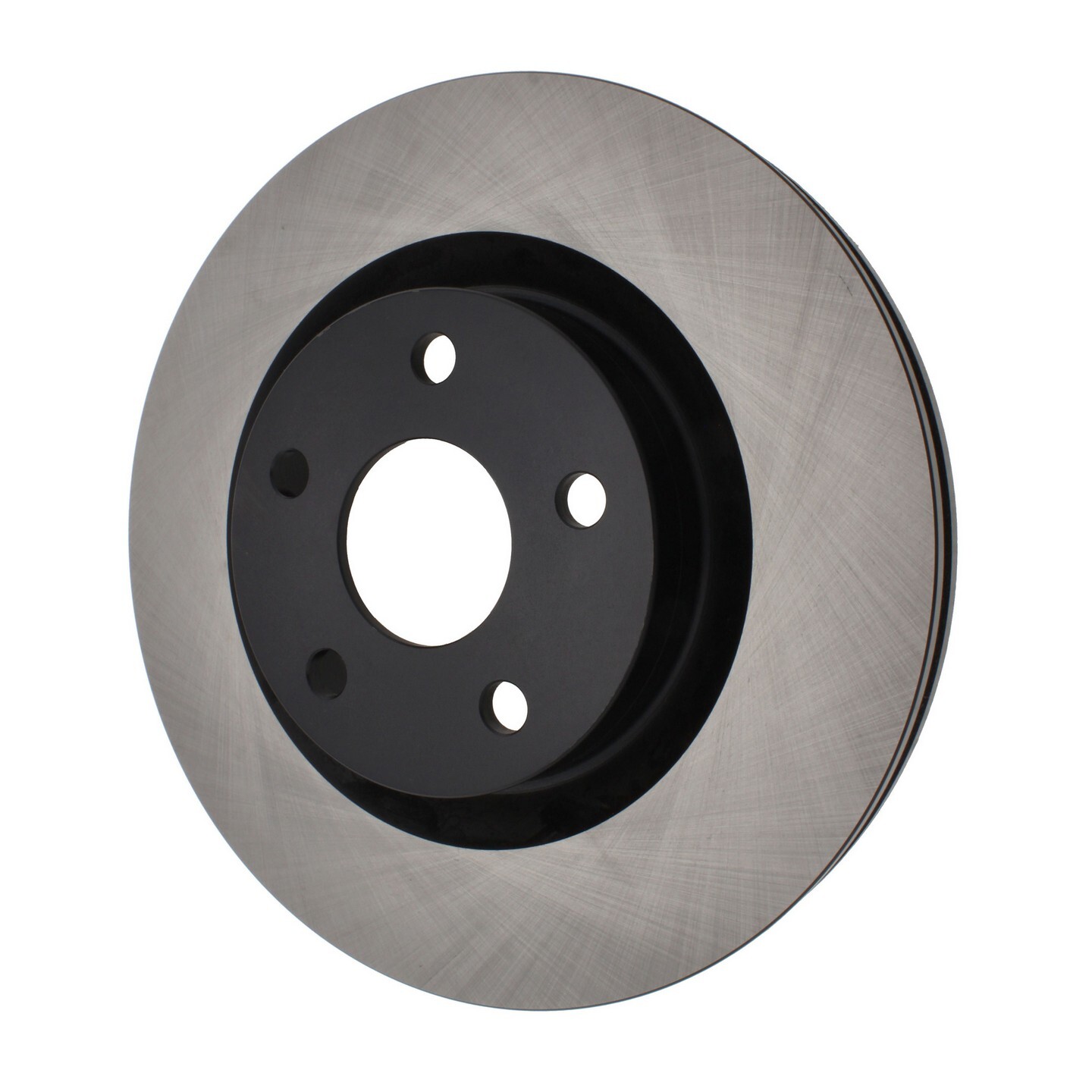

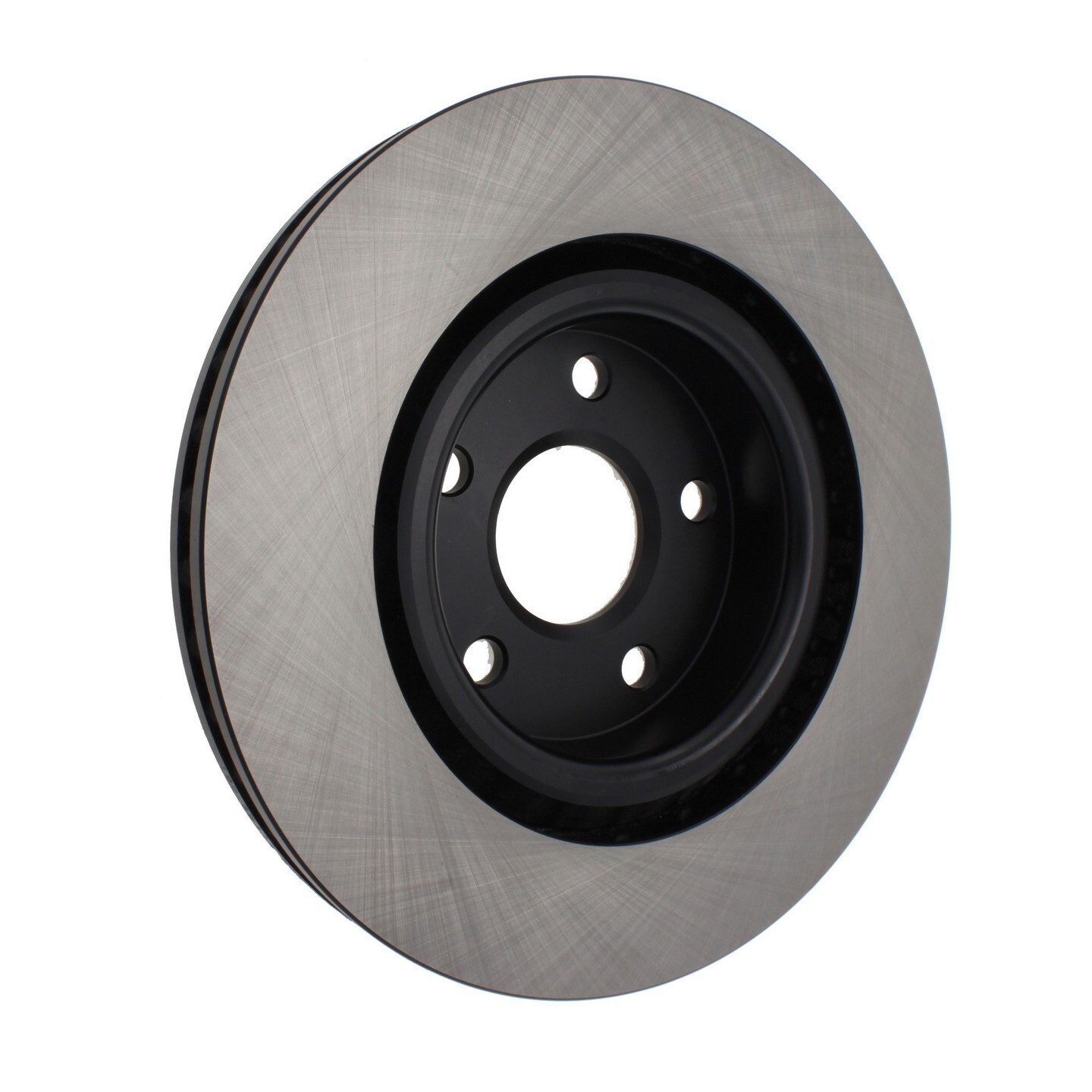

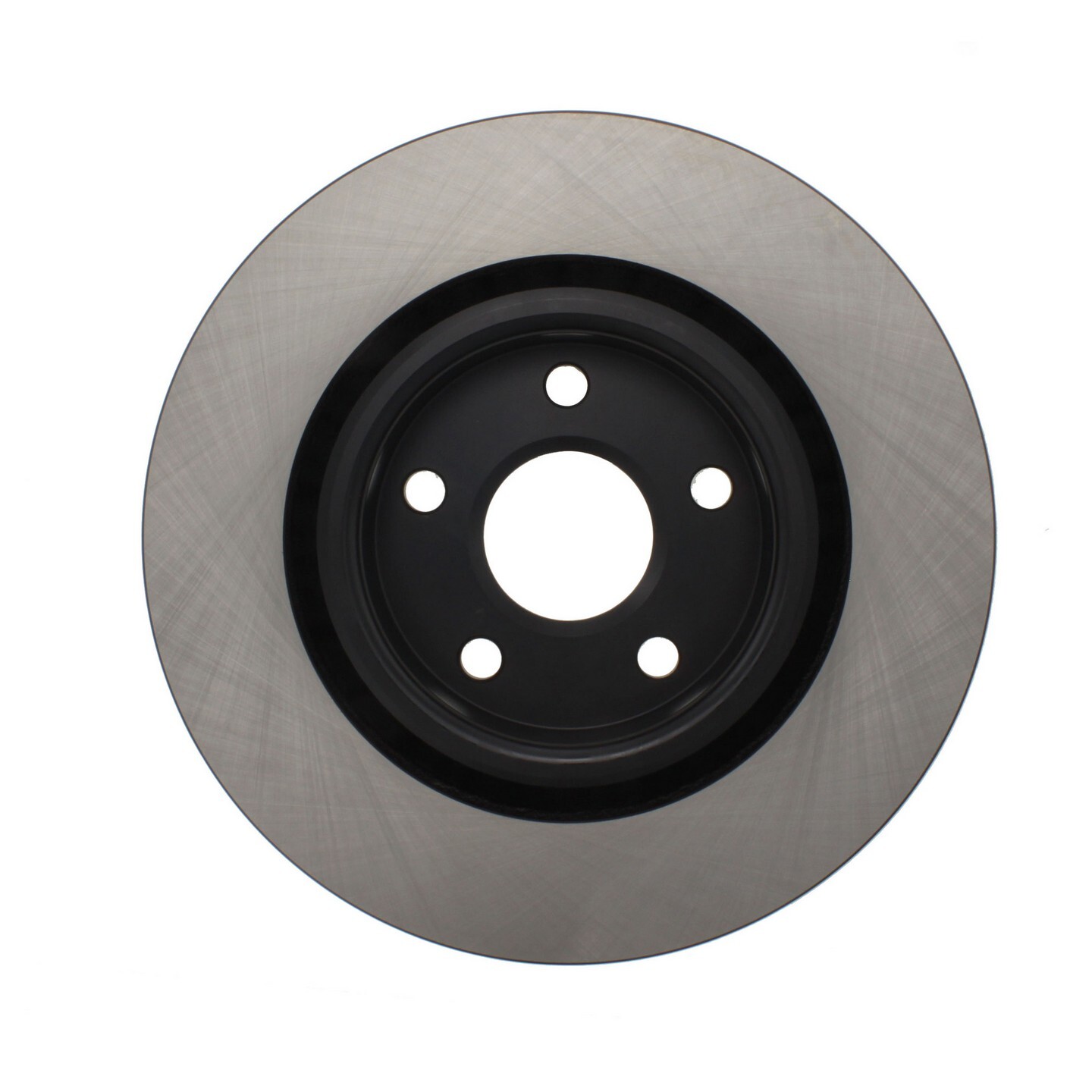

Centric Front Disc Brake Rotor for 08-09 G8 (120.62114)
Fitment Chart:
| Years | Make | Model | Liters | Cylinders | Notes |
|---|
| 2008-2009 | Pontiac | G8 | 6.0L | V8 | 321mm dia |

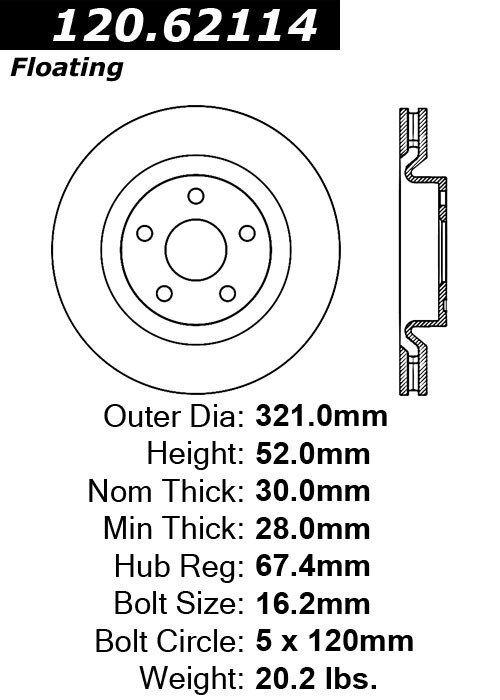

Specifications:Part Category: Disc Brake Rotor
Brand: Centric
Manufacturer Part Number: 120.62114
Vehicle Position: Front
Placement on Vehicle: Front
Label: Centric Premium Disc Brake Rotors
Product Type: Factory Replacement
Type: Disc Brake Rotor
Number of Pieces: 1
Discard Thickness: 1.102
Discard Thickness: 28
Discard Thickness: 28.000
Nominal Thickness: 1.181
Nominal Thickness: 30
Nominal Thickness: 30.000
: 120
Hat Finish: Coated
Bolt Hole Quantity: 5
Overall Height: 2.047
Overall Height: 52.000
Outside Diameter: 12.642
Outside Diameter: 321.1
Outside Diameter: 321.100
Height: 52
ABS Tone Ring Included: No
Surface Type: Smooth
Solid Or Vented Type Rotor: Vented
Bearings Included: No
Center Hole Diameter: 2.654
Center Hole Diameter: 67.400
Mounting Bolt Hole Circle Diameter: 120.000
Mounting Bolt Hole Circle Diameter: 4.724
Stud/Lug Hole Quantity: 5
Stud/Lug Hole Diameter: 0.638
Stud/Lug Hole Diameter: 16.200
Disc Mounting [cntrc]: Floating
Hub Hole/Whl Reg mm: 67.4
Misc Holes [cntrc]: 0
Mounting Type: Floating
Important Information:
- Product Notes - If the product notes states "with" or "without", this means this will fit if your vehicle is equipped "with" or "without" that feature. For example, if it states "with fog lamps", this means your vehicle must be equipped with fog lamps. This does not mean that fog lamps are included.
HOW TO CHECK VEHICLE FITMENT:
Please use eBay Vehicle Compatibility Guide to determine fitment to your vehicle.
- Select your vehicle using the eBay Compatibility Guide
- Important: Hover or click the Notes section to view additional fitment information
