Features:
*High-Resolution IPS Display: Features a 0.96-inch IPS color LCD with 160-degree wide viewing angle for bright and clear visuals.
*Multi-Parameter Monitoring: Accurately measures voltage, current, power, resistance, and temperature in real-time for comprehensive USB device analysis.
*Data Storage Function: Supports power-off data retention, allowing storage of capacity and energy measurements for reference.

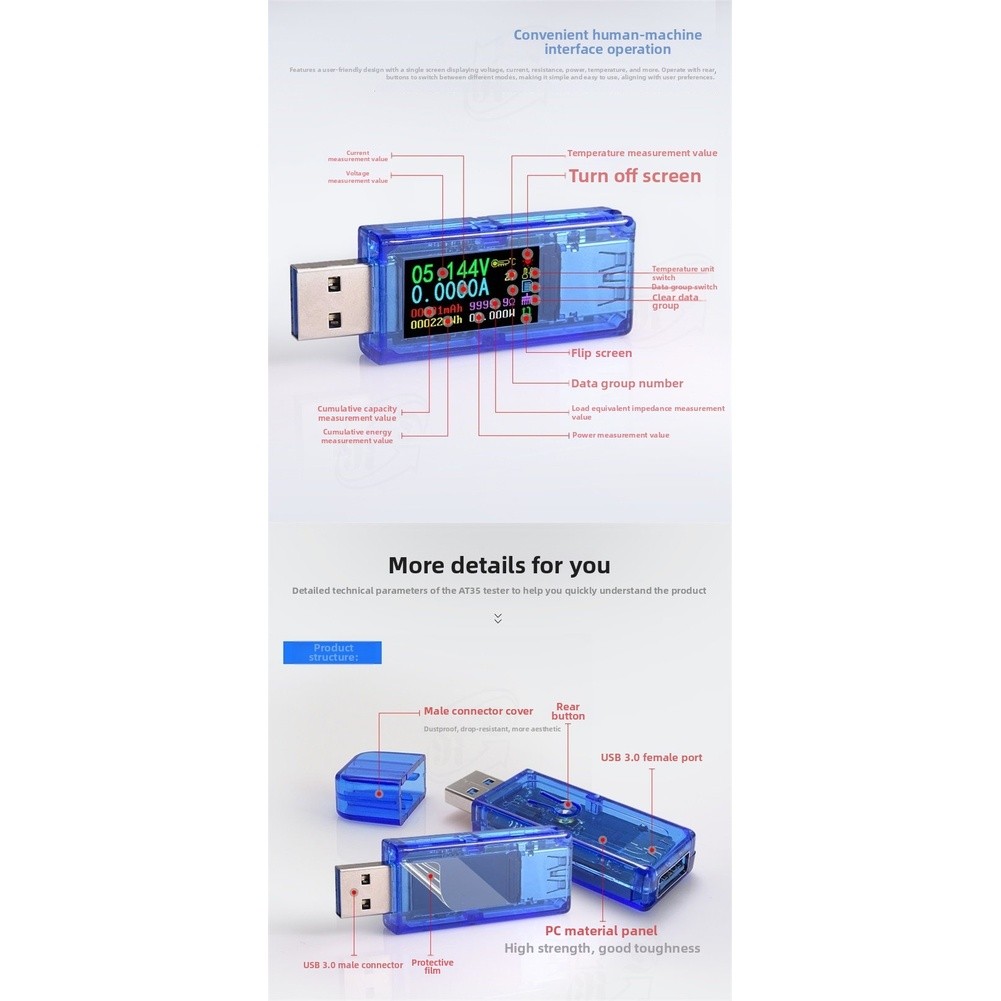

*User-Friendly Interface: Displays multiple metrics on screen with intuitive button controls for easy and quick switching between functions.
*Versatile Testing Capability: Tests mobile power bank capacity and energy efficiently, providing precise calculations for performance evaluation.
Specifications:
*Product Name:Tester
*Material:PC
*Color: Blue
*Size:6.4*2.2*1.1cm

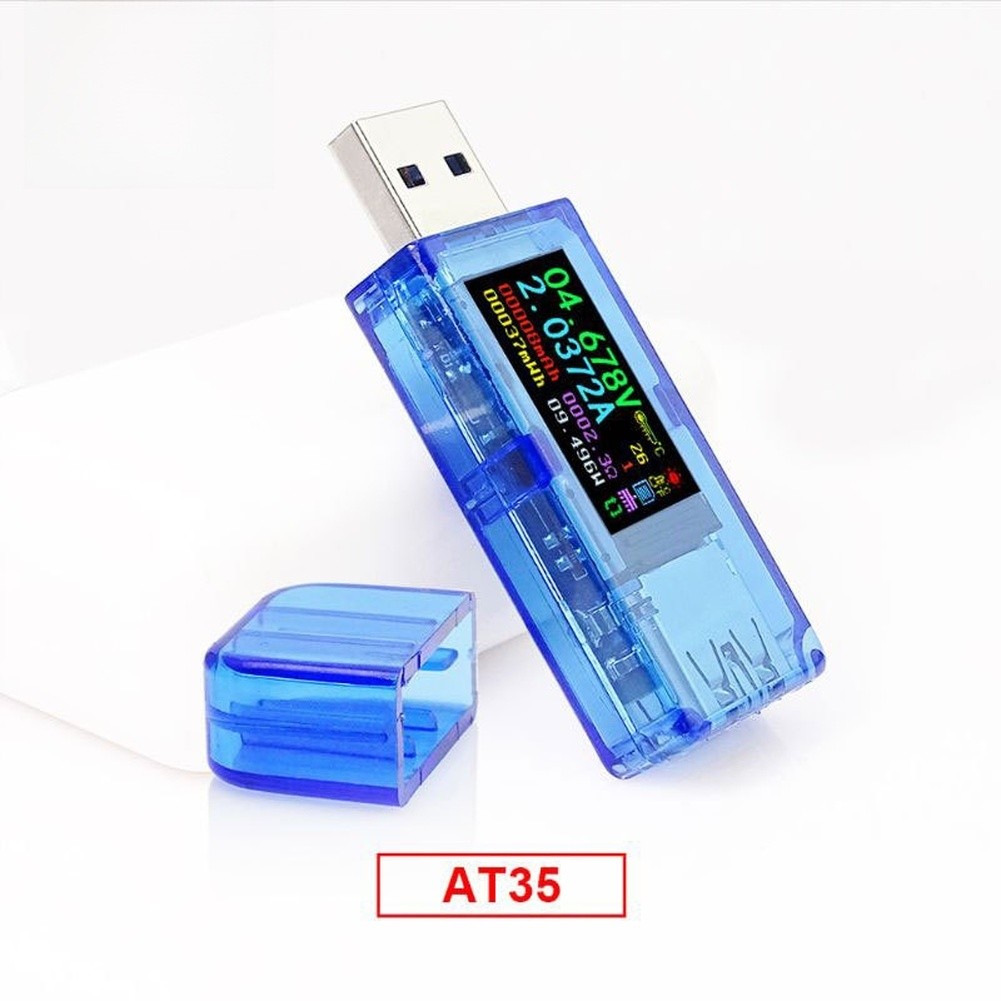

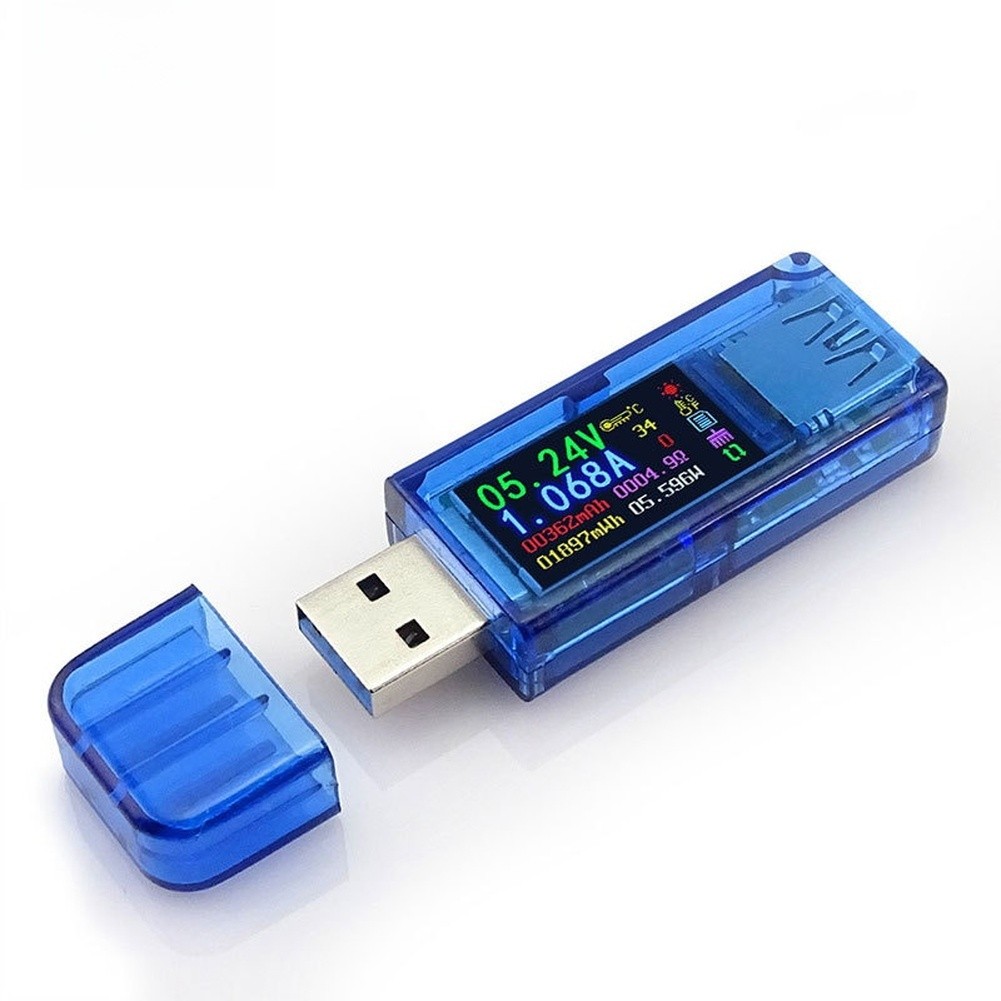

Model: AT35
Display Screen: 0.96-inch IPS color LCD screen
Measurement Voltage: 3.700-30.000V
Voltage Measurement Resolution: 0.001V
Measurement Current: 0-4.0000A
Current Measurement Resolution: 0.0001A
Power Supply Voltage: 3.700-30.000V
Voltage Measurement Accuracy: ±(0.1%+2 digits)
Capacity Measurement Range: 0-99999mAh
Current Measurement Accuracy: ±(0.2%+2 digits) (4 characters) Energy Measurement Range: 0-99999mWh-999.99Wh
Power Measurement Range: 0-120W
Load Impedance Measurement Range: 1Ω-9999.9Ω
Data Refresh Frequency: 0.5Hz
Temperature Measurement Range: 0°C-65°C/32°F-149°F
Operating Temperature Range: 0-45°C/32°F-113°F
Product Dimensions: 64mm x 22mm x 11mm
Product Weight: Approx. 27g (including packaging)
Package Content:
1* Voltage and current meter
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
