Product Features
1. Sensitive sensing, accurately identify the movement of living organisms and non-living organisms, so that the rate of false action is minimized.

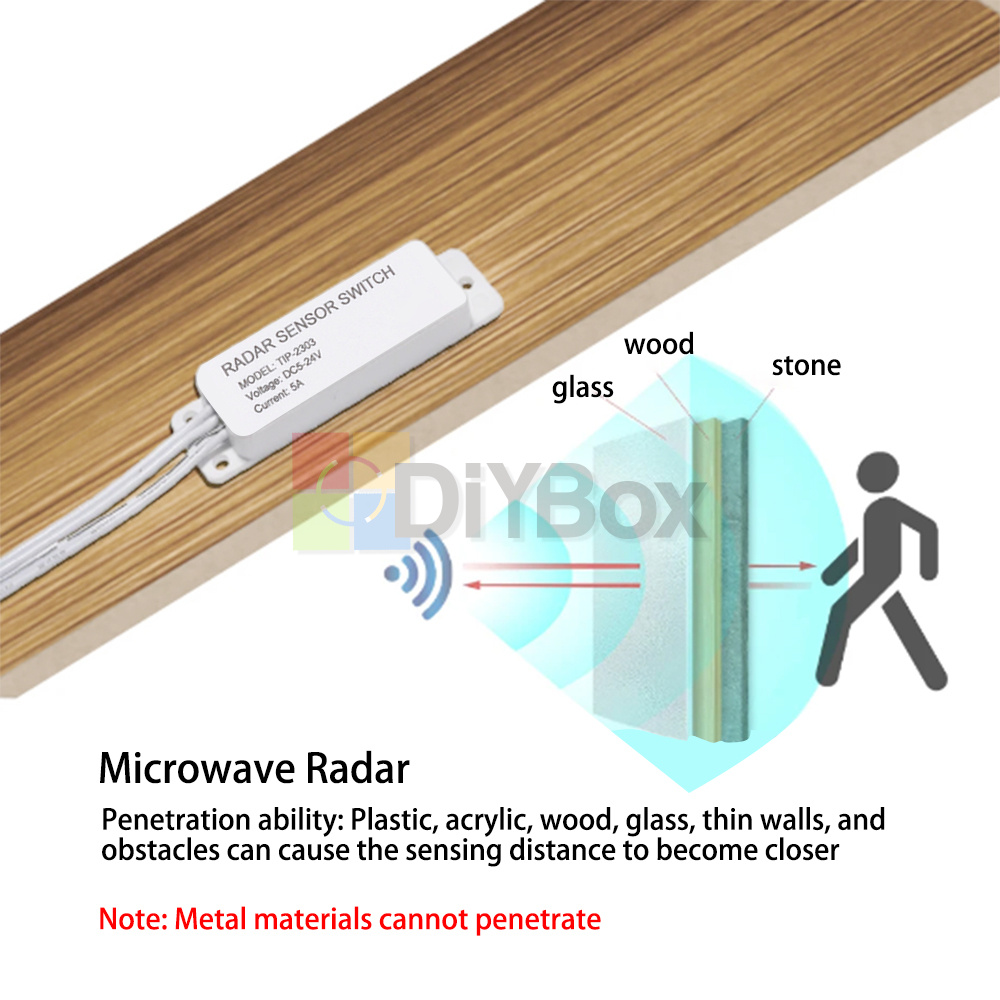

2. Strong anti-interference: adopts 5.8GHz working frequency, little influenced by external natural factors, stable and reliable performance.
3. Automatic light measurement: automatically recognizes the strength of the ambient light, reaches the lighting requirement setting and lights up when there are people, otherwise it doesn't light up.
4. Full-automatic sensing: automatically turn on the light after sensing people, people light up and go out, safe and energy-saving, not subject to sound, objects and other external influences.
5. Wide range of use, suitable for stairs, corridors, cabinets, courtyards, parking lots and so on.
Product Overview
When someone walks into the sensor and reaches the lighting demand, the microwave switch automatically turns on, the load electrical appliances begin to work and start the time delay system, as long as the human body has not left the induction area, the load electrical appliances will continue to work. When the human body leaves the sensor area, the sensor starts to calculate the delay time, and the delay time ends, the sensor switch automatically closes and the load appliance stops working. It is really safe, convenient, intelligent and energy-saving.
Product Parameter

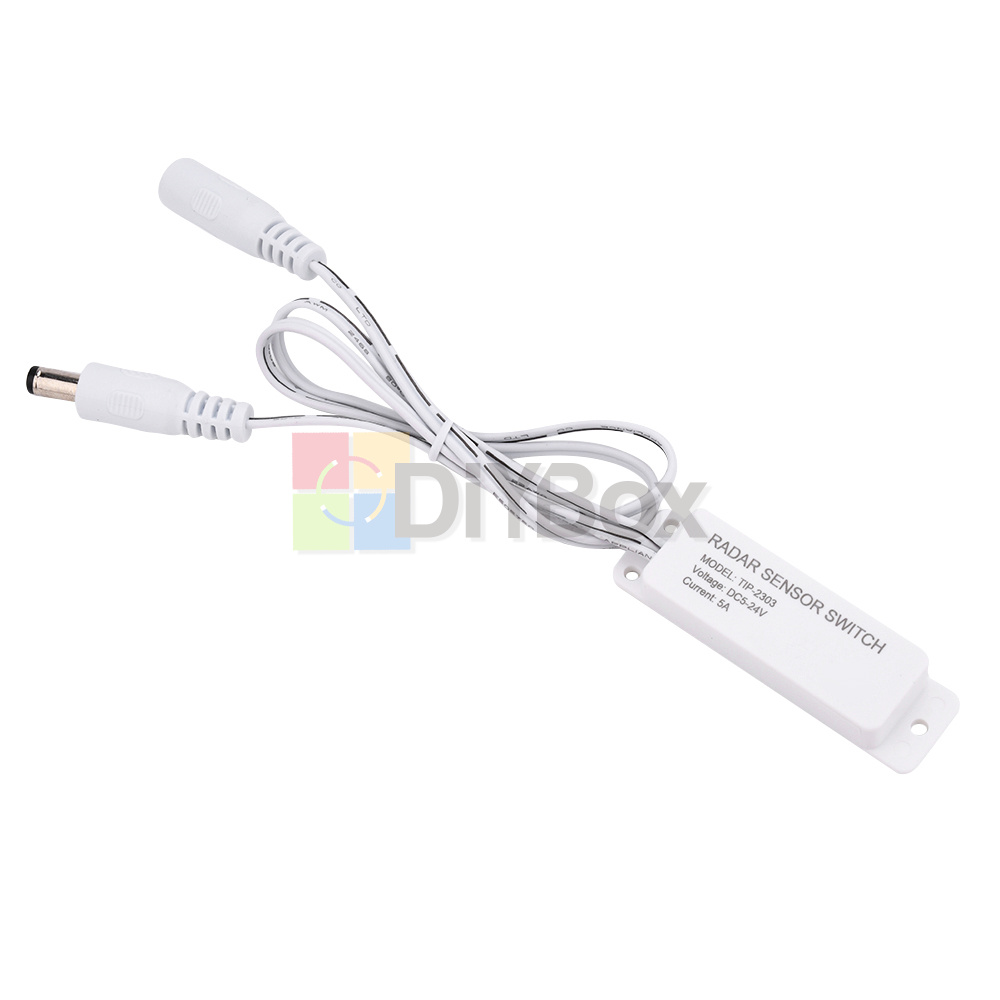

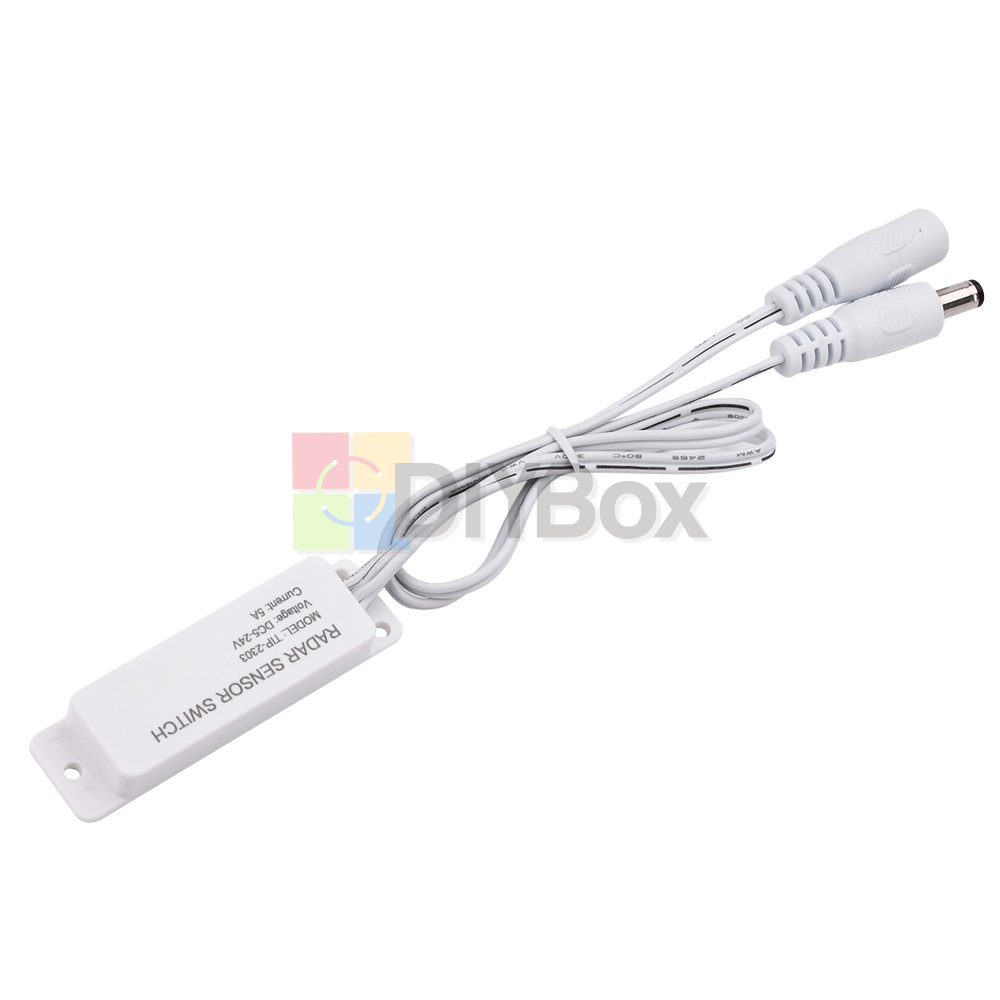

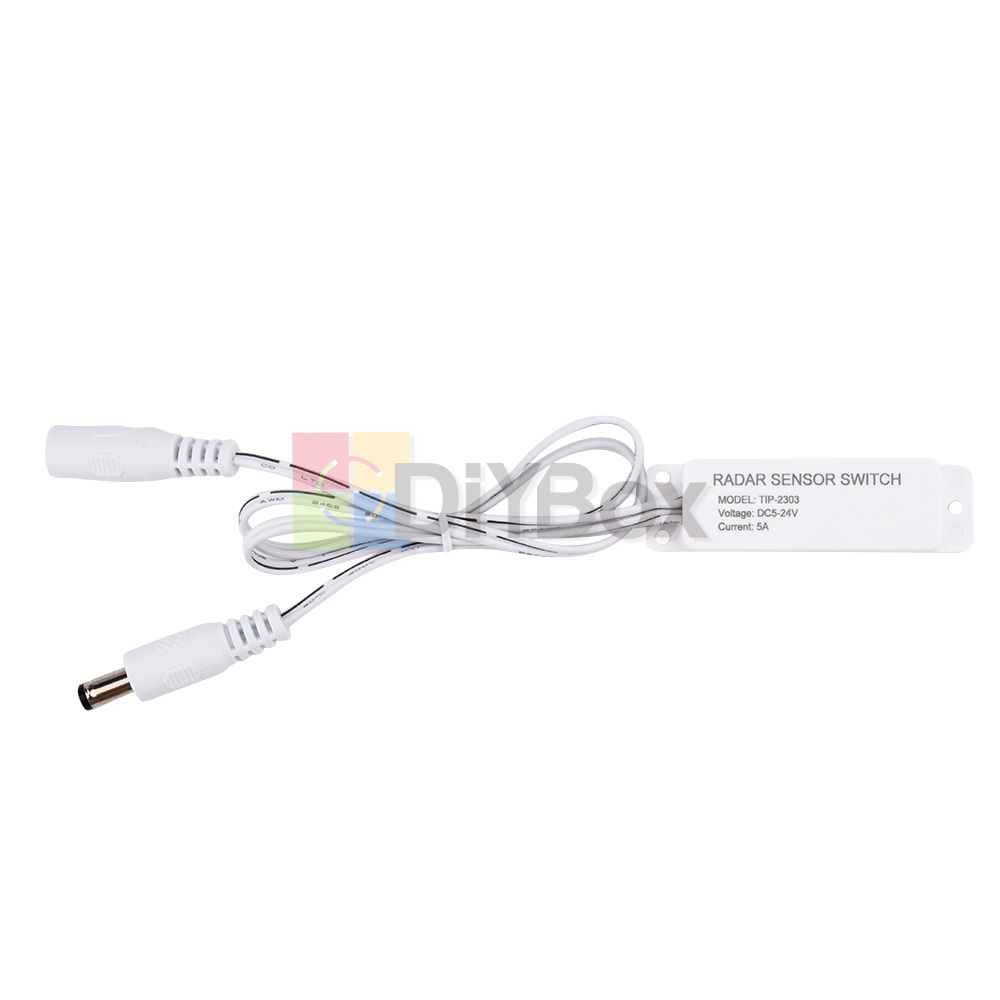

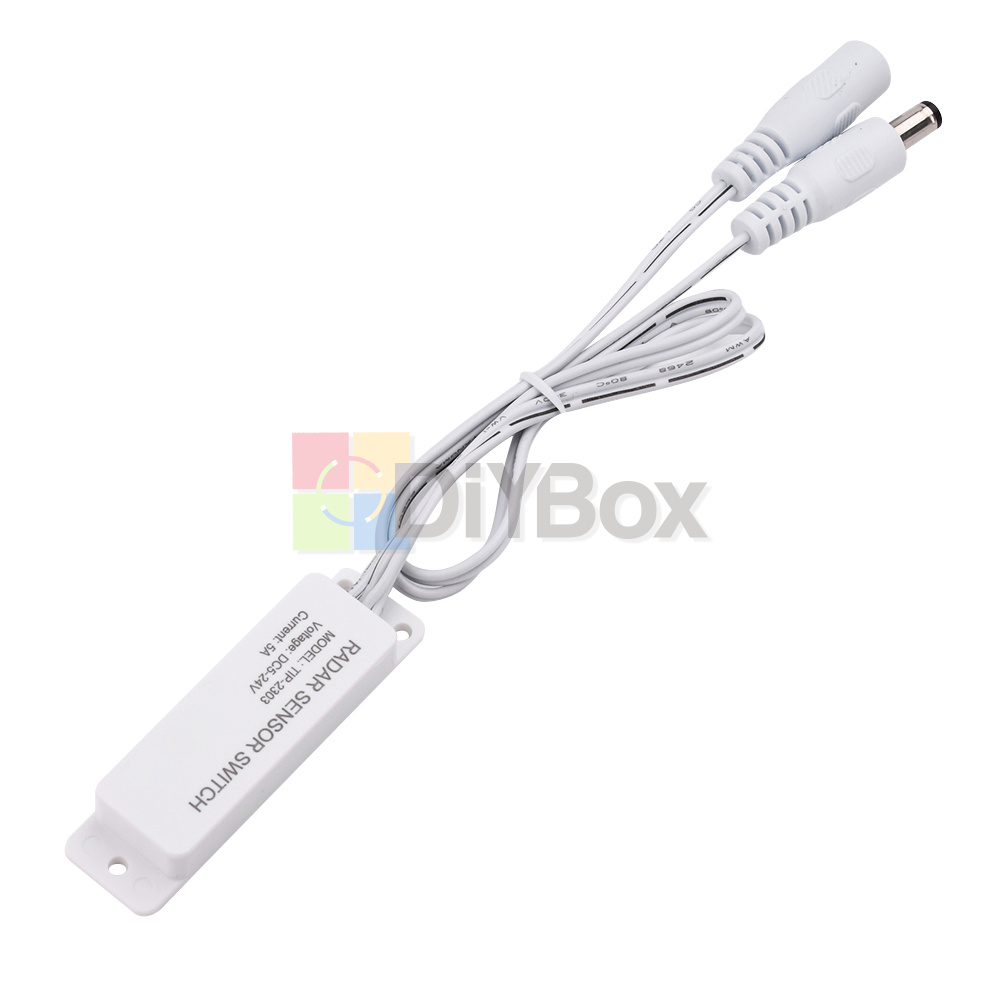

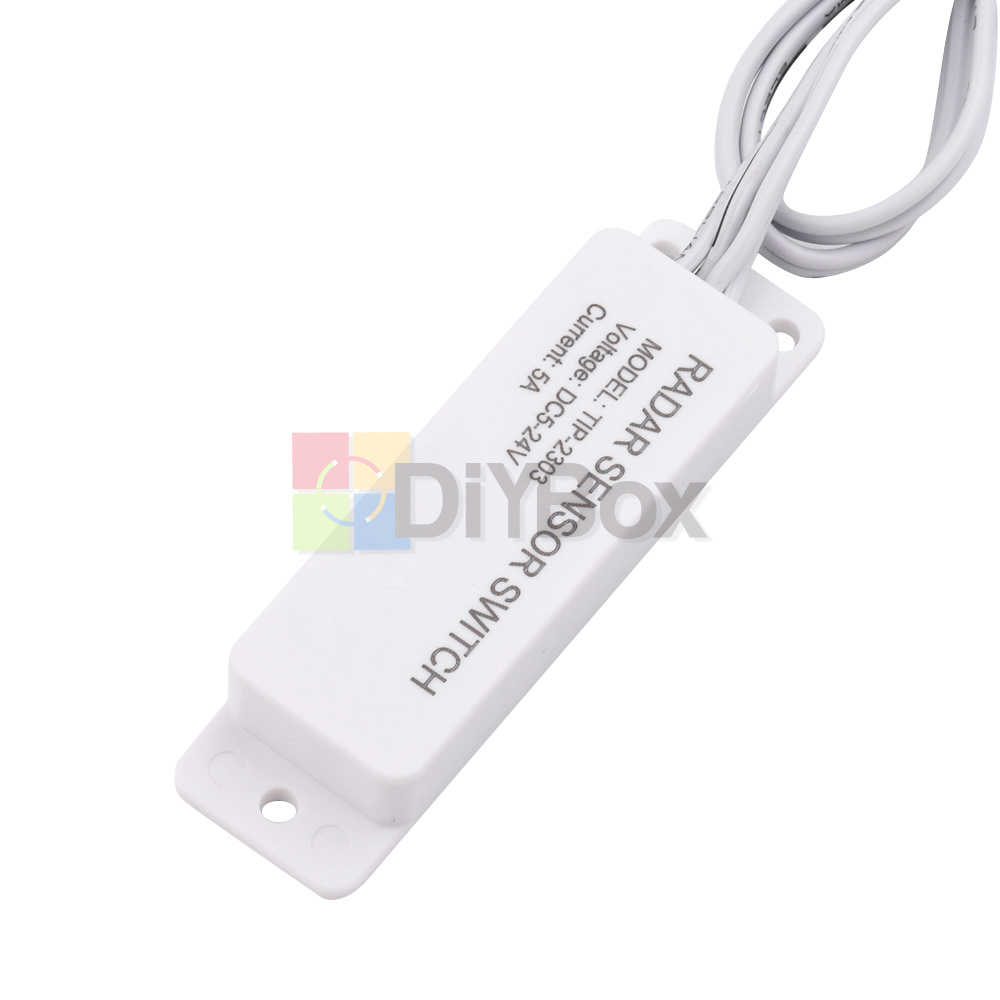

Product Model: TIP-2303
Working voltage: DC5-24V
Working current: Maximum 5A
Standby power consumption: 0.02W
Transmit power: < 10mA
Operating frequency: 5.8GHz
Sensing distance: 5-8 meters
Operating delay: 30 seconds
Dimming: No

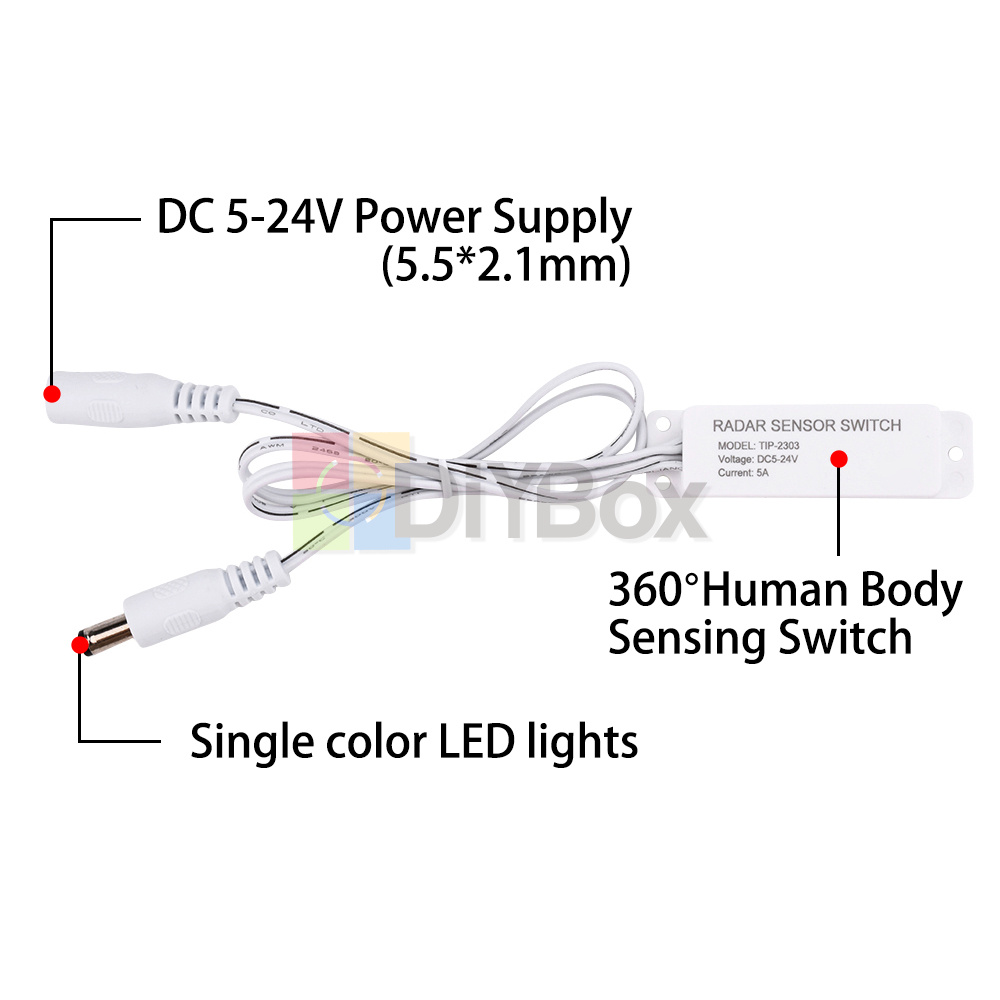

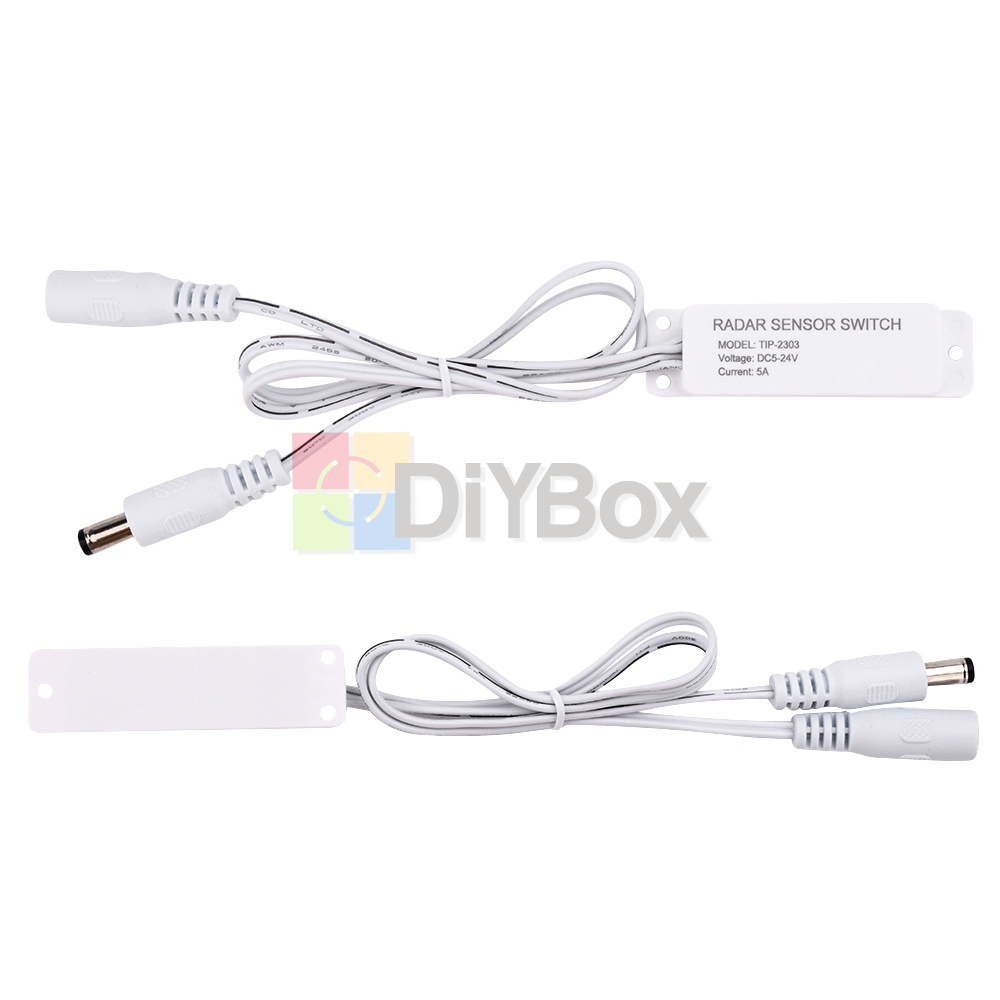

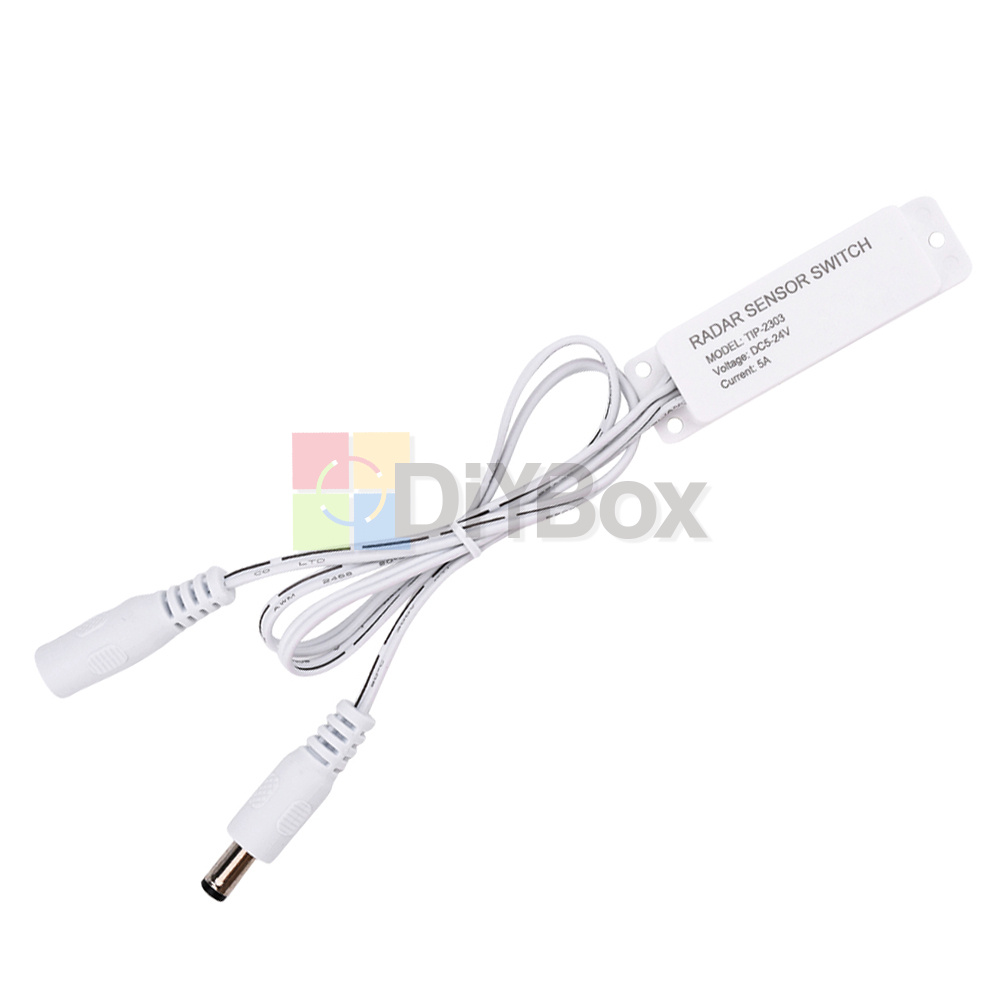

Connection: DC 5521
Load power: 60W
Output power: ≤25W (5V); ≤60W (12V); ≤120W (24V)
Attention
1. Please disconnect the power supply before installation to avoid danger.
2. The product is not waterproof, please pay attention to moisture and waterproof.
3. The microwave induction angle is 360 degrees, please pay attention to the use of the installation method.
4. High voltage inside the product, non-professionals please do not disassemble, or the consequences of their own
Delivery list
Induction switch*1
